MSI Z170A GAMING M3 LGA 1151 Intel Z170 HDMI USB 3.1 ATX Intel Motherboard

REFURBISHED

(2) Write a Review

Intel Z170
Supports 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
* Please refer to MSI CPU Support for compatible CPU; the above description is for reference only.
* Not Compatible with Intel 8th Gen CPUs.
DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz*
* Hyper DIMM support depends on the individual CPU physical characteristics
* Please refer to MSI Compatibility reports for more information of compatible memory

Specs

Reviews (2)

Learn more about the MSI Z170A GAMING M3

Model
Brand	MSI
Model	Z170A GAMING M3

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Supports 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151 * Please refer to MSI CPU Support for compatible CPU; the above description is for reference only. * Not Compatible with Intel 8th Gen CPUs.

Chipsets
Chipset	Intel Z170

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz* * Hyper DIMM support depends on the individual CPU physical characteristics * Please refer to MSI Compatibility reports for more information of compatible memory
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	2 x PCIe 3.0 x16 slots* * The PCI_E4 slot will only run PCIe 3.0 x1 speed when the PCI_E1 or PCI_E3 slot is installed a device.
PCI Express x1	2 x PCIe 3.0 x1 slots
PCI Slots	3 x PCI Slots

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
SATA Express	2 x SATAe port * SATAe port is backward compatible with SATA.
M.2	1 x M.2 Key M Socket supports type 2280/2260/2242 storage devices in both PCIE Gen3 x4 & SATA mode - Supports PCIe 3.0 x4 and SATA 6Gb/s standards, 4.2cm/6cm/8cm length M.2 SSD cards - Supports PCIe 3.0 x4 NVMe Mini-SAS SSD with Turbo U.2 Host Card (optional)* * The Turbo U.2 Host Card is not included, please purchase separately.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1150
Audio Channels	7.1-Channel High Definition Audio Supports S/PDIF output

Onboard LAN
LAN Chipset	Killer E2400
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 6 x USB 3.1 Gen 2 Type-A
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	2 x USB 3.1 Gen2 ports 4 x USB 3.1 Gen1 ports
USB 1.1/2.0	2 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	5 x OFC audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
Other Connectors	2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial port connector 1 x Parallel port connector 1 x Slow mode switch

Physical Spec
Form Factor	ATX

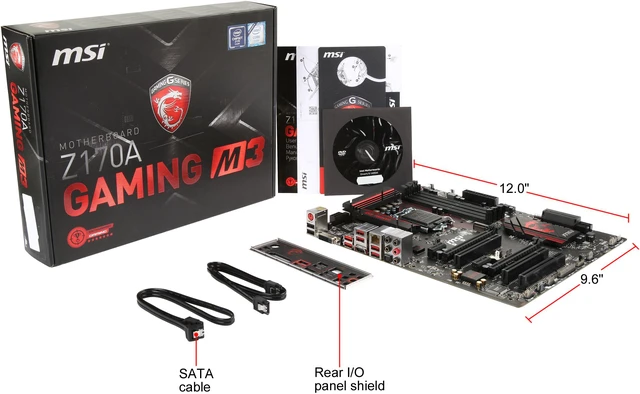

Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket Supports DDR4-3600+(OC) Memory DDR4 Boost: Give your DDR4 memory a performance boost USB 3.1 Gen2 2X FASTER: USB 3.1 Gen2 offers performance twice as fast as a regular USB 3.0 connection Turbo M.2 32Gb/s + Turbo U.2 ready + USB 3.1 Gen2 Type-A + SATA 6Gb/s GAMING LAN with LAN Protect, powered by Killer: The best online gaming experience with lowest latency Audio Boost 3: Reward your ears with studio grade sound quality Nahimic Audio Enhancer: Immersive sound quality that pushes the limits of reality Game Boost: This one goes up to eleven; generate more FPS in games with 1 push of a button GAMING Hotkey: Launch your favorite games with a single button OBS Streaming software: Share your gaming achievements with the world SteelSeries Certified: Optimized for SteelSeries gaming gear Military Class 5: The latest evolution in high quality components featuring the brand new Titanium Chokes MULTI-GPU with VGA Armor: VGA Armor PCI-E slots. Supports AMD Crossfire Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience

Additional Information
First Listed on Newegg	November 03, 2017
