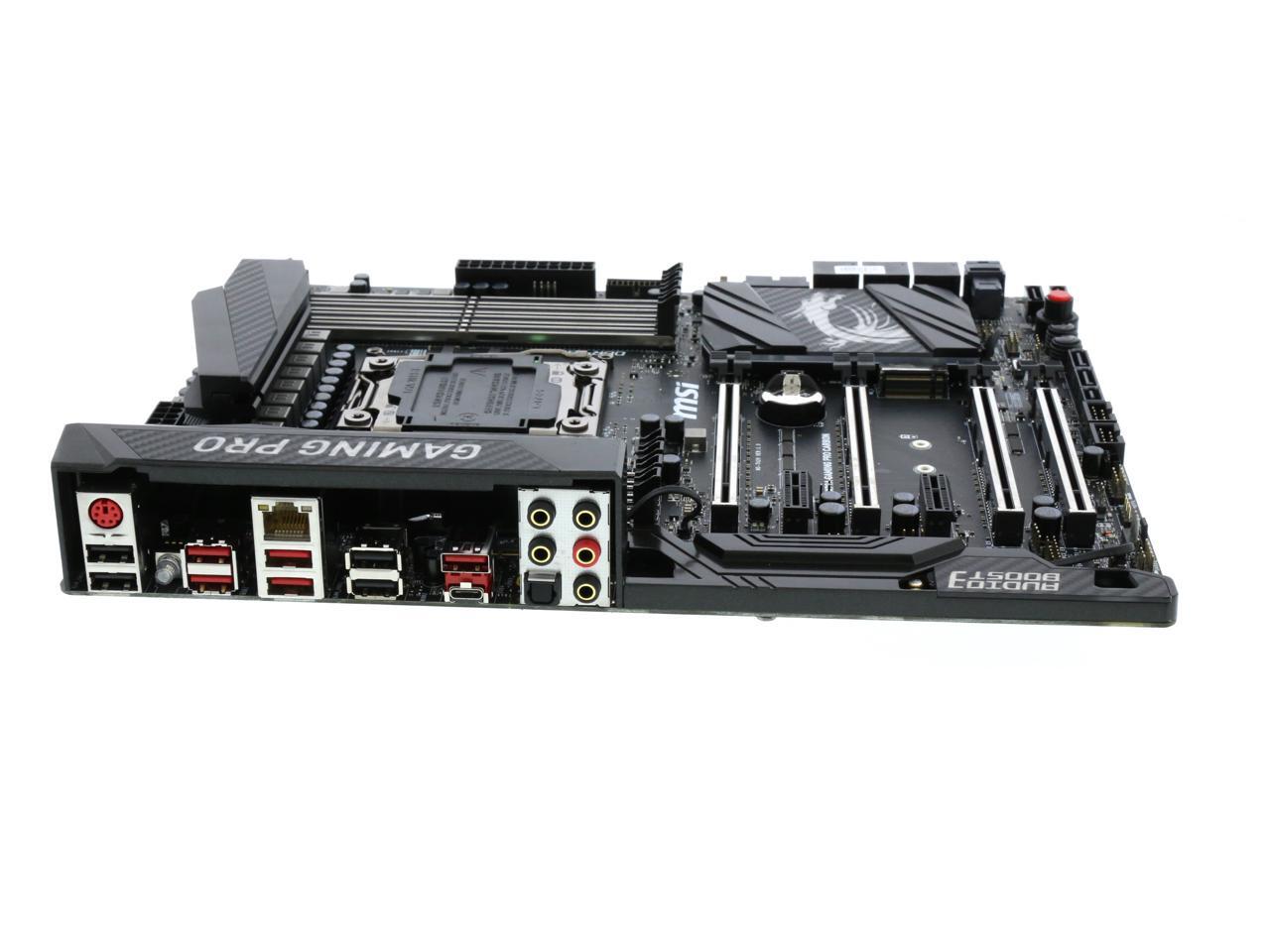

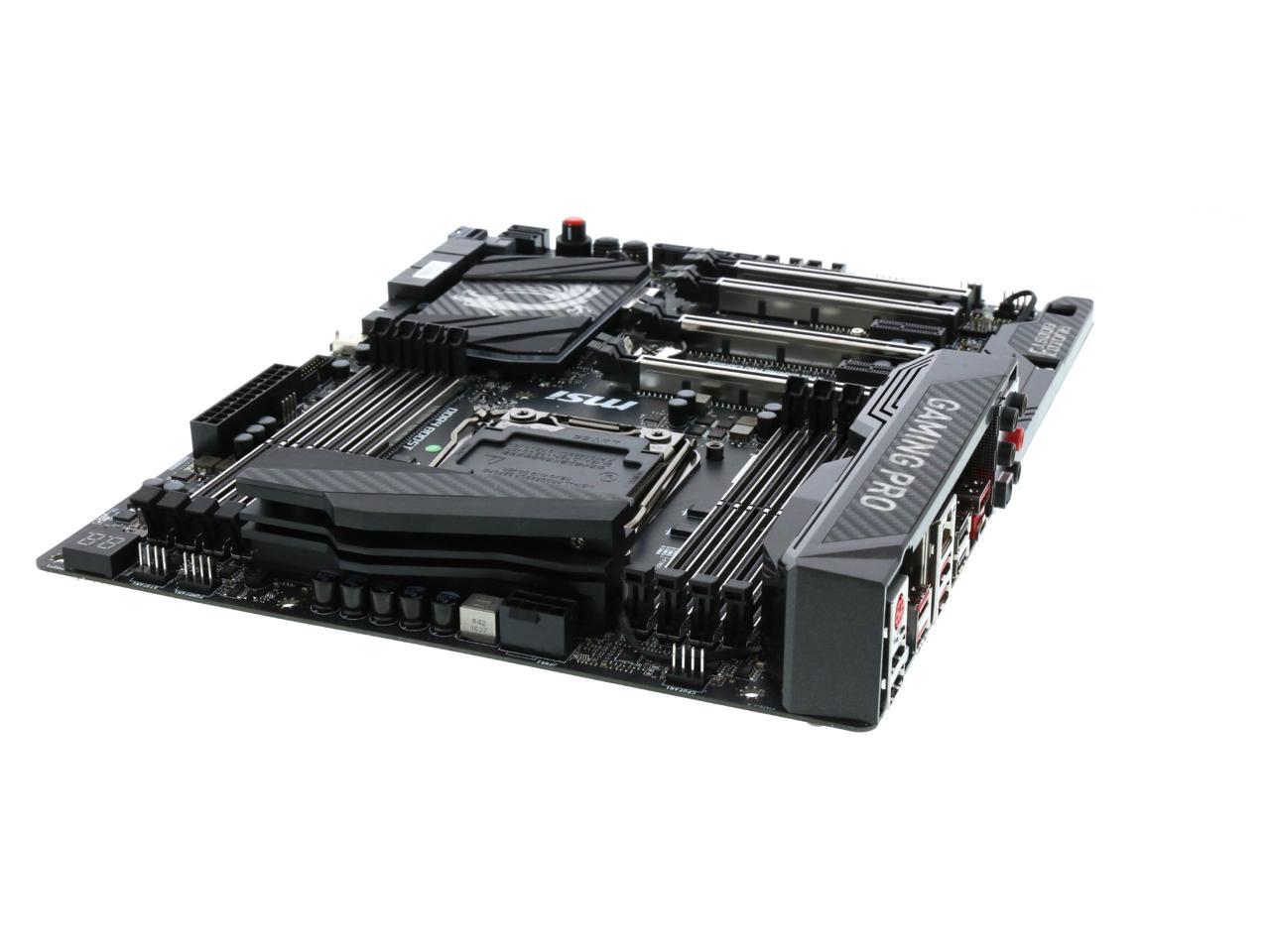

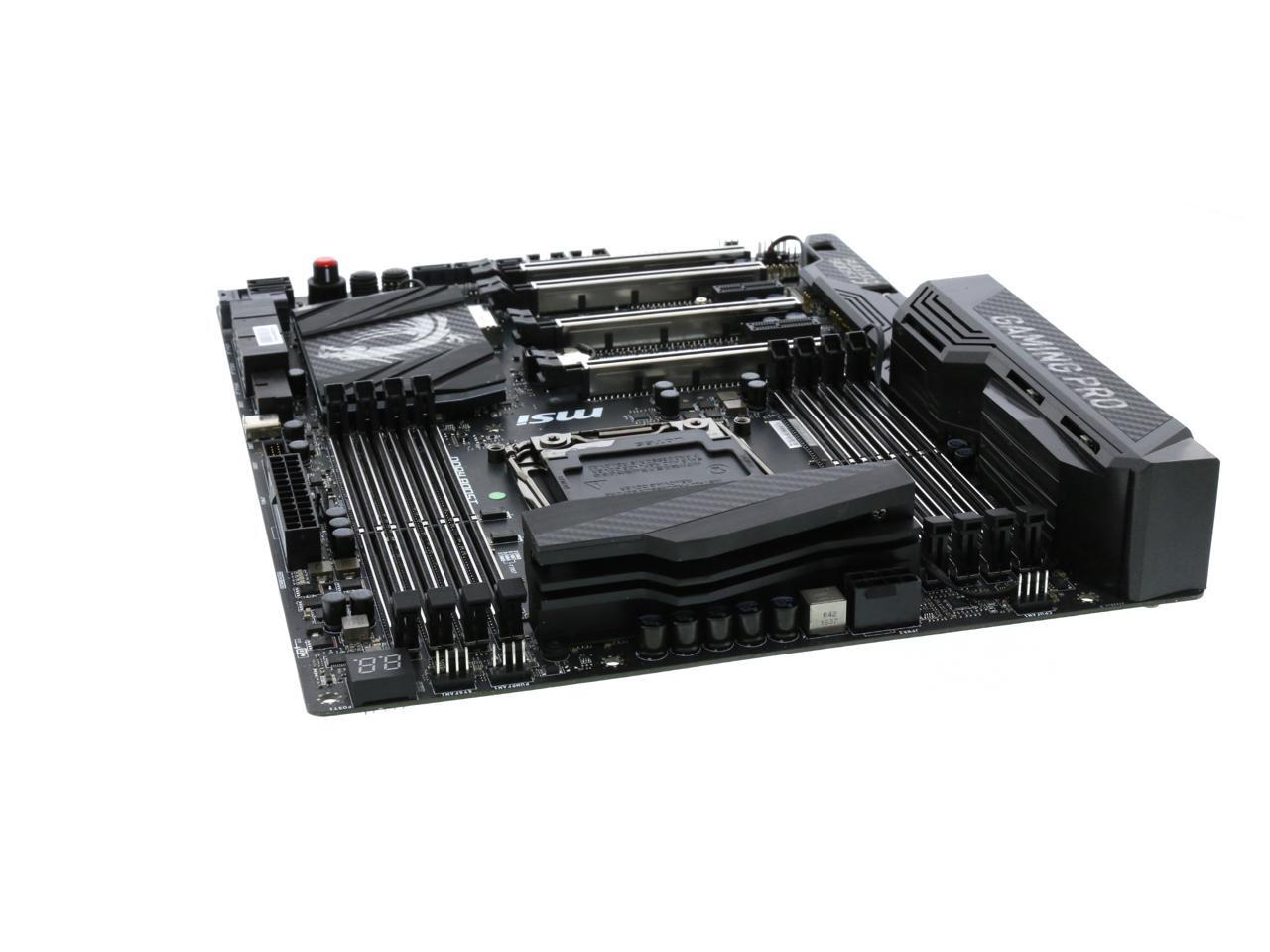

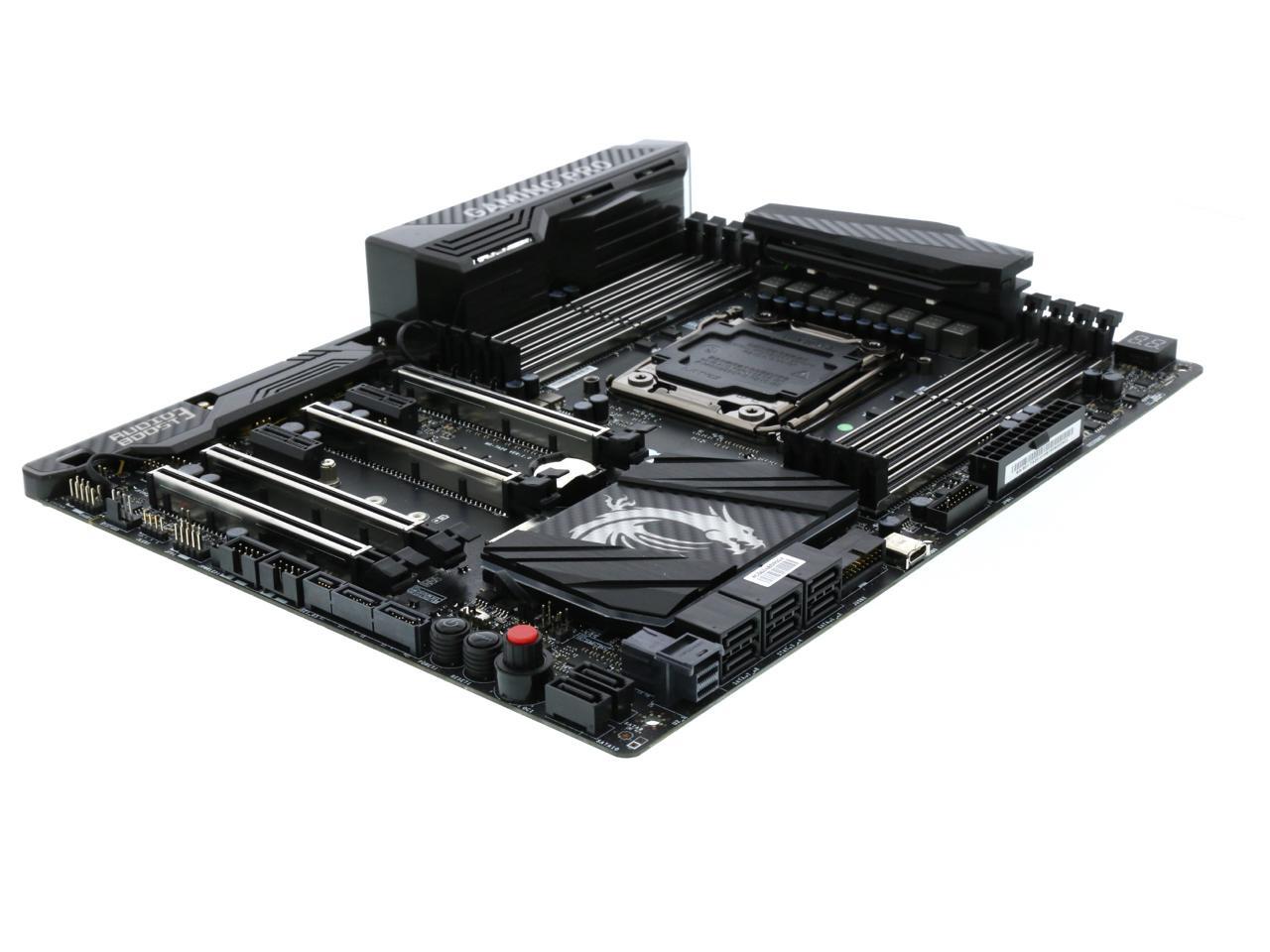

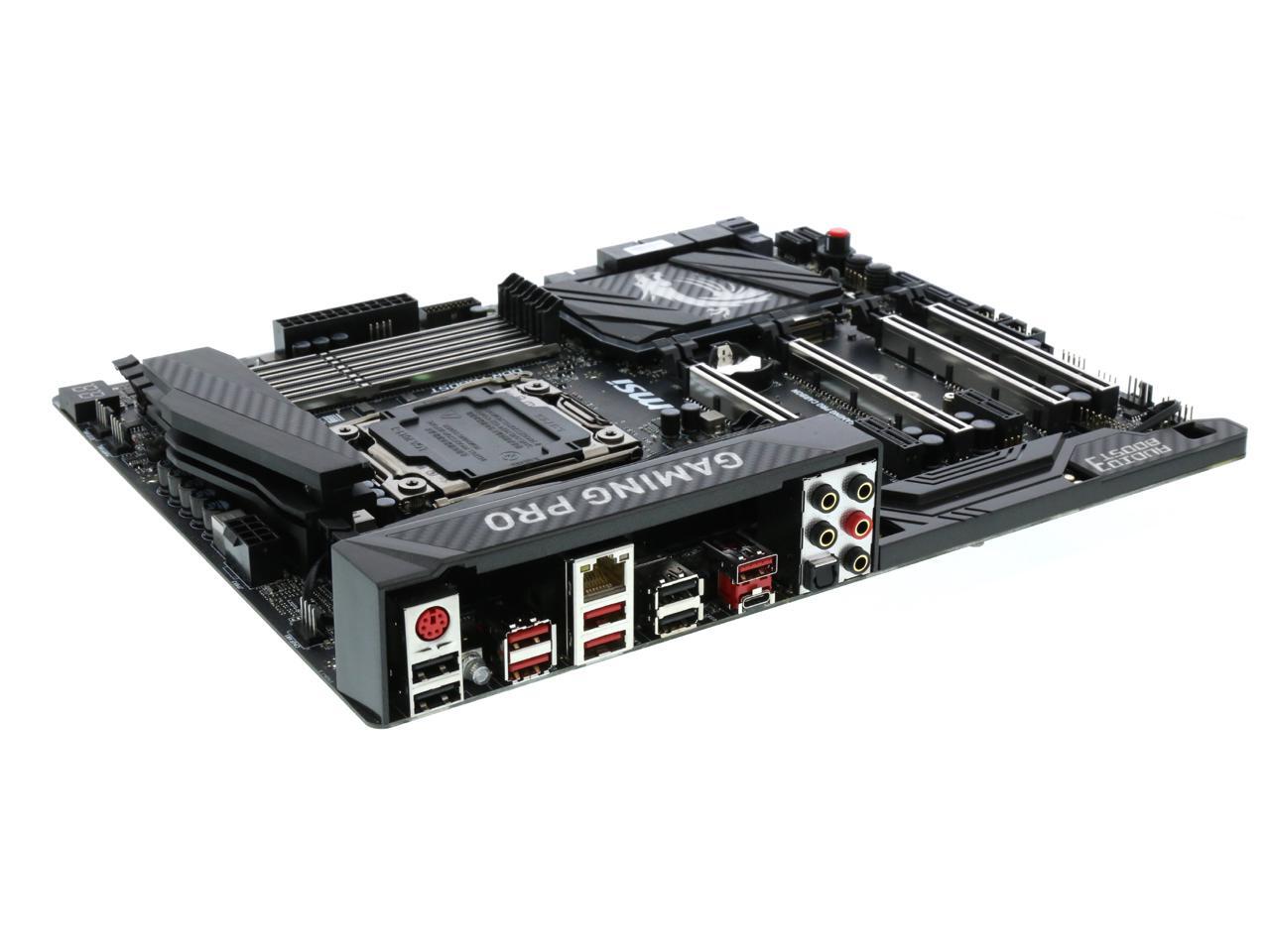

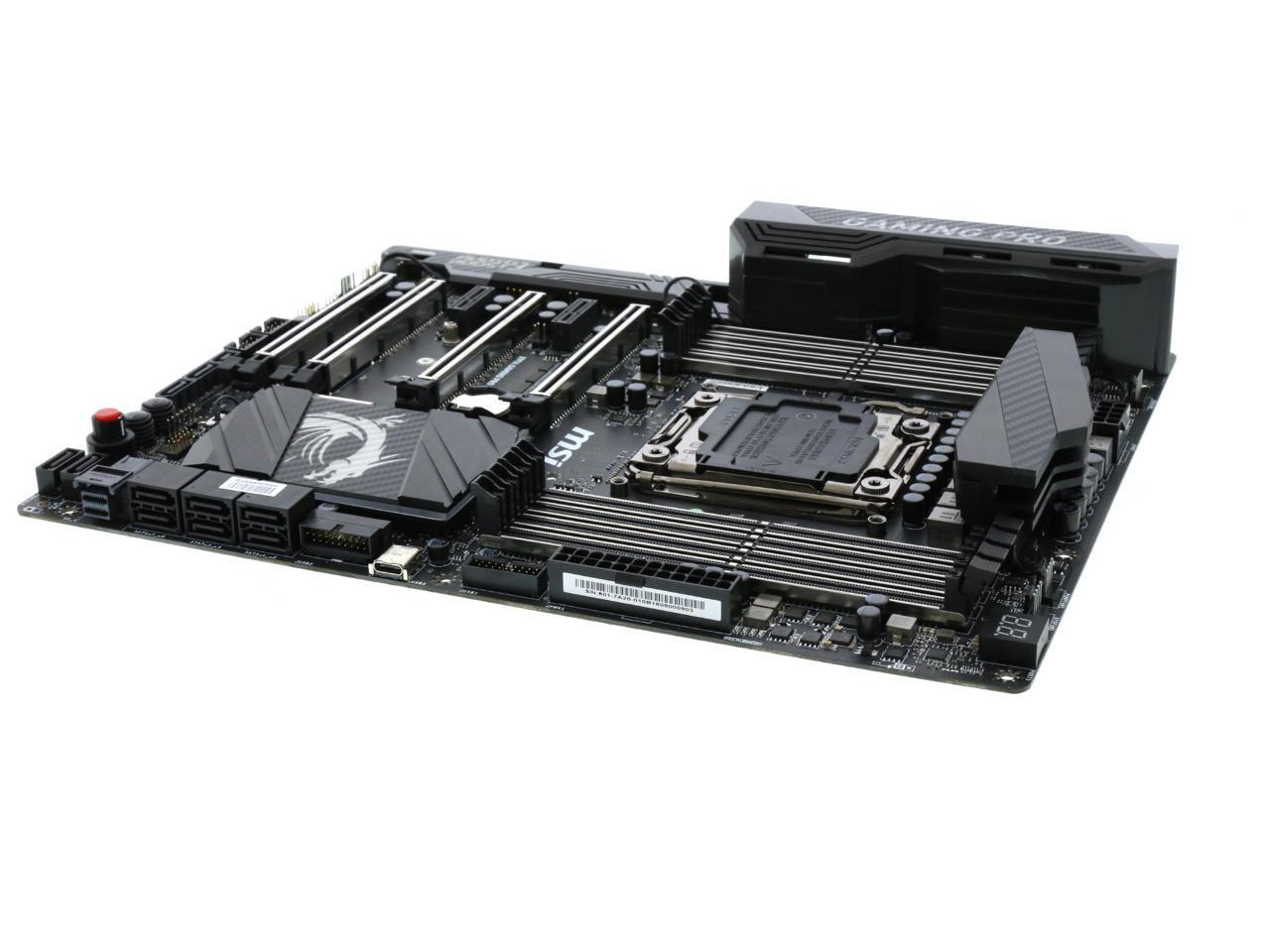

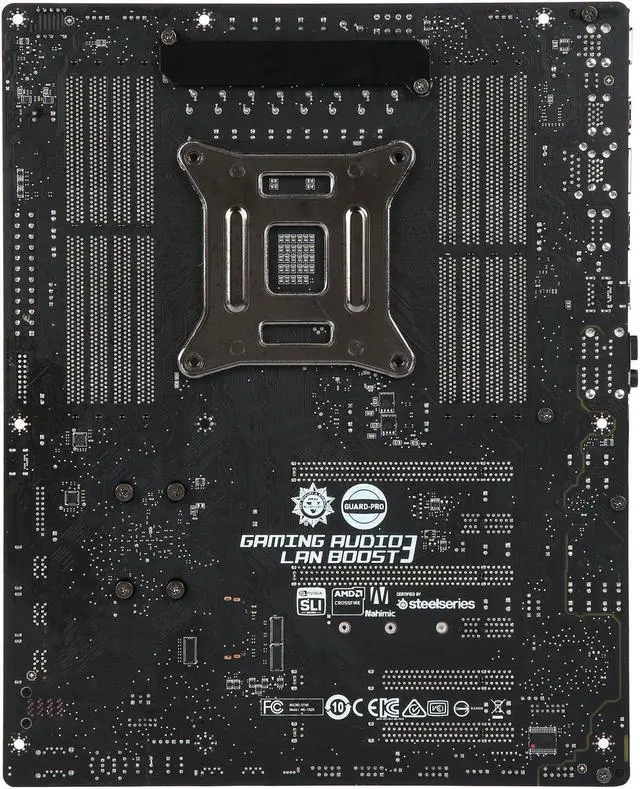

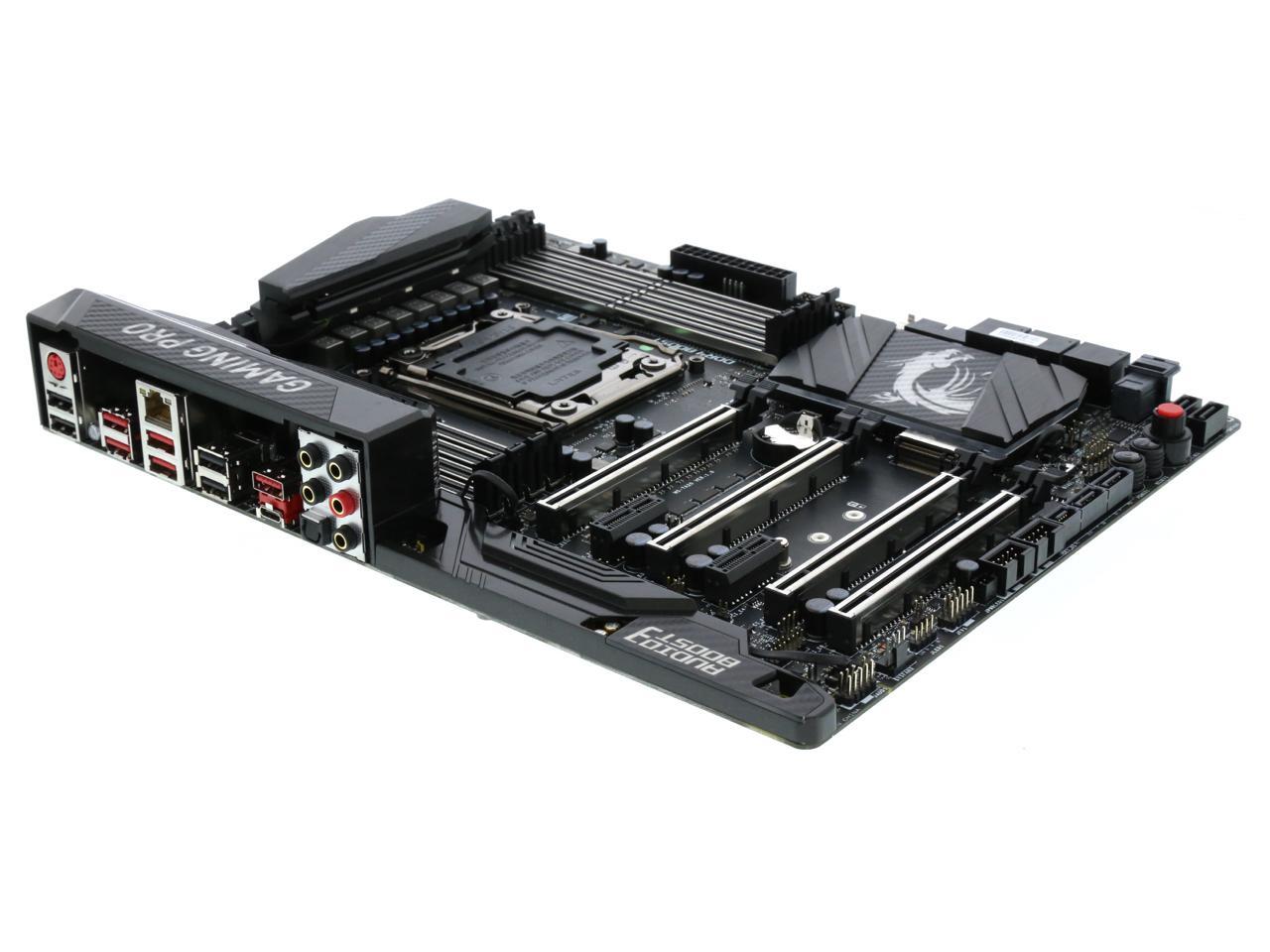

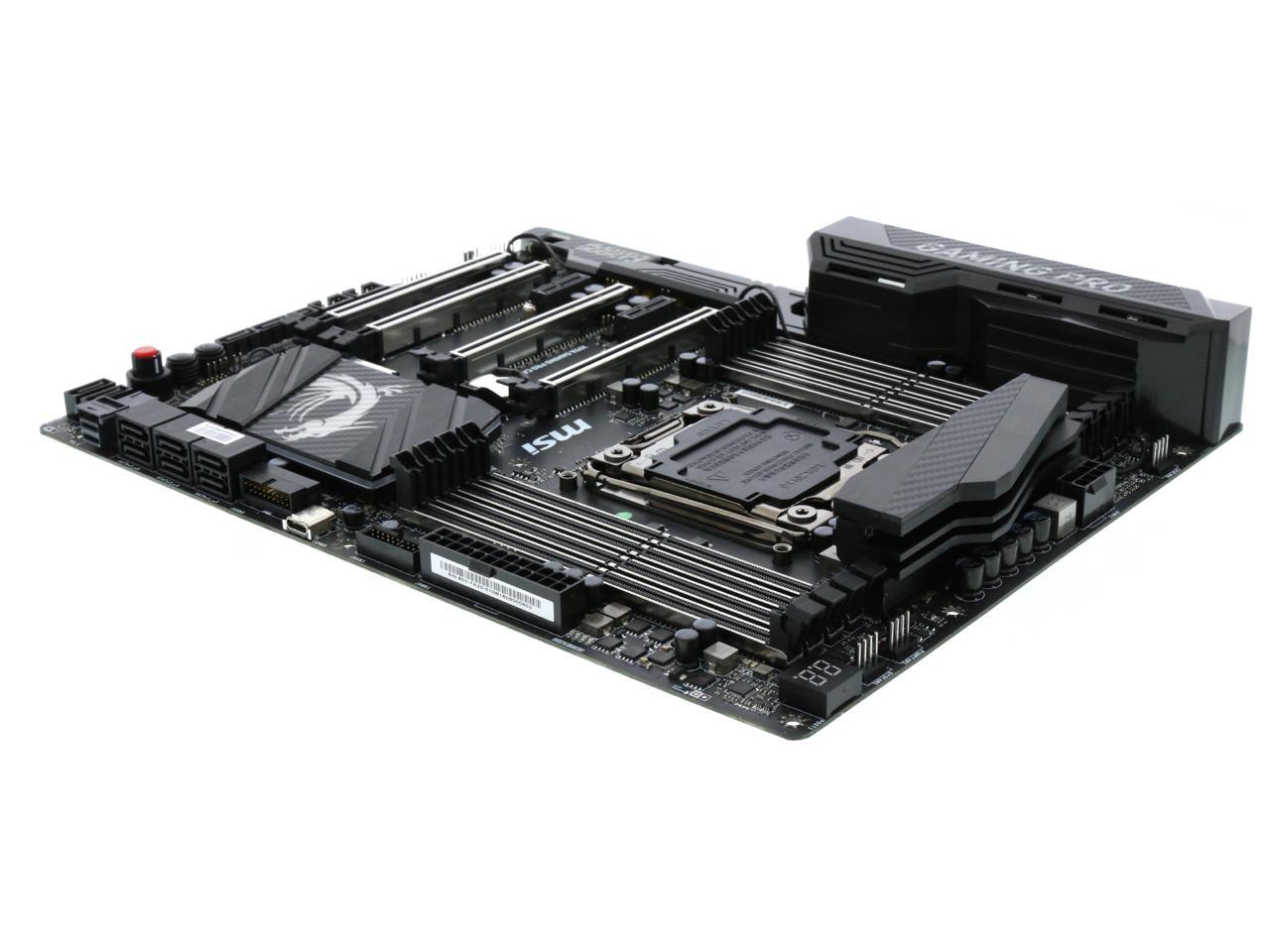

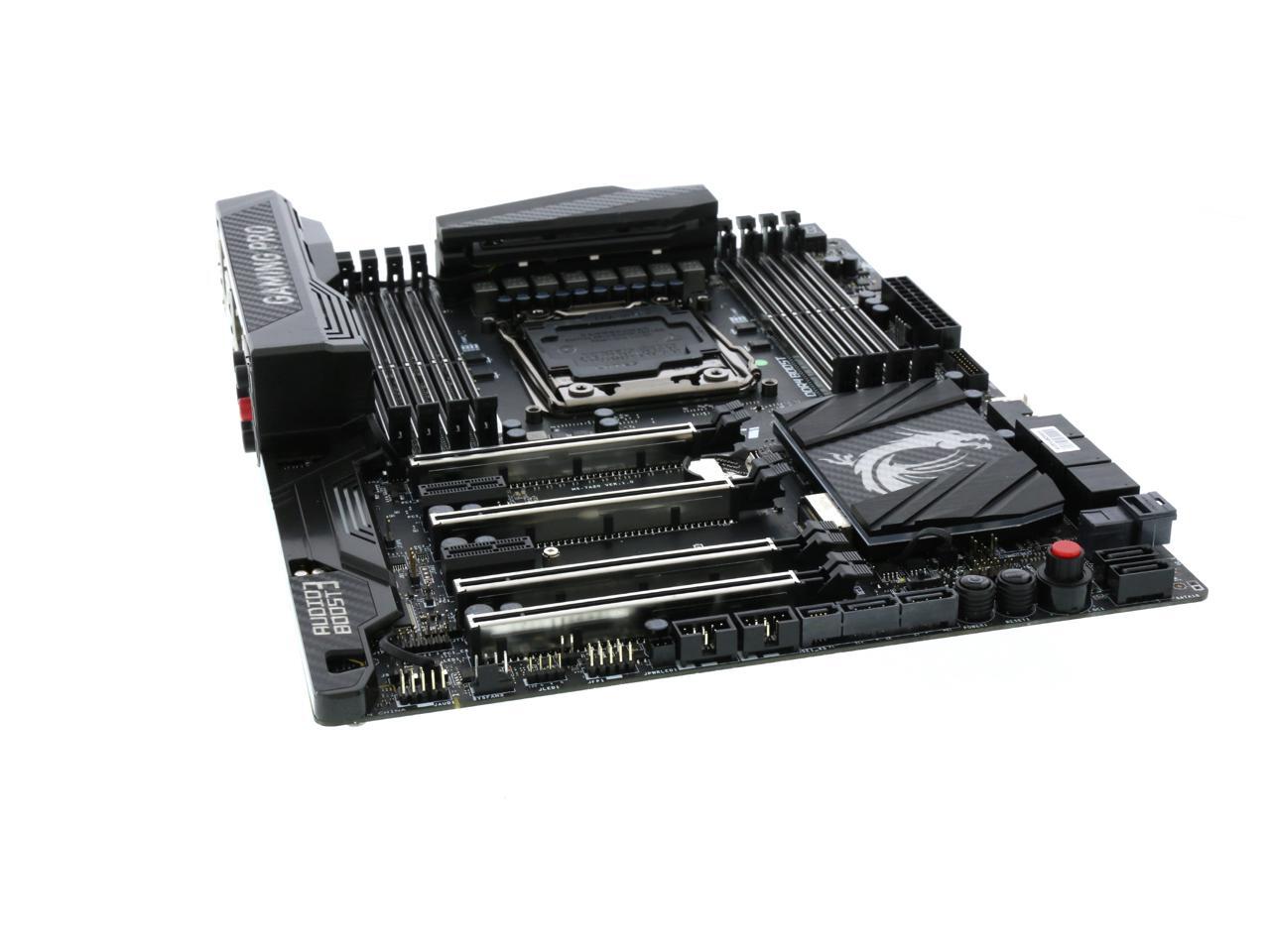

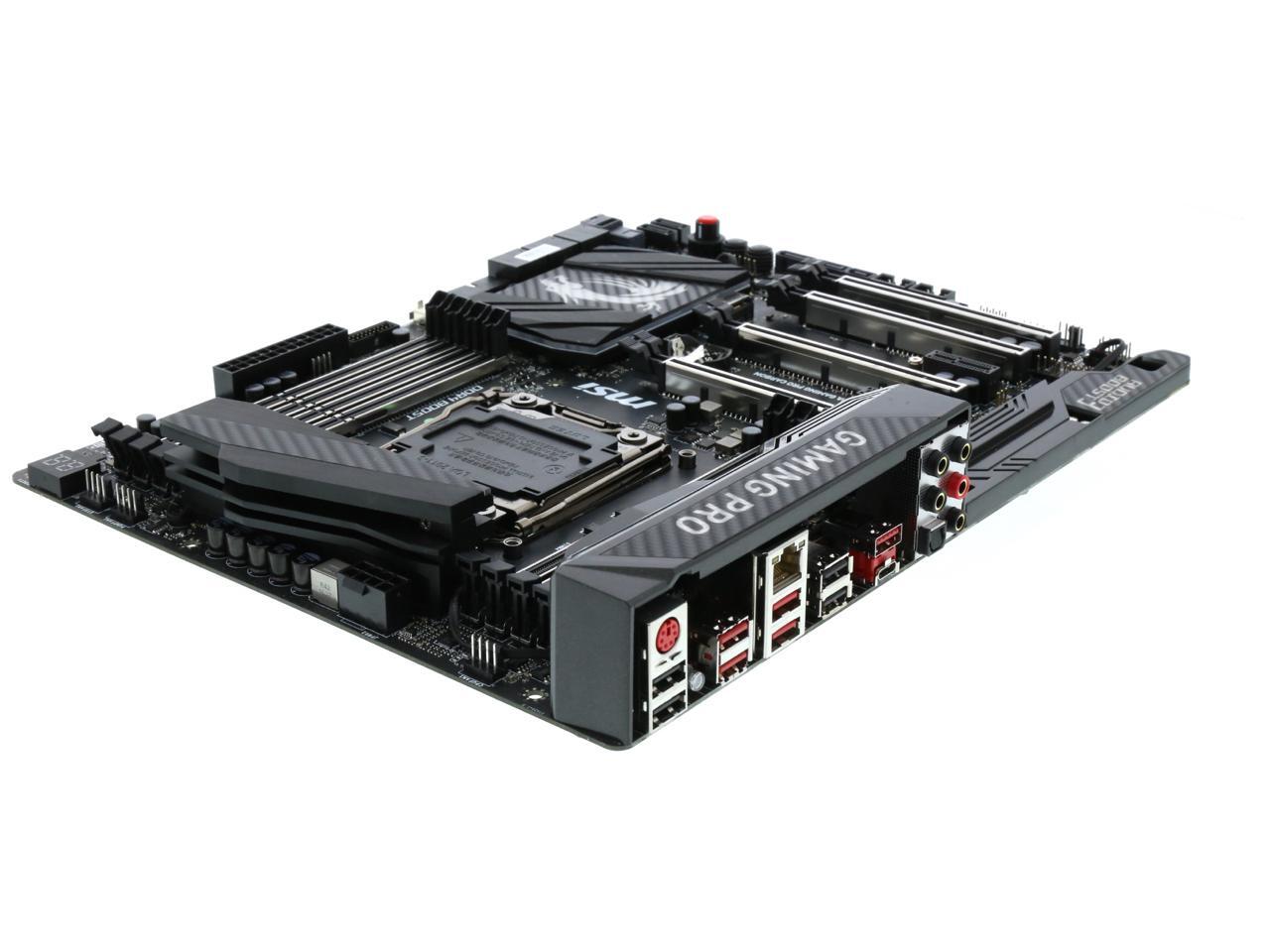

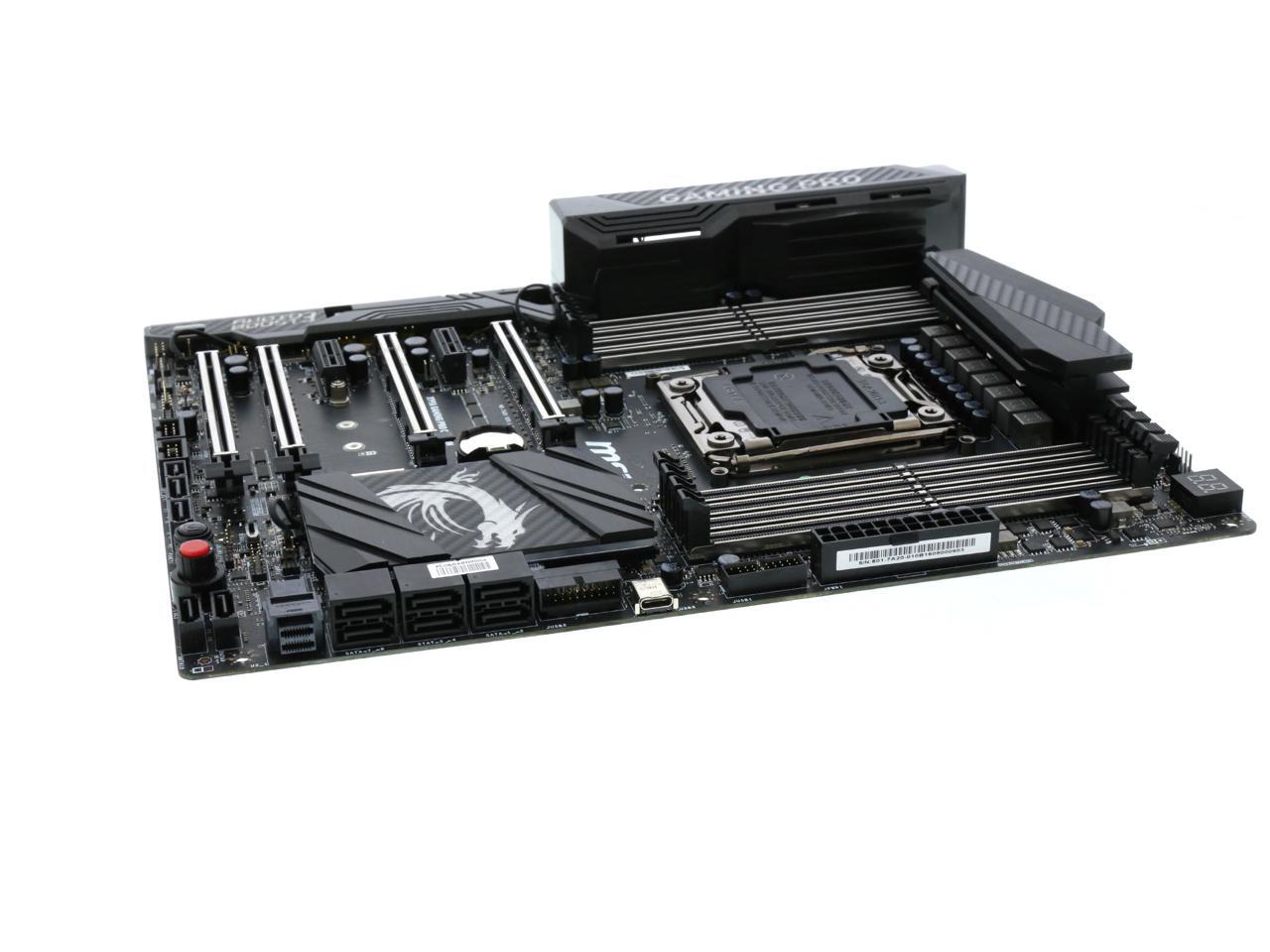

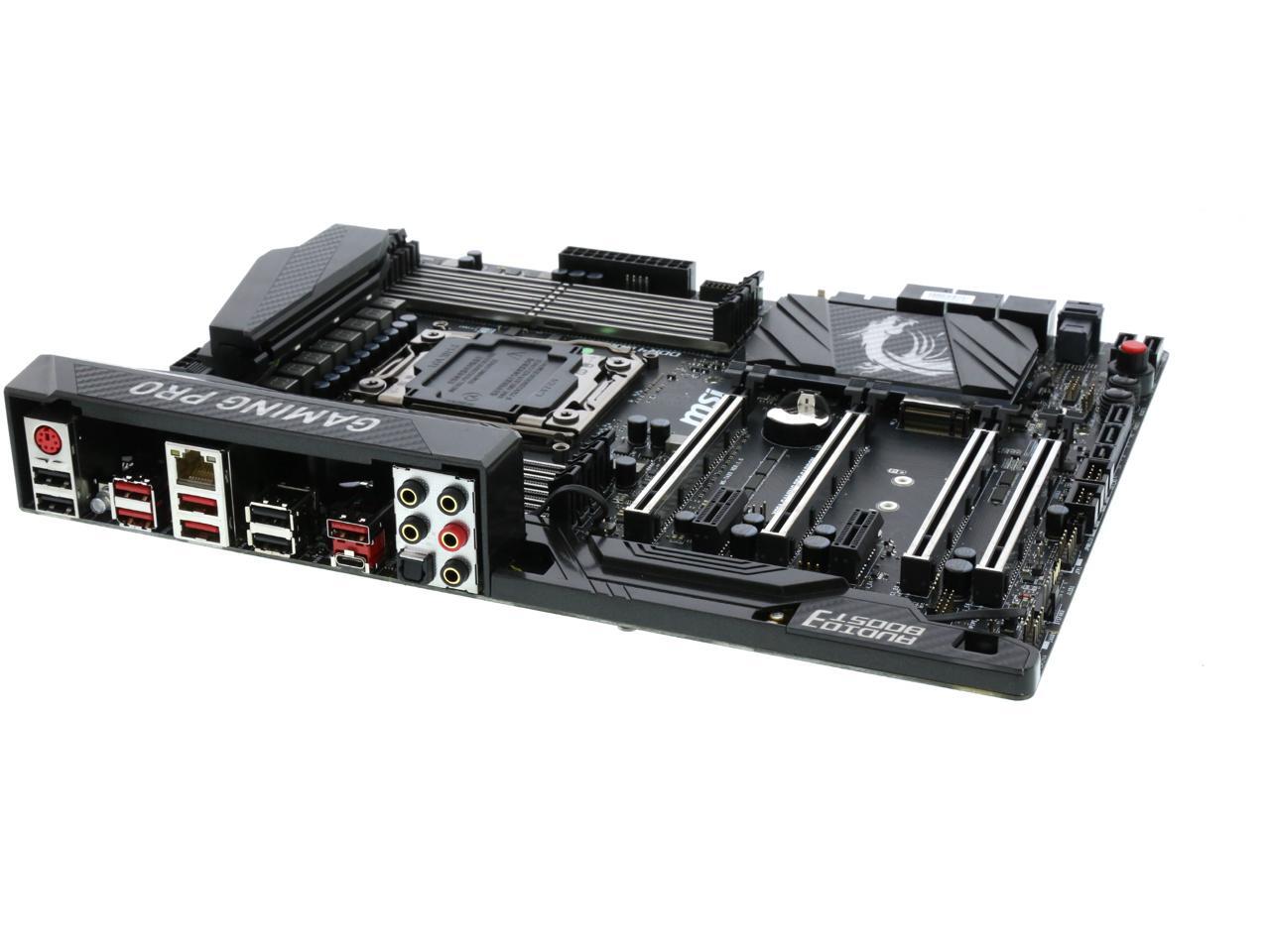

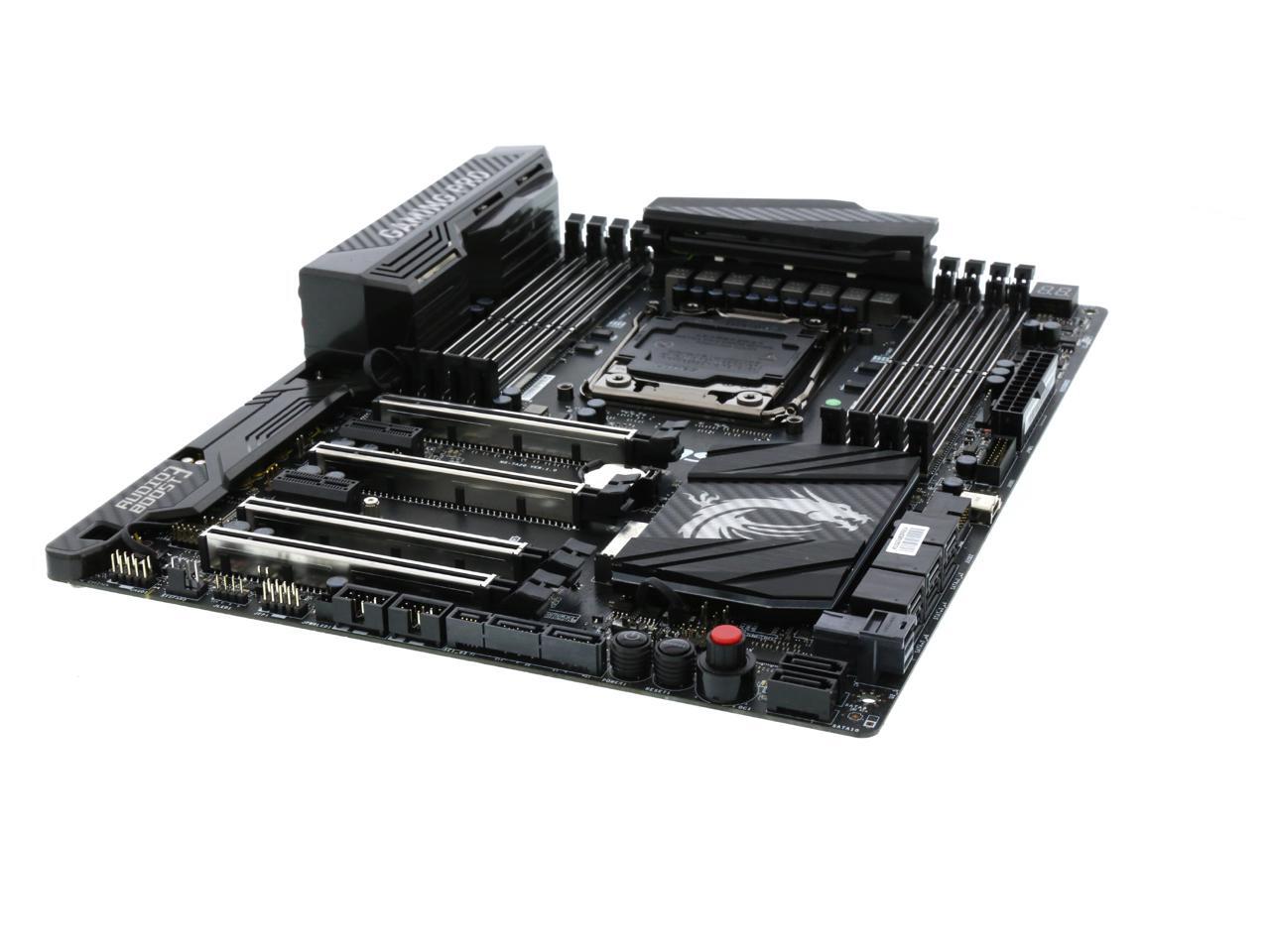

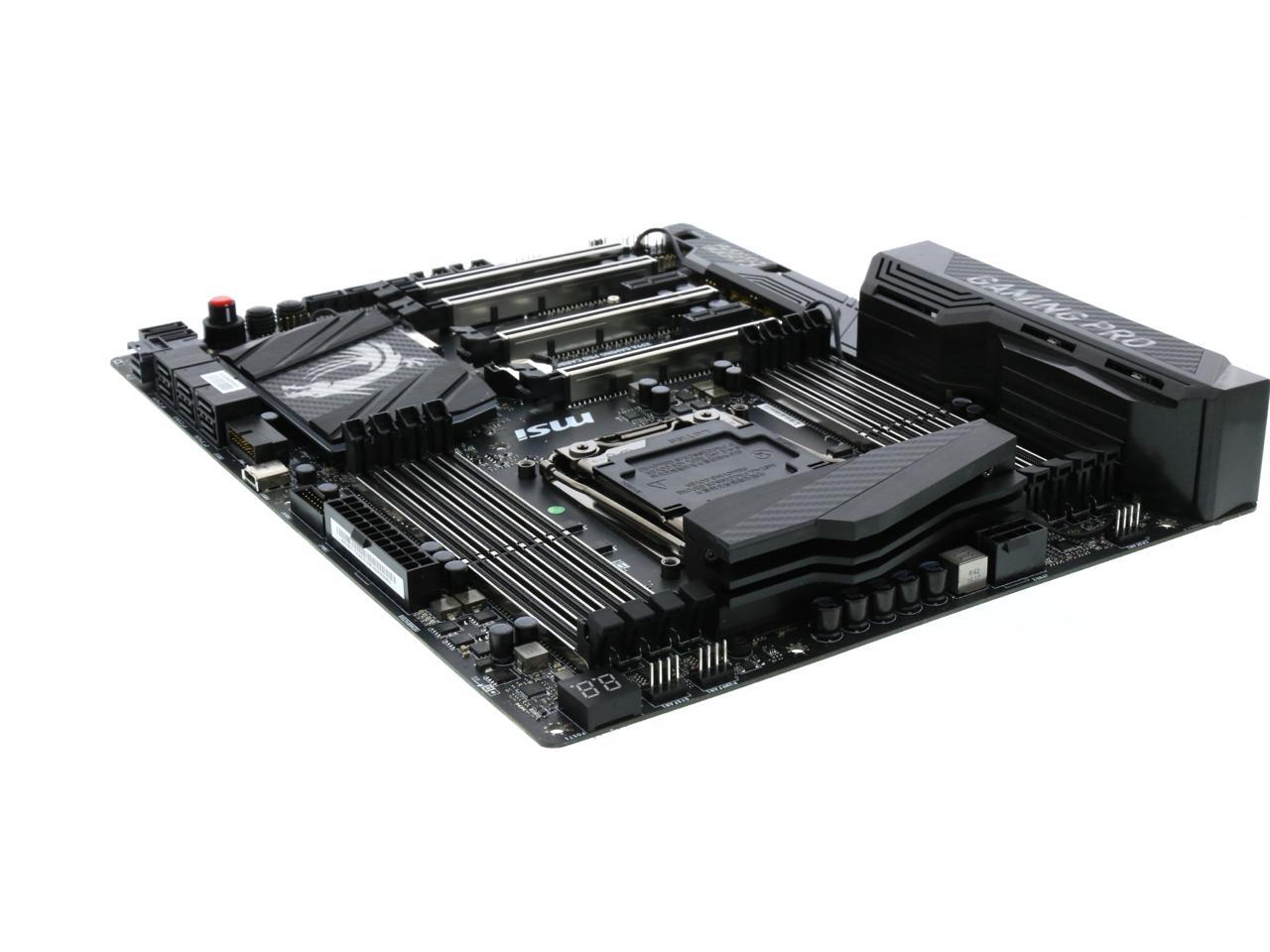

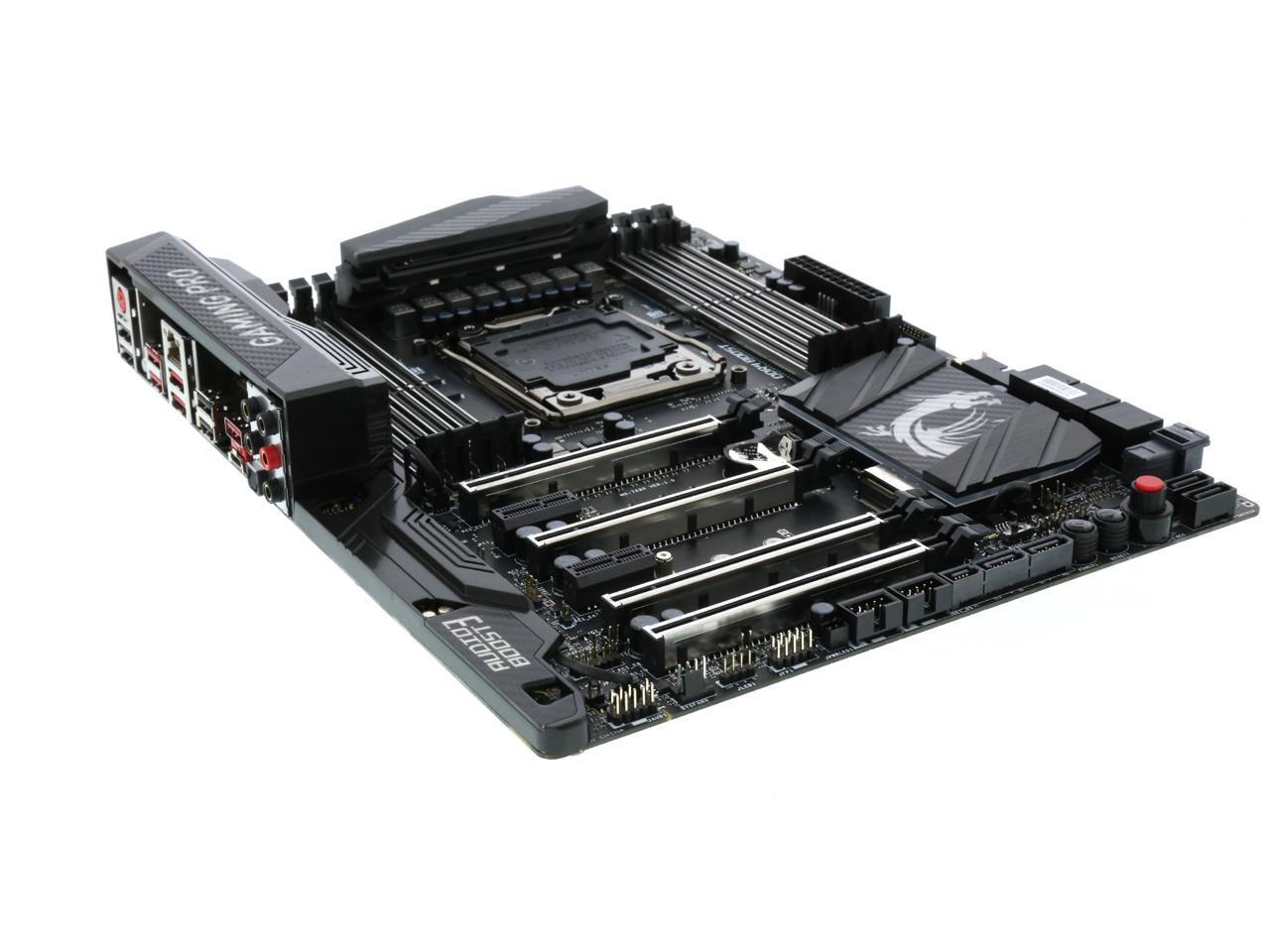

MSI X99A GAMING PRO CARBON LGA 2011-v3 Intel X99 USB 3.1 ATX Intel Motherboard

REFURBISHED Product Type
(2) Write a Review
  • Intel X99
  • Supports New Intel Core i7 Processor Extreme Edition for LGA2011-3 Socket
  • Please refer to MSI CPU Support for compatible CPU; the above description is for reference only.
  • DDR4 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666(OC)/ 2600(OC)/ 2400/ 2200(OC)/ 2133
  • * Please refer to MSI Compatibility reports for more information of compatible memory
Specs
Reviews (2)

Learn more about the MSI X99A GAMING PRO CARBON

Model
Brand MSI
Model X99A GAMING PRO CARBON
Supported CPU
CPU Socket Type LGA 2011-v3
CPU Type Supports New Intel Core i7 Processor Extreme Edition for LGA2011-3 Socket
Please refer to MSI CPU Support for compatible CPU; the above description is for reference only.
Chipsets
Chipset Intel X99
Onboard Video
Onboard Video Chipset None

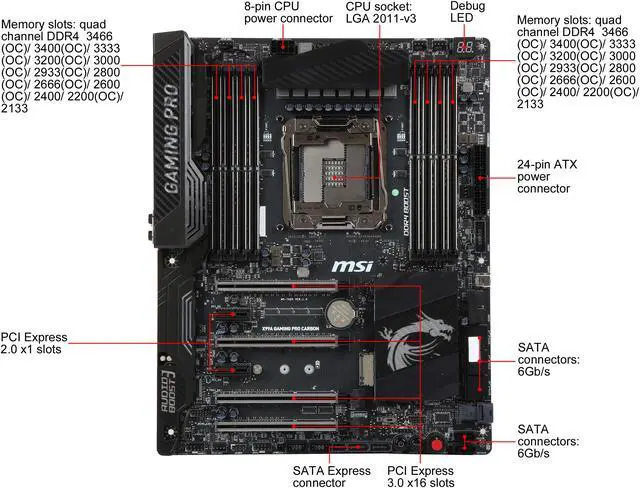

Memory
Number of Memory Slots 8x288pin (DDR4)
Memory Standard DDR4 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666(OC)/ 2600(OC)/ 2400/ 2200(OC)/ 2133
* Please refer to MSI Compatibility reports for more information of compatible memory
Maximum Memory Supported 128GB
Channel Supported Quad Channel
Expansion Slots
PCI Express 3.0 x16 4 x PCIe 3.0 x16 slots*
- Support x16/ x0/ x0/ x0, x16/ x16/ x0/ x0, x16/ x16/ x0/ x8, x8/ x16/ x8/ x8 with the CPU that supports 40 PCIe lanes.
- Support x16/ x0/ x0/ x0, x16/ x8/ x0/ x0, x8/ x8/ x8/ x0, x8/ x8/ x8/ x4 with the CPU that supports 28 PCIe lanes.
* PCI_E6 slot shares the bandwidth with U.2 port and M.2 PCIe 3.0 x4.
PCI Express x1 2 x PCIe 2.0 x1 slots
Storage Devices
Serial ATA (SATA) 10 x SATA 6Gb/s ports (2 ports from SATAe port)
- SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10
- SATA7~10 only support IDE mode and AHCI mode
SATA Express 1 x SATAe port (compatible with 2 SATA ports)
- Supports up to PCIe 2.0 x2
M.2 1 x M.2 slot (Key M)*
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/2260/2280 storage devices
1 x U.2 port */ **
- Supports PCIe 3.0 x4 NVMe storage
* M.2 slot (PCIe 3.0 x4) and U.2 share the same bandwidth.
** The U.2 port will be unavailable when installing the PCIe device in PCI_E6 slot.
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1150
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I218V
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 4 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 Type-A
PS/2 1 x PS/2 keyboard/mouse port
RJ45 1 x RJ45
USB 3.1 4 x USB 3.1 Gen1 ports
1 x USB 3.1 Gen2 port
1 x USB 3.1 Gen2 Type-C port
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 5 x OFC audio jacks
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
1 x USB 3.1 Gen1 Type-C port
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
3 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x Slow mode booting jumper
1 x GAME BOOST knob
1 x Power button
1 x Reset button
1 x Multi-BIOS switch
1 x RGB LED connector
Physical Spec
Form Factor ATX
LED Lighting RGB

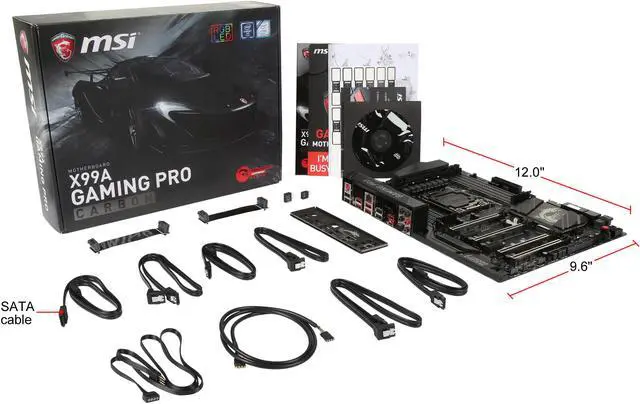

Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Supports New Intel Core i7 Processor Extreme Edition for LGA 2011-3 socket

DDR4 Steel Armor with Best signal stability , Quad Channel DDR4-3466+(OC)

Mystic Light: Customize and set up your own color scheme with GAMING APP to make your PC look & feel brand new!

Mystic Light Extension: Extend you style to everything

Turbo U.2 & M.2 Steel Armor: Delivering next generation M.2 Gen3 x4 performance with transfer speeds up to 32Gb/s

USB 3.1 Gen2 Type-C & Type-A combo + USB 3.1 Gen 1 Type-C (front) + SATA EXPRESS 10Gb/s + SATA 6Gb/s

Audio Boost 3: Reward your ears with studio grade sound quality

Nahimic Audio Enhancer: Immersive sound quality that pushes the limits of reality

GAMING LAN with LAN Protect, powered by Intel: The best online gaming experience with lowest latency

Military Class 5: The latest evolution in high quality components featuring the brand new Titanium Chokes

Guard-Pro: Improved Protection and Power Efficiency

MULTI-GPU with Steel Armor: Steel Armor PCI-E slots. Supports 3-way NVIDIA SLI & AMD Crossfire

Game Boost: Generate more FPS in games with 1 push of a button

EZ Debug LED: Easiest way to troubleshoot

Overvoltage Protection: Prevent Unforeseen Damage

GAMING Hotkey: Launch your favorite games with a single button

Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font

SteelSeries Certified: Optimized for SteelSeries gaming gear

GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience
Additional Information
First Listed on Newegg September 26, 2017
