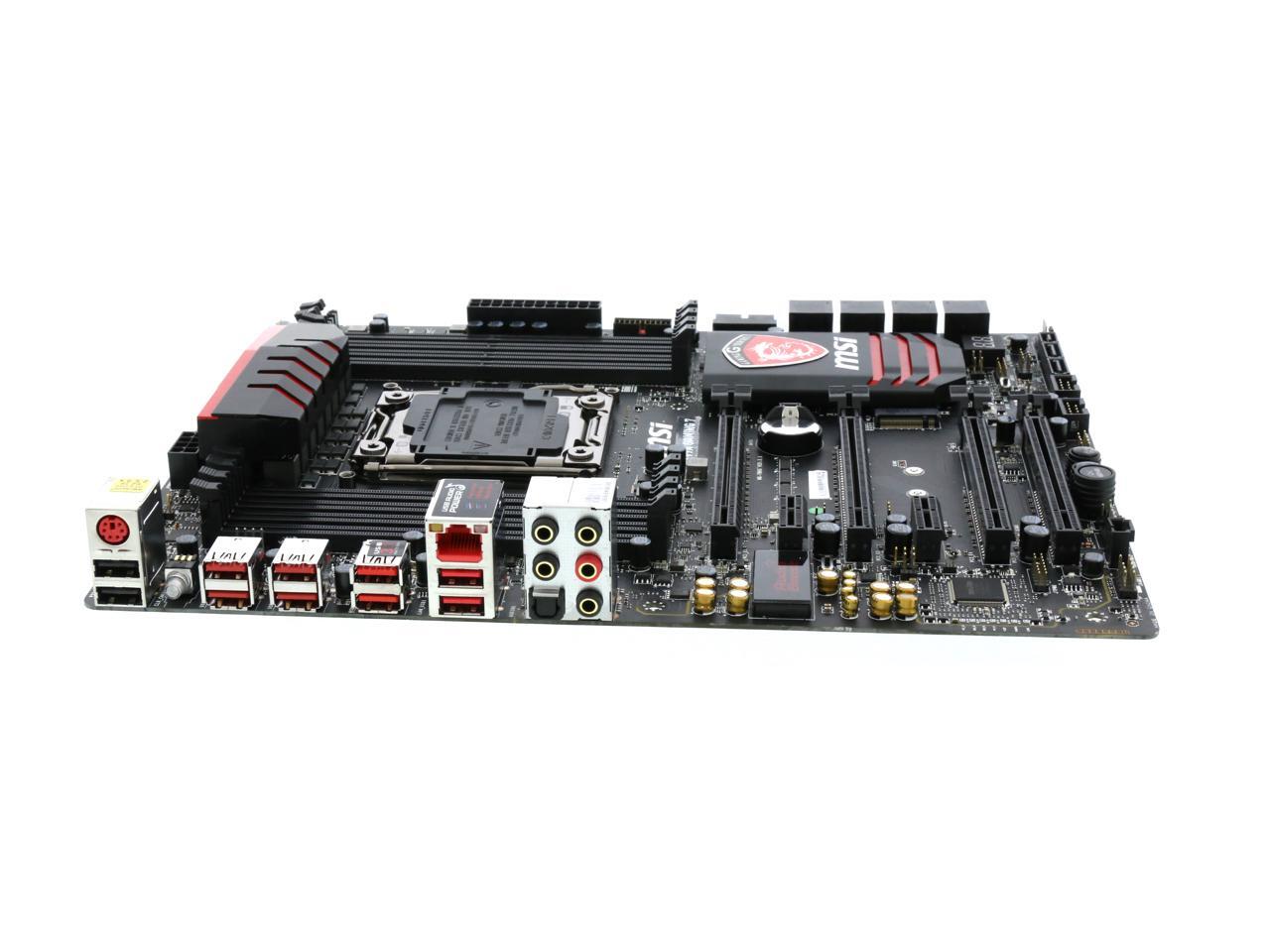

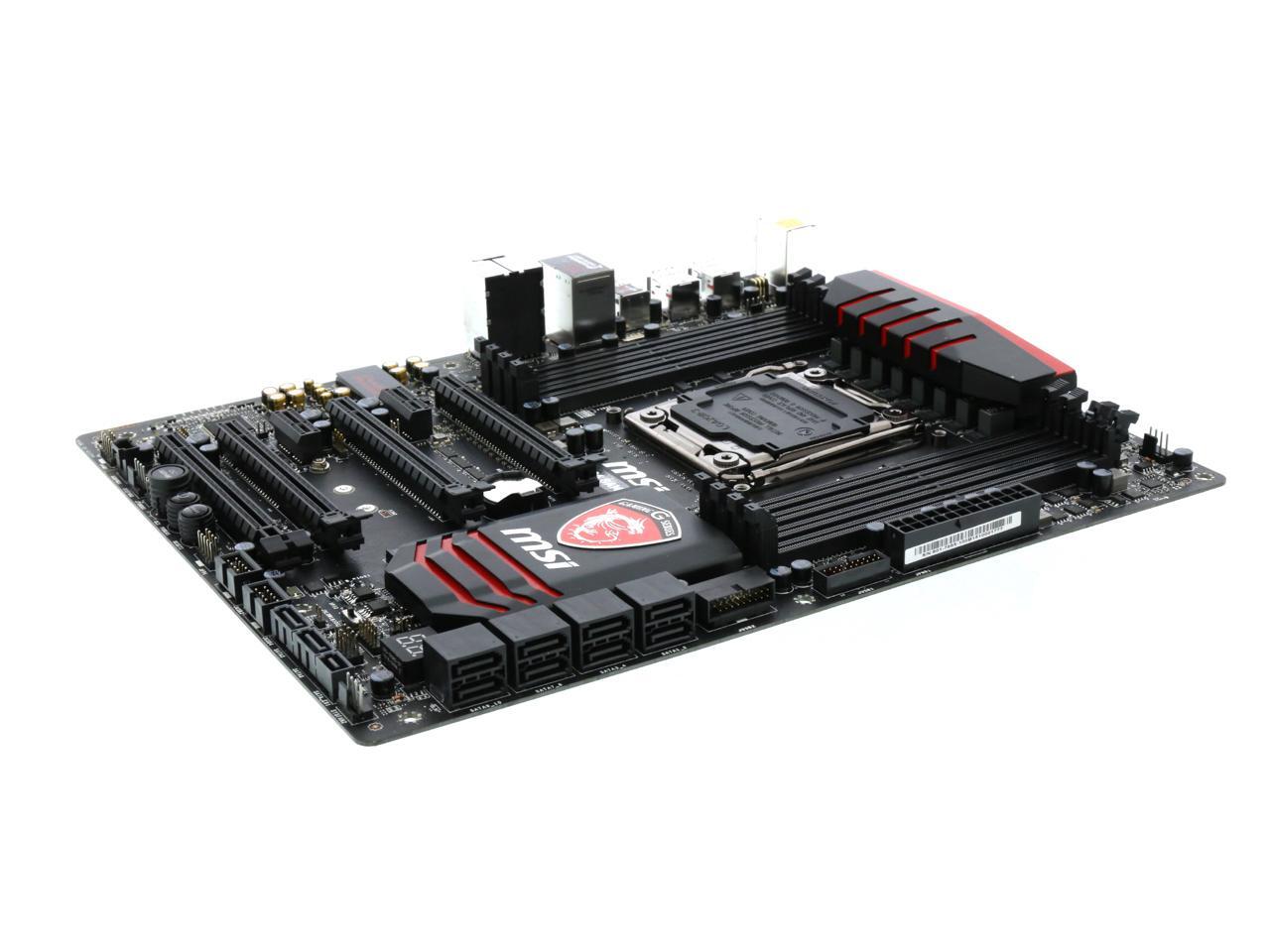

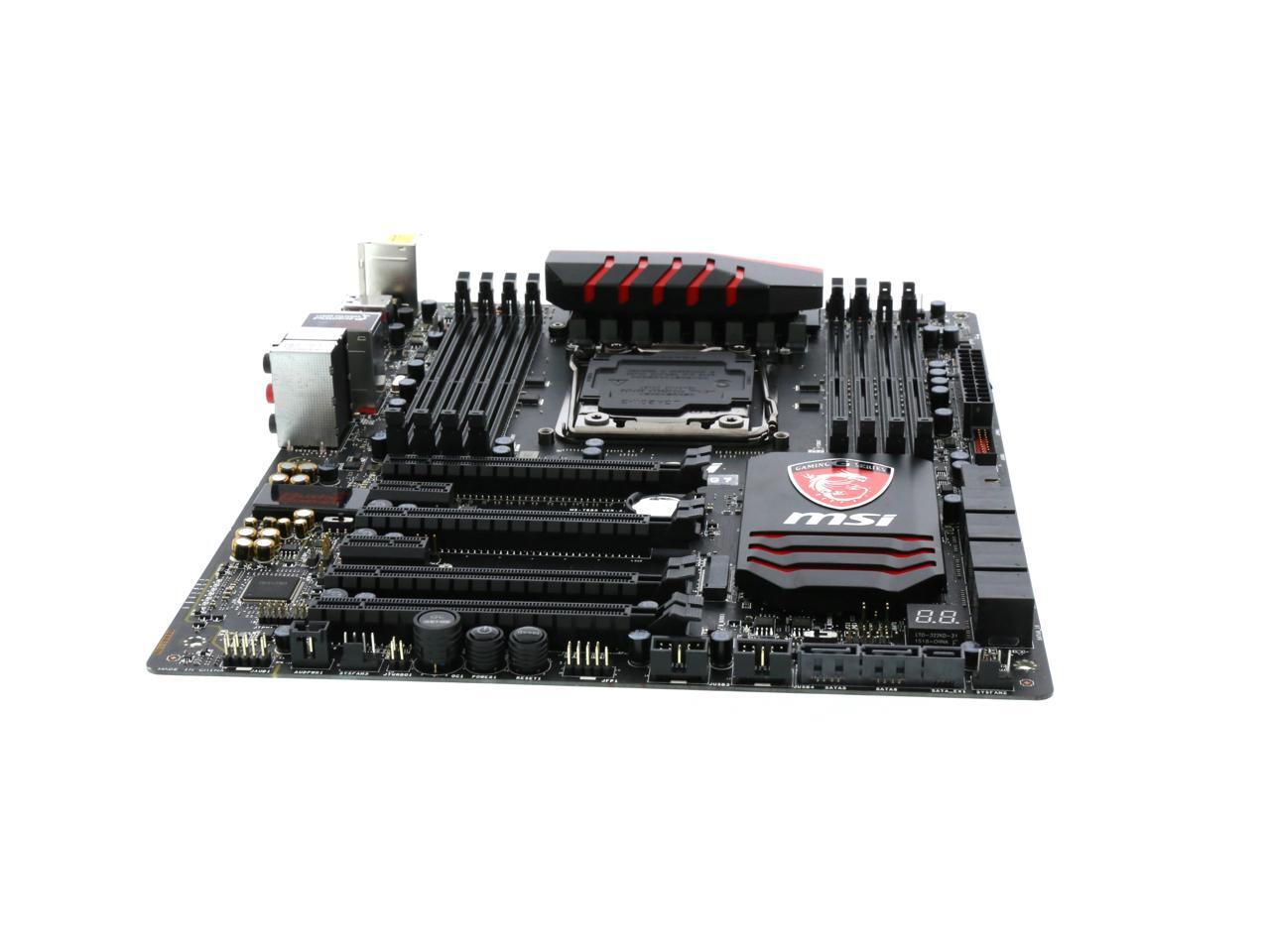

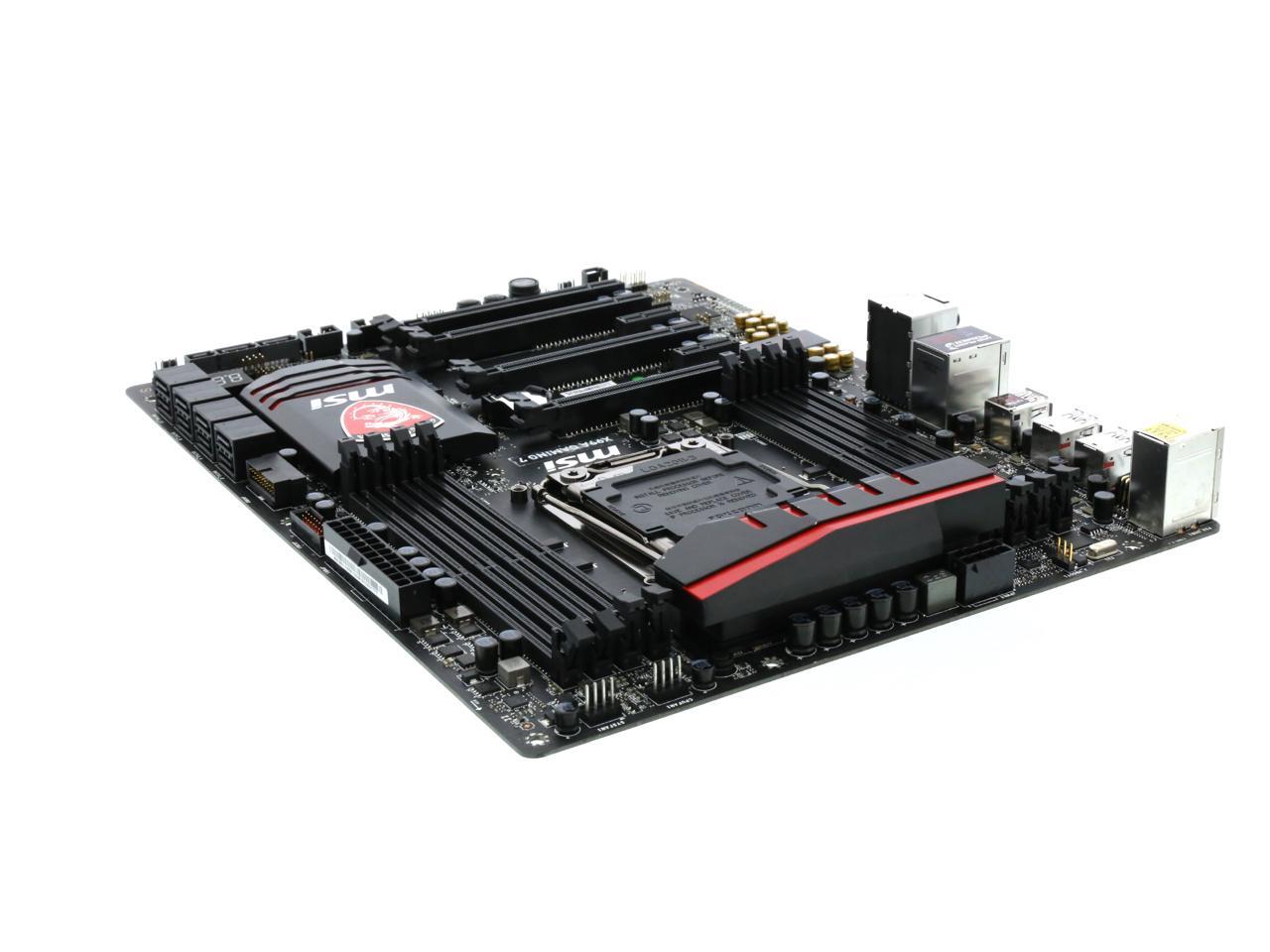

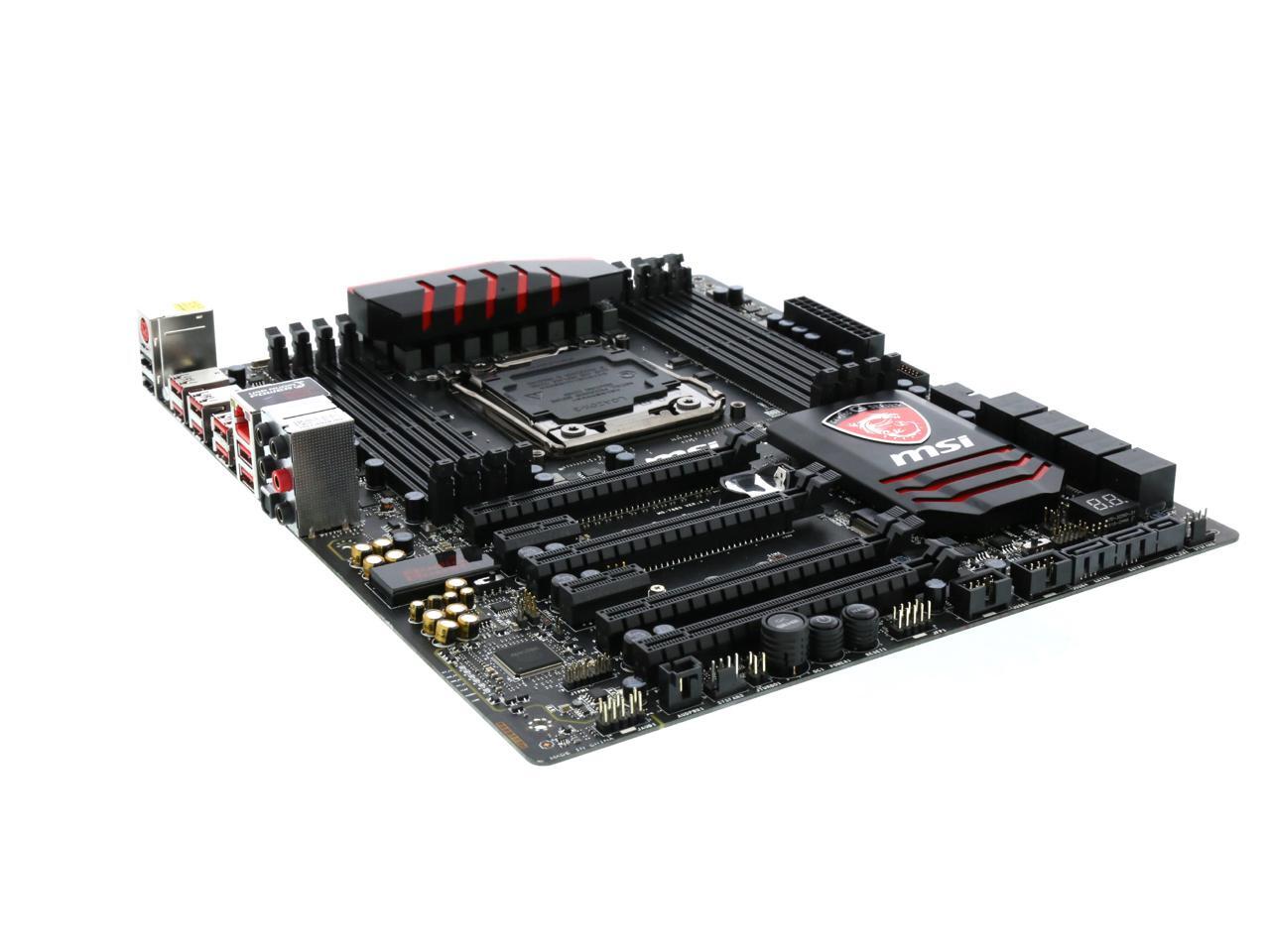

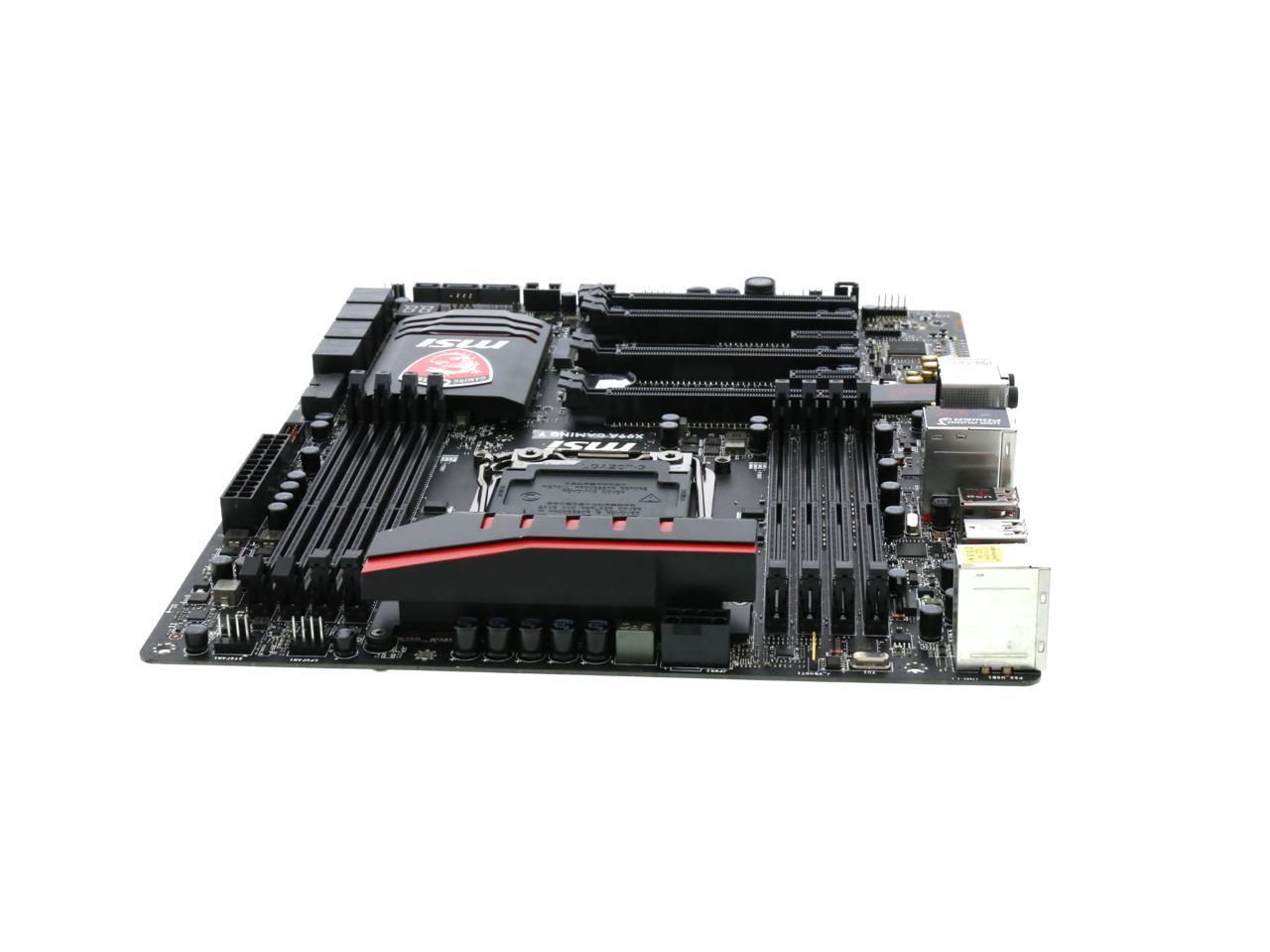

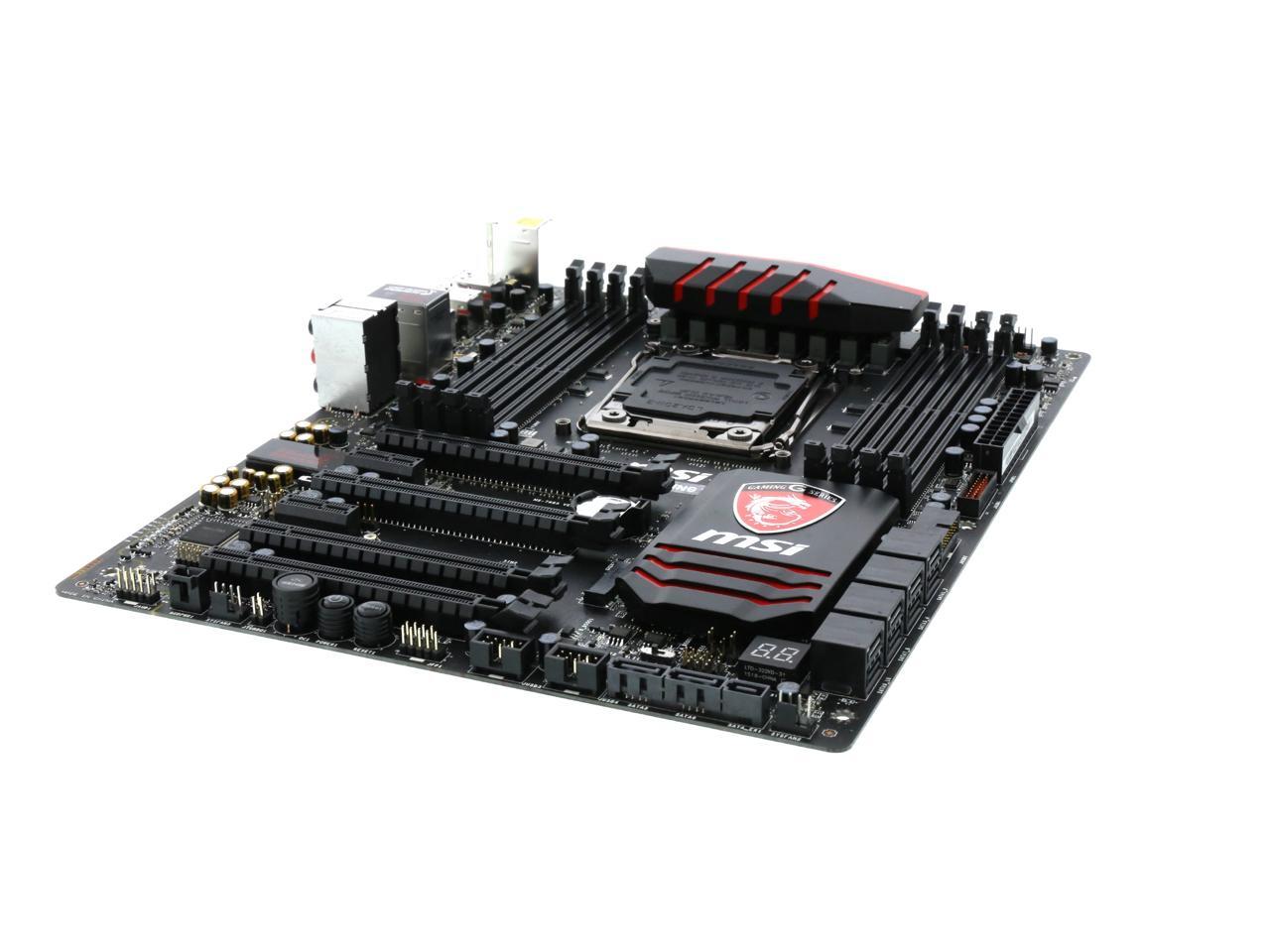

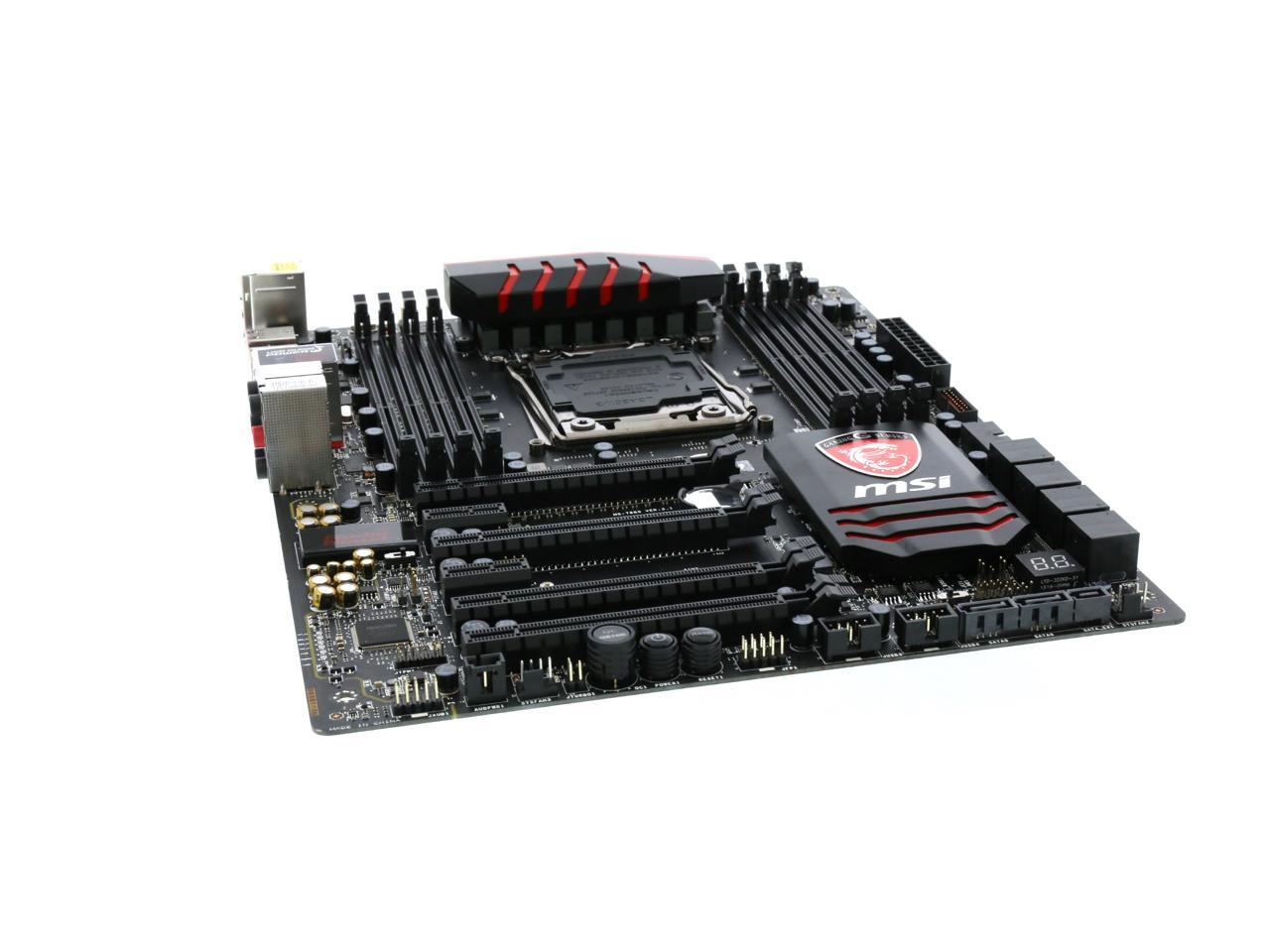

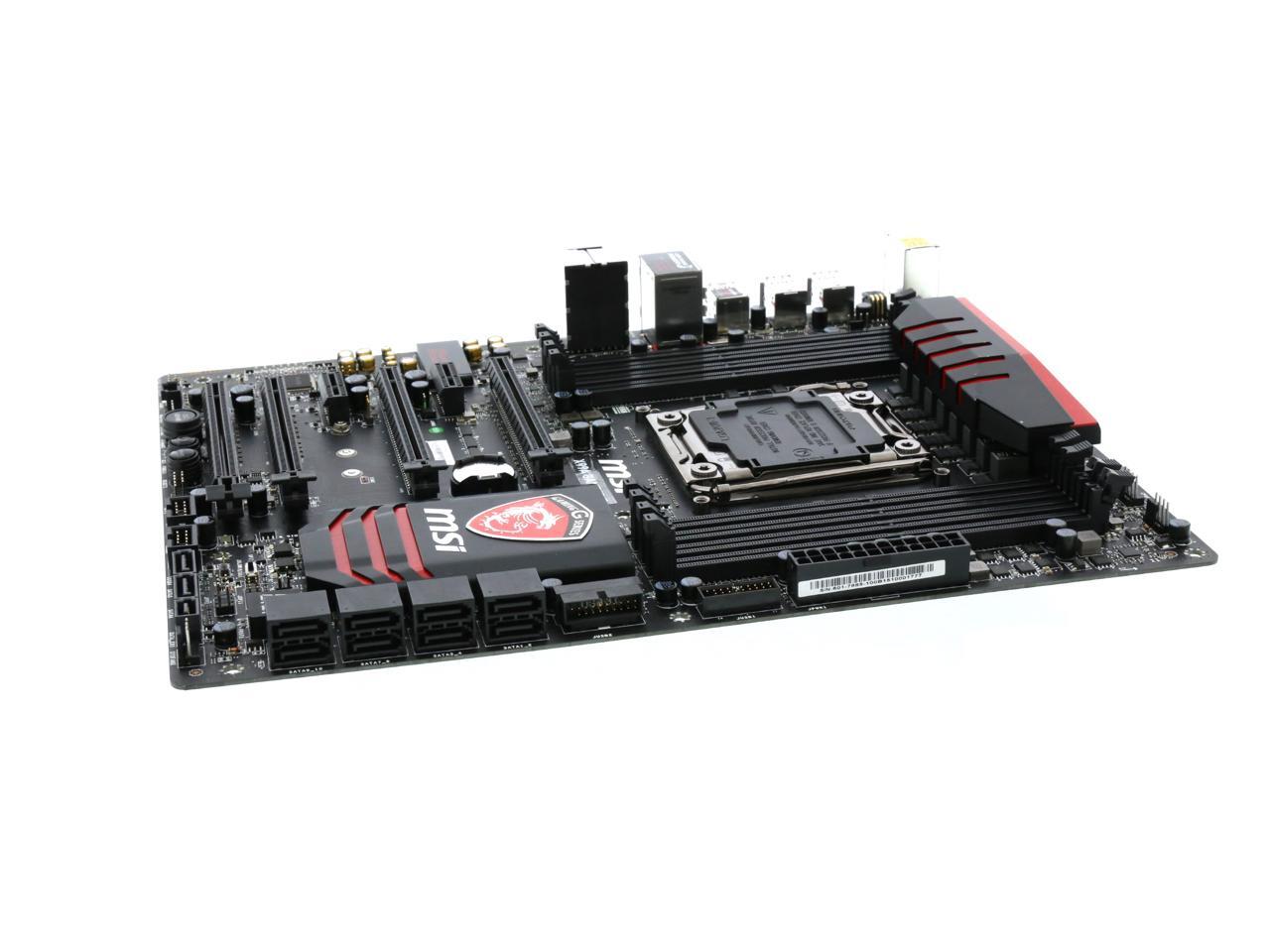

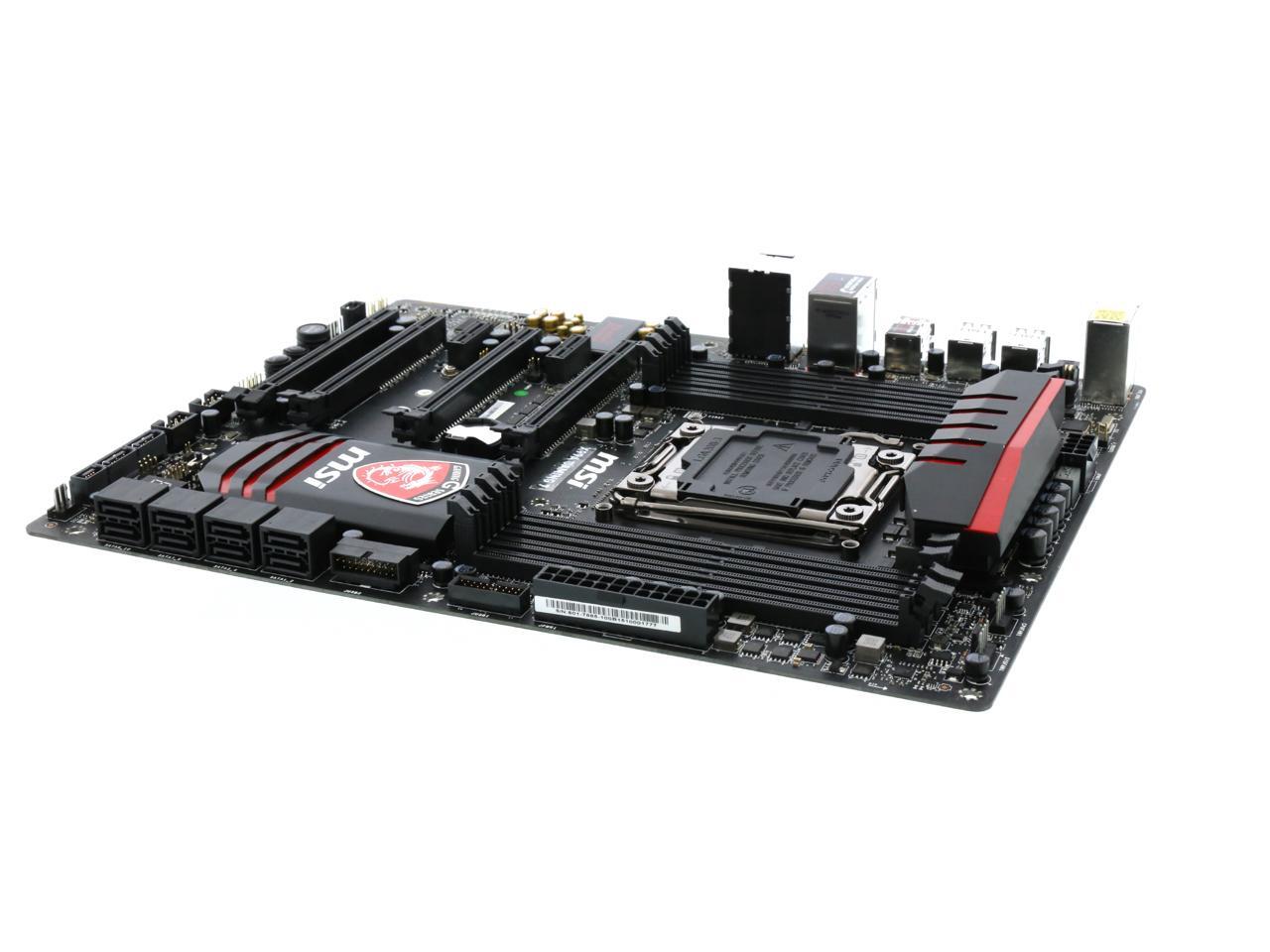

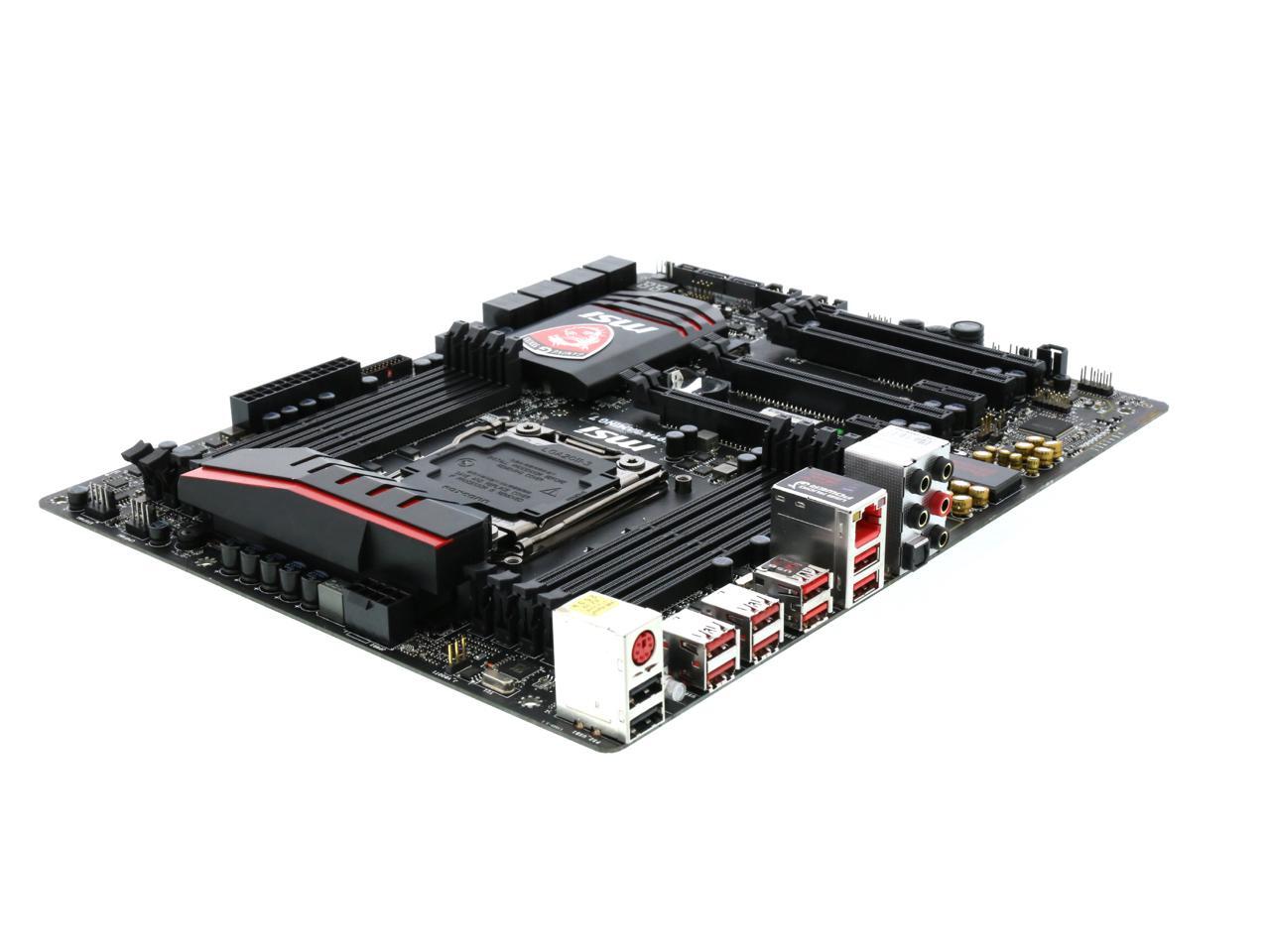

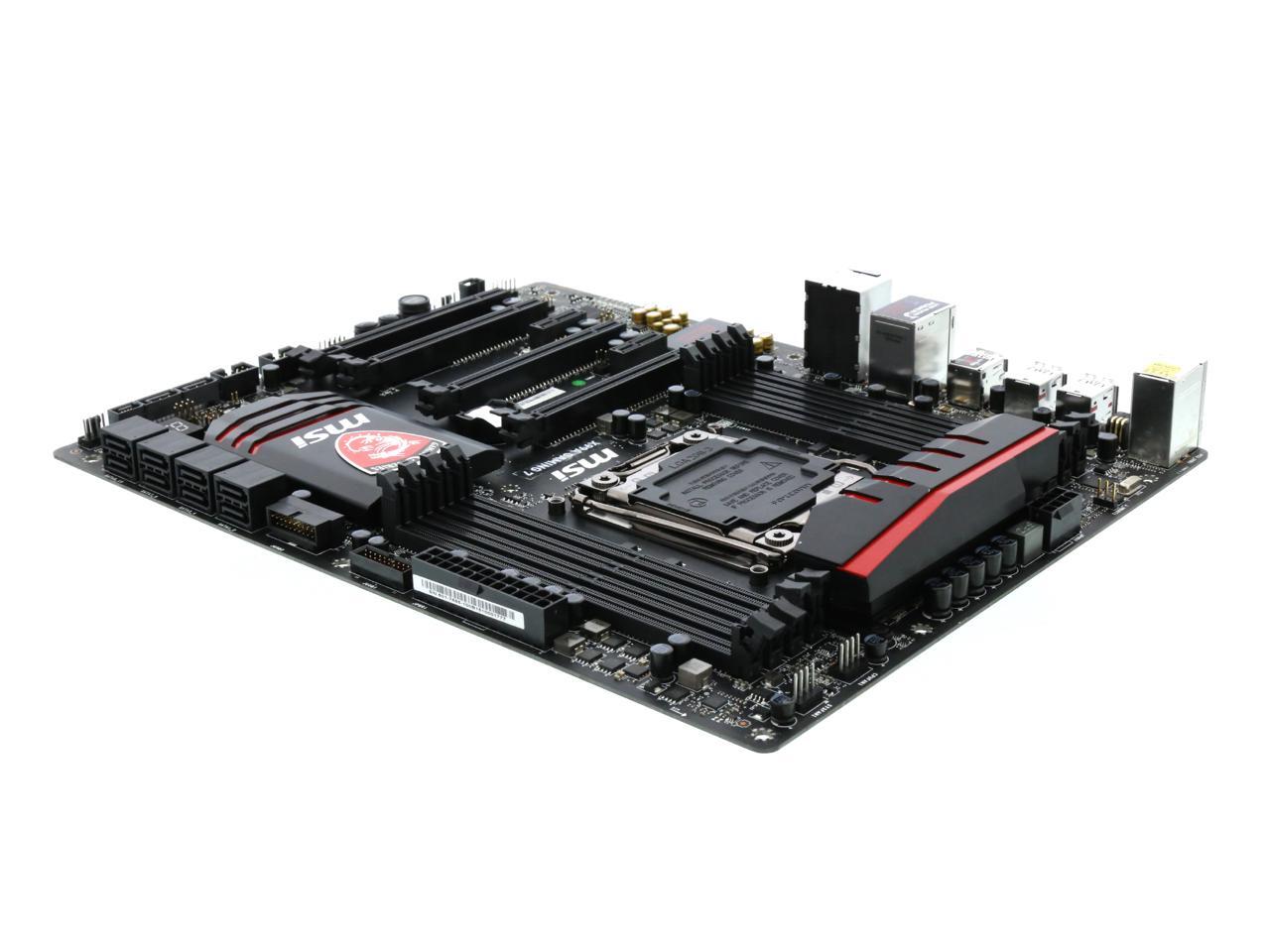

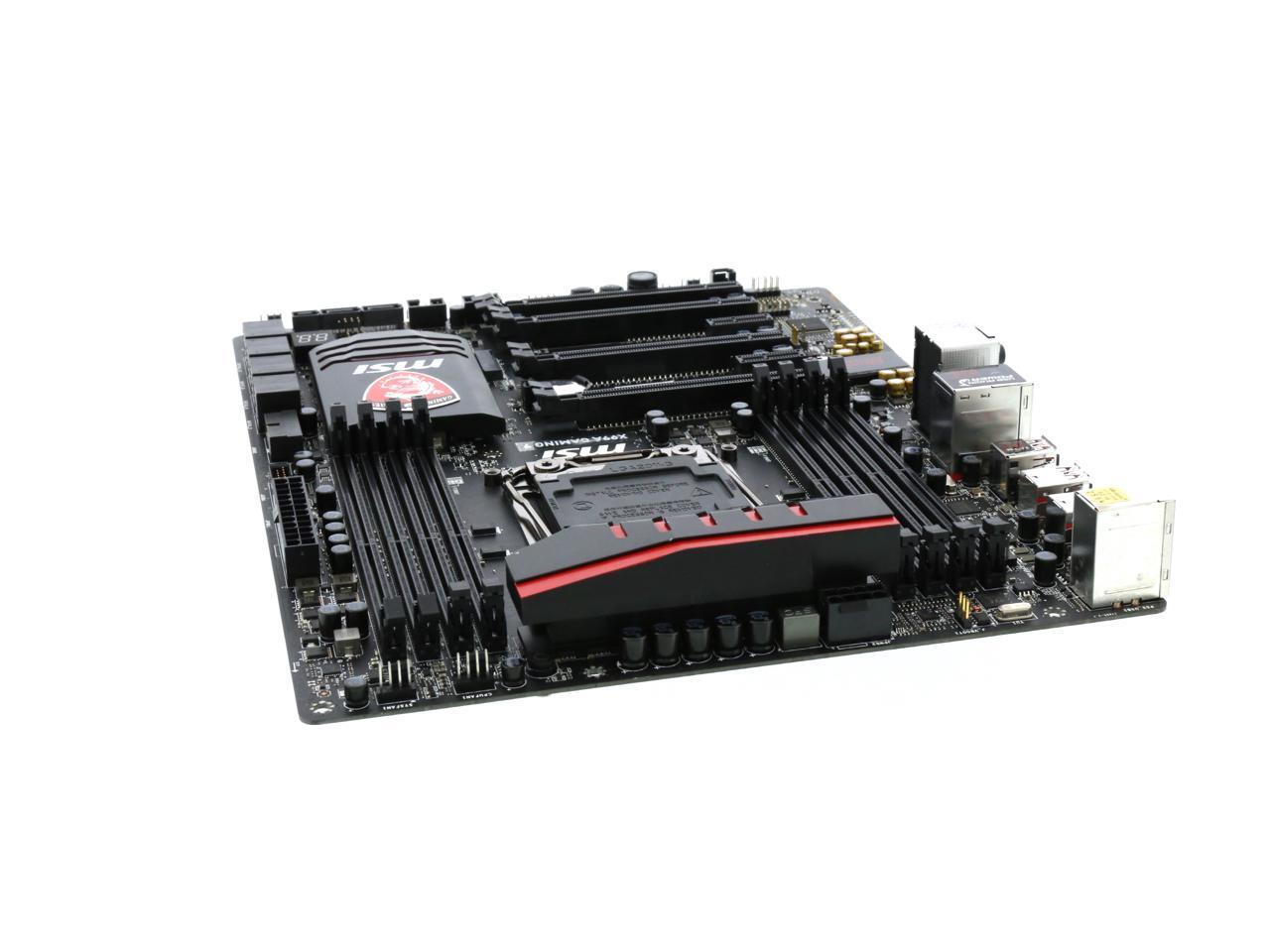

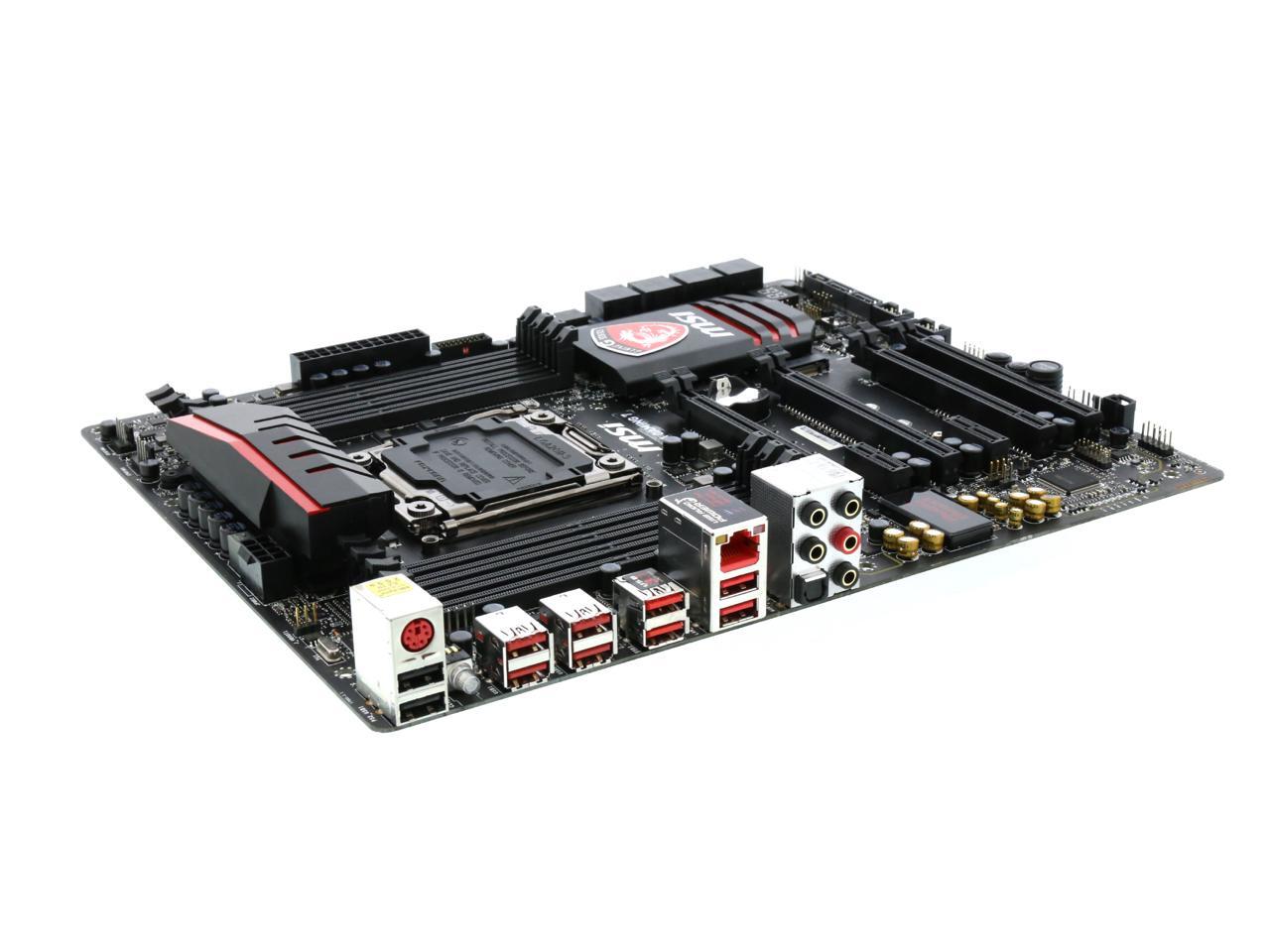

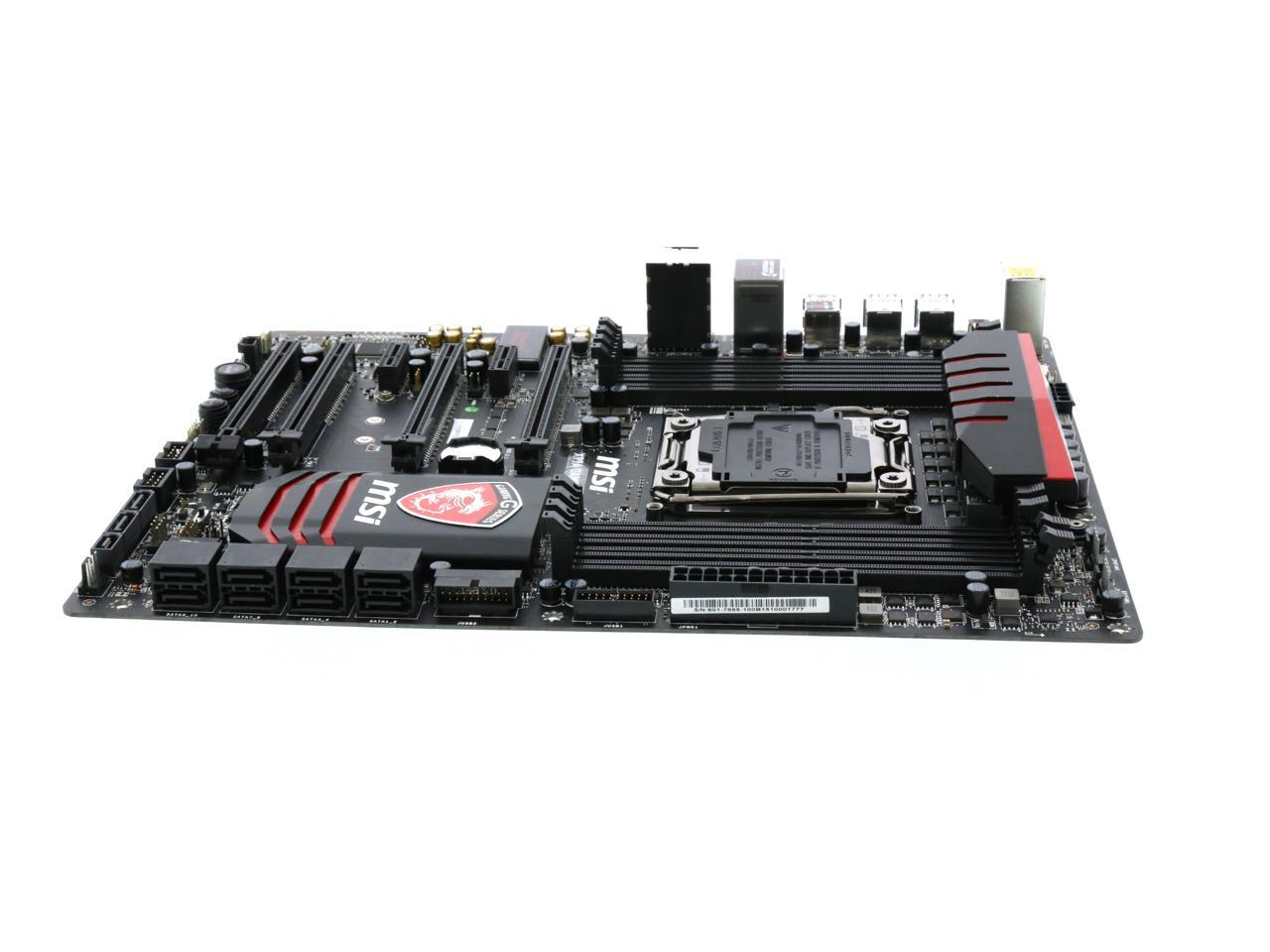

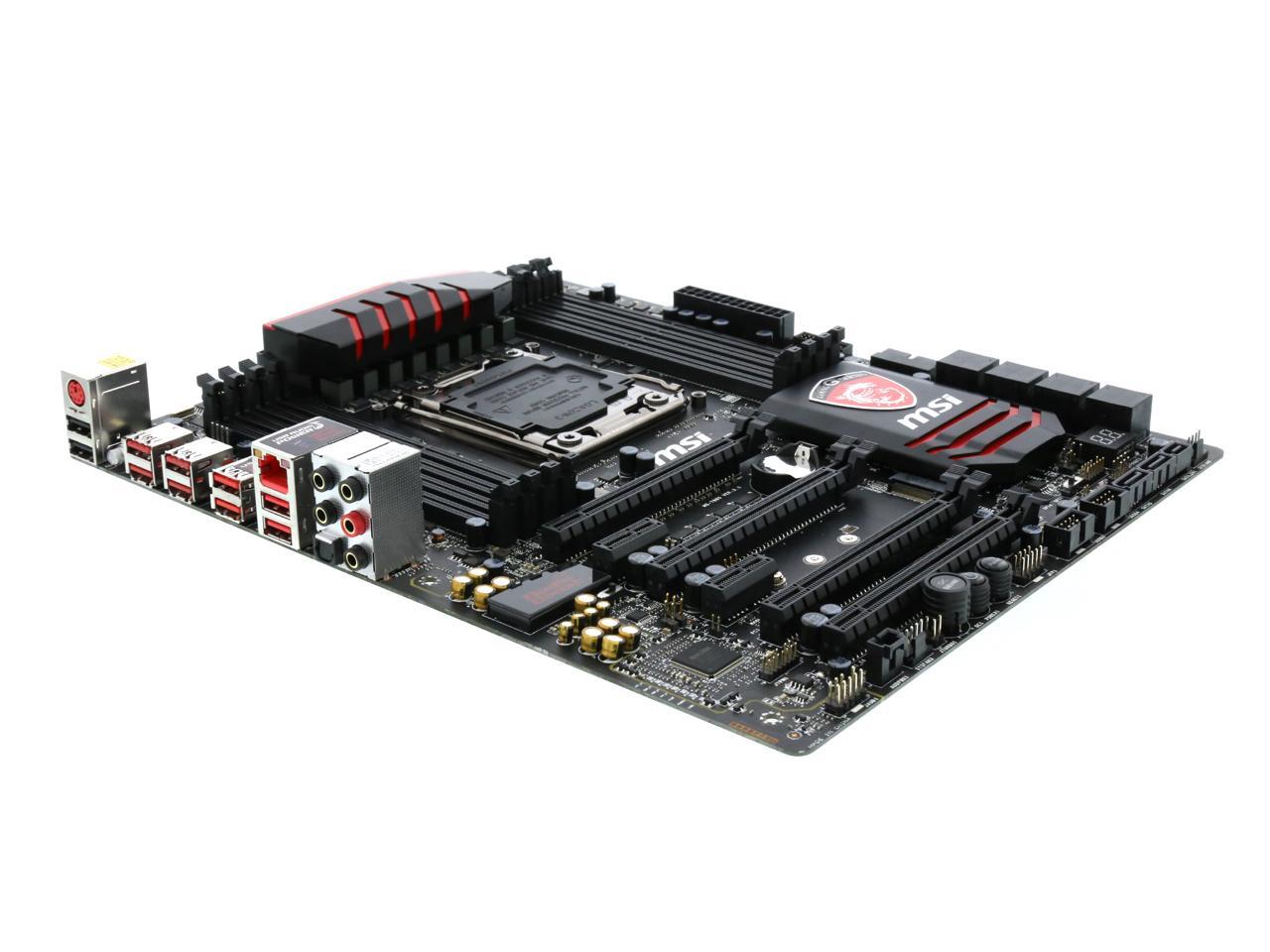

MSI X99A GAMING 7 LGA 2011-v3 Intel X99 USB 3.1 USB 3.0 ATX Intel Motherboard
REFURBISHED Product Type
- Intel X99
- Supports New Intel Core i7 Processor Extreme Edition for LGA2011-3 Socket
- Please refer to CPU Support for compatible CPU; the above description is for reference only.
- DDR4 3333*(*OC)/ 3110*/ 3000*/ 2750*/ 2666*/ 2600*/ 2400*/ 2200*/ 2133
- * Please refer to MSI Compatibility reports for more information of compatible memory
Specs
Reviews
Learn more about the MSI X99A GAMING 7

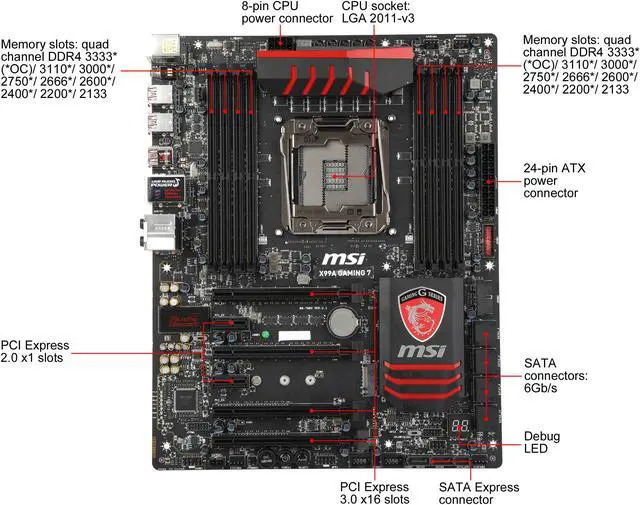

| Brand | MSI |
|---|---|
| Model | X99A GAMING 7 |
| CPU Socket Type | LGA 2011-v3 |
|---|---|
| CPU Type | Supports New Intel Core i7 Processor Extreme Edition for LGA2011-3 Socket Please refer to CPU Support for compatible CPU; the above description is for reference only. |
| Chipset | Intel X99 |
|---|
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 8x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3333*(*OC)/ 3110*/ 3000*/ 2750*/ 2666*/ 2600*/ 2400*/ 2200*/ 2133 * Please refer to MSI Compatibility reports for more information of compatible memory |
| Maximum Memory Supported | 128GB |
| Channel Supported | Quad Channel |
| PCI Express 3.0 x16 | 4 x PCIe 3.0 x16 slots, support up to 3-way mode - 1-way mode: x16/x0/x0/x0 - 2-way mode: x16/x16/x0/x0*, 16/x8/x0/x0** - 3-way mode: x16/x16/x0/x8*, x8/x8/x8/x0** * For the CPU that supports 40 PCIe lanes ** For the CPU that supports 28 PCIe lanes |
|---|---|
| PCI Express x1 | 2 x PCIe 2.0 x1 slots |
| Serial ATA (SATA) | 10 x SATA 6Gb/s ports (2 ports reserved for SATA Express port)* - SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10 - SATA7~10 ports only support IDE mode and AHCI mode - Supports Intel Smart Response Technology (Windows 7/ 8/ 8.1) |
|---|---|
| SATA Express | 1 x SATA Express port* * The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen2 x2 mode) module in the M.2 port. |
| M.2 | 1 x M.2 port, supports M.2 SATA 6Gb/s module* or M.2 PCIe module up to 32Gb/s speed** - M.2 port supports 4.2cm/6cm/8cm length module - M.2 PCIe module does not support RAID 0, RAID1, RAID 5 and RAID 10 * The SATA Express port or SATA5~6 ports will be unavailable when installing the M.2 (Gen2 x2 mode) module in the M.2 port. ** Intel RST does not support PCIe M.2 SSD with Legacy ROM |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1150 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Killer E2205 Gigabit LAN controller* * The Killer Network Manager is only available for Windows 7 and Windows 8/8.1 currently. The supported drivers for other operating systems would be available on the website if provided by vendor. |
|---|---|
| Max LAN Speed | 1Gbps |

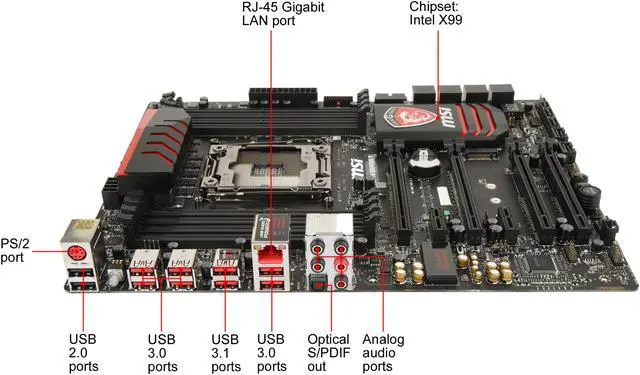

| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 2 Type-A / 6 x USB 3.0 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| RJ45 | 1 x RJ45 |
| USB 3.1 | 2 x USB 3.1 |
| USB 3.0 | 6 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| S/PDIF Out | 1 x Optical |
| Audio Ports | 5 x OFC audio jacks |
| Onboard USB | 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.0 connectors (supports additional 4 USB 3.0 ports) |
|---|---|
| Other Connectors | 2 x 4-pin CPU fan connectors 3 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Power button 1 x Reset button 1 x OC Genie button 1 x Multi-BIOS switch 1 x Audio power switch 1 x Slow mode booting jumper 1 x 2-Digit Debug Code LED |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Supports New Intel Core i7 processors Extreme Edition in LGA 2011-3 socket Supports Quad Channel DDR4-3333(OC) Memory USB 3.1: Delivering speeds up to 10Gb/s, USB 3.1 offers performance twice as fast as a regular USB 3.0 connection Turbo M.2: delivering next generation M.2 Gen3 x4 performance with transfer speeds up to 32Gb/s SATA Express + USB 3.1 + SATA 6Gb/s Multi-GPU: Quad NVIDIA SLI & AMD CrossFire Support OC Engine: Reach higher overclocking results with more flexible BCLK adjustments at 100/125/167MHz Audio Boost 2: Reward Your Ears with True Quality Killer Ethernet: Kill Your Lag USB Audio Power: Super Stable 5V Power & Better Signal Transmission over USB XSplit Gamecaster: Show off you skills to the world with a six month premium license for this popular streaming software Guard-Pro: Improved Protection and Power Efficiency OC Genie 4: Overclock in 1 Second Gaming App: Boost your framerate Click BIOS 4: Easily Fine-tune Your System Sound Blaster Cinema 2: Benefit from Creative software to get a more realistic surround sound experience Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices |
|---|
| First Listed on Newegg | October 09, 2017 |
|---|
