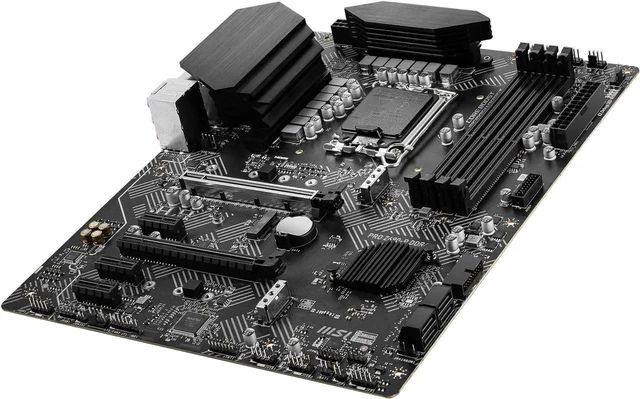

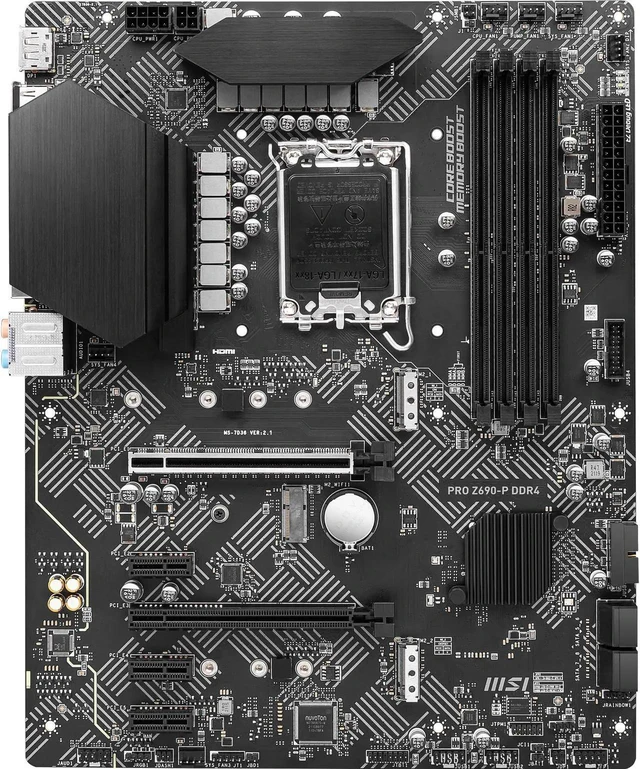

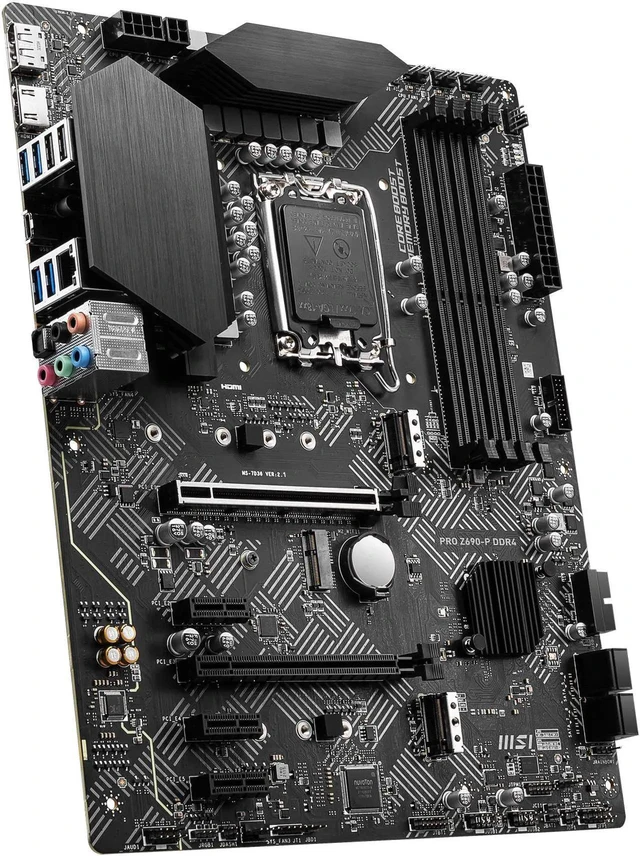

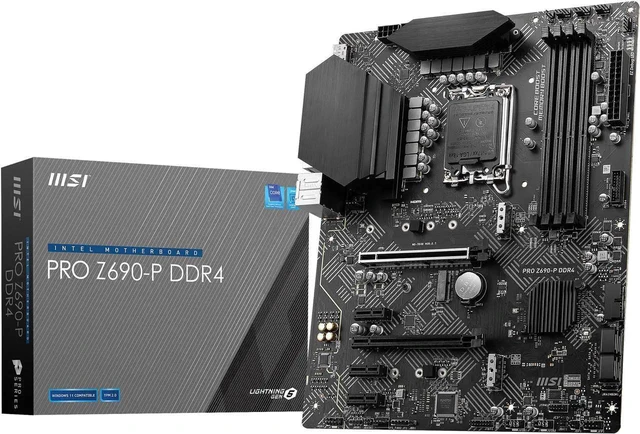

MSI PRO Z690-P DDR4 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard
REFURBISHED Product Type
- BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information.
- Supports Intel Core 14th, 13th and 12th Gen, Intel Pentium Gold, Celeron and Intel Processor 300(T) for LGA 1700 socket
- Supports DDR4 Memory, up to 5000+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance.
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and MOSFET thermal pads rated for 7W/mk are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
+
+
Specs
Reviews
Learn more about the MSI PRO Z690-P DDR4
| Brand | MSI |
|---|---|
| Model | PRO Z690-P DDR4 |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors* May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors. |
| Chipset | Intel Z690 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200 / 2666 / 2133 (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5000+ 1DPC 2R Max speed up to 4600+ 2DPC 1R Max speed up to 4400+ 2DPC 2R Max speed up to 4000+ |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 * PCI_E3 Support PCIe 3.0 x4. |
| PCI Express x1 | 3 x PCI Express 3.0 x1 |
| Other Slots | 1 x M.2 slot with E key for Intel Wireless-AX CNVi and PCIe WiFi module |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 slots (Key M): M2_1 slot (From CPU): Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset): Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125BG |
|---|---|
| Max LAN Speed | 2.5Gbps |

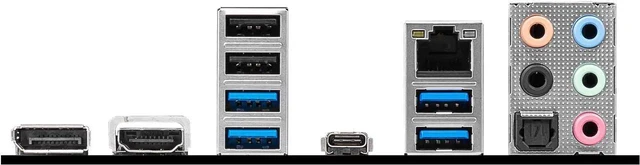

| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 1 x Optical S/PDIF Out 5 x Audio Jacks 1 x USB 3.2 Gen 2x2 Type-C 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0/1.1 |
|---|
| Onboard USB | 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Clear CMOS jumper 1 x TBT connector (Supports RTD3) 1 x 4-pin RGB LED connector 1 x 3-pin RAINBOW LED connector 4 x EZ Debug LED |
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Features | Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket Supports DDR4 Memory, up to 5000+(OC) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2 Premium Thermal Solution: Extended Heatsink Design and MOSFET thermal pads rated for 7W/mk are built for high performance system and non-stop works 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Audio Boost: Reward your ears with studio grade sound quality High Quality PCB: 6-layer PCB and server grade level material Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire |
|---|
| First Listed on Newegg | August 18, 2026 |
|---|
