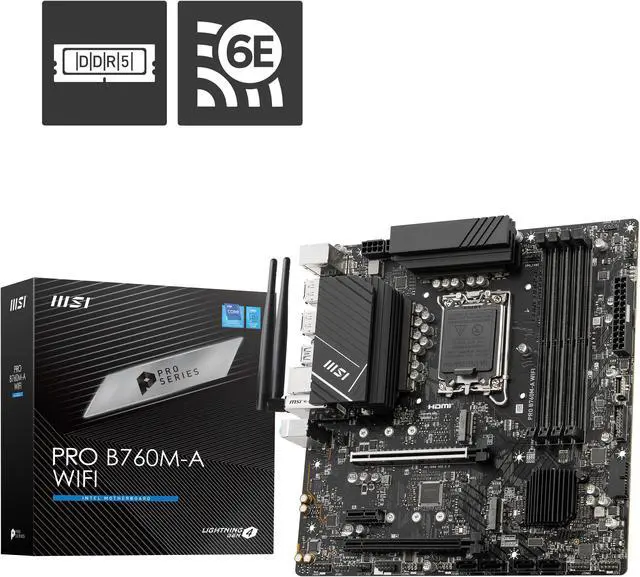

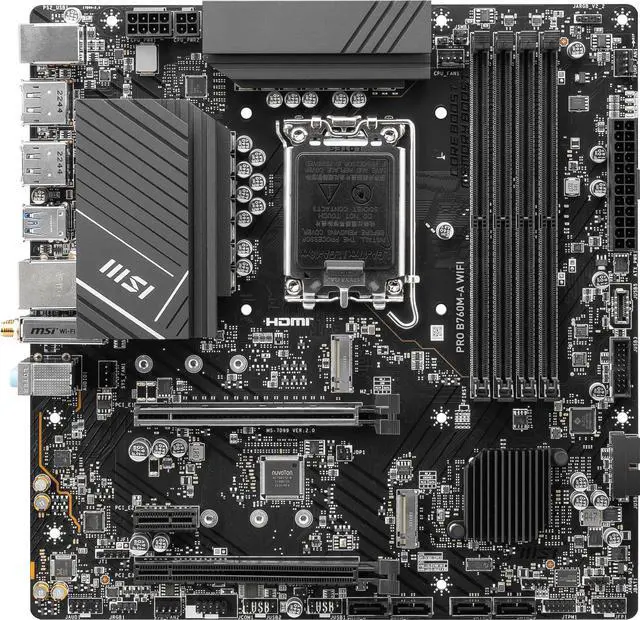

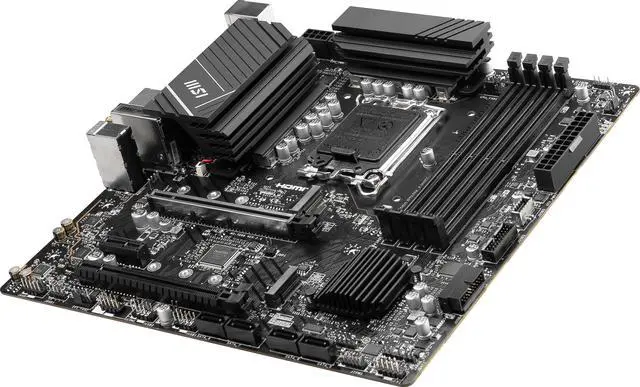

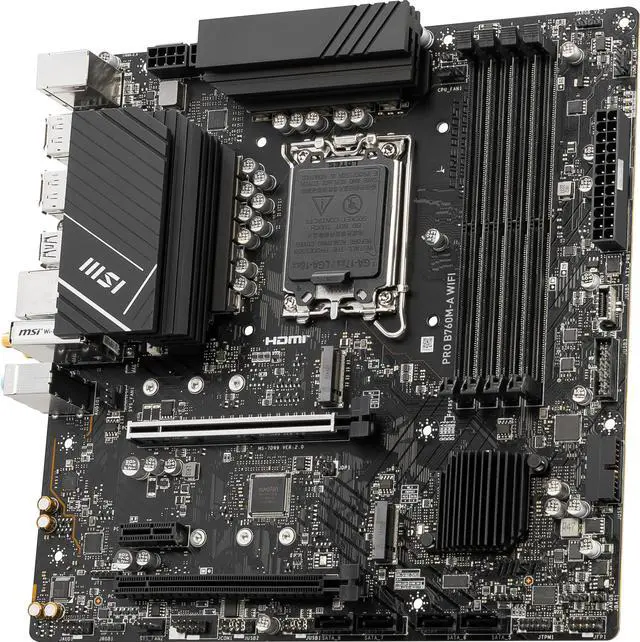

MSI PRO B760M-A WIFI LGA 1700 Intel B750 SATA 6Gb/s DDR5 mATX Motherboard ,Wi-Fi 6E, Bluetooth 5.3, premium 2.5G LAN, Frozr AI Cooling
- BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
- Supports 14th / 13th / 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
- Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
- EZ Debug LED: Easiest way to troubleshoot.
- Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
+
+
Specs
Reviews (148)
Learn more about the MSI PRO B760M-A WIFI
| Brand | MSI |
|---|---|
| Series | PRO |
| Model | PRO B760M-A WIFI |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Chipset | Intel B760 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 2x PCIe 4.0 x16 slots |
|---|---|
| PCI Express 3.0 x16 | 1x PCIe 3.0 x1 slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio Channels | 8-Channel (7.1) HD Audio with Audio Boost |
|---|
| Max LAN Speed | Realtek® RTL8125BG 2.5G LAN |
|---|---|
| Wireless LAN | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Bluetooth | Yes |
| Back I/O Ports | Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A Wi-Fi / Bluetooth USB 2.0 USB 3.2 Gen 2 10Gbps Type-A DisplayPort 2.5G LAN Audio Connectors HDMI™ |
|---|
| Other Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
|---|
| Windows 11 | Support for Windows® 11 64-bit, Windows® 10 64-bit |
|---|
| Form Factor | mATX |
|---|---|
| Dimensions (W x L) | 243.84mmx243.84mm |
| Features | Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC) Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience |
|---|
| First Listed on Newegg | July 05, 2023 |
|---|
