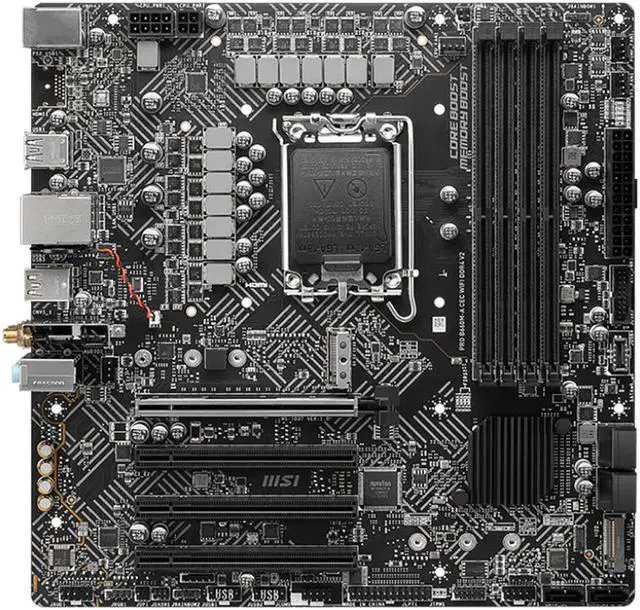

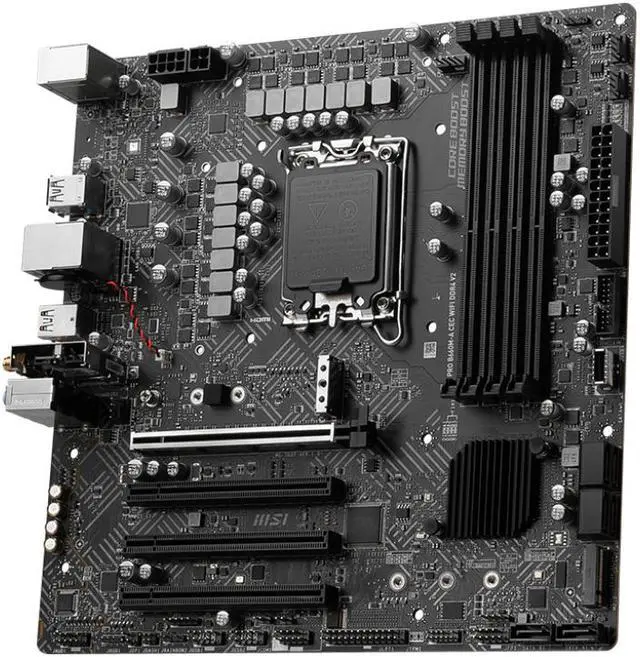

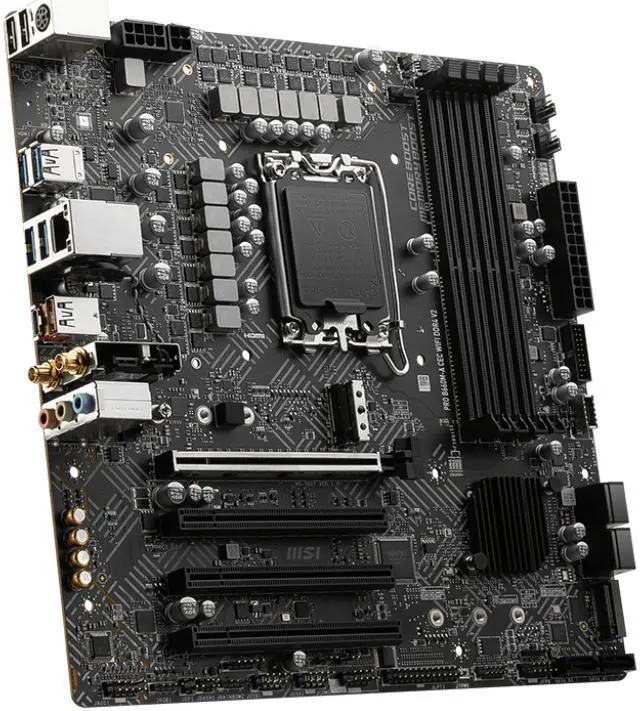

MSI PRO PRO B660M-A CEC WIFI DDR4 V2 LGA 1700 SATA 6Gb/s mATX (280) Motherboards - Intel

(1) Write a Review
  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)

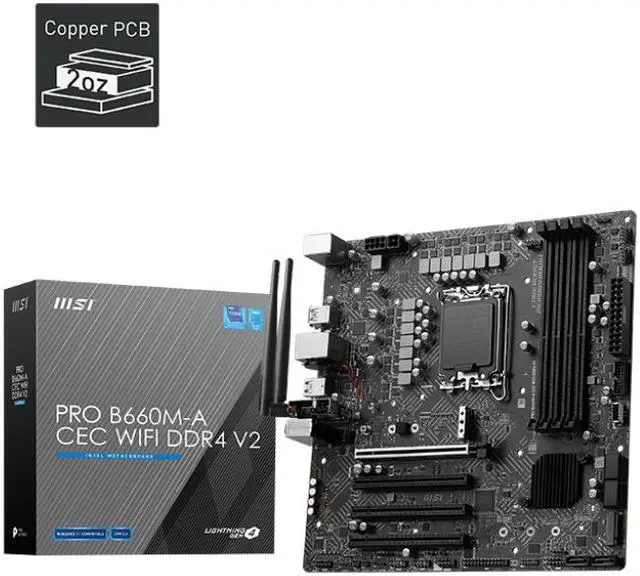

  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specs
Reviews (1)

Learn more about the MSI PRO B660M-A CEC WIFI DDR4 V2

Model
Brand MSI
Series PRO
Model PRO B660M-A CEC WIFI DDR4 V2
Part Number PRO B660M-A CEC WIFI DDR4 V2
Supported CPU
CPU Socket Type LGA 1700
CPU Type Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Chipsets
Chipset Intel B660
Memory
Number of Memory Slots 4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/2133(By JEDCE & POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4000+ MHz
• 2DPC 1R Max speed up to 4000+ MHz
• 2DPC 2R Max speed up to 3600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Memory Standard Memory Support 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/2133(By JEDCE & POR
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16
PCI Express x16 4x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI Slots 4 x PCI Slots
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
6x SATA 6G
SATA RAID 0/1/5/10
Onboard Audio
Audio Channels Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Onboard LAN
Max LAN Speed ealtek® 8125BG 2.5Gbps LAN
Wireless LAN ntel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
Bluetooth Yes

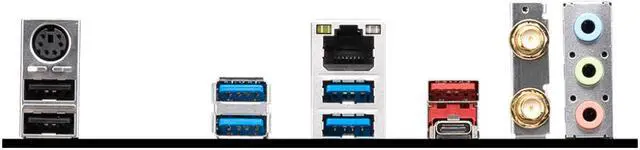

Rear Panel Ports
Back I/O Ports Keyboard / Mouse
2.5G LAN
USB 3.2 Gen 2 10Gbps (Type-A)
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
Internal I/O Connectors
Other Connectors 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable RGB LED connector(JRAINBOW)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Software Feature
Windows 11 Support for Windows® 11 64-bit, Windows® 10 64-bit
Physical Spec
Form Factor mATX
Dimensions (W x L) 243.84mmx243.84mm
Additional Information
First Listed on Newegg June 01, 2024

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
