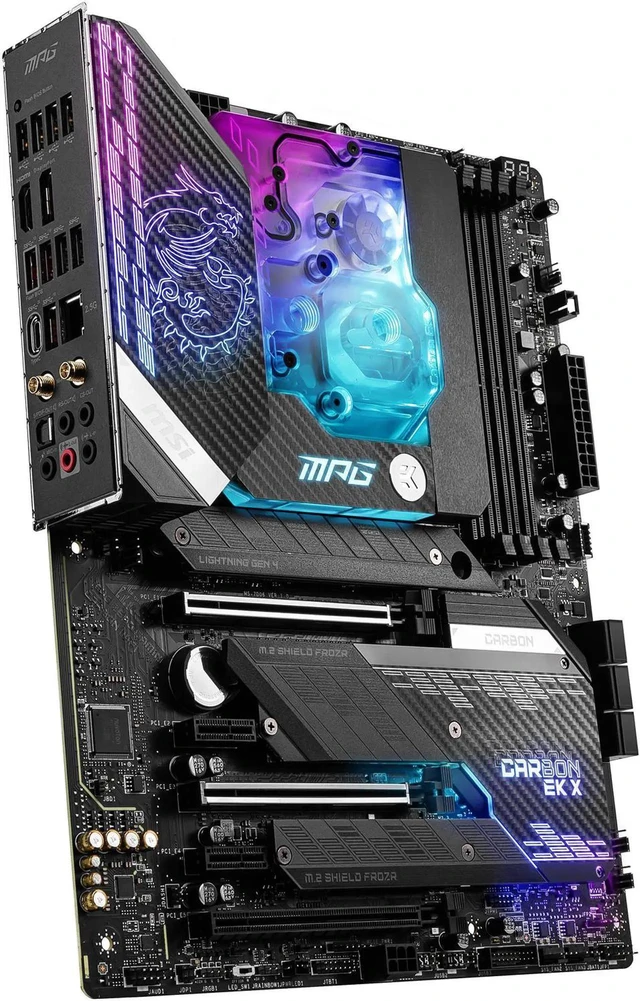

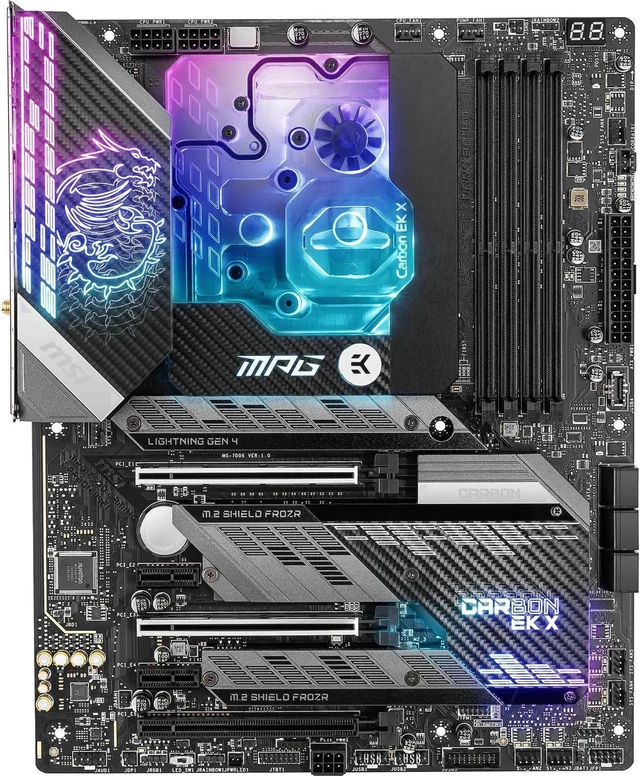

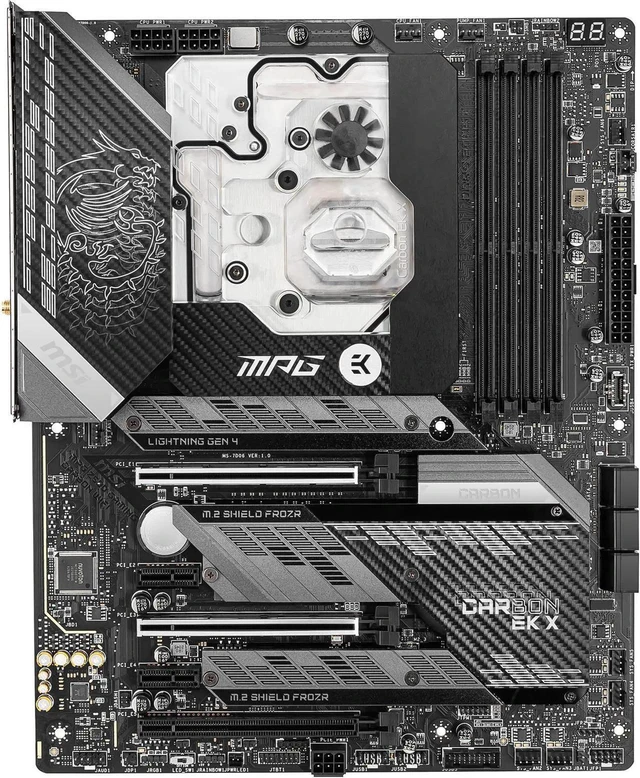

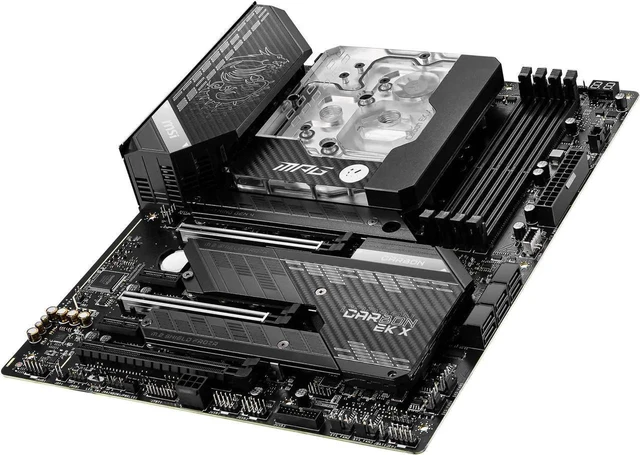

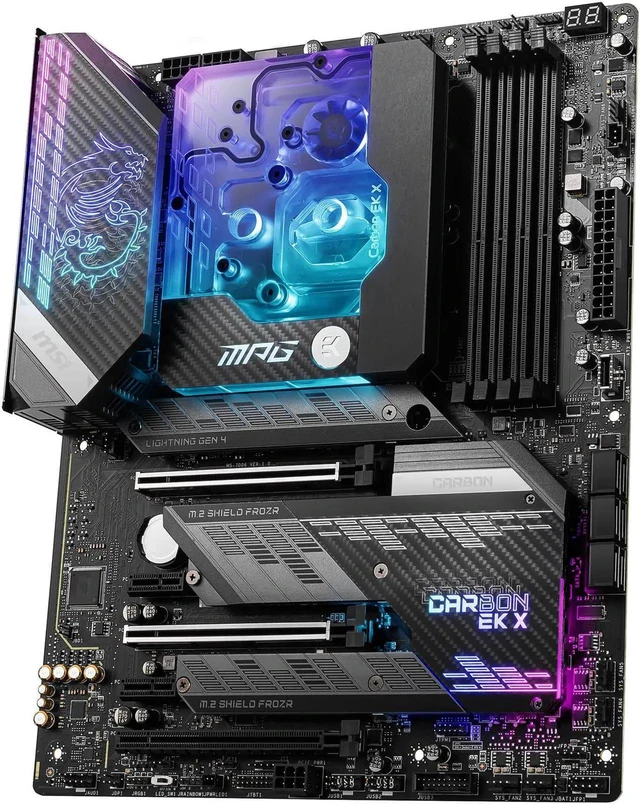

MSI MPG Z590 CARBON EK X LGA 1200 ATX Intel Motherboard
REFURBISHED Product Type
- Intel Z590
- Supports 11th / 10th Gen Intel Core processors
- Supports Intel Pentium Gold / Celeron processors
- DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR)
- DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5333
- 1DPC 2R Max speed up to 4700+
- 2DPC 1R Max speed up to 4400+
- 2DPC 2R Max speed up to 4000+
+
+
Specs
Reviews
Learn more about the MSI MPG Z590 CARBON EK X
| Brand | MSI |
|---|---|
| Model | MPG Z590 CARBON EK X |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium Gold / Celeron processors |
| Chipset | Intel Z590 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR) DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 1DPC 2R Max speed up to 4700+ 2DPC 1R Max speed up to 4400+ 2DPC 2R Max speed up to 4000+ |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express x1 | 2 x PCIe 3.0 x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 3 x M.2 slots (Key M) M2_1 slot (From CPU): Available only on 11th Gen Intel CPU Supports PCIe 4.0 x4 Supports 2242/2260/2280/22110 storage devices M2_2* & M2_3** slot (From Z590 Chipset): Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/2260/2280 storage devices Intel Optane Memory Ready*** * SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. ** SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot. *** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/10 |
| Audio Chipset | Realtek ALC4080 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I225-V |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E AX210 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

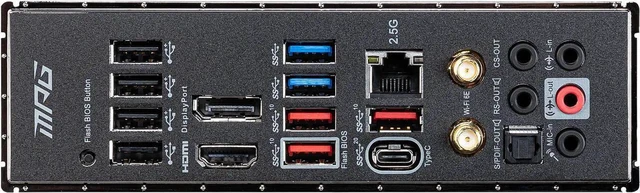

| Back I/O Ports | 1 x Flash BIOS Button 1 x Optical S/PDIF-Out 5 x HD Audio Connectors 1 x HDMI 1 x DisplayPort 1 x USB 3.2 Gen 2x2 20Gbps Type-C 2 x USB 3.2 Gen 1 5Gbps (Type-A) 3 x USB 3.2 Gen 2 10Gbps (Type-A) 4 x USB 2.0 1 x 2.5G LAN Wi-Fi / Bluetooth Connectors |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2 10Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 6-pin PCIE power connector 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector 1 x TBT connector (supports RTD3) 1 x Tuning Controller connector |
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Features | Supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 5333(OC) MHz CPU + VRM Water Cooling: A custom-designed EK monoblock with build-in inflow indicator that offers pristine cooling for both the CPU and VRM power delivery section Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost M.2 Shield Frozr: All M.2 slots covered with Shield Frozr to built for high performance system and non-stop gaming experience MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material Pre-installed I/O Shield: Better EMI protection and more convenience for installation |
|---|
| First Listed on Newegg | August 12, 2026 |
|---|
