$661.28
Ships from Hong Kong.
Sold by yingchuang ltd supply
Shipped by yingchuang ltd supply
Meet Your Seller

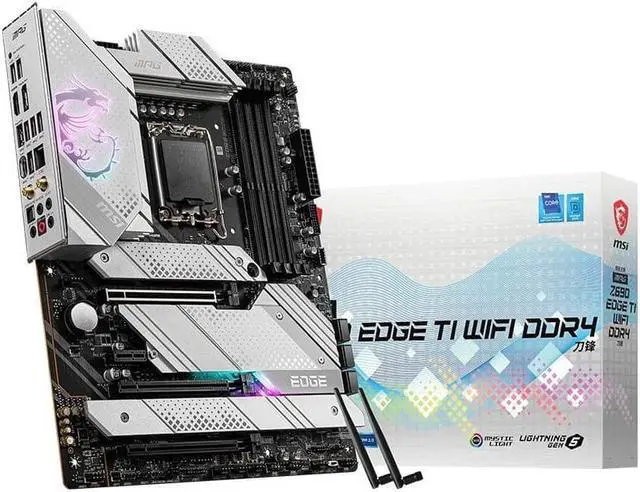

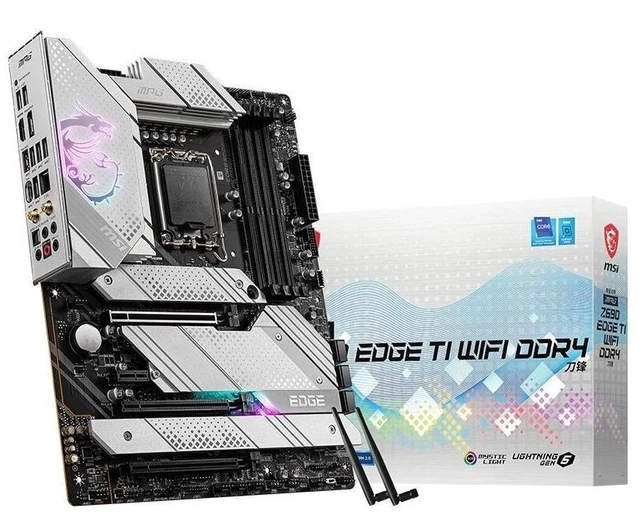

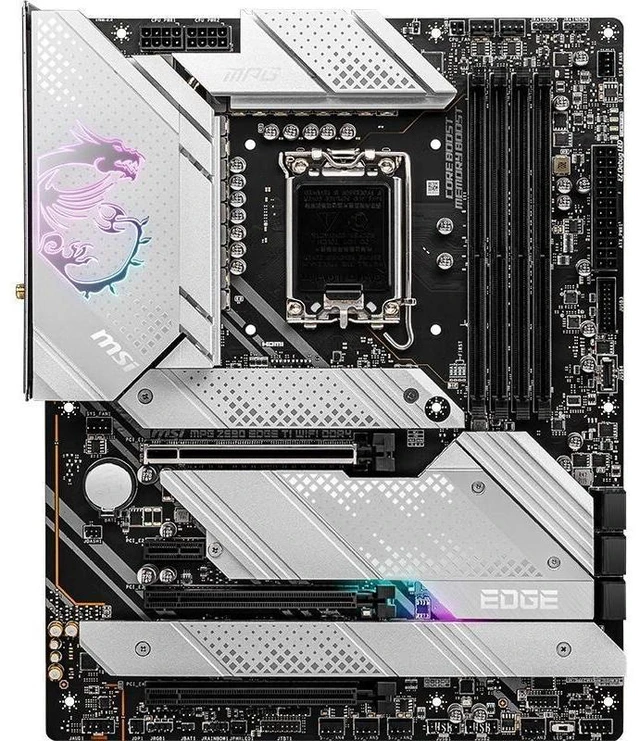

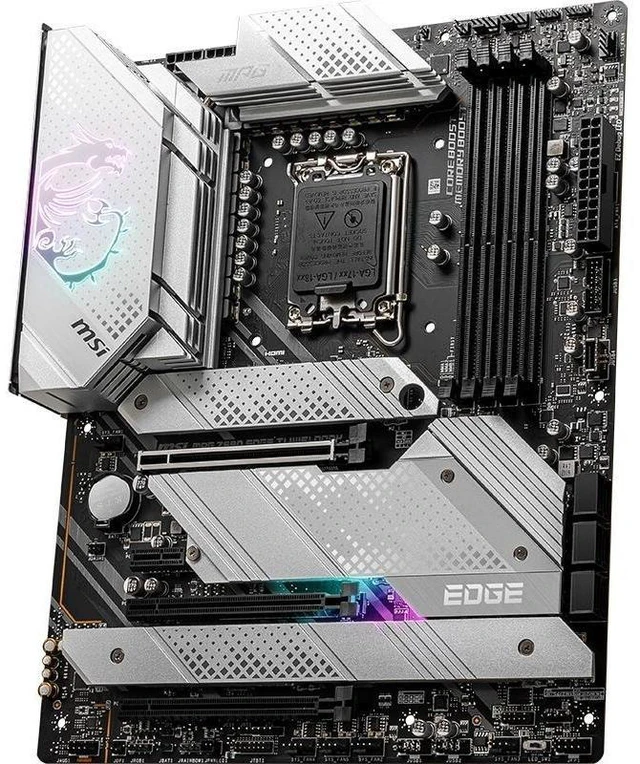

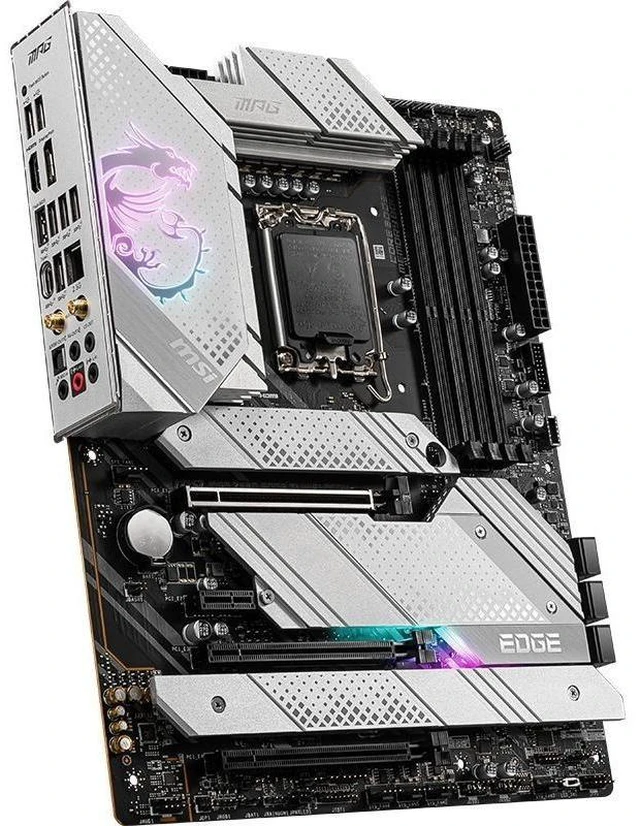

MSI MPG Z690 EDGE TI WIFI Motherboard (ATX,Intel Z690 LGA1700 12th Gen Intel Core,4×DDR4 DIMM, PCI-E 5.0 , 4×M.2, USB3.2 Gen2x2 Type-C , 2.5GbE LAN, Wi-Fi 6, 1xDisplayPort , 1xHDMI)
- Supports 12th Gen Intel Core / Pentium / Celeron processors for LGA 1700 socket.Audio ports (Rear): 5plus Optical S/PDIF (Realtek ALC4080 Codec)
- Supports DDR4 Memory, up to 5600(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
+
+
Overview
Specs
Reviews
Integrated chip: Sound card/network card
Main chipset: Intel Z690
Audio chip: Integrated Realtek ALC4080 7.1 channel sound chip
Nic chip: Onboard Intel I225V 2.5G bE NIC
CPU type: 12th generation Core/Pentium/Celeron
CPU slot: LGA 1700
Memory type: 4 x DDR4 DIM
Ms
Maximum memory capacity: 128GB
Memory Description: Supports dual-channel DDR4 5200 (OC) MHz memory
PCI-E Standard: PCI-E 5.0
PCI-E X16 slot: 3 slots
PCI-E X1 slot: 1
Storage ports: 4 x M. 2 ports, 6 x SATA III ports

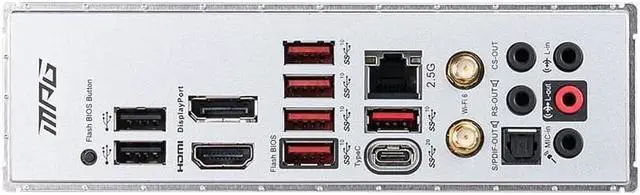

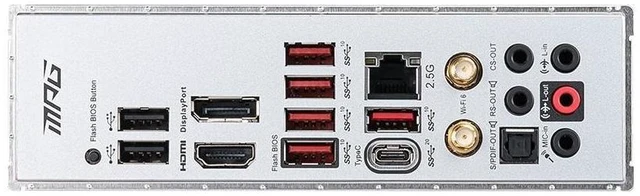

USB interface:
1 x USB 3.2 Gen2x2 Type-C interface
5 x USB 3.2 Gen2 Type-A Interface
1 x USB 3.2 Gen2 Type-C interface
2 x USB 3.2 Gen1 port
2 x USB 2.0 port
Video port: 1 x DisplayPort port, 1 x HDMI port
Power interface: two 8-pin, one 24-pin power interface
Other interfaces: 1 x RJ45 network interface, 5 x audio interface
RAID: Supports RAID 0, 1, 5, and 10
Wireless: Support 802.11 a /b/g/n/ac/axWiFi standard
Bluetooth: Supports Bluetooth 5.2
Operating system: Windows11 64-bit, Windows10 64-bit
Main chipset: Intel Z690
Audio chip: Integrated Realtek ALC4080 7.1 channel sound chip
Nic chip: Onboard Intel I225V 2.5G bE NIC
CPU type: 12th generation Core/Pentium/Celeron
CPU slot: LGA 1700
Memory type: 4 x DDR4 DIM
Ms
Maximum memory capacity: 128GB
Memory Description: Supports dual-channel DDR4 5200 (OC) MHz memory
PCI-E Standard: PCI-E 5.0
PCI-E X16 slot: 3 slots
PCI-E X1 slot: 1
Storage ports: 4 x M. 2 ports, 6 x SATA III ports
USB interface:
1 x USB 3.2 Gen2x2 Type-C interface
5 x USB 3.2 Gen2 Type-A Interface
1 x USB 3.2 Gen2 Type-C interface
2 x USB 3.2 Gen1 port
2 x USB 2.0 port
Video port: 1 x DisplayPort port, 1 x HDMI port
Power interface: two 8-pin, one 24-pin power interface
Other interfaces: 1 x RJ45 network interface, 5 x audio interface
RAID: Supports RAID 0, 1, 5, and 10
Wireless: Support 802.11 a /b/g/n/ac/axWiFi standard
Bluetooth: Supports Bluetooth 5.2
Operating system: Windows11 64-bit, Windows10 64-bit
