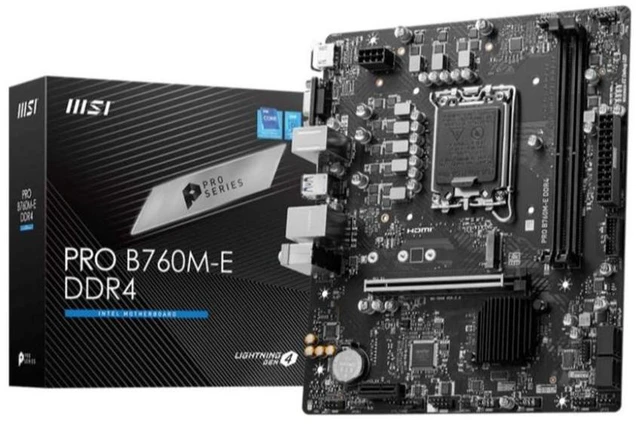

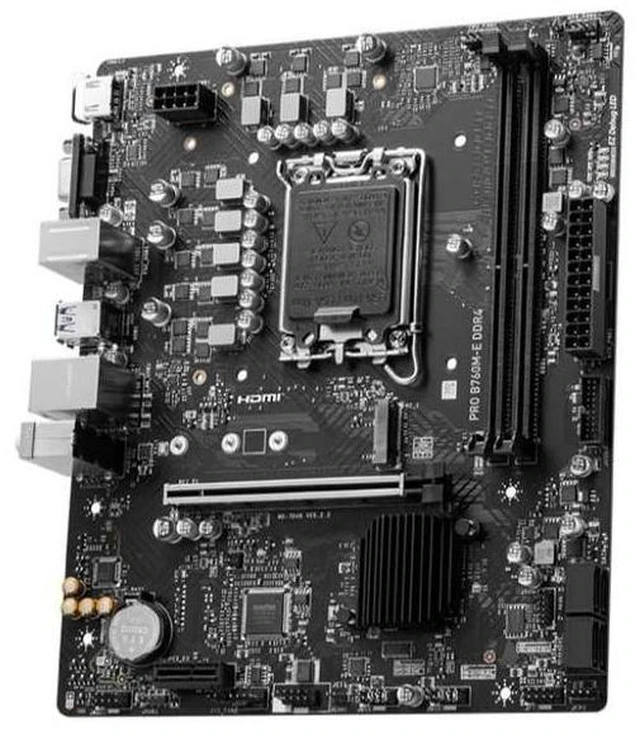

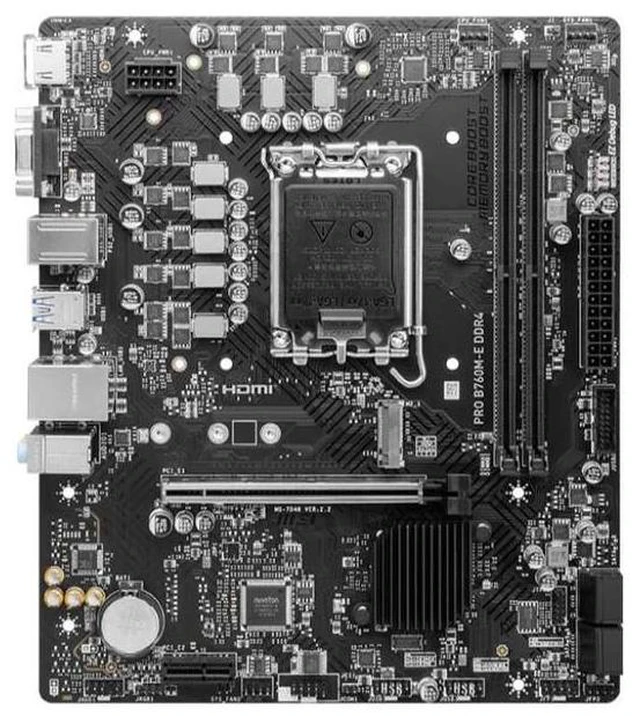

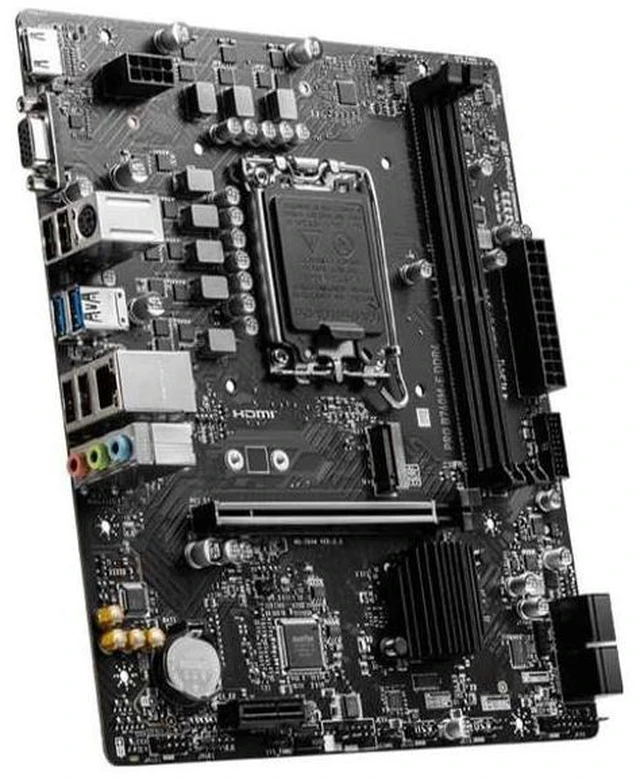

MSI PRO B760M-E Motherboard(INTEL B760,Supports 12th/13th Gen Intel Core Processors micro ATX,LGA1700,2x DDR4,PCIe 4.0,1x M.2,1×VGA,1×HDMI)
- Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
- Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
- Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
- Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
- MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
- Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
+
+
Overview
Specs
Reviews
CHIPSET INTEL B760
CPU SUPPORT Supports 12th/13th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY 2x DDR4, Maximum Memory Capacity 64GB
Memory Support 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4200 (OC) / 4000 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200 (JEDEC) / 2933 (JEDEC) / 2666 (JEDEC) / 2400 (JEDEC) / 2133 (JEDEC)
Max. overclocking frequency:
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS 1x HDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
1x D-Sub
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 1x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
STORAGE 1x M. 2 (Qty)
M. 2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA5 will be unavailable when installing M. 2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® RTL8111H Gigabit LAN
AUDIO Realtek® ALC897 Codec
7.1 -Channel High Definition Audio
INTERNAL I/O 1x Power Connector (ATX_PWR)
1x Power Connector (CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector (JRGB)
1x TPM pin header(Support TPM 2.0 )
2x USB 2.0 ports
1x USB 3.2 Gen1 Type A ports
LED FEATURE 4x EZ Debug LED
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION mATX
200mmx 236.16 mm
CPU SUPPORT Supports 12th/13th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY 2x DDR4, Maximum Memory Capacity 64GB
Memory Support 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4200 (OC) / 4000 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200 (JEDEC) / 2933 (JEDEC) / 2666 (JEDEC) / 2400 (JEDEC) / 2133 (JEDEC)
Max. overclocking frequency:
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS 1x HDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
1x D-Sub
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 1x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
STORAGE 1x M. 2 (Qty)
M. 2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
* SATA5 will be unavailable when installing M. 2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® RTL8111H Gigabit LAN
AUDIO Realtek® ALC897 Codec
7.1 -Channel High Definition Audio
INTERNAL I/O 1x Power Connector (ATX_PWR)
1x Power Connector (CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector (JRGB)
1x TPM pin header(Support TPM 2.0 )
2x USB 2.0 ports
1x USB 3.2 Gen1 Type A ports
LED FEATURE 4x EZ Debug LED
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION mATX
200mmx 236.16 mm
