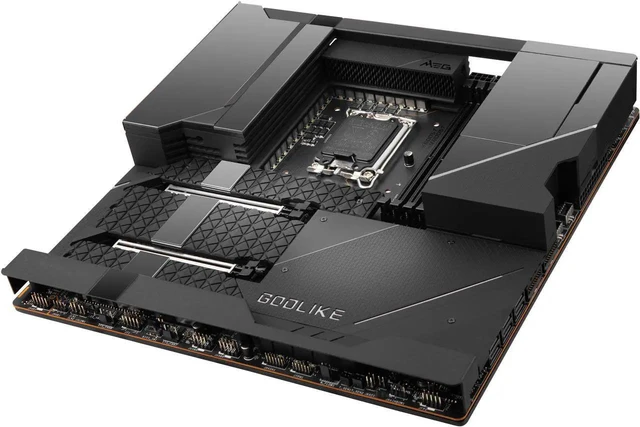

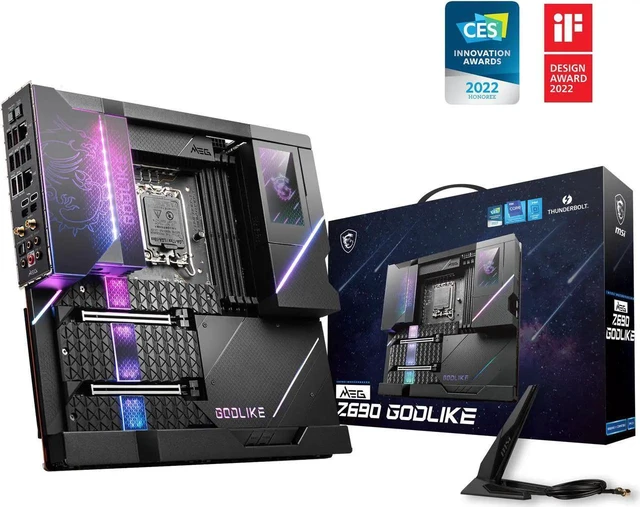

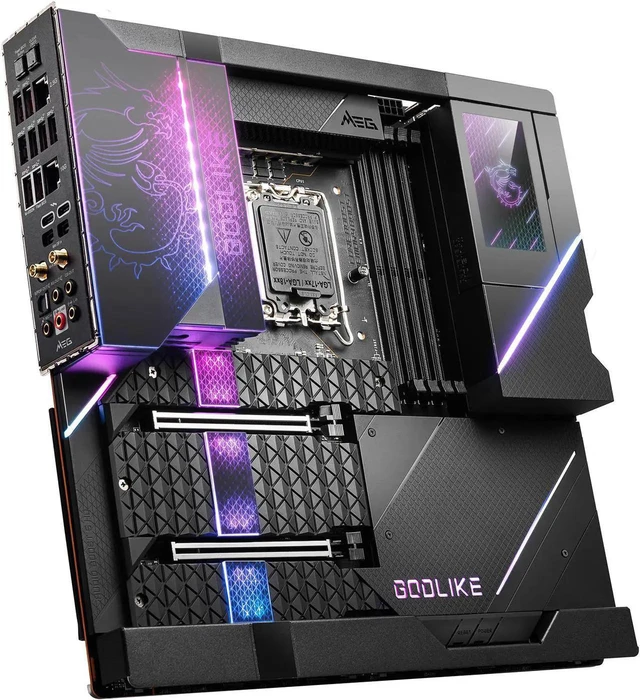

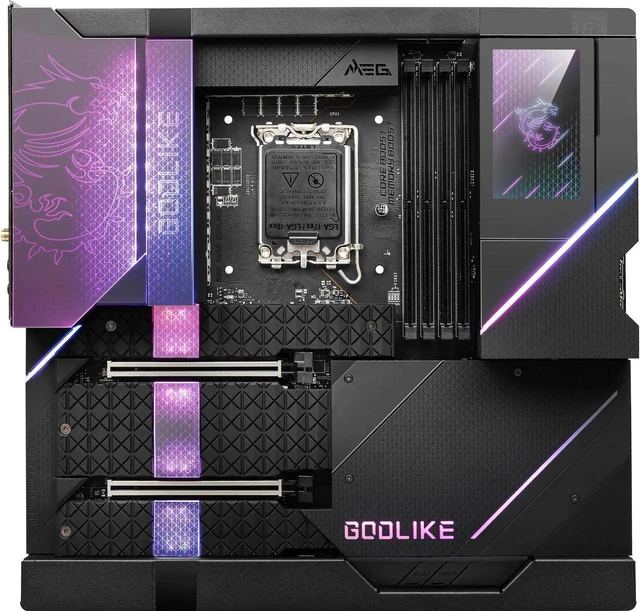

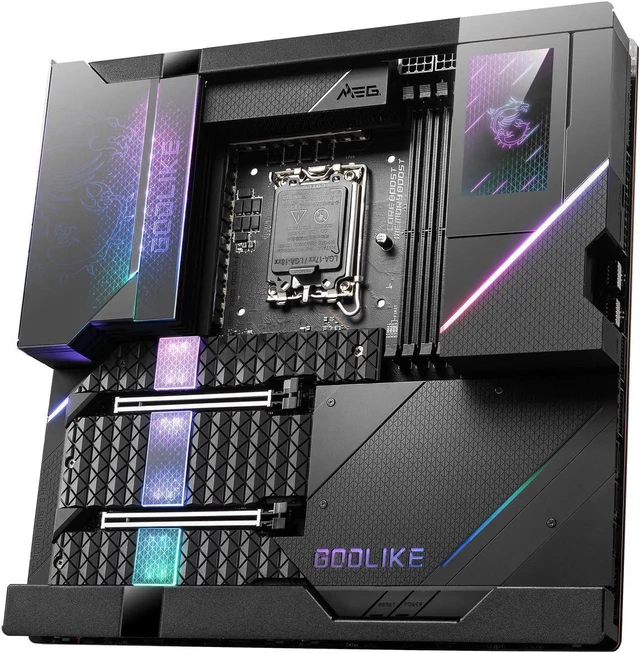

MSI MEG Z690 GODLIKE DDR5 LGA 1700 Extended ATX Intel Motherboard
REFURBISHED Product Type
- Supports 12th Gen Intel® Core / Pentium® Celeron® processors for LGA 1700 socket
- Supports 13th gen Intel® Core desktop processors.
- May require a BIOS update to boot the 13th gen Intel® Core desktop processors.
- Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
- M-Vision Dashboard: Industry's first built-in touchable LCD on the motherboard, not only indicates the status of your gaming rig, but also allows system tuning with touch control.
- Extreme Power Design: Direct 20+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the maximum performance.
- Premium Thermal Module: Wavy fin design, Cross Heat-pipe, 7W/mK thermal pads, and Double-Sided M.2 Shield Frozr ensure the extreme performance with low temperature.
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Sextuple M.2 Connectors.
+
+
Specs
Reviews
Learn more about the MSI MEG Z690 GODLIKE
| Brand | MSI |
|---|---|
| Model | MEG Z690 GODLIKE |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors* * Please go to msi.com to get the newest support status as new processors are released. |
| Chipset | Intel Z690 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 1R 4800 (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ 1DPC 2R Max speed up to 5600+ 2DPC 1R Max speed up to 4000+ 2DPC 2R Max speed up to 4000+ |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 5.0 x16 | 2 x PCI Express 5.0 x16 * PCI_E1 supports up to PCIe 5.0 x16. * PCI_E2 supports up to PCIe 5.0 x8. * M2_3 will be unavailable when installing device in the PCI_E2 slot. * Actual support may vary by CPU. |
|---|---|
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 * Supports up to PCIe 4.0 x4. * PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously. |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 6 x M.2 slots (Key M) M2_1 slot (From CPU): Supports up to PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset): Supports up to PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From CPU):** Supports up to PCIe 5.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_4 slot (From Z690 chipset):*** Supports up to PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_5 slot (From Z690 chipset):* Supports up to PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_6 slot (From Z690 chipset): Supports up to PCIe 3.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2, M2_4, M2_5 and M2_6 slots support Intel Optane Memory * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. ** M2_3 will be unavailable when installing device in the PCI_E2 slot. *** PCI_E3 will be unavailable when installing M.2 SATA SSD in the M2_4 slot. PCI_E3 will run at x1 speed and M2_4 will run at x2 speed when installing PCIe device in PCI_E3 slot and M.2 PCIe SSD in M2_4 slot simultaneously. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 * SATAA & SATAB do not support RAID function. |
| Audio Chipset | Realtek ALC4082 Codec + ES9218PQ Combo DAC/HPA |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Aquantia AQC113CS |
|---|---|
| Second LAN Chipset | Intel I225-V |
| Max LAN Speed | 10Gbps + 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

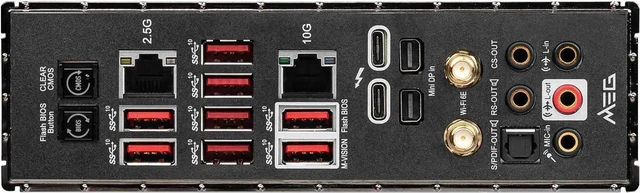

| Back I/O Ports | 1 x Clear CMOS Button 1 x Flash BIOS Button 1 x Optical S/PDIF Out 5 x Audio Jacks 2 x Antenna Bracket 2 x LAN (RJ45) 2 x Mini DisplayPort Input (for Thunderbolt passthrough) 2 x Thunderbolt 4 8 x USB 3.2 Gen 2 (2 x M-VISION Dashboard Port) |
|---|
| Onboard USB | 2 x USB 3.2 Gen 2 x2 20Gbps Type-C ports 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 8 x 4-pin system fan connectors 1 x Water Flow meter connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 2 x 2-pin Thermal Sensors connectors 1 x TPM module connector 1 x Tuning Controller connector 1 x 2-Digit Debug Code LED 4 x EZ Debug LED 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x 3-pin CORSAIR LED connector |
| Windows 11 | Supported |
|---|
| Form Factor | Extended ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 12.2" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| First Listed on Newegg | August 18, 2026 |
|---|
