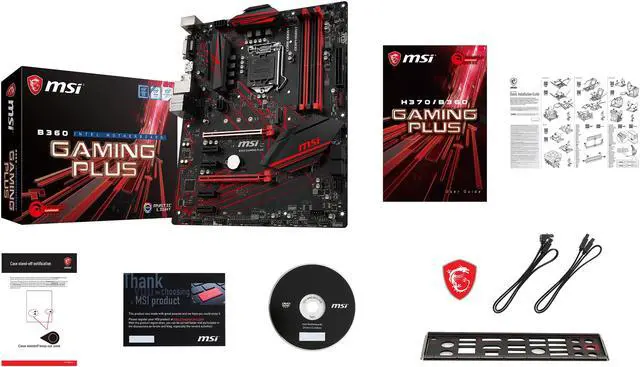

Images from RETAIL item, box contents may vary.
MSI B360 GAMING PLUS LGA 1151 (300 Series) Intel B360 USB 3.1 ATX Intel Motherboard
OPEN BOX Product Type
- Intel B360
- Supports 8th Gen Intel Core, Pentium Gold and Celeron Processors for Socket LGA1151
- Supports DDR4 2666/ 2400/ 2133 MHz
Specs
Learn more about the MSI B360 GAMING PLUS
| Brand | MSI |
|---|---|
| Model | B360 GAMING PLUS |
| CPU Socket Type | LGA 1151 (300 Series) |
|---|---|
| CPU Type | Supports 8th Gen Intel Core, Pentium Gold and Celeron Processors for Socket LGA1151 * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel B360 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Supports DDR4 2666/ 2400/ 2133 MHz* * Please refer to www.msi.com for more information on compatible memory |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCIe 3.0 x16 slots (support x16/x4 modes) |
|---|---|
| PCI Express x1 | 4 x PCIe 3.0 x1 slots |
| Serial ATA (SATA) | 5 x SATA 6Gb/s ports* * The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot. |
|---|---|
| M.2 | 1 x M.2 slots (Key M) Support up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/2260/2280/22110 storage devices Supports Intel Optane Memory Ready* * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|
| Video Ports | 1 x DVI-D |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| USB 3.1 | 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C) 2 x USB 3.1 Gen1 (SuperSpeed USB) ports |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB Type-C | 1 x USB 3.1 |
| Audio Ports | 6 Ports |
| Onboard USB | 1 x USB 3.1 Gen1 connectors (supports additional 2 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
|---|---|
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin water pump fan connector 5 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x Series port connector 1 x Parallel port connector 1 x 5050 RGB LED strip 12V connector 1 x TPM module connector 1 x Thunderbolt Add-on Card Connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 6-pin ATX PCIe power connector |
| Features | Supports 8th Gen Intel Core, Pentium Gold and Celeron processors for Socket LGA 1151 Supports DDR4 Memory, up to 2666 MHz MYSTIC LIGHT and Sync: Personalize your PC with 16.8 million colors / 10 effects controlled in one click with the Mystic Light APP or a mobile device Lightning Fast Game experience: TURBO M.2, Intel Optane Memory Ready. Intel Turbo USB 3.1 GEN2 AUDIO BOOST with NAHIMIC: Reward your ears with studio grade sound quality for the most immersive gaming experience DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability GAMING LAN, powered by Intel: The best online gaming experience with lowest latency and bandwidth management MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire VR Ready: Best virtual reality game experience without latency, reduces motion sickness In-Game Weapons: GAMING Hotkey, X-Boost, Voice Boost EZ Debug LED: Easiest way to troubleshoot Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function GAMING CERTIFIED: 24-hour on- and offline game and motherboard testing by eSports players |
|---|
| First Listed on Newegg | December 05, 2018 |
|---|
