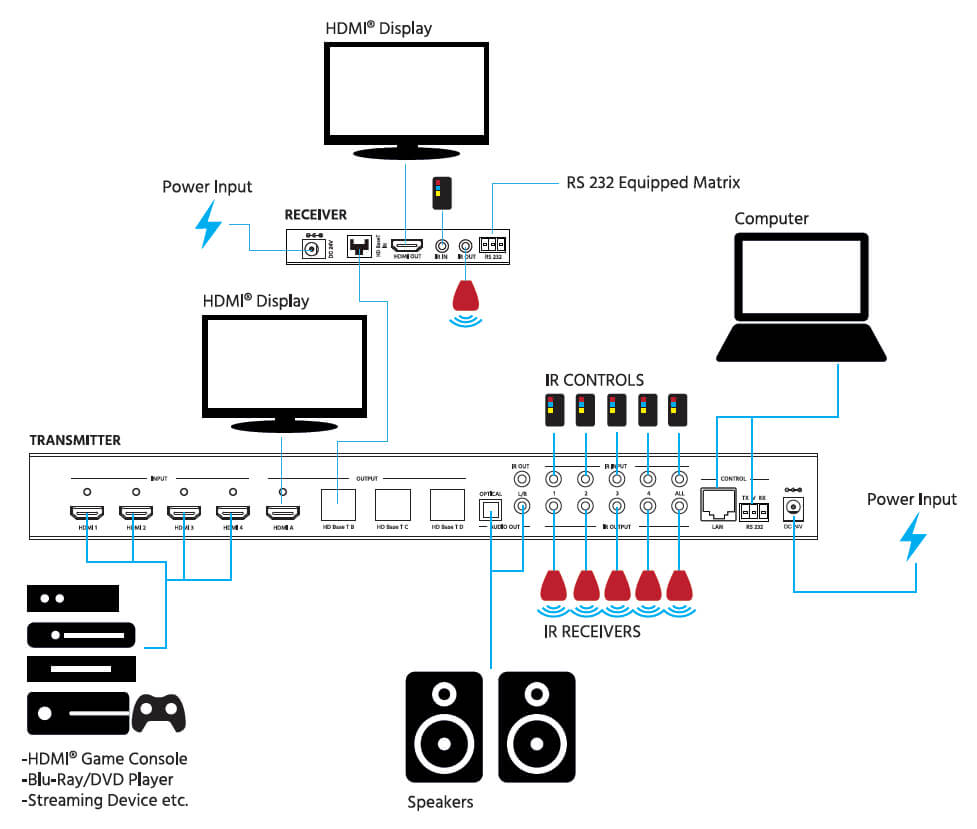

This Blackbird PRO 4K 4x4 HDMI Matrix allows you to distribute any of four HDMI source devices to any of four HDMI displays. It supports video resolutions up to 4K@60Hz YCbCr 4:4:4, including 1080p@120Hz and all 1080p@60Hz 3D HDMI display modes. It is compliant with the HDMI 2.0b and HDCP 2.2 specifications and delivers up to 18Gbps bandwidth. The kit includes three HDBaseT receivers, allowing extension of the video signal to distances up to 70 meters over a single Cat6 Ethernet cable. It supports High Dynamic Range (HDR) and includes smart EDID® management.
Features:
- Distribute any of four HDMI source devices to any of four HDMI displays
- Fully compliant with the HDMI 2.0b, HDCP 2.2, and HDCP 1.4 specifications
- Supports video resolutions up to 4K@60Hz YCbCr 4:4:4, including 1080p@120Hz and 3D 1080p@60Hz
- Extends 1080p@60Hz 36-bit Deep Color signals to distances up to 70 meters over a single Cat6 Ethernet cable
- Extends 1080p@60Hz 48-bit Deep Color, 1080p@120Hz 24-bit Deep Color, 4K@60Hz YCbCr 4:4:4 and 4:2:0 signals to distances up to 40 meters over a single Cat 6 Ethernet cable
- Supports up to 7.1 channel pass-through audio
- Supports digital and analog audio de-embedding from any of the four outputs
- Supports the 24V Power over Cable (PoC) feature
- Supports High Dynamic Range (HDR) and smart EDID management
- Built-in Web GUI and RS-232 computer control options
