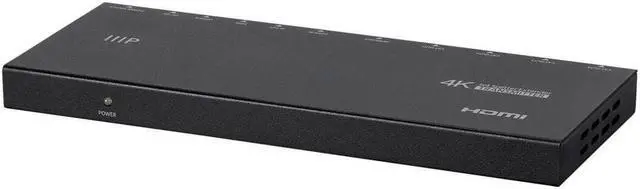

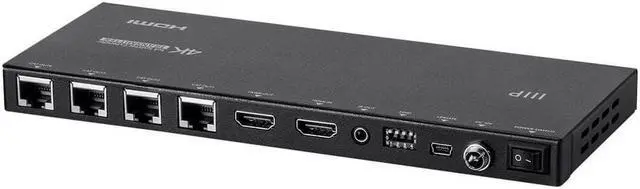

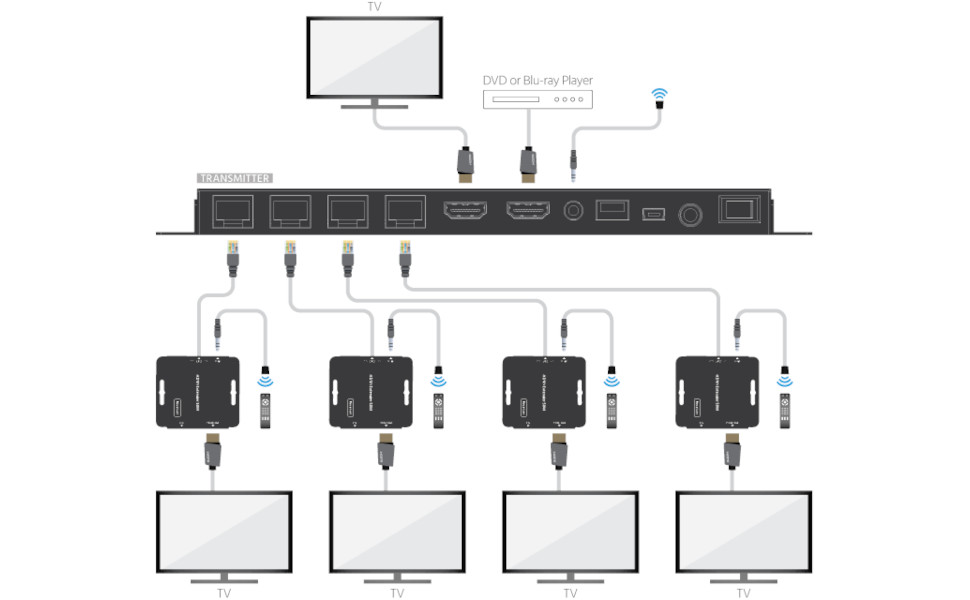

This Blackbird 4K 1x4 HDMI Splitter/Extender allows you to distribute a single HDMI signal to up to four displays. It transmits the split signals to receivers at distances up to 164 feet (50) away over a single Cat6 Ethernet cable. It provides 4.95Gbps bandwidth and supports video resolutions to 4K@30Hz, including 1080p@60Hz and 3D video. It supports the Power over Cable (PoC) feature, allowing you to install the receivers in locations without an available AC power outlet.
This Blackbird 4K product is the most compact and cost effective product for splitting and extending 4K HDMI video from a single source up to 164 feet.
Distributes a single HDMI signal to up to four displays || Transmits video signals to distances up to 164 feet (50 meters) over a single Cat6 Ethernet cable || 4.95Gbps maximum bandwidth || Supports multichannel high definition audio, including 7.1 channel LPCM and 5.1 channel Dolby TrueHD and DTS HD Master Audio || Supports the Power over Cable (PoC) feature || EDID switch to set the video and audio modes for the HDMI source || Wideband infrared extender allows control of the HDMI source device from each of the remote locations

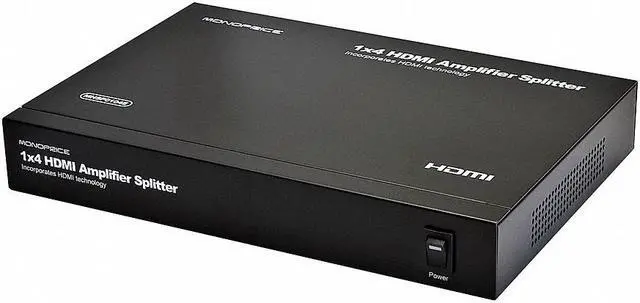

Are you running a trade show and need an easy way to setup multiple HD displays showcasing your product? Do you have a sports bar or recreation center with HDTVs set up everywhere for your customers to watch the big game? Or do you just want to have a TV in every room of your house, so you can do your household chores without missing a moment of your favorite TV show? Enter the Monoprice 1x4 HDMI Amplifier Splitter! This is the perfect solution for when you need to distribute a video signal to multiple displays.

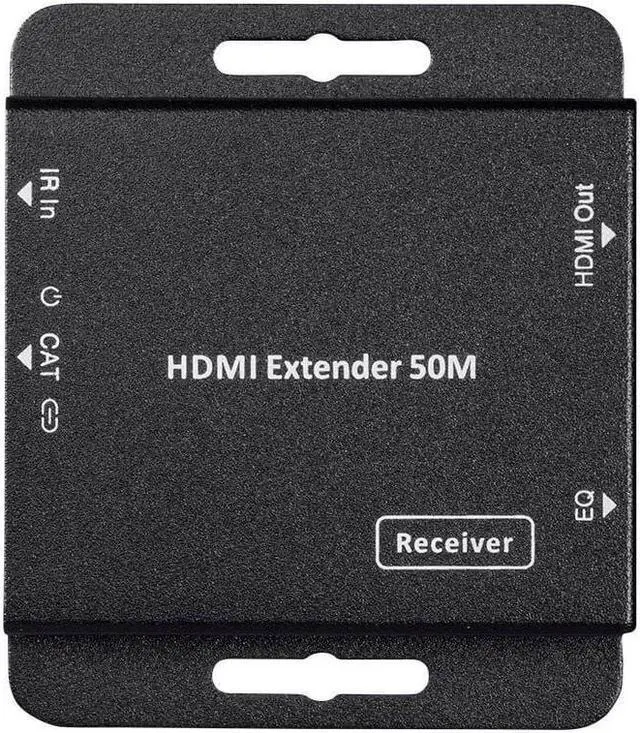

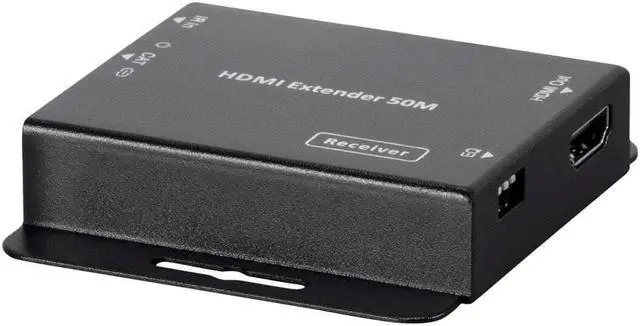

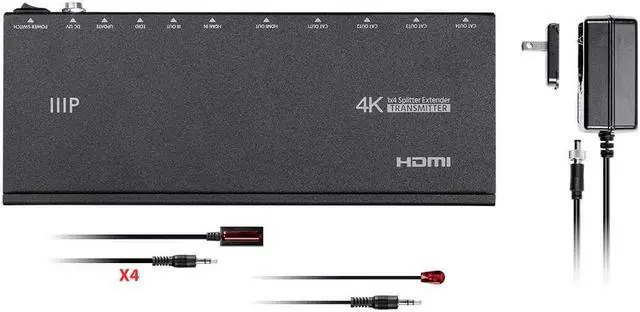

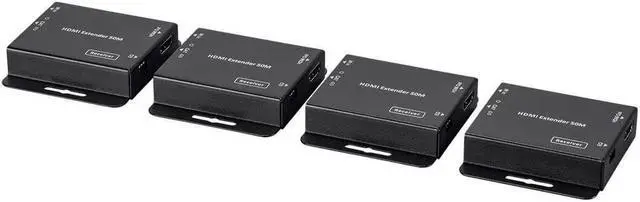

It takes a single HDMI input and splits it into four ethernet signals, which are then transmitted over a single cat5e/6 cable each for to a distance of up to 50 meters (164 feet). The receiver unit at the end then converts the signal back to HDMI for use by the display. This kit comes with everything you need, except the actual cables themselves. You get the 1x4 amplifier splitter, four receiver units, and five AC adapters, one for the amplifier and the other four for the receivers. You also get mounting brackets and screws for each receiver, so you can fix them to a wall or other surface.
Features: Easy to install - just plug it in and start using it right away! Extends high speed 1080p HDMI signals up to 50 meters (164 feet) Uses just a single cat5e/6 cable for each display Supports 165 MHz/ 1.65 Gbps per channel ( 4.95 Gbps all channel) bandwidth Supports 8-bit per channel (24-bit all channel) deep color Supports uncompressed audio such as LPCM Gold-plated HDMI connectors CE, FCC, UL (Canadian and US), and RoHS compliant
