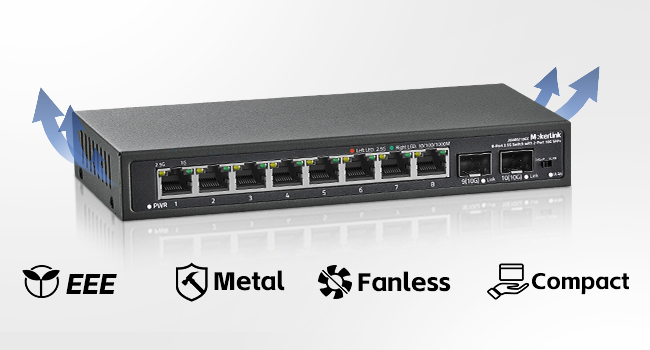

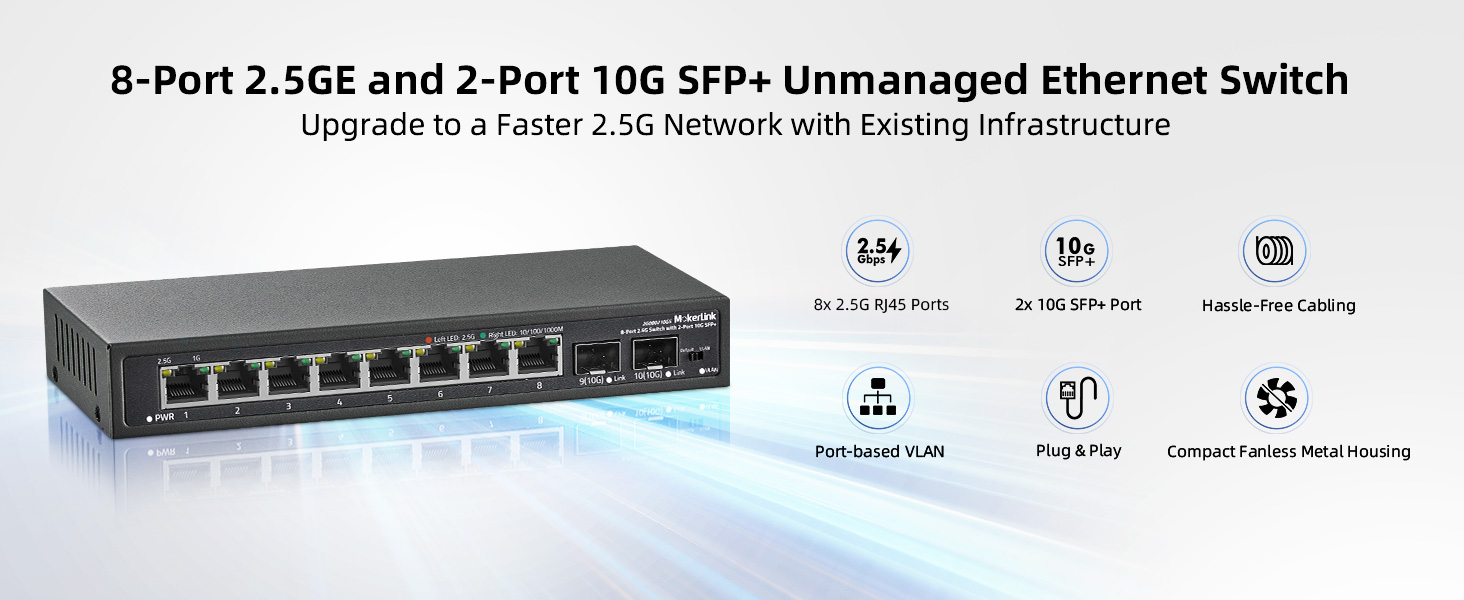

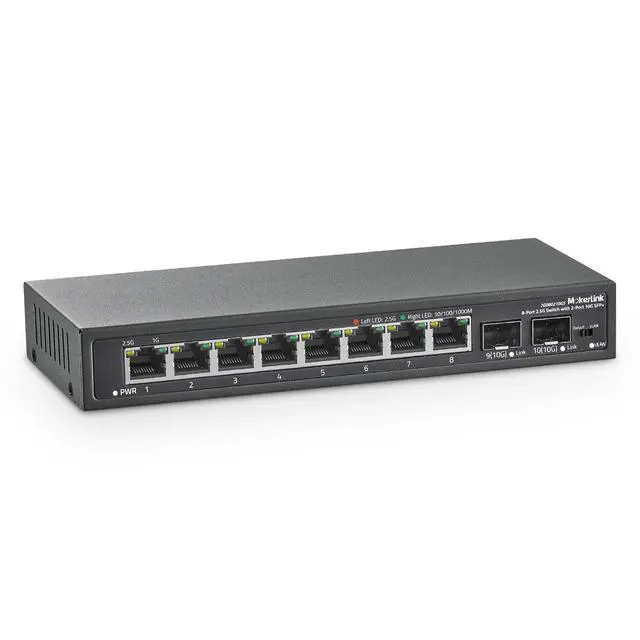

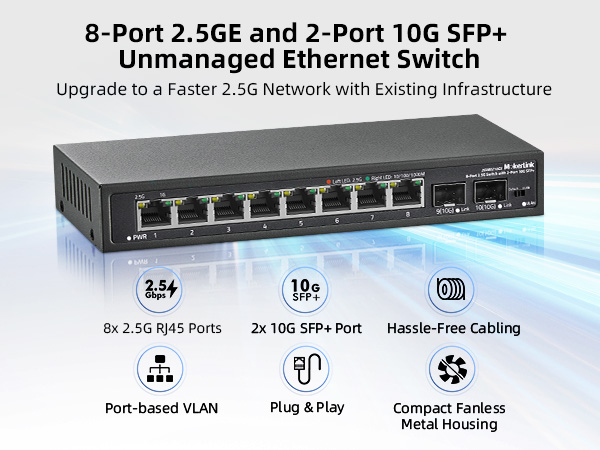

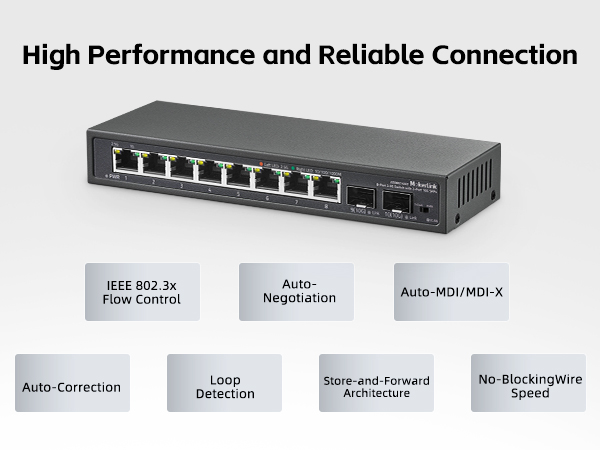

The 2G080210GS is an unmanaged switch with 8x2.5GbE and 2x10GbE SFP+ ports. 8 ethernet ports provide either 100M, 1000M and 2.5G connectivity, as well as 2 SFP+ Fiber port with 1G or 10Gt connectivity. Each port automatically detects which speed is needed.

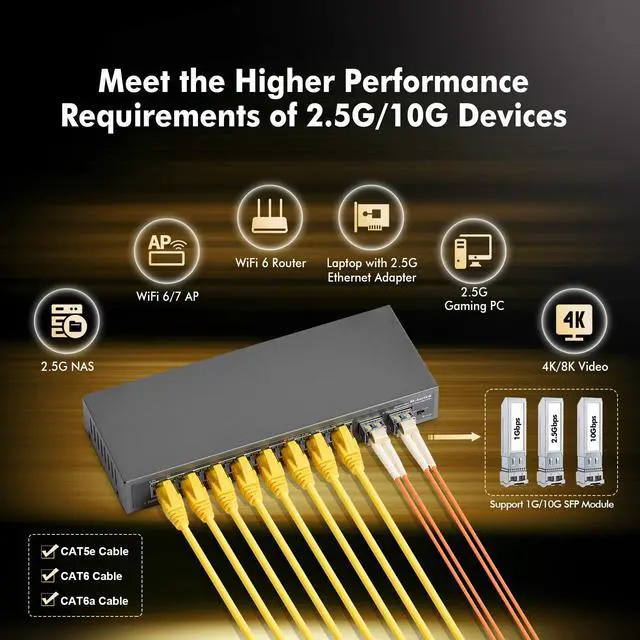

8x 2.5G Ports for WiFi 7/6 or NAS

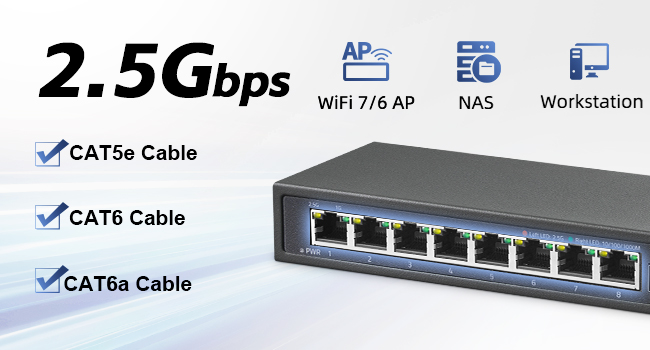

8× 2.5 Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6 APs and NAS server. No need to upgrade cabling infrastructure Doubles network bandwidth by leveraging existing CAT-5E cabling infrastructure.

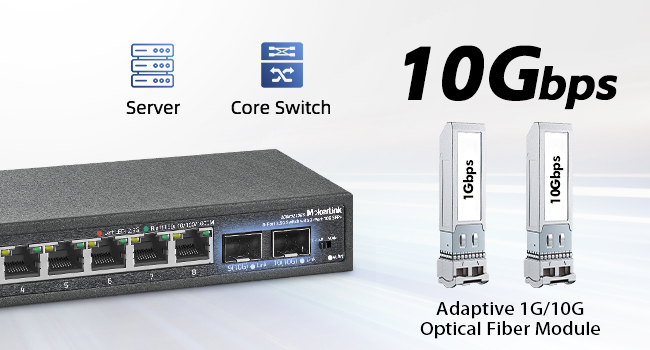

2x 10G Uplink Slots for Servers or Core Switch
2× 10 Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 1G, 10G sfp modules that can connect to core servers and switches.
Energy efficient
With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length
Mounting flexibility
Flexible deployment options for desktop or wall-mount in your office and home, meet the network environment requirement.
Plug-and-play

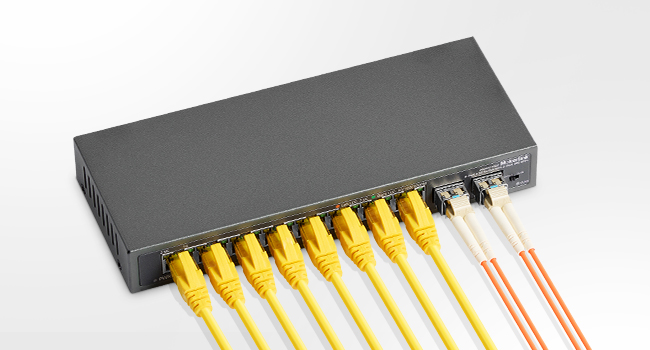

Automatic connectivity to your PCs or router. No need for an IT expert.
Power and Port Protection
With a dedicated and intelligent microchip, power backfeed and lighting protection, It can avoid damaging the ethernet ports and power port.
Technical Parameter
The 2G080210GS is an unmanaged switch with 8x2.5GbE and 2x10GbE SFP+ ports. 8 ethernet ports provide either 100M, 1000M and 2.5G connectivity, as well as 2 SFP+ Fiber port with 1G or 10Gt connectivity. Each port automatically detects which speed is needed.
8x 2.5G Ports for WiFi 7/6 or NAS
8× 2.5 Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6 APs and NAS server. No need to upgrade cabling infrastructure Doubles network bandwidth by leveraging existing CAT-5E cabling infrastructure.
2x 10G Uplink Slots for Servers or Core Switch
2× 10 Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 1G, 10G sfp modules that can connect to core servers and switches.
Energy efficient
With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length
Mounting flexibility
Flexible deployment options for desktop or wall-mount in your office and home, meet the network environment requirement.
Plug-and-play
Automatic connectivity to your PCs or router. No need for an IT expert.
Power and Port Protection
With a dedicated and intelligent microchip, power backfeed and lighting protection, It can avoid damaging the ethernet ports and power port.
Technical Parameter

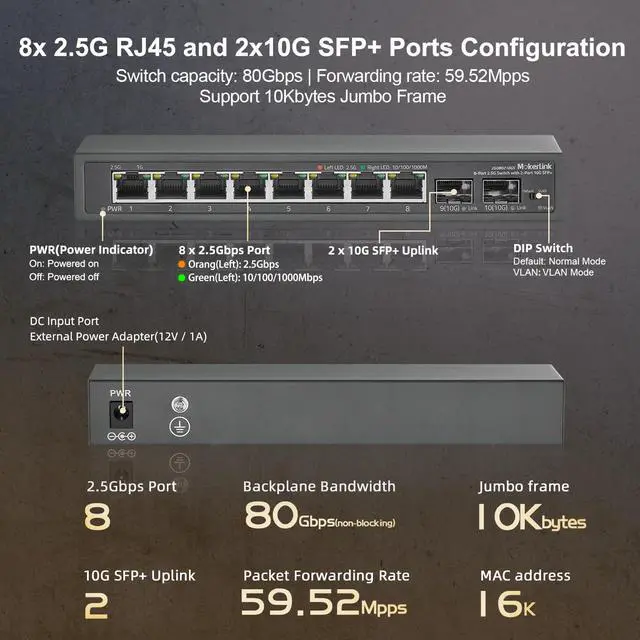

| Ports | 8 x RJ45 2.5Base-T 2.5 Gigabit Ports + 2 x SFP+ 10GBase-X 10 Gigabit Uplink Port |
|---|---|
| Switching Capacity | 80Gbps |
| Forwarding Rates | Max. 59.52Mpps (64-byte package size) |
| MAC Address Table | 16K |
| Jumbo Frames | 10KB |
| Network Standard | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10 Gigabit Ethernet) IEEE802.3x (Flow Control) |

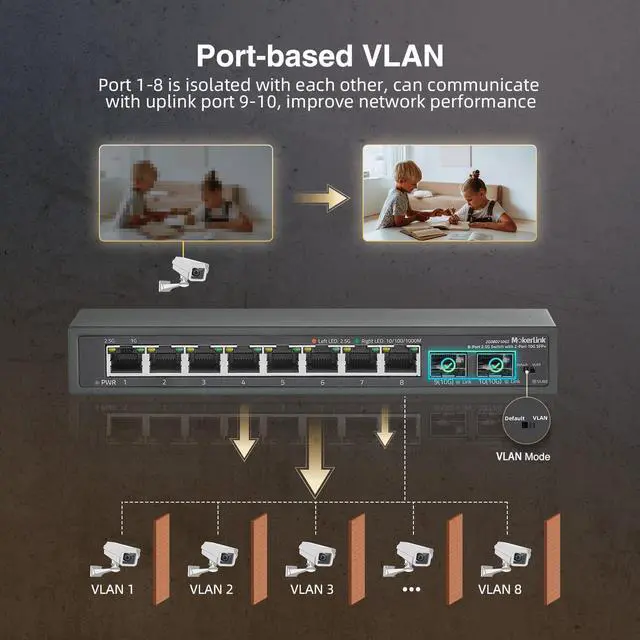

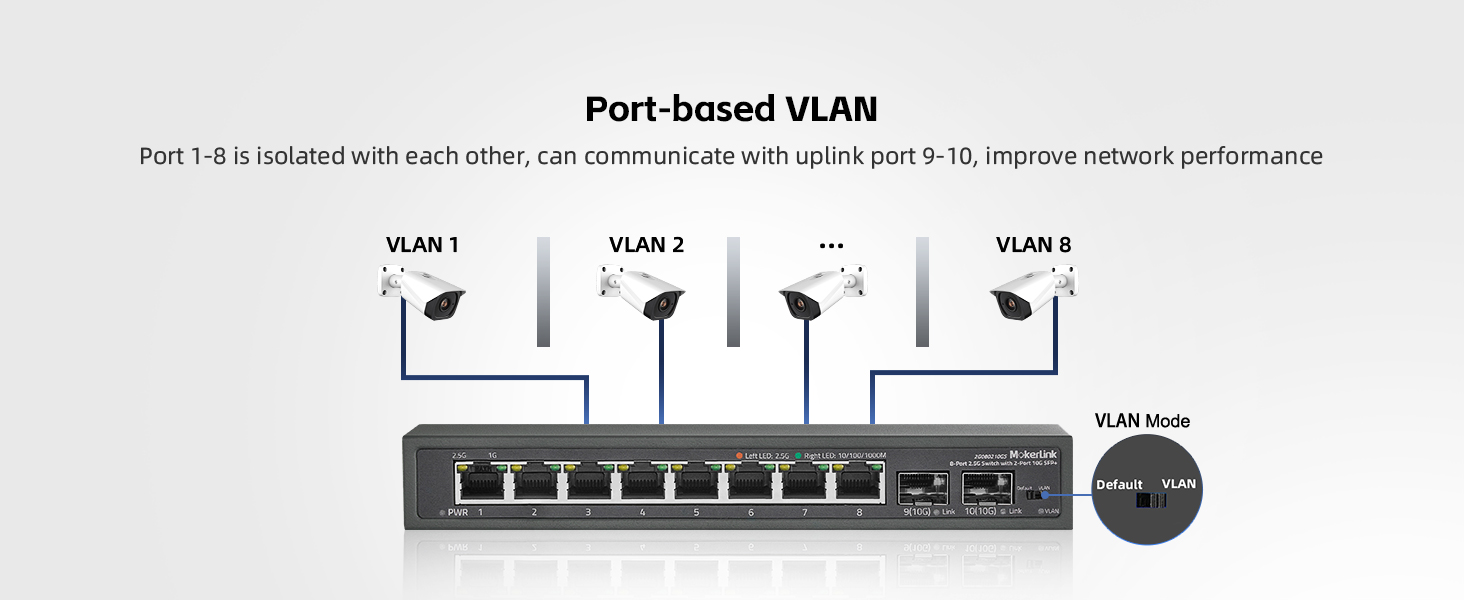

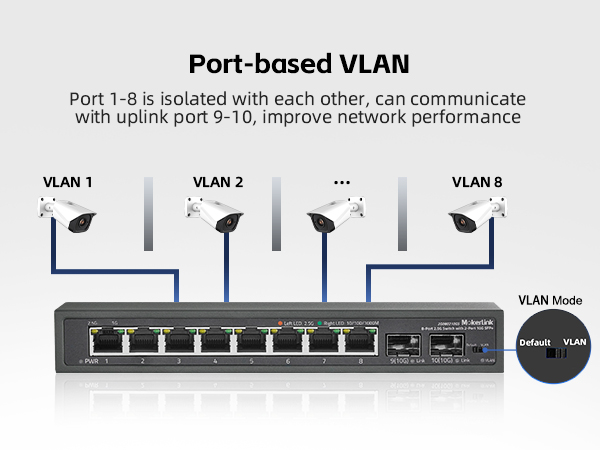

| LED Indicators | PWR: System Power Status, 1-8 port Left Led Yellow Light On:2.5G Link normal, Right LED Green Light On:10/100/1000Mbps Link normal, Off: Link blocked, Flashing: Data transmitting, 9-10 SPF+ port Yellow Light On:10G Link normal, Green Light On:1G Link normal, Off: Link blocked, Flashing: Data transmitting. VLAN Led on: VLAN model enabled |
| Power Input | 100-240V AC, 50-60 Hz, Internal Power Supply, |
| Mounting | Desktop / Wall-mount, Metal Housing |
| Structure Information | Product Dimensions 198*74*29mm, Packaging Dimensions : 203*99*70mm, Product Net Weight: 0.35KG, Product Gross Weight:0.5KG |
| Environment | Operating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%,non condensing, Storage Humidity:5%~95%,non condensing |
