MokerLink is a professional company that specializes in research and development of ethernet products.
We have many years of experience in design, manufacturing and sales in the ethernet field. We are committed to providing the best quality products and best service to our customers.
Main Features

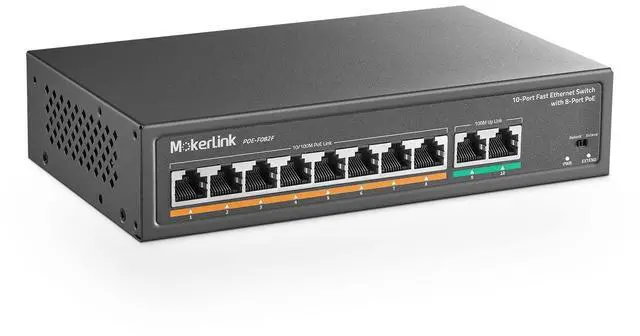

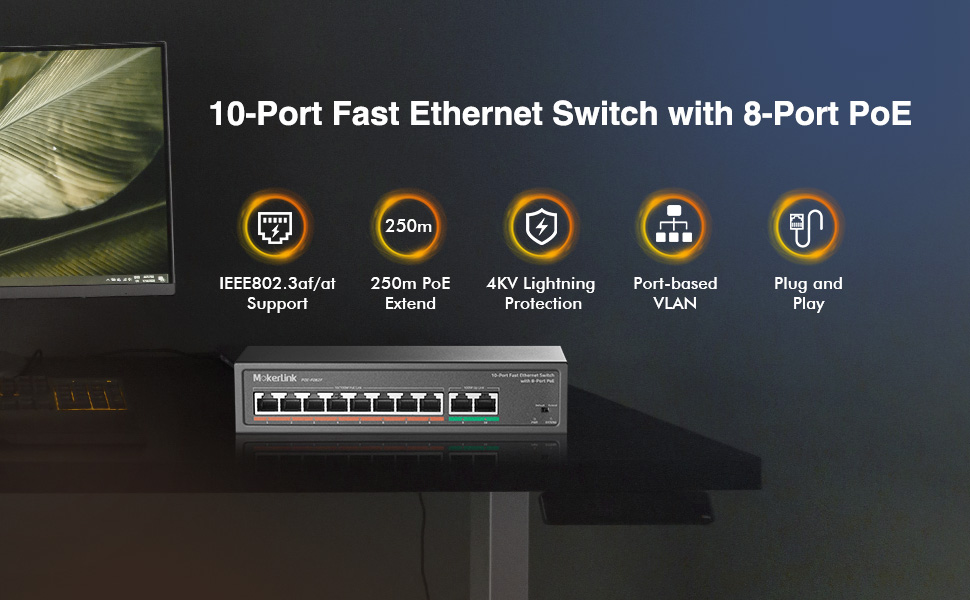

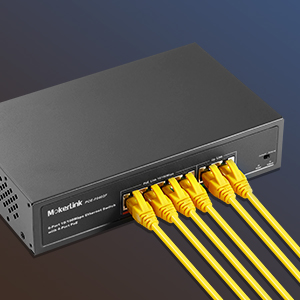

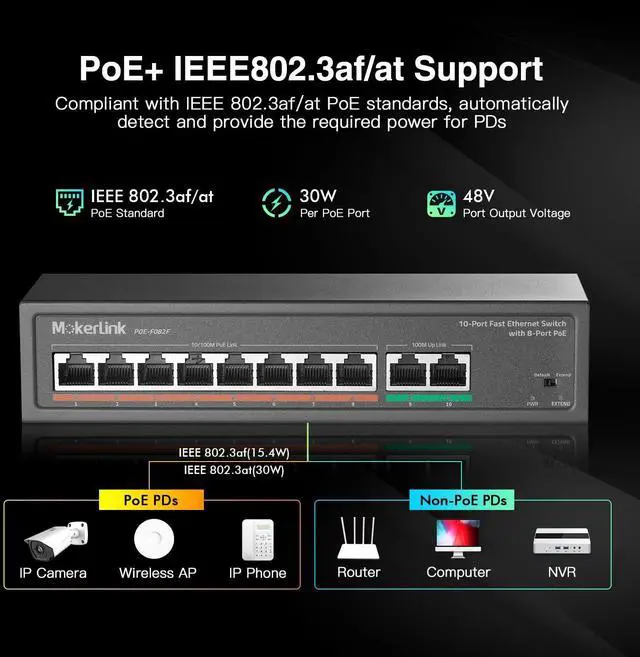

10-port fast ethernet poe switch using high-quality high-speed network IC and the most stable PoE chip, PoE Port support IEEE802.3af/at standard, The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE 802.3af or IEEE802.3at standards. The non-PoE device intelligently detects no power and only transmits data.

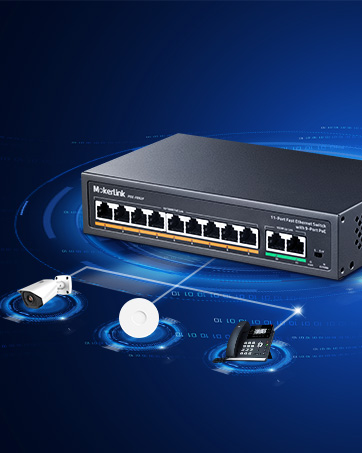

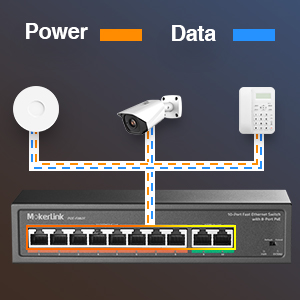

PoE is Power over Ethernet, which refers to the transmission of data signals to some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.), but also provides DC power for this device. Technology, these devices that receive DC power are called powered devices.
- 8*10/100Mbps PoE ports + 2* 10/100Mbps Ethernet Uplink ports.
- Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab standards.
- Ethernet port supports 10/100Mbps adaptive and POE functions.
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard.
- Support port auto flip (Auto MDI/MDIX).
- Automatically supplied to adaptive devices.
- Panel indicator monitoring status and help failure analysis.
- Support for Extend mode, Normal mode.
- Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.
Auto Detects Power Devices
Compatible with IEEE802.3af/at standard, PoE switch determines and delivers the exact power supply to your devices with up to 30W power output for per PoE port.

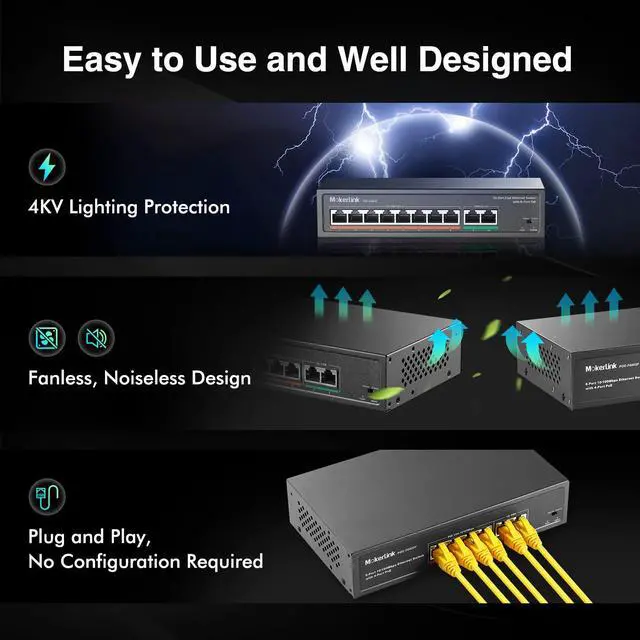

Plug and Play
10 port PoE switch support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance.

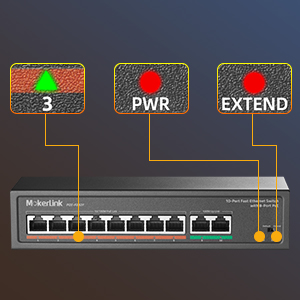

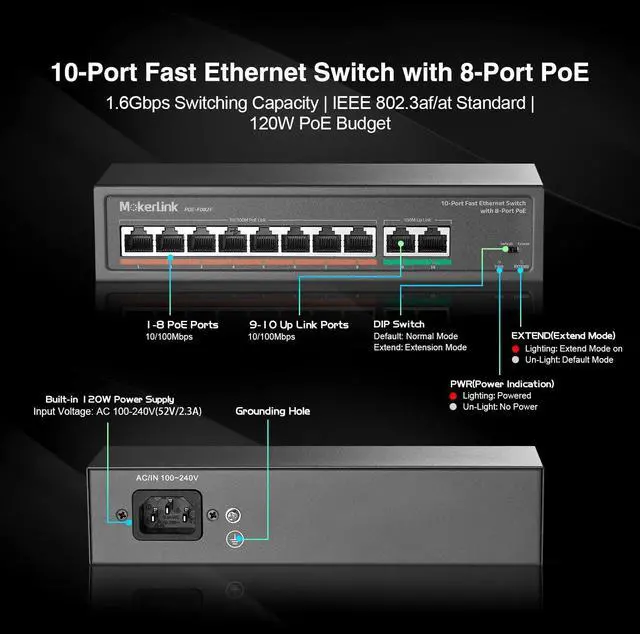

Unique LED Indicator Design
You can quickly check working status and troubleshoot ports with Power/PoE/Extend indicator. PWR(power supply), SW(DIP), 1-10 Green(Link&Data).

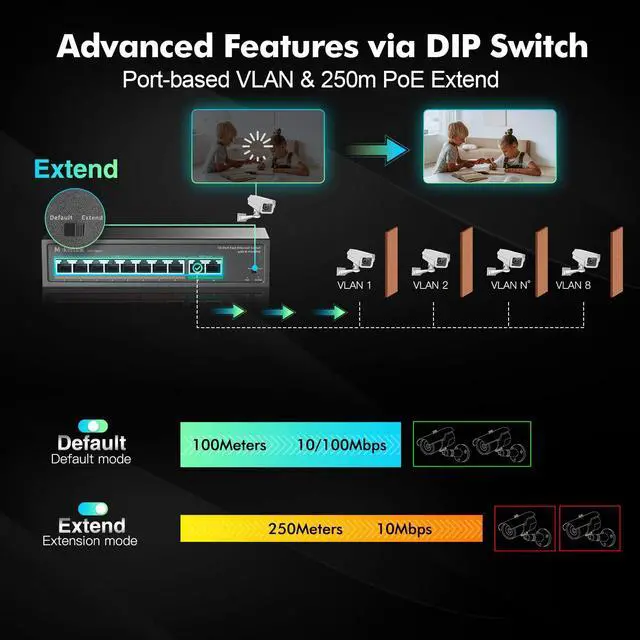

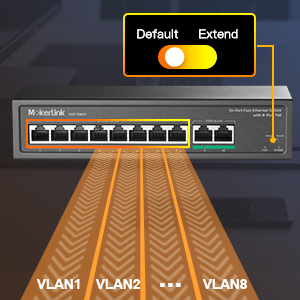

Port-based VLAN
When you enable the extend mode with DIP switch, switch divides traffic for ports 1-8 to prevent IP camera's muliticast or broadcast storm from affecting each other.

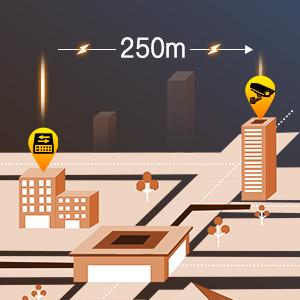

Link Extention to 250m
PoE (Power Over Ethernet) usually has a maximum run of around 100 meters. When extend mode is enabled, it will allow you to increase your run to a distance of 250 meters. the maximum speed will downgrade to 10Mbps.

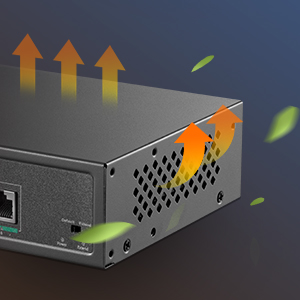

Fanless & Silent Operation
The PoE switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.

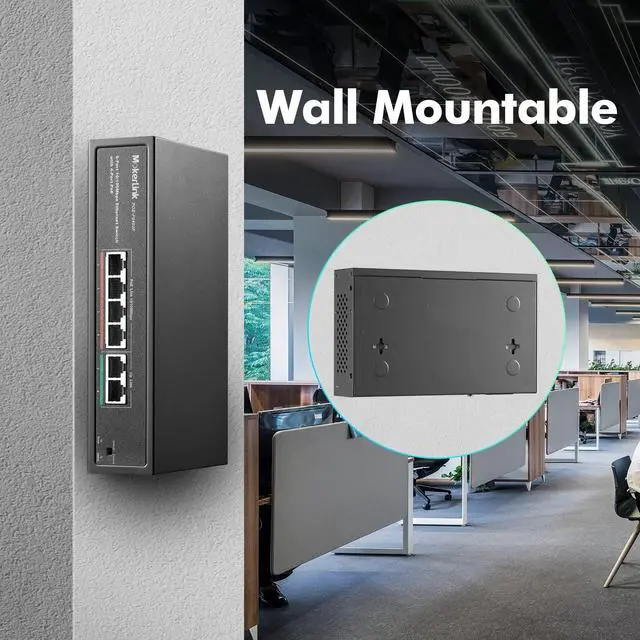

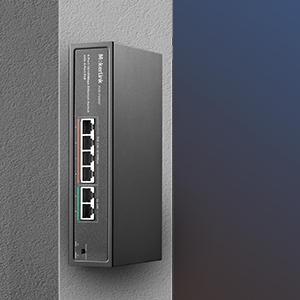

Support Wall Mount
You can mount the switch on the wall or desktop,perfect solution for a variety of environments.

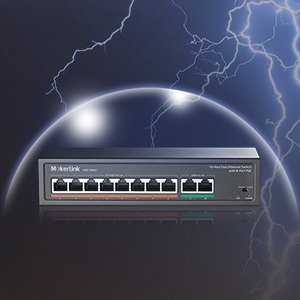

Lighting Protection
The 10 port poe switch fetures with 4KV surge protection, It can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Opation Over Wide Temperature Ranges
Unique design make sure PoE switch long-term stable operation over temperature spans of -20 and +50°C.
Product Specifications

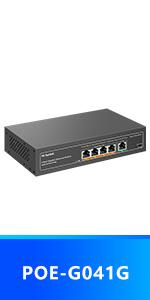

 6-Port 100Mbps PoE Switch |  7-Port 100Mbps PoE Switch |  5-Port Gigabit PoE Switch |  10-Port 100Mbps PoE Switch |  10-Port 100Mbps PoE Switch | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| PoE Port | 4x10/100Mbps | 5x10/100Mbps | 4x100/1000Mbps | 8x10/100Mbps | 8x10/100Mbps |
| UpLink Port | 2x10/100Mbps | 2x10/100Mbps | 1x100/1000Mbps | 2x10/100Mbps | 2x100/1000Mbps |
| POE Power Output | 78W | 78W | 78W | 120W | 120W |
| Switch Capacity | 1.6Gbps | 1.4Gbps | 12Gbps | 1.6Gbps | 10Gbps |
| Dimensions (L x W x H) | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 |
| Weight (lbs) | 2.15 | 2.15 | 2.15 | 2.31 | 2.31 |
| Extend Function | ? | ? | ? | ? | ? |

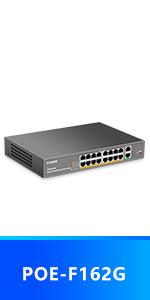

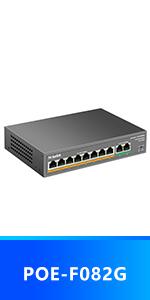

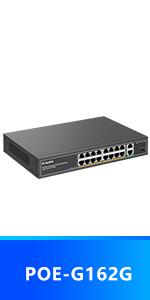

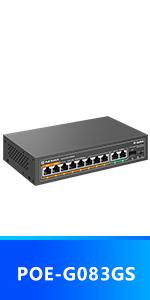

 8-Port Gigabit PoE Switch |  11-Port Gigabit PoE Switch |  18-Port 100Mbps PoE Switch |  18-Port Gigabit PoE Switch |  26-Port 100Mbps PoE Switch | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| PoE Port | 8x100/1000Mbps | 8x100/1000Mbps | 16x10/100Mbps | 16x100/1000Mbps | 24x10/100Mbps |
| UpLink Port | None | 3x100/1000Mbps | 2x100/1000Mbps | 2x100/1000Mbps | 2x100/1000Mbps |
| POE Power Output | 120W | 120W | 250W | 250W | 400W |
| Switch Capacity | 12Gbps | 12Gbps | 12Gbps | 12Gbps | 12Gbps |
| Dimensions (L x W x H) | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 10.6 x 7.1 x 1.7 | 10.6 x 7.1 x 1.7 | 10.6 x 7.1 x 1.7 |
| Weight (lbs) | 2.31 | 2.31 | 3.31 | 3.31 | 4.62 |
| Extend Function | None | ? | ? | ? | ? |
Main Features
10-port fast ethernet poe switch using high-quality high-speed network IC and the most stable PoE chip, PoE Port support IEEE802.3af/at standard, The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE 802.3af or IEEE802.3at standards. The non-PoE device intelligently detects no power and only transmits data.
PoE is Power over Ethernet, which refers to the transmission of data signals to some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.), but also provides DC power for this device. Technology, these devices that receive DC power are called powered devices.
- 8*10/100Mbps PoE ports + 2* 10/100Mbps Ethernet Uplink ports.
- Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab standards.
- Ethernet port supports 10/100Mbps adaptive and POE functions.
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard.
- Support port auto flip (Auto MDI/MDIX).
- Automatically supplied to adaptive devices.
- Panel indicator monitoring status and help failure analysis.
- Support for Extend mode, Normal mode.
- Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.
Auto Detects Power Devices
Compatible with IEEE802.3af/at standard, PoE switch determines and delivers the exact power supply to your devices with up to 30W power output for per PoE port.
Plug and Play
10 port PoE switch support installation plug and play. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts for compatibility and optimal performance.
Unique LED Indicator Design
You can quickly check working status and troubleshoot ports with Power/PoE/Extend indicator. PWR(power supply), SW(DIP), 1-10 Green(Link&Data).
Port-based VLAN
When you enable the extend mode with DIP switch, switch divides traffic for ports 1-8 to prevent IP camera's muliticast or broadcast storm from affecting each other.
Link Extention to 250m
PoE (Power Over Ethernet) usually has a maximum run of around 100 meters. When extend mode is enabled, it will allow you to increase your run to a distance of 250 meters. the maximum speed will downgrade to 10Mbps.
Fanless & Silent Operation
The PoE switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.
Support Wall Mount
You can mount the switch on the wall or desktop,perfect solution for a variety of environments.
Lighting Protection
The 10 port poe switch fetures with 4KV surge protection, It can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Opation Over Wide Temperature Ranges
Unique design make sure PoE switch long-term stable operation over temperature spans of -20 and +50°C.
Product Specifications

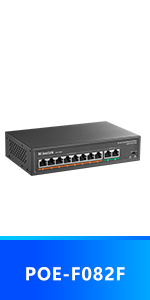

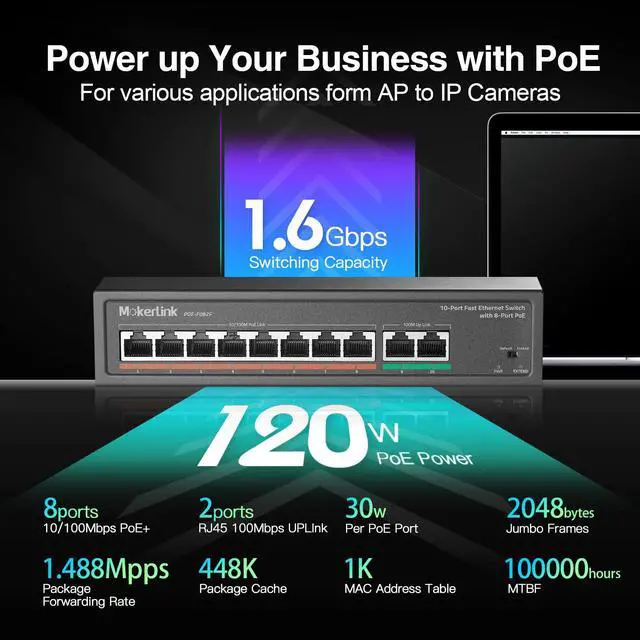

| Model | POE-F082F |
| Ethernet | 8 Port 10/100M PoE + 2 Port 10/100M Ethernet Uplink |
| Switching Capacity | 1.6Gbps |
| Throughput | 1.488Mpps |
| Packet Buffer | 448K |
| MAC Address | 1K |
| Jumbo Frame | 2048bytes |
| Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af (15.4W) IEEE802.3at (30W) |
| Network Medium | 10Base-T : Cat3?4?5 or above UTP(=100m) 100Base-TX : Cat5 or above UTP(=100m) |
| LED Indicators | PWR(power supply), Extend(DIP), 1-10 Green(Link&Data) |
| DIP Switch | Extend: Extend mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M.. Default: Default mode, all port can communicate with each other. |
| Product Dimension (L*W*H) | 200mm*118mm*44mm |
| Product Weight | 0.6kg |
| Working Environment | Working Temperature:-20~50°C Working Humidity :10%~90%,non-condensing Working Height:Maximum10,000 feet |
| Power Voltage | Input Voltage :AC 100-240 V Power supply:52V2.3A 120W |
6-Port 100Mbps PoE Switch | 7-Port 100Mbps PoE Switch | 5-Port Gigabit PoE Switch | 10-Port 100Mbps PoE Switch | 10-Port 100Mbps PoE Switch | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| PoE Port | 4x10/100Mbps | 5x10/100Mbps | 4x100/1000Mbps | 8x10/100Mbps | 8x10/100Mbps |
| UpLink Port | 2x10/100Mbps | 2x10/100Mbps | 1x100/1000Mbps | 2x10/100Mbps | 2x100/1000Mbps |
| POE Power Output | 78W | 78W | 78W | 120W | 120W |
| Switch Capacity | 1.6Gbps | 1.4Gbps | 12Gbps | 1.6Gbps | 10Gbps |
| Dimensions (L x W x H) | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 |
| Weight (lbs) | 2.15 | 2.15 | 2.15 | 2.31 | 2.31 |
| Extend Function | ? | ? | ? | ? | ? |
8-Port Gigabit PoE Switch | 11-Port Gigabit PoE Switch | 18-Port 100Mbps PoE Switch | 18-Port Gigabit PoE Switch | 26-Port 100Mbps PoE Switch | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| PoE Port | 8x100/1000Mbps | 8x100/1000Mbps | 16x10/100Mbps | 16x100/1000Mbps | 24x10/100Mbps |
| UpLink Port | None | 3x100/1000Mbps | 2x100/1000Mbps | 2x100/1000Mbps | 2x100/1000Mbps |
| POE Power Output | 120W | 120W | 250W | 250W | 400W |
| Switch Capacity | 12Gbps | 12Gbps | 12Gbps | 12Gbps | 12Gbps |
| Dimensions (L x W x H) | 7.9 x 4.7 x 1.7 | 7.9 x 4.7 x 1.7 | 10.6 x 7.1 x 1.7 | 10.6 x 7.1 x 1.7 | 10.6 x 7.1 x 1.7 |
| Weight (lbs) | 2.31 | 2.31 | 3.31 | 3.31 | 4.62 |
| Extend Function | None | ? | ? | ? | ? |
