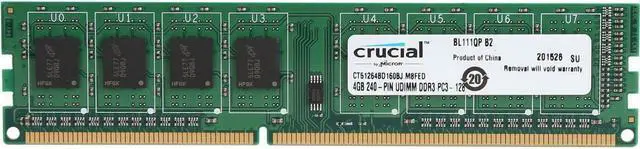

Crucial 8GB 2x4GB CT2K51264BD160BJ PC3L-12800 DDR3L-1600MHz Non-ECC Unbuff CT51264BD160BJ.C8FED Desktop 1.35V

DDR3L 240-pin DIMM Desktop modules that operate at speeds up to 1600 MT/s and have a CL11 latency. It is dual voltage and can operate at 1.35V or 1.5V. It is Unbuffered and is non-ECC. It conforms to the industry standard UDIMM layout of 240 pins and is compatible with computers that take DDR3 UDIMM memory. A dual inline memory module (DIMM) consists of a number of memory components (usually black) that are attached to a printed circuit board (usually green). The gold pins on the bottom of the DIMM provide a connection between the module and a socket on a larger printed circuit board.

The pins on the front and back of a DIMM are not connected to each other. Each 240-pin DIMM provides a 64-bit data path (72-bit for ECC or registered or Fully Buffered modules). To use DDR3 memory, your system motherboard must have 240-pin DIMM slots and a DDR3-enabled chipset. This is because a DDR3 SDRAM DIMM will not fit into a standard DDR2 DIMM socket or a DDR DIMM socket. The number of black components on a 240-pin DIMM can vary, but it always has 120 pins on the front and 120 pins on the back, for a total of 240.

240-pin DIM
Ms are approximately 5.25 inches long and 1.18 inches high, though the heights can vary. While 240-pin DDR3 DIMMS, 240-pin DDR2 DIM
Ms, 184-pin DDR DIM
Ms, and 168-pin DIM
Ms are approximately the same size, 240-pin DIM
Ms and 184-pin DIM
Ms have only one notch within the row of pins.
Technical Information Memory Size: 4 GB
Memory Technology: DDR3 SDRAM
Memory Voltage: 1.35 V Number of
Modules: 1 x 4 GB
Memory Speed: 1600 MHz
Memory Standard: DDR3-1600/PC3-12800
Error Checking: Non-ECC
Signal Processing: Unbuffered
CAS Latency: CL11
Device Supported: Desktop PC Physical Characteristics Number of
Pins: 240-pin
Form Factor: DIMM
Miscellaneous Compatibility: Asus M5A78L-M LX V2 Motherboard
