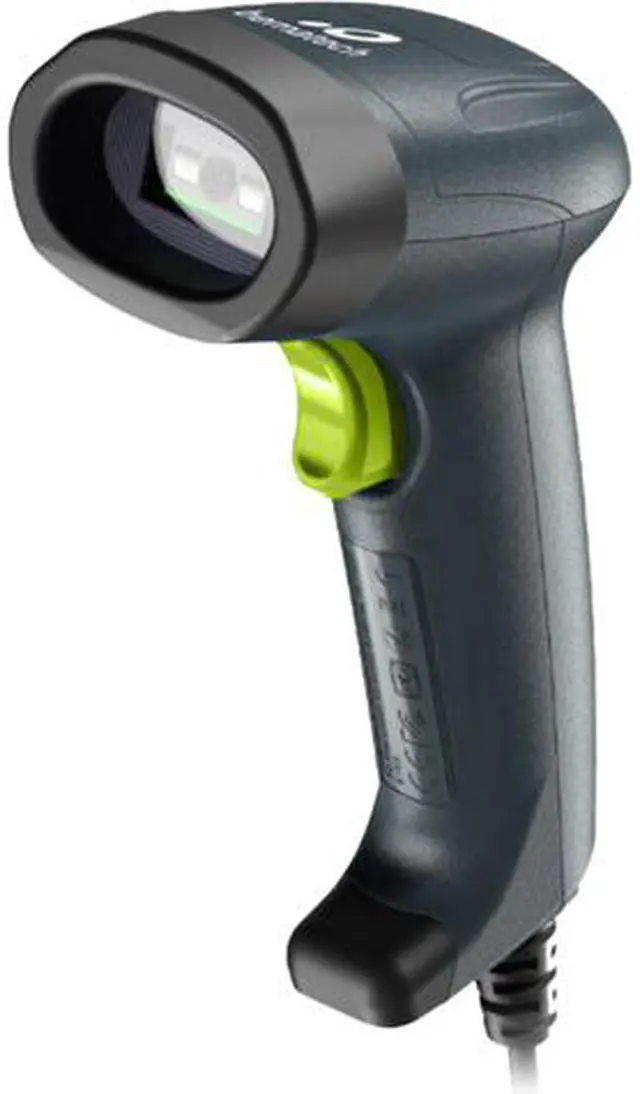

Main image of Logic Controls - I-500 - 2d Imaging Barcode Scanner, Usb

Shop All Logic Controls Products | Visit EVEA'S shop Store

Logic Controls - I-500 - 2d Imaging Barcode Scanner, Usb

High speed reading of 1D and 2D barcodes
Manual or automatic triggering
Reads barcodes reliably off cell phone screens
Rugged gun type design
Low power consumption
IP54 grade design

Overview

Specs

Reviews

Logic Control 2D IMAGING BARCODE SCANNER USB

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by EVEA'S shop Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Brand	Logic Controls
Model	I-500
Form Factor	Handheld
Connectivity	Corded
Scan Engine	1D BarcodeUPC/EAN (UPCA/UPCE/EAN-8/EAN-13), ISBN (Bookland), ISSN, ISBN, Code 39, Code 32, Code128, Code 93, Code 11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Matrix 2 of 5, GS1 DataBar 2D BarcodeQR Code, PDF417, MicroPDF417, Codablock F,Aztec, Data Matrix

Included Cables	1.4m Straight Cable
Interfaces Supported	System Interface USB (HID and Virtual COM port interface selectable)

Light Source	Aiming Element 617 nm LED
Resolution	640 x 480
Depth of Scan Field	UPC (5mil): 40 - 160mm Code 93 (10mil): 20 - 240mm EAN13 (15ml): 40 - 250mm Code 128 (20mil): 40 - 380mm Code 128 (40mil): 80 - 520mm (Note: DOF may vary depending on environment condition and barcode quality)
Pitch	±45 degree
Roll	±35 degree

Input Voltage	5V DC +/-20%
Power Consumption	Operating Current Scanning, 190 mA typical Standby, 10mA typical

Color	Black
Dimensions	6.41" x 2.61" x 4.79" (162.8 x 66.3 x 121.6 mm)
Weight	0.44 lbs. (200g)

Meet Your Seller

Logic Controls - I-500 - 2d Imaging Barcode Scanner, Usb

Learn more about the Logic Controls I-500

Customer Reviews of the Logic Controls I-500

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Features	SCANNING Aiming Element 617 nm LED Optical System 640 x 480 Minimum Contrast 30% Scan Angle Tilt 45°; Deflection 35°; Rotation 360° Depth of Field UPC (5mil): 40 - 160mm Code 93 (10mil): 20 - 240mm EAN13 (15ml): 40 - 250mm Code 128 (20mil): 40 - 380mm Code 128 (40mil): 80 - 520mm (Note: DOF may vary depending on environment condition and barcode quality) Programmable Operation Scan mode, interface mode, beeper tone System Interface USB (HID and Virtual COM port interface selectable) ELECTRICAL Input Voltage 5V DC +/-20% Operating Current Scanning, 190 mA typical Standby, 10mA typical REGULATORY EMC CE & FCC DOC compliance, VCCI Safety IEC 62471 exempt MECHANICAL Dimension 162.8 x 66.3 x 121.6 mm (device only); Weight 200 g Interface Cable Standard 1.4M straight ENVIRONMENT Operating Temperature 20°C - 50°C Storage Temperature -40°C - 70°C Humidity 5% - 98% RH (non-condensing) DECODING CAPABILITY 1D Barcode UPC/EAN (UPCA/UPCE/EAN-8/EAN-13), ISBN (Bookland), ISSN, ISBN, Code 39, Code 32, Code128, Code 93, Code 11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Matrix 2 of 5, GS1 DataBar 2D Barcode QR Code, PDF417, MicroPDF417, Codablock F, Aztec, Data Matrix
Ruggedness	General Purpose

Item#: 9SIB9SEK9Y7025
