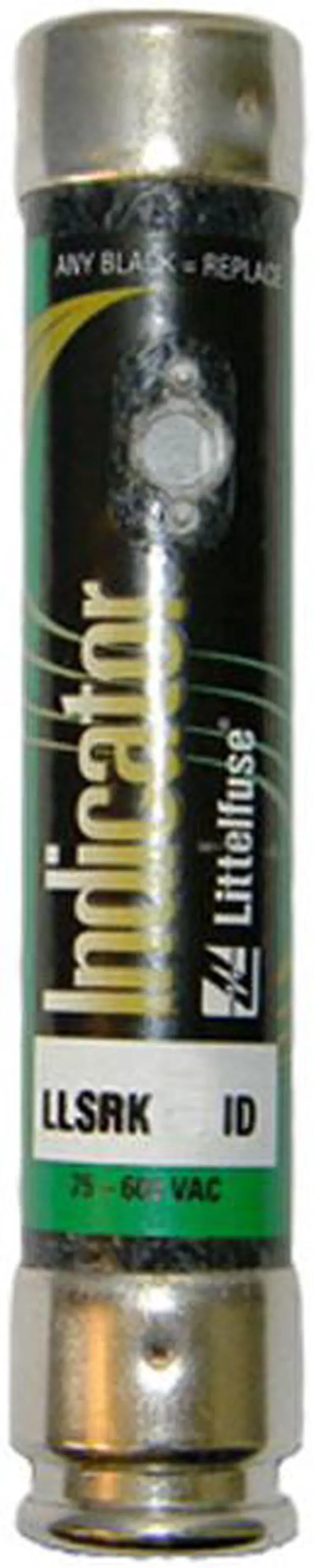

Littelfuse LLSRK 60 ID ( LLSRK-60A ) Time Delay Dual Element Fuse 600V 60 Amp
- Test Equipment
+
+
Overview
Specs
Reviews

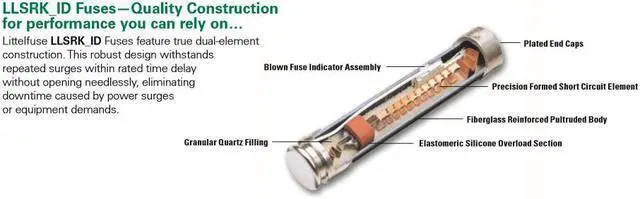

Littelfuse LLSRK 60 ID ( LLSRK-60A ) Time Delay Dual Element Fuse 600V 60 Amp Description Available in both Indicating and Non-Indicating versions, the FLNR/FLSR series of fuses set the standard for general purpose fuses. The dual-element design provides advanced short circuit and overload protection. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors. Applications • Service entrance switches • Transformers • Switchboard mains and feeders • Motor control central mains and motor branch circuits • All general purpose circuits Features/Benefits • Indication • Dual-element design • Available without indication • Current limiting
Specifications Ampere: 60 Amp
Voltage Ratings: 600 V (FLSR_ID) Approvals Standard 248-12, Class
RK5 UL Listed (File: E81895)
CSA Certified (File: LR29862) Federal Specification WF-1814 (QPL- W-F-1814)
Specifications Ampere: 60 Amp
Voltage Ratings: 600 V (FLSR_ID) Approvals Standard 248-12, Class
RK5 UL Listed (File: E81895)
CSA Certified (File: LR29862) Federal Specification WF-1814 (QPL- W-F-1814)
