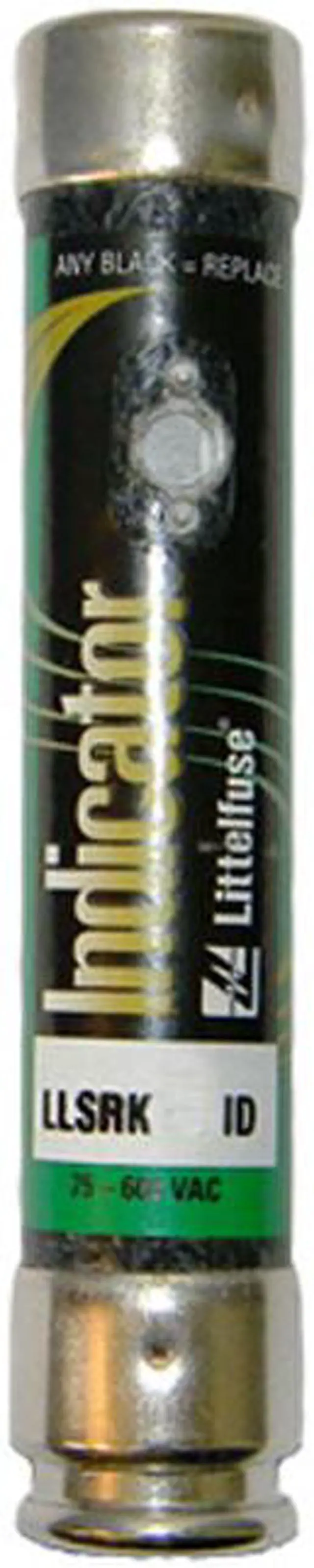

Littelfuse LLSRK 6 ID ( LLSRK-6A ) Time Delay Dual Element Fuse 600V 6 Amp
- Test Equipment
+
+
Overview
Specs
Reviews
Littelfuse LLSRK 6 ID ( LLSRK-6A ) Time Delay Dual Element Fuse 600V 6 Amp
Description
Available in both Indicating and Non-Indicating versions, the FLNR/FLSR series of fuses set the standard for general purpose fuses. The dual-element design provides advanced short circuit and overload protection. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors.
Applications
• Service entrance switches
• Transformers
• Switchboard mains and feeders
• Motor control central mains and motor branch circuits
• All general purpose circuits
Features/Benefits
• Indication

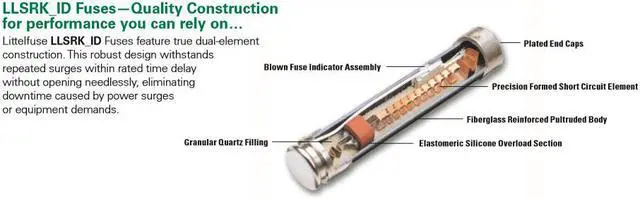

• Dual-element design
• Available without indication
• Current limiting
Specifications
Ampere: 6 Amp
Voltage Ratings : 600 V (FLSR_ID)
Approvals Standard 248-12, Class RK5 UL Listed (File: E81895) CSA Certified (File: LR29862) Federal Specification WF-1814 (QPL- W-F-1814)
Description
Available in both Indicating and Non-Indicating versions, the FLNR/FLSR series of fuses set the standard for general purpose fuses. The dual-element design provides advanced short circuit and overload protection. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors.
Applications
• Service entrance switches
• Transformers
• Switchboard mains and feeders
• Motor control central mains and motor branch circuits
• All general purpose circuits
Features/Benefits
• Indication
• Dual-element design
• Available without indication
• Current limiting
Specifications
Ampere: 6 Amp
Voltage Ratings : 600 V (FLSR_ID)
Approvals Standard 248-12, Class RK5 UL Listed (File: E81895) CSA Certified (File: LR29862) Federal Specification WF-1814 (QPL- W-F-1814)
