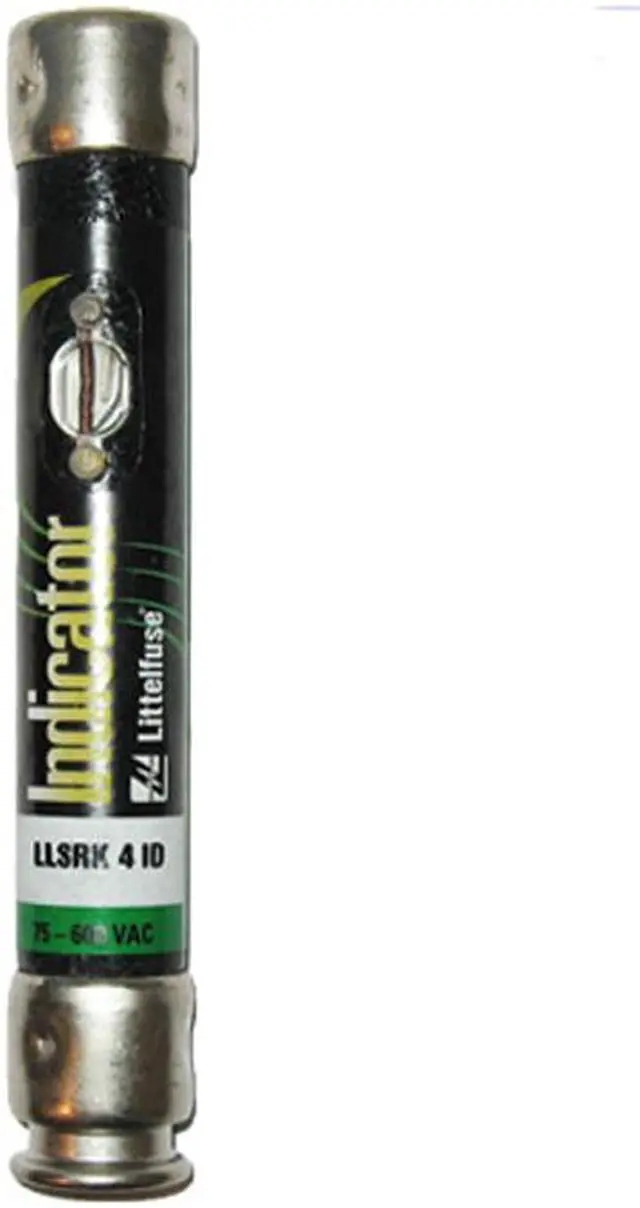

Littelfuse LLSRK 4 ID ( LLSRK-4A ) Time Delay Dual Element Fuse 600V 4 Amp
- Test Equipment
+
+
Overview
Specs
Reviews
Littelfuse LLSRK 4 ID ( LLSRK-4A ) Time Delay Dual Element Fuse 600V 4 Amp
Description
RK1 fuses are extremely current-limiting fuses meaning they greatly reduce or eliminate damage to circuits and equipment under short-circuit conditions. Replacing existing Class H, K and RK5 fuses with RK1 fuses is one of the easiest ways to immediately improve the protection of plant workers and equipment.
Applications
• All general purpose circuits
• Motors
• Transformers
• Safety upgrades
Features/Benefits
• POWR-PRO Performance
• Indication available

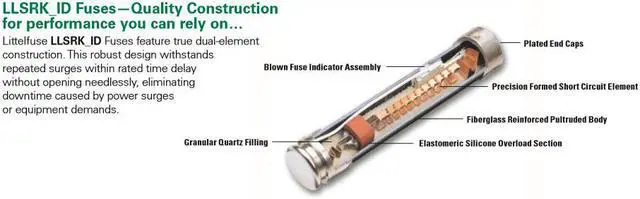

• Dual-element design
• Extremely Current-Limiting
• IEC Type 2 “No Damage” protection to IEC and NEMA type motor starters
• Indicating and DIN mount fuse holders available
Specifications
Voltage Ratings 600 Vac/300 Vdc (LLSRK/LLSRK_ID)
Ampere:4 Amp
Approvals AC: Standard 248-12, Class RK1
UL Listed (File: E81895)
CSA Certified (File: LR29862)
DC: Littelfuse self-certified
Federal Specification WF-1814
(QPL- W-F-1814)
Description
RK1 fuses are extremely current-limiting fuses meaning they greatly reduce or eliminate damage to circuits and equipment under short-circuit conditions. Replacing existing Class H, K and RK5 fuses with RK1 fuses is one of the easiest ways to immediately improve the protection of plant workers and equipment.
Applications
• All general purpose circuits
• Motors
• Transformers
• Safety upgrades
Features/Benefits
• POWR-PRO Performance
• Indication available
• Dual-element design
• Extremely Current-Limiting
• IEC Type 2 “No Damage” protection to IEC and NEMA type motor starters
• Indicating and DIN mount fuse holders available
Specifications
Voltage Ratings 600 Vac/300 Vdc (LLSRK/LLSRK_ID)
Ampere:4 Amp
Approvals AC: Standard 248-12, Class RK1
UL Listed (File: E81895)
CSA Certified (File: LR29862)
DC: Littelfuse self-certified
Federal Specification WF-1814
(QPL- W-F-1814)
