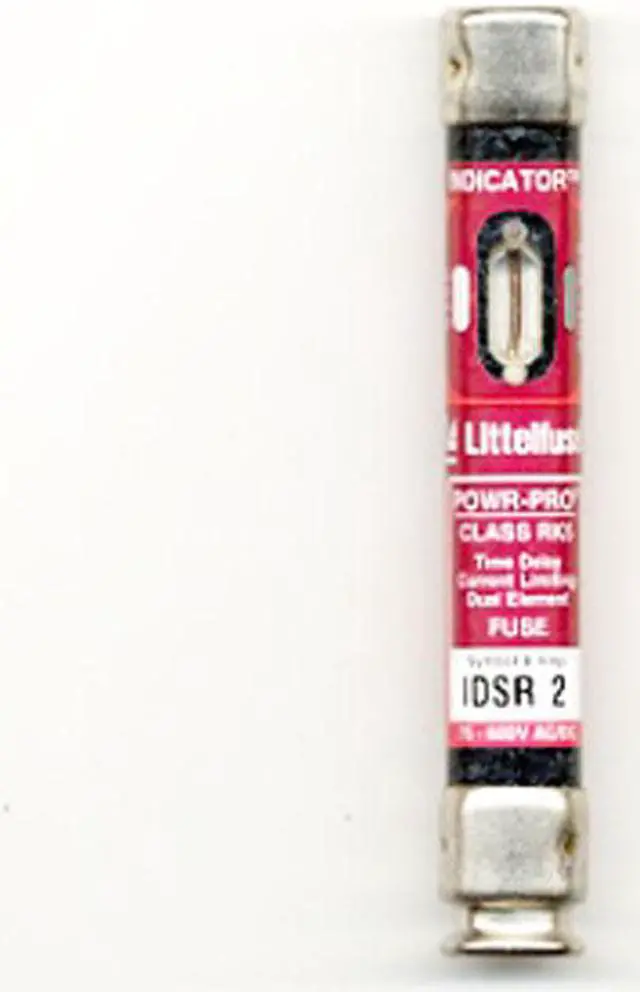

Littelfuse IDSR 2 ( IDSR-2A) Dual Element Time Delay Class RK5 Fuse 600V 2 Amp
- Test Equipment
+
+
Overview
Specs
Reviews
Littelfuse IDSR 2 ( IDSR-2A) Dual Element Time Delay Class RK5 Fuse 600V 2 Amp Description The IDSR combines a 600 Vdc capability with indication to provide an ideal solution for many DC applications. Applications * DC circuits * Solar inverters * Motors * Transformers * Solenoids * Fluorescent lighting Features/Benefits * POWR-PRO® Performance * Indication Specifications
Voltage Ratings AC: 600
V DC: 600
V Interrupting Ratings:
AC: 200 kA rms symmetrical 300 kA rms symmetrical (Littelfuse self-certified)
DC: 20 kA
Ampere: 2
Amp Approvals: Standard 248-12 and UL 198M, Class
RK5 UL Listed (File: E81895)
CSA Certified (File: LR29862)
Voltage Ratings AC: 600
V DC: 600
V Interrupting Ratings:
AC: 200 kA rms symmetrical 300 kA rms symmetrical (Littelfuse self-certified)
DC: 20 kA
Ampere: 2
Amp Approvals: Standard 248-12 and UL 198M, Class
RK5 UL Listed (File: E81895)
CSA Certified (File: LR29862)
