Littelfuse IDSR 15 ( IDSR-15A) Dual Element Time Delay Class RK5 Fuse 600V 15 Amp
- Test Equipment
+
+
Overview
Specs
Reviews

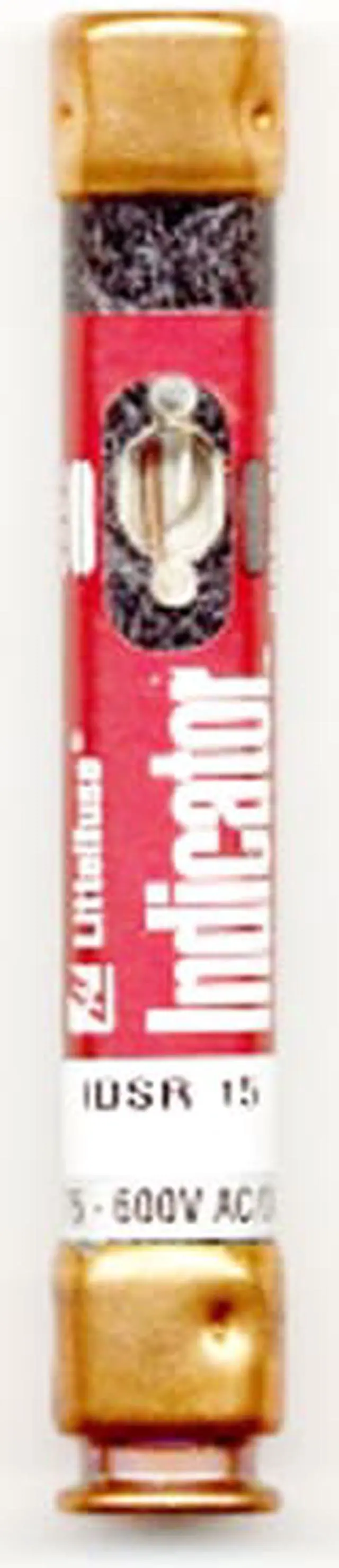

Littelfuse IDSR 15 ( IDSR-15A) Dual Element Time Delay Class RK5 Fuse 600V 15 Amp
Description
The IDSR combines a 600 Vdc capability with indication to provide an ideal solution for many DC applications.
Applications
• DC circuits
• Solar inverters
• Motors
• Transformers
• Solenoids
• Fluorescent lighting
Features/Benefits
• POWR-PRO® Performance
• Indication
Specifications
Voltage Ratings AC: 600 V
DC: 600 V
Interrupting Ratings : AC: 200 kA rms symmetrical
300 kA rms symmetrical
(Littelfuse self-certified)
DC: 20 kA
Ampere: 15 Amp
Approvals : Standard 248-12 and UL 198M,
Class RK5 UL Listed (File: E81895)
CSA Certified (File: LR29862)
Description
The IDSR combines a 600 Vdc capability with indication to provide an ideal solution for many DC applications.
Applications
• DC circuits
• Solar inverters
• Motors
• Transformers
• Solenoids
• Fluorescent lighting
Features/Benefits
• POWR-PRO® Performance
• Indication
Specifications
Voltage Ratings AC: 600 V
DC: 600 V
Interrupting Ratings : AC: 200 kA rms symmetrical
300 kA rms symmetrical
(Littelfuse self-certified)
DC: 20 kA
Ampere: 15 Amp
Approvals : Standard 248-12 and UL 198M,
Class RK5 UL Listed (File: E81895)
CSA Certified (File: LR29862)
