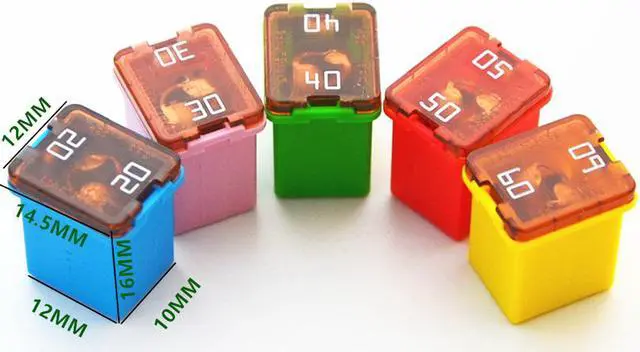

Littelfuse 0895030.Z 895 Square Car Fuse 30A Low Profile JCASE Cartridge Fuses Rated 58V
- Test Equipment
+
+
Overview
Specs
Reviews

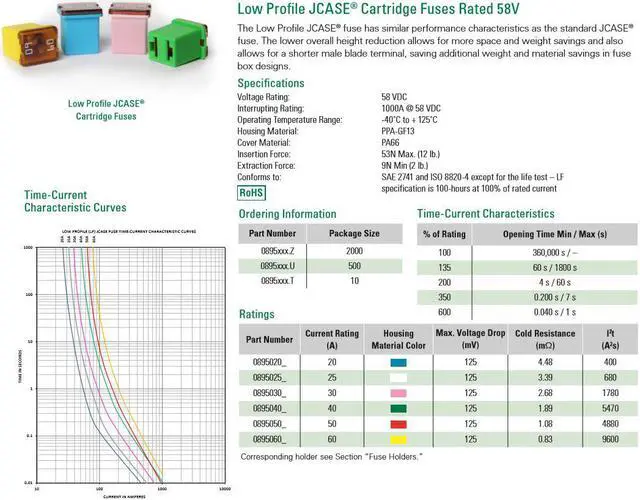

Littelfuse 0895030. Z 895 Square Car Fuse 30A Low Profile JCASE Cartridge Fuses Rated 58V
Specifications Voltage Rating: 58
VDC Interrupting Rating: 1000A @ 58 VDC
Operating Temperature Range: -40°C to + 125°C
Housing Material: PPA-GF13
Cover Material: PA66
Insertion Force: 53N Max. (12 lb.
) Extraction Force: 9N Min (2 lb.
) Conforms to: SAE 2741 and ISO 8820-4 except for the life test – LF specification is 100-hours at 100% of rated current
Specifications Voltage Rating: 58
VDC Interrupting Rating: 1000A @ 58 VDC
Operating Temperature Range: -40°C to + 125°C
Housing Material: PPA-GF13
Cover Material: PA66
Insertion Force: 53N Max. (12 lb.
) Extraction Force: 9N Min (2 lb.
) Conforms to: SAE 2741 and ISO 8820-4 except for the life test – LF specification is 100-hours at 100% of rated current
