Littelfuse 0895025.Z 895 Square Car Fuse 25A Low Profile JCASE Cartridge Fuses Rated 58V
- Test Equipment
+
+
Overview
Specs
Reviews
Littelfuse 0895025.Z 895 Square Car Fuse 25A Low Profile JCASE Cartridge Fuses Rated 58V

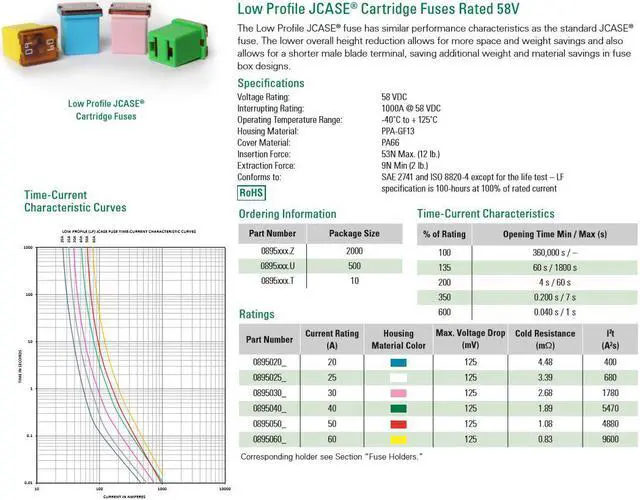

Specifications
Voltage Rating: 58 VDC Interrupting
Rating: 1000A @ 58 VDC
Operating Temperature Range: -40°C to + 125°C
Housing Material: PPA-GF13
Cover Material: PA66
Insertion Force: 53N Max. (12 lb.)
Extraction Force: 9N Min (2 lb.)
Conforms to: SAE 2741 and ISO 8820-4 except for the life test – LF
specification is 100-hours at 100% of rated current
Specifications
Voltage Rating: 58 VDC Interrupting
Rating: 1000A @ 58 VDC
Operating Temperature Range: -40°C to + 125°C
Housing Material: PPA-GF13
Cover Material: PA66
Insertion Force: 53N Max. (12 lb.)
Extraction Force: 9N Min (2 lb.)
Conforms to: SAE 2741 and ISO 8820-4 except for the life test – LF
specification is 100-hours at 100% of rated current
