Littelfuse 0293040 293 Square Car Fuse 40A Auto Link PAL Fuses 32VDC
- Test Equipment
+
+
Overview
Specs
Reviews

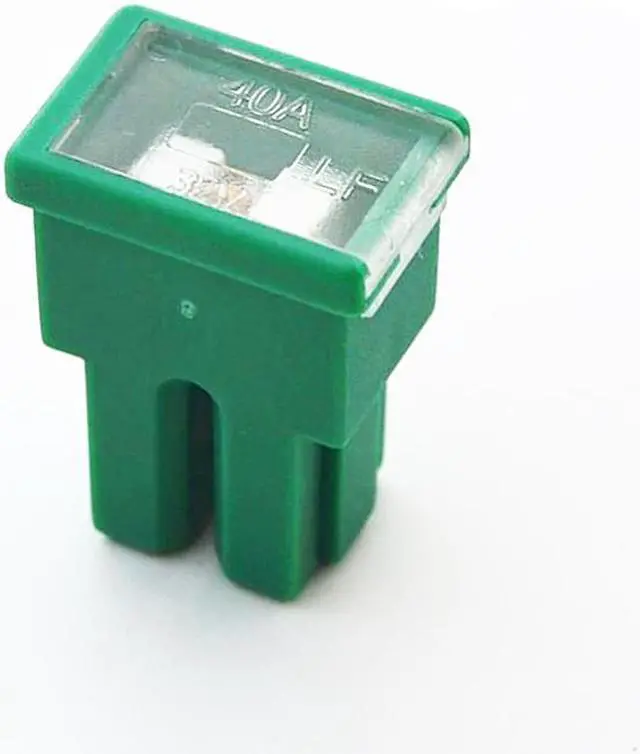

Littelfuse 0293040 293 Square Car Fuse 40A Auto Link PAL Fuses 32VDC

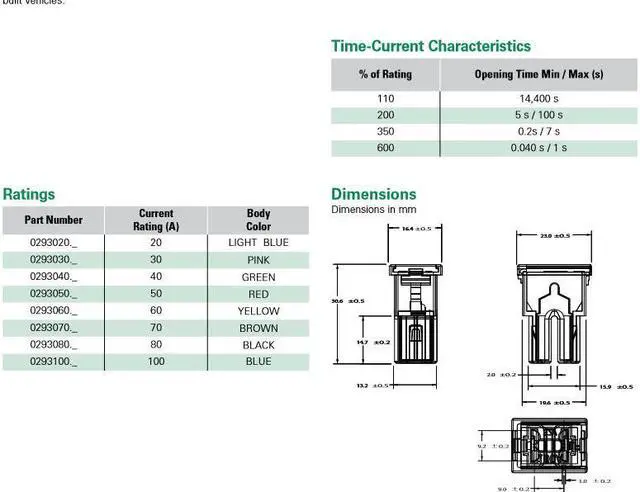

Specifications
Amperage Rating: 40A
Voltage Rating: 32 VDC
Current Cycling: 24°C
The fuses satisfy the performance requirements after 50% of the rated current is applied for 10,000 cycles. Each cycle consists of an interrupted current with the pattern of 5 minutes ON and 10 minutes OFF.
Operating Temperature Range: -40°C to +125°C
Complies with JASO 0612
Specifications
Amperage Rating: 40A
Voltage Rating: 32 VDC
Current Cycling: 24°C
The fuses satisfy the performance requirements after 50% of the rated current is applied for 10,000 cycles. Each cycle consists of an interrupted current with the pattern of 5 minutes ON and 10 minutes OFF.
Operating Temperature Range: -40°C to +125°C
Complies with JASO 0612
