Selection Guide of Linovision UltraReach PoE Switch/PoE Extender
 POE-SWR406UR |  POE-SWR410UR |  POE-SWR420UR |  POE-EXT3001LP(2 Pack) | |
|---|---|---|---|---|
Customer Reviews | — | — | — | — |
Price | — | — | — | — |
Power Inupt | 100 ~ 240V AC | 100 ~ 240V AC | 100 ~ 240V AC | Max 30W PoE |

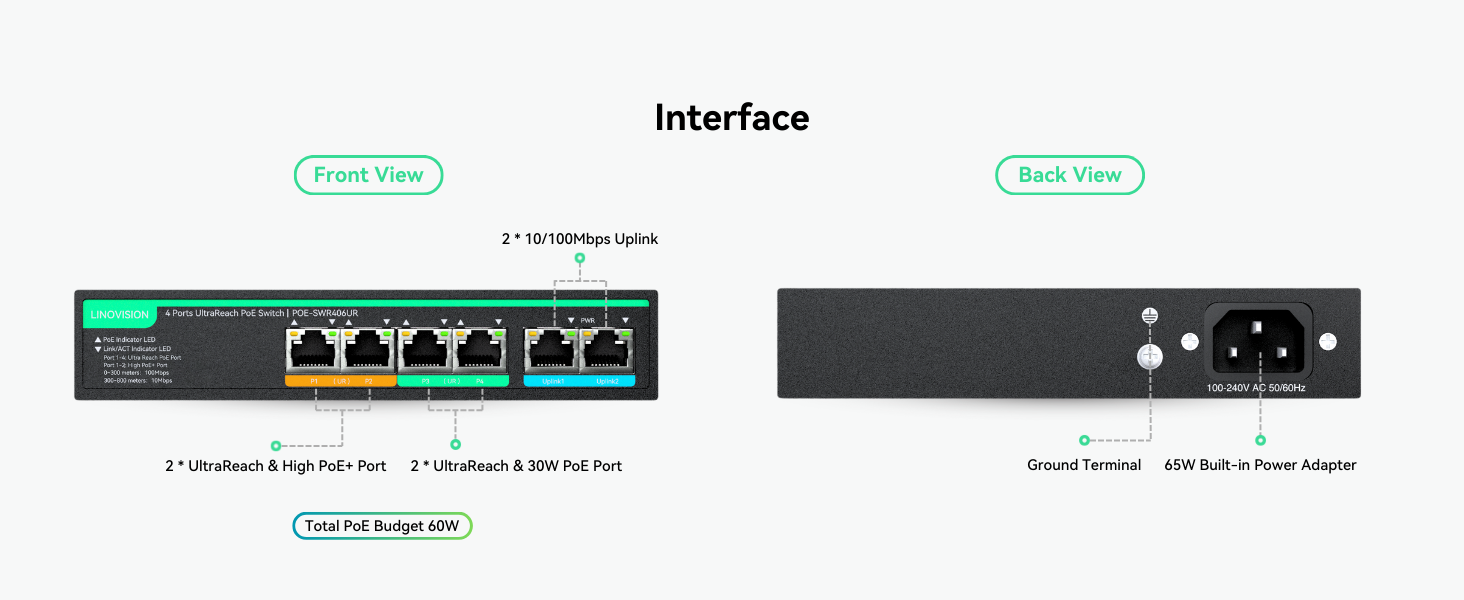

Uplink Ports | 2 * 10/100Mbps Ethernet | 2 * Gigabit Ethernet | 2* Gigabit Ethernet/ SFP Comb | / |
PoE Outputs | 4 * 10/100Mbps PoE Ports | 8 * 10/100Mbps PoE Ports | 16 * 10/100Mbps PoE Ports | 1 * 10/100Mbps PoE Ports |

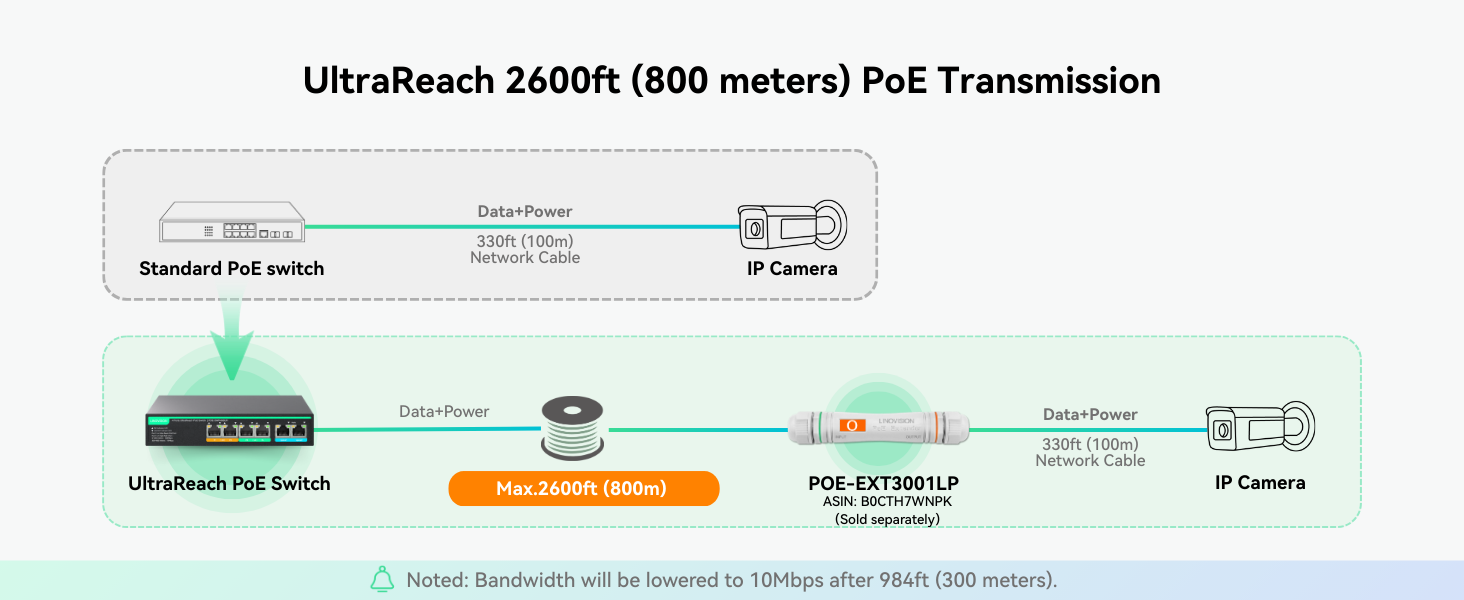

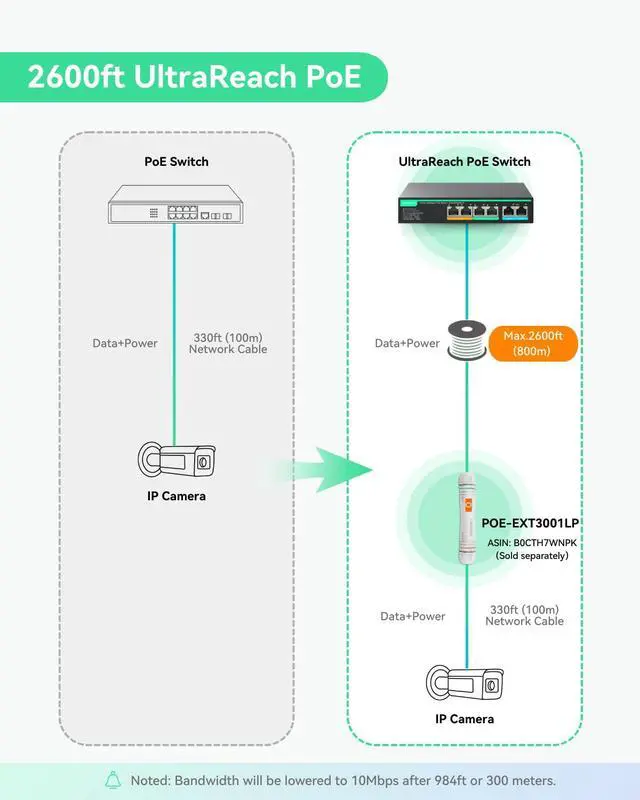

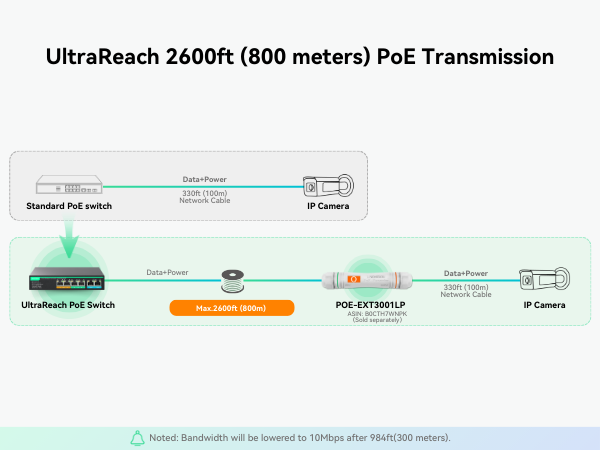

2600ft UltraReach PoE Ports | 4 | 8 | 8 | 1 |

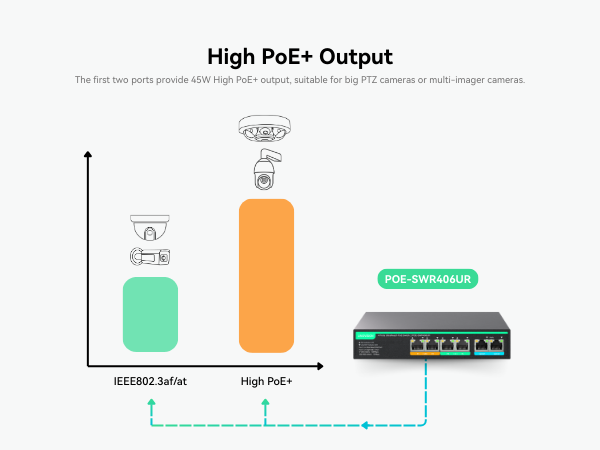

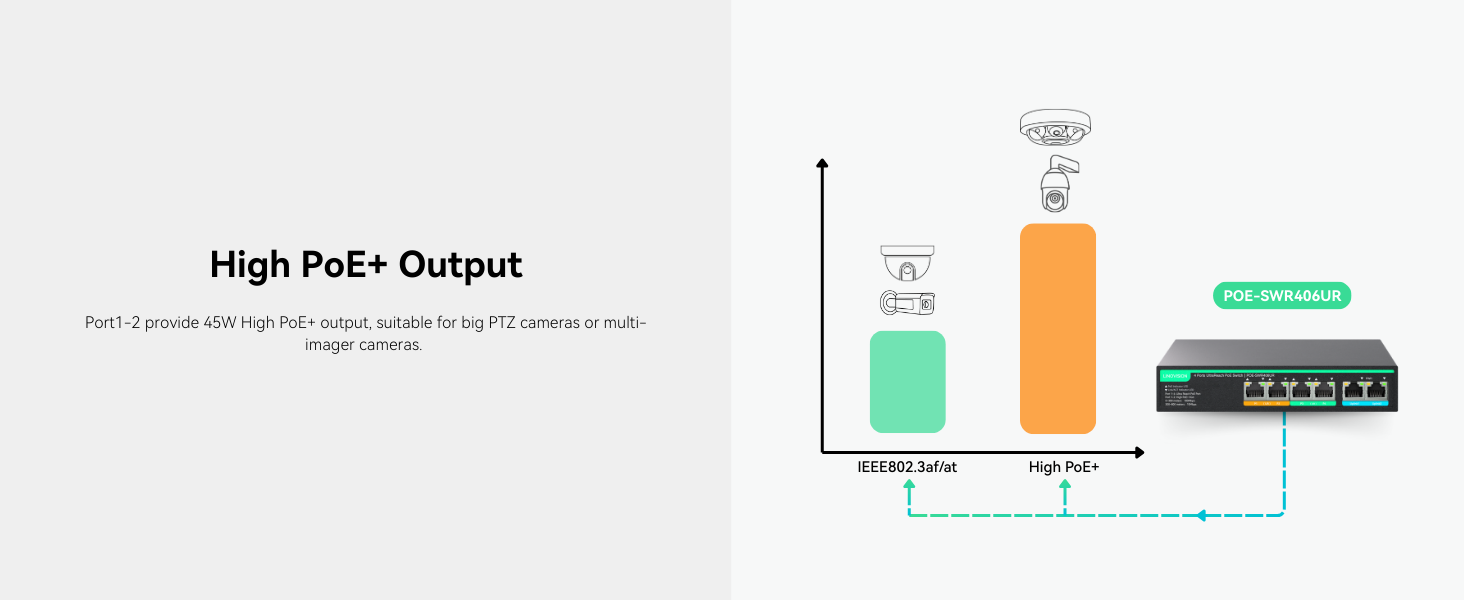

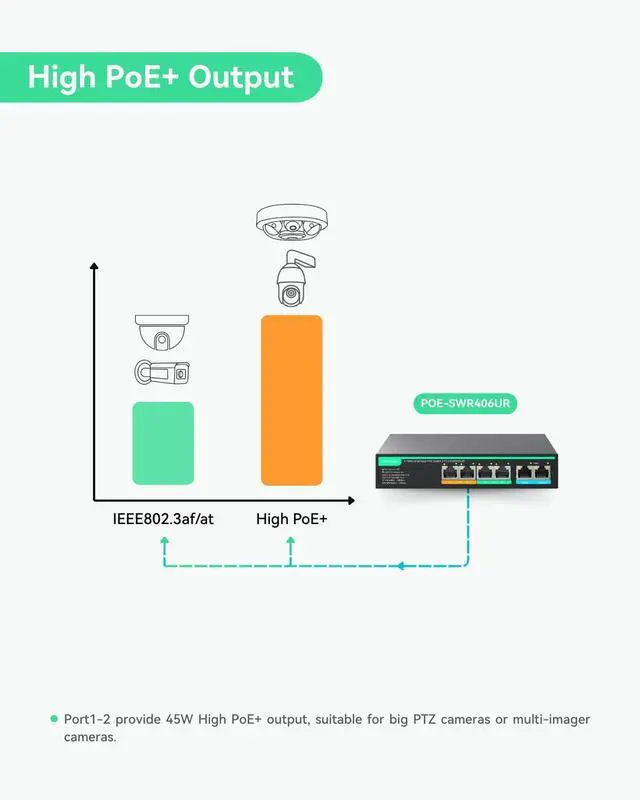

High PoE+ Ports | 2 * 45W PoE Ports | 2 * 45W PoE Ports | 4 * 45W PoE Ports | / |
BT PoE++ Ports | / | / | 4 * 90W PoE Ports | / |
PoE Power Pin Assignment | Mode A(1/2+, 3/6-) | Mode A(1/2+, 3/6-) | Port5-16: Mode A(1/2+, 3/6-) | Mode A/B |
PoE Budget | 60W | 120W | 250W | 30W |

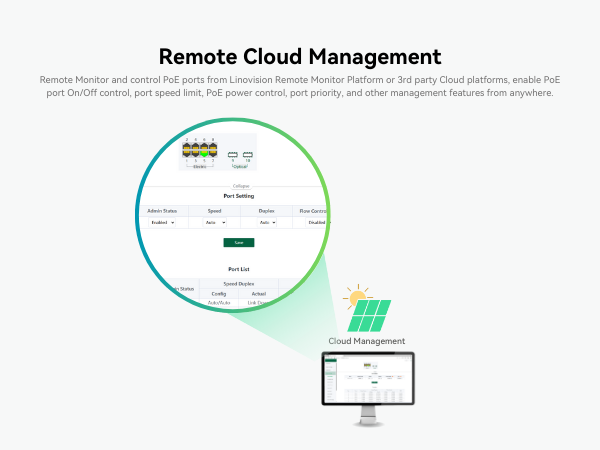

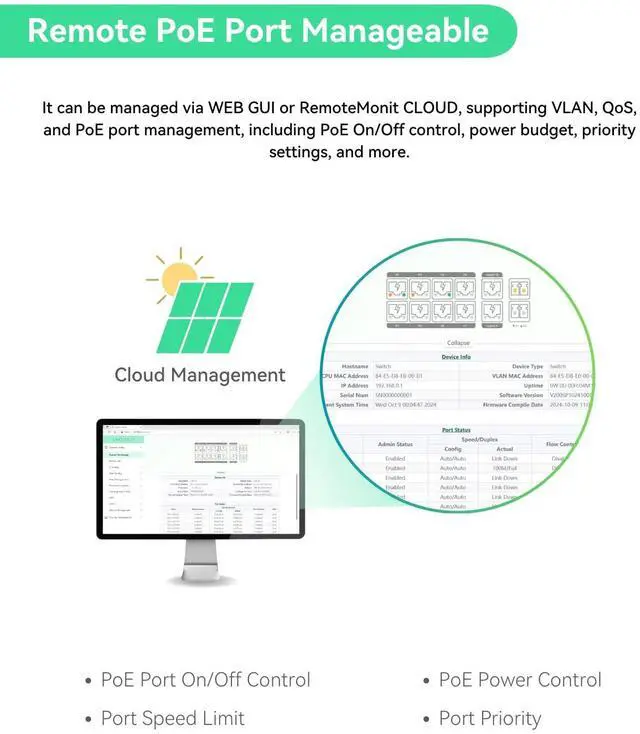

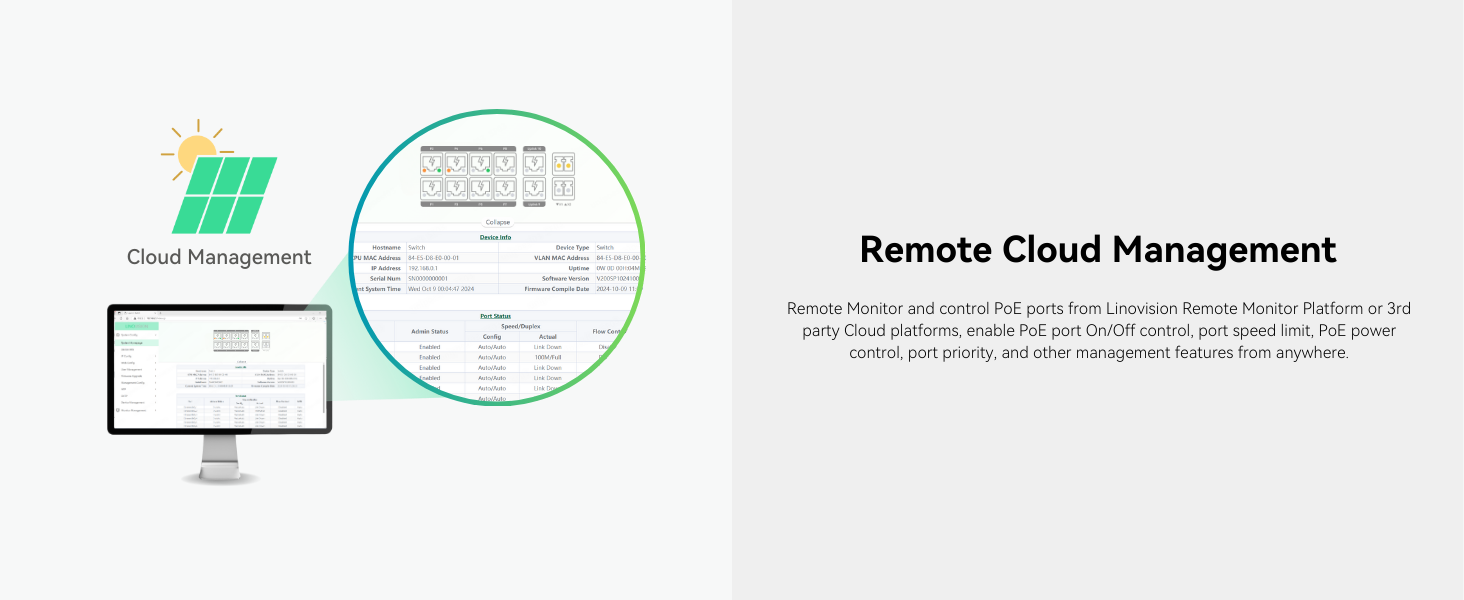

Managed in CLOUD | ? | ? | ? | ? |
Selection Guide of Linovision UltraReach PoE Switch/PoE Extender
POE-SWR406UR | POE-SWR410UR | POE-SWR420UR | POE-EXT3001LP(2 Pack) |
|---|---|---|---|
| Customer Reviews | |||
| — | — | — | — |
| Price | |||
| — | — | — | — |
| Power Inupt | |||
| 100 ~ 240V AC | 100 ~ 240V AC | 100 ~ 240V AC | Max 30W PoE |
| Uplink Ports | |||
| 2 * 10/100Mbps Ethernet | 2 * Gigabit Ethernet | 2* Gigabit Ethernet/ SFP Comb | / |
| PoE Outputs | |||
| 4 * 10/100Mbps PoE Ports | 8 * 10/100Mbps PoE Ports | 16 * 10/100Mbps PoE Ports | 1 * 10/100Mbps PoE Ports |
| 2600ft UltraReach PoE Ports | |||
| 4 | 8 | 8 | 1 |
| High PoE+ Ports | |||
| 2 * 45W PoE Ports | 2 * 45W PoE Ports | 4 * 45W PoE Ports | / |
| BT PoE++ Ports | |||
| / | / | 4 * 90W PoE Ports | / |
| PoE Power Pin Assignment | |||
| Mode A(1/2+, 3/6-) | Mode A(1/2+, 3/6-) | Port5-16: Mode A(1/2+, 3/6-) | Mode A/B |
| PoE Budget | |||
| 60W | 120W | 250W | 30W |
| Managed in CLOUD | |||
| ? | ? | ? | ? |
