4 Ports Gigabit PoE Passthrough Switch and PoE Extender with 90W PoE++ Input, IEEE802.3af/at/bt PoE Repeater, 1 in 4 Out POE Bosster, PoE++ Powerd Switch for IP Cameras, IP Phone

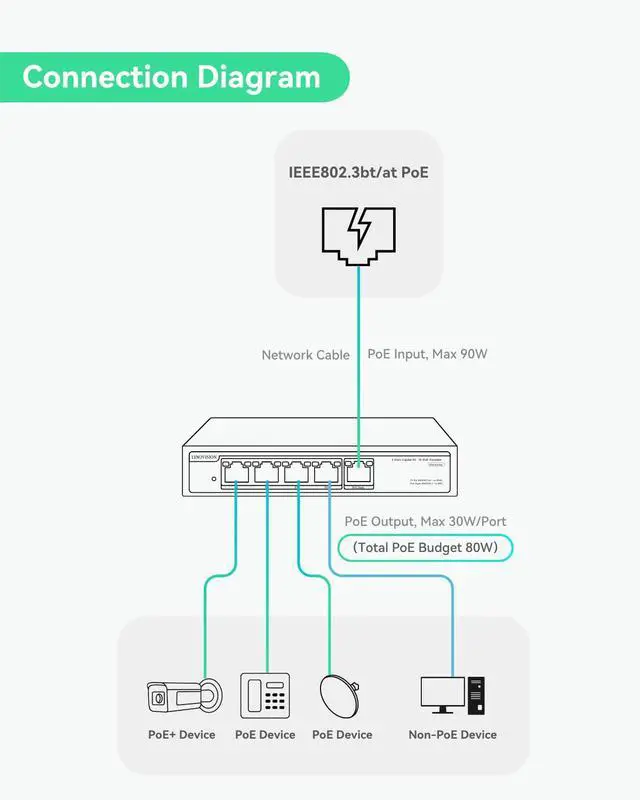

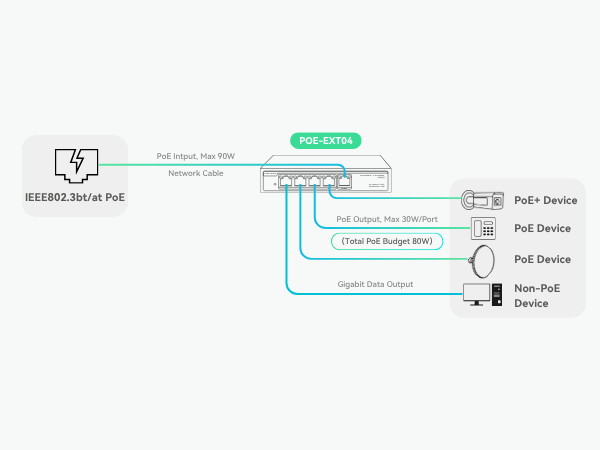

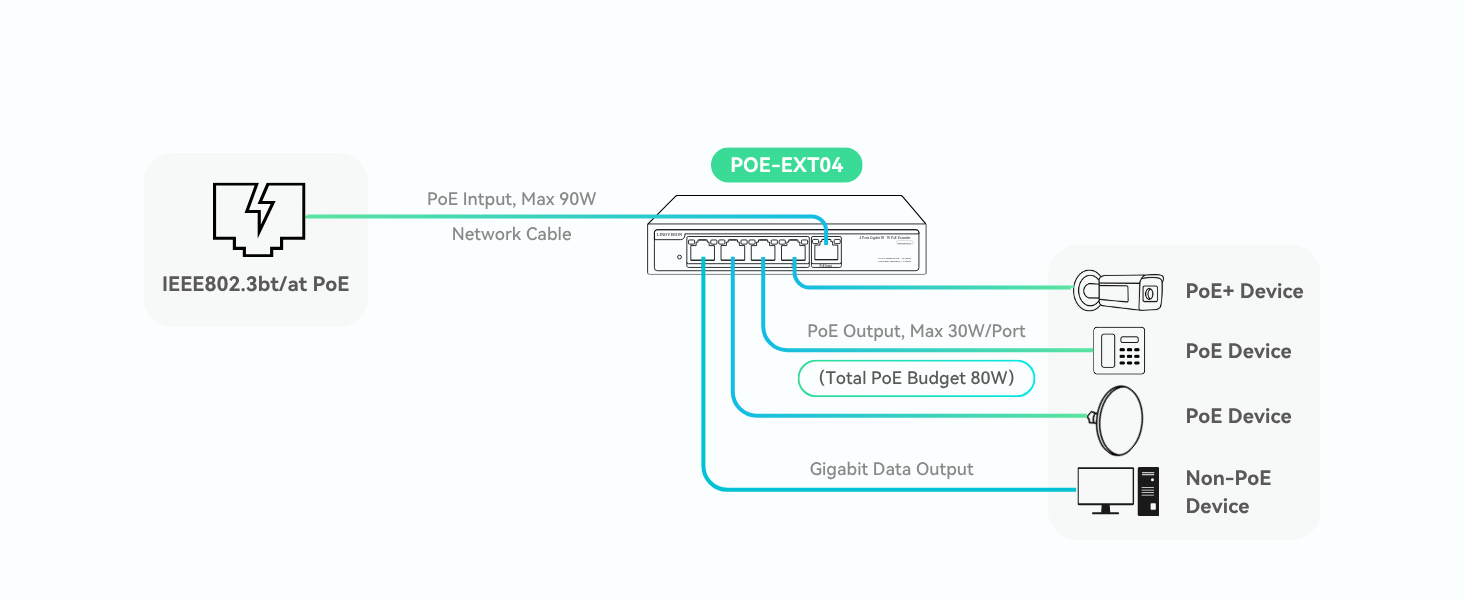

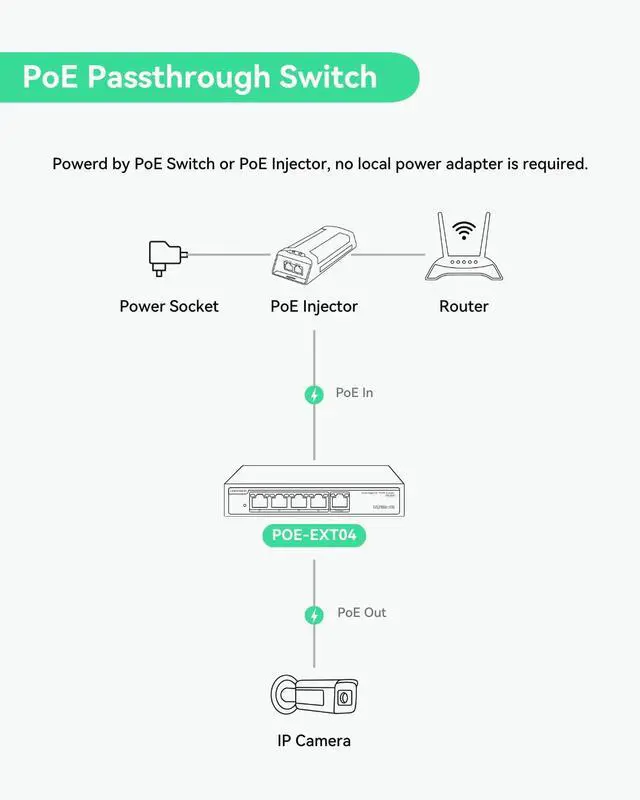

PoE PASSTHROUGH SWITCH -Powerd by POE Switch or PoE Injector, passes PoE power to other PoE devices, such as VoIP phones and cameras. Also know as PoE Powed Switch. No AC power supply required.

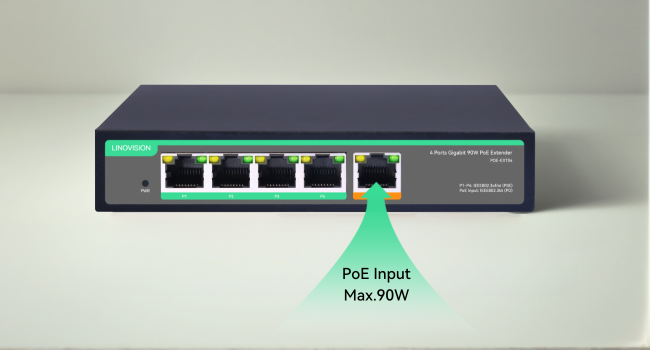

4CH BT90W PoE EXTENDER- 1 x IEEE 802.3af/at/bt PoE Input, max 90W; 4 x IEEE 802.3at/af PoE output. Total PoE budget 80W . PoE InputMode A/ Mode B; PoE Output: Mode A.

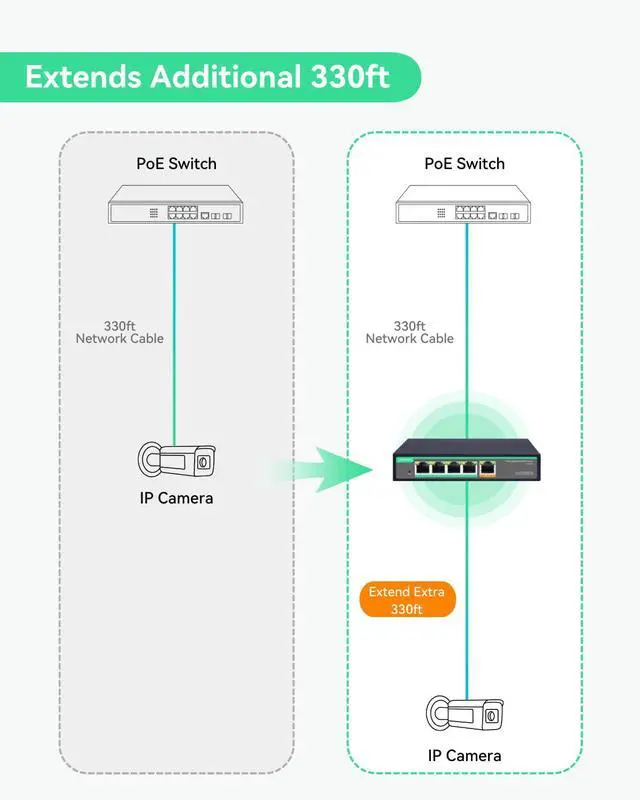

EXTEND PoE and DATA 330FT - Extends PoE and Gigabit Ethernet an additional 330ft.
STANDARD PoE - Unlike some software emulated PoE, this PoE Extender adopts hardware IEEE802.3af/at/bt PoE chipset and compatible to Mode A PD device. It follows PD Detection -> Classisication Type -> Power On procedures to prevent stanard PD device from damaging.
SURGE PROTECTION - 6KV surge protection, keep the PoE Extender from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.
EASY to USE - Plug-n-Play Design. Equivalent to a small 4 ports PoE Switch and powered by PoE, much easier for cabling.
24/7 US LOCAL + GLOBAL TECH SUPPORT - 1-year warranty and life-time 24/7 US Local + GLOBAL Technical Support. Ready and willing to help in anytime.

Linovision PoE Splitter
Linovision PoE Switch
Linovision PoE over Coax

4 Port PoE Extender

Merchant Video

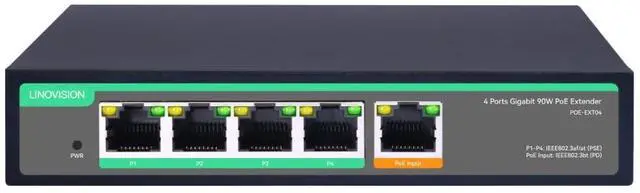

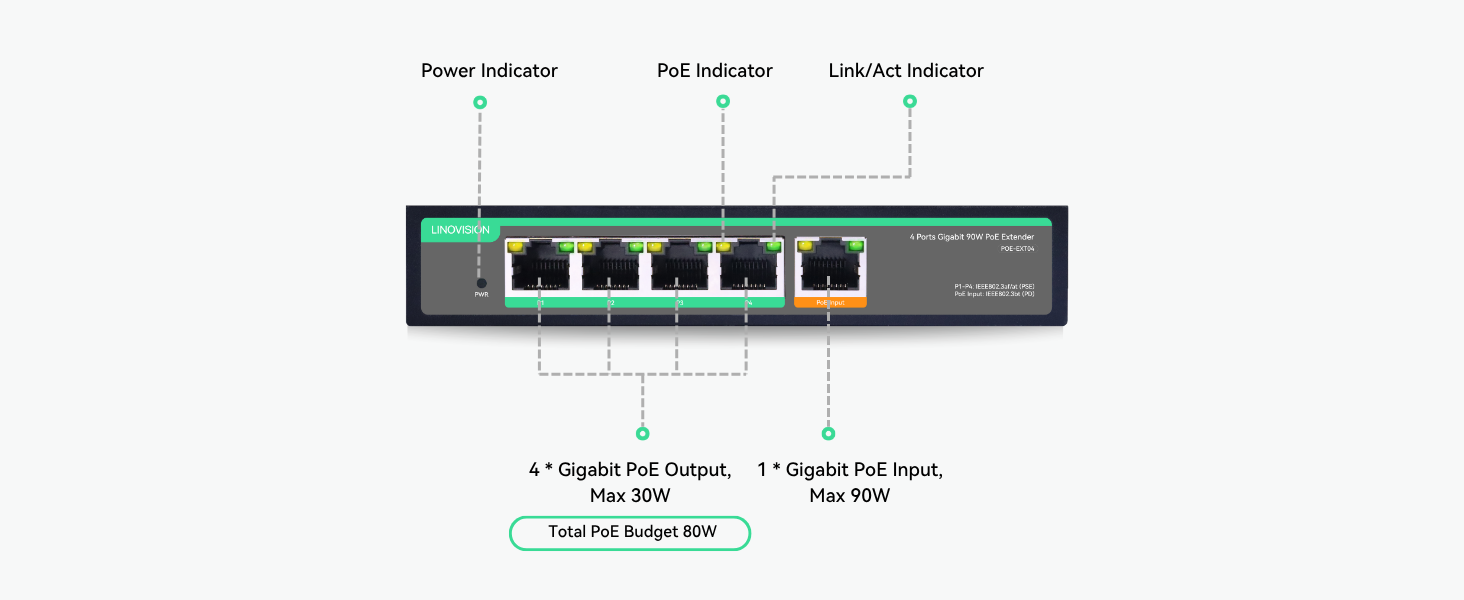

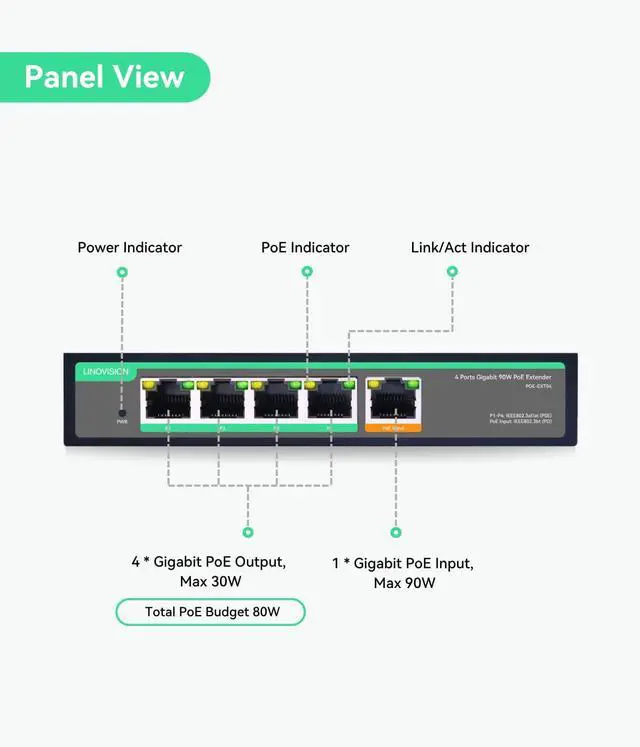

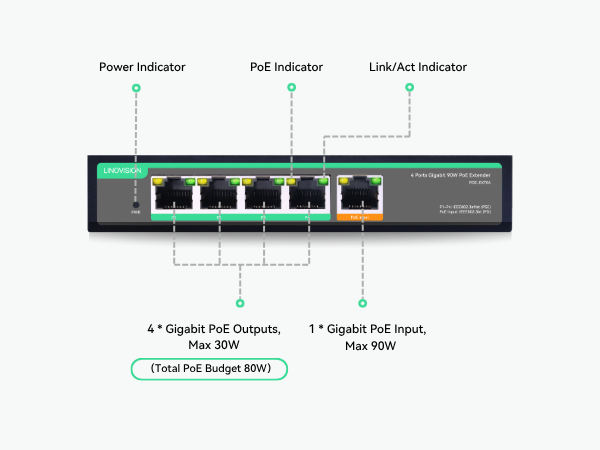

Interface

Outstanding Features

Powered by POE

Powerd by PoE Switch or PoE Injector, passes PoE power to other PoE devices, such as VoIP phones and cameras. Also know as PoE Powed Switch. No local power adapter is required.

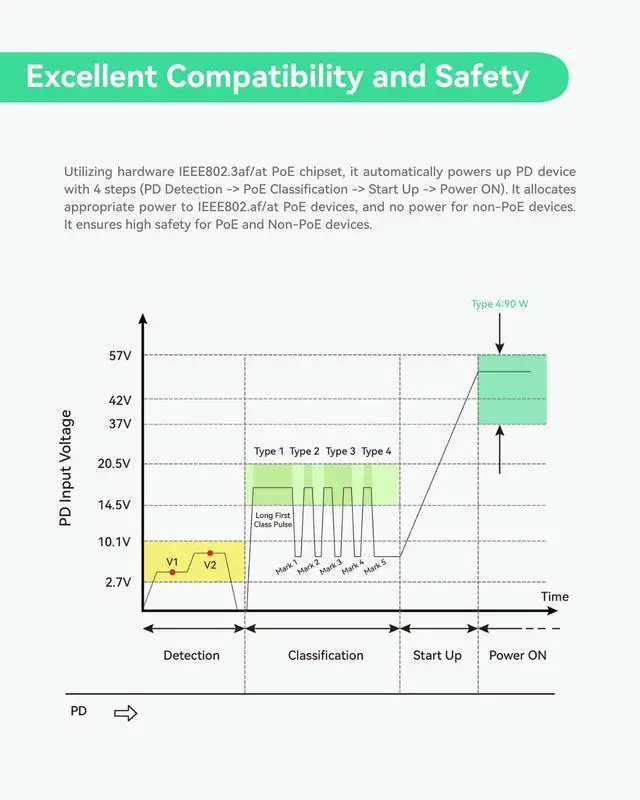

Excellent Compatibility and Safety

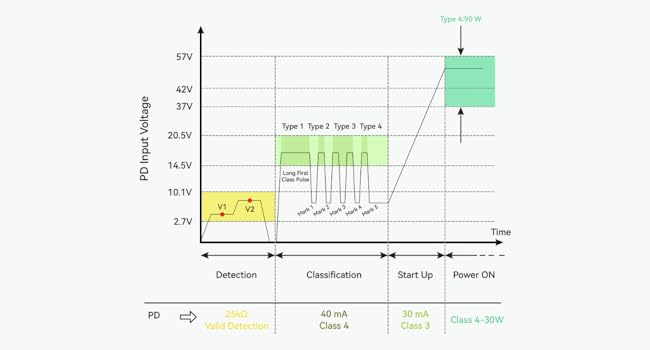

Using hardware IEEE802.3af/at PoE chipset, it automatically powers up PD device with 4 steps (PD Detection -> PoE Classification -> Start Up -> Power ON). It allocates appropriate power to IEEE802.af/at PoE devices, and no power for non-PoE devices. It ensures high safety for PoE and Non-PoE devices

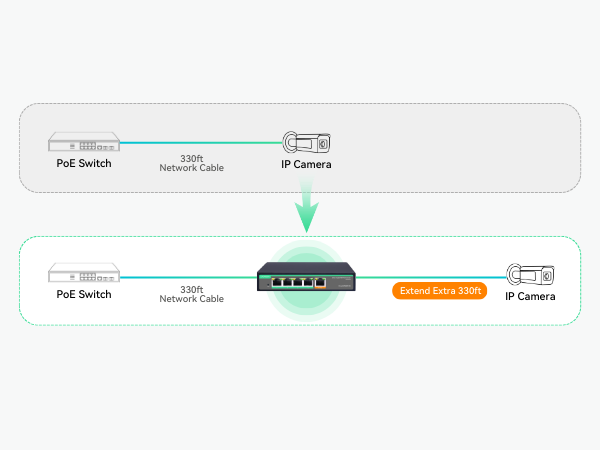

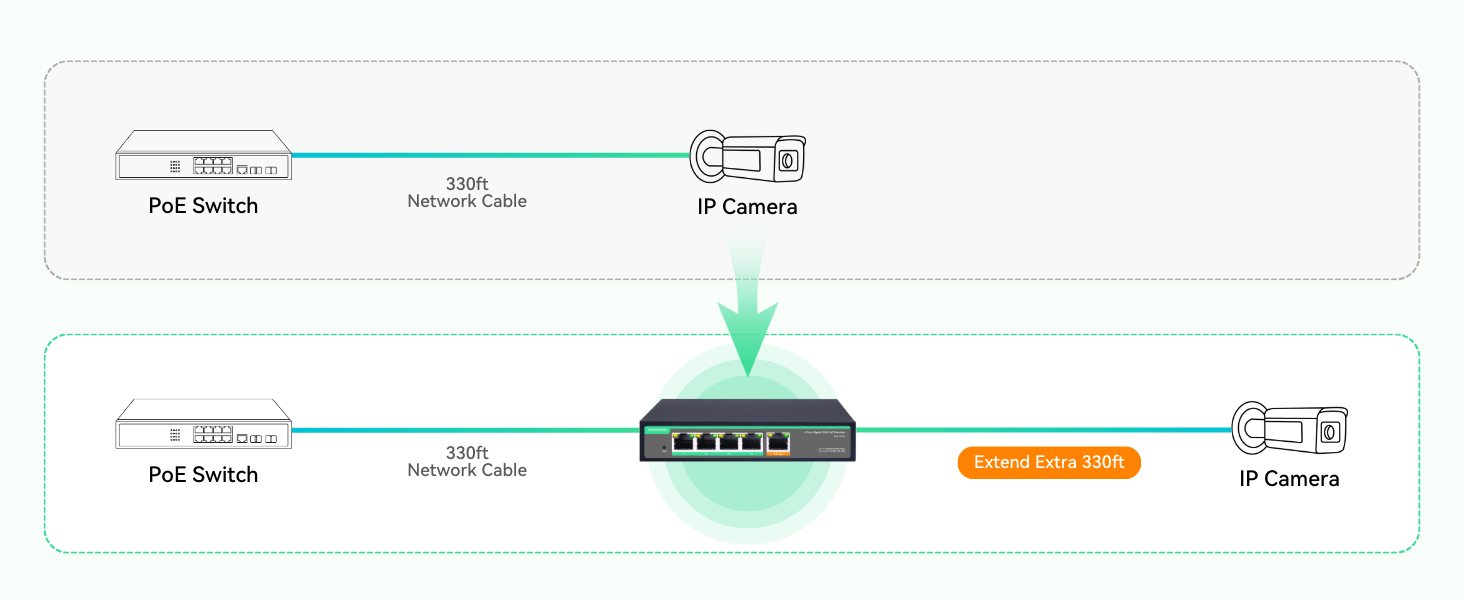

Extend PoE and Data 330ft

Key Specification

PoE Input	1*10/100/1000 Base-T RJ45 port; Compliant to IEEE802.3af/at/bt standard;
PoE Output	4*10/100/1000 Base-T RJ45 port; Compliant to IEEE802.3af/at standard;
PoE Pin Assignment(POE Input)	1/2/4/5(-), 3/6/7/8(+)
PoE Pin Assignment(POE Output)	1/2(-), 3/6(+)
LED Indicator	Yellow LED: POE Power Act Status ; Green LED: Ethernet Data Link Status;

Working Humidity	5~90%, (non-condensing)
Working Temperature	-20°C ~55°C (-4?~131? )
Weight	1.01lb(0.46kg)

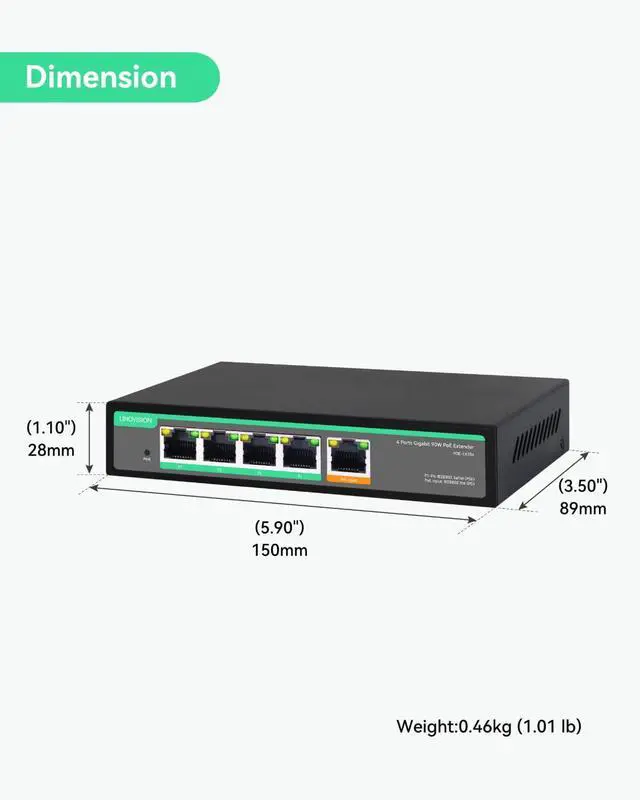

Dimension	5.9in x 3.5in x 1.1in (150mm x89mm x 28mm)

Selection Guide of Linovision POE Extender

	POE-EXT04	POE-EXT02G	POE-Extender02	POE-EXT6002GP	POE-Extender02WP2	POE-EXT3001LP(2 Pack)	POE-EXT3001GP
Customer Reviews	—	—	—	—	—	—	—
Price	—	—	—	—	—	—	—
PoE Input	Max 90W	Max 30W	Max 30W	Max 90W	Max 30W	Max 30W	Max 30W
PoE Output	4 x 30W	2 x 30W	1 x 16W + 1 x 8W	1 x 60W + 1 x 30W	1 x 16W + 1 x 8W	1x 30W	1x 30W
PoE Budget	56W	30W	30W	90W	30W	30W	30W
PoE Standard	IEEE802.3af/at/bt	IEEE802.3af/at	IEEE802.3af/at	IEEE802.3af/at/bt	IEEE802.3af/at	IEEE802.3af/at	IEEE802.3af/at
Ethernet Speed	Gigabit	Gigabit	10/100Mbps	Gigabit	10/100Mbps	10/100Mbps	Gigabit
Extend Data Transmission Range	330ft (100m)	330ft (100m)	330ft (100m)	330ft (100m)	330ft (100m)	Max.2600ft(800m), Paired mode	330ft (100m)
Waterproof	?	?	?	?	?	?	?
Installation Method	/	Din Rail Mount	Wall/Din Rail Mount	Wall Mount	Wall Mount	/	/

4 Port PoE Extender

Merchant Video

Interface

Outstanding Features

Powered by POE

Powerd by PoE Switch or PoE Injector, passes PoE power to other PoE devices, such as VoIP phones and cameras. Also know as PoE Powed Switch. No local power adapter is required.

Excellent Compatibility and Safety

Extend PoE and Data 330ft

Key Specification

PoE Input	1*10/100/1000 Base-T RJ45 port; Compliant to IEEE802.3af/at/bt standard;
PoE Output	4*10/100/1000 Base-T RJ45 port; Compliant to IEEE802.3af/at standard;
PoE Pin Assignment(POE Input)	1/2/4/5(-), 3/6/7/8(+)
PoE Pin Assignment(POE Output)	1/2(-), 3/6(+)
LED Indicator	Yellow LED: POE Power Act Status ; Green LED: Ethernet Data Link Status;
Working Humidity	5~90%, (non-condensing)
Working Temperature	-20°C ~55°C (-4?~131? )
Weight	1.01lb(0.46kg)
Dimension	5.9in x 3.5in x 1.1in (150mm x89mm x 28mm)

Selection Guide of Linovision POE Extender

POE-EXT04	POE-EXT02G	POE-Extender02	POE-EXT6002GP	POE-Extender02WP2	POE-EXT3001LP(2 Pack)	POE-EXT3001GP
Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews	Customer Reviews
—	—	—	—	—	—	—
Price	Price	Price	Price	Price	Price	Price
—	—	—	—	—	—	—
PoE Input	PoE Input	PoE Input	PoE Input	PoE Input	PoE Input	PoE Input
Max 90W	Max 30W	Max 30W	Max 90W	Max 30W	Max 30W	Max 30W
PoE Output	PoE Output	PoE Output	PoE Output	PoE Output	PoE Output	PoE Output
4 x 30W	2 x 30W	1 x 16W + 1 x 8W	1 x 60W + 1 x 30W	1 x 16W + 1 x 8W	1x 30W	1x 30W
PoE Budget	PoE Budget	PoE Budget	PoE Budget	PoE Budget	PoE Budget	PoE Budget
56W	30W	30W	90W	30W	30W	30W
PoE Standard	PoE Standard	PoE Standard	PoE Standard	PoE Standard	PoE Standard	PoE Standard
IEEE802.3af/at/bt	IEEE802.3af/at	IEEE802.3af/at	IEEE802.3af/at/bt	IEEE802.3af/at	IEEE802.3af/at	IEEE802.3af/at
Ethernet Speed	Ethernet Speed	Ethernet Speed	Ethernet Speed	Ethernet Speed	Ethernet Speed	Ethernet Speed
Gigabit	Gigabit	10/100Mbps	Gigabit	10/100Mbps	10/100Mbps	Gigabit
Extend Data Transmission Range	Extend Data Transmission Range	Extend Data Transmission Range	Extend Data Transmission Range	Extend Data Transmission Range	Extend Data Transmission Range	Extend Data Transmission Range
330ft (100m)	330ft (100m)	330ft (100m)	330ft (100m)	330ft (100m)	Max.2600ft(800m), Paired mode	330ft (100m)
Waterproof	Waterproof	Waterproof	Waterproof	Waterproof	Waterproof	Waterproof
?	?	?	?	?	?	?
Installation Method	Installation Method	Installation Method	Installation Method	Installation Method	Installation Method	Installation Method
/	Din Rail Mount	Wall/Din Rail Mount	Wall Mount	Wall Mount	/	/

Linovision PoE Splitter
Linovision PoE Switch
Linovision PoE over Coax

Brand	LINOVISION
Number of Ports	5
Included Components	4 Ports POE Extender
Color	black
Compatible Devices	Camera, IP Phone
Item Weight	0.4 Kilograms
Voltage	48 Volts
Case Material	Metal
Maximum Power	56 Watts
Upper Temperature Rating	45 Degrees Celsius
Interface Type	RJ45
Data Transfer Rate	1E+3 Megabits Per Second
Current Rating	1 Amps
Manufacturer	LINOVISION
Package Dimensions	8.74 x 5.04 x 2.24 inches
Item model number	POE-EXT04
Date First Available	June 7, 2023
Language	German

Brand	LINOVISION
Model	POE-EXT04
Part Number	POE-EXT04

Uplink Interface	RJ45
Primary Ports	RJ45
Primary Port Speed	1000 megabits_per_second
Primary Port Type	RJ45

Power	48 volts, 56 watts
Max Power Consumption	56 watts
