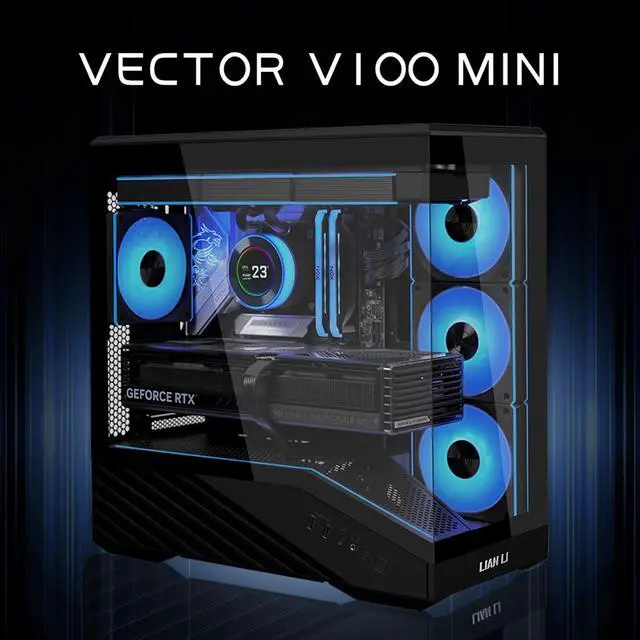

Lian Li VECTOR V100 MINI Micro Form Factor Compact PC Case, Panoramic Tempered Glass, Support Backet-Connect Micro-ATX, 415mm GPUs, 360mm Radiator, 9 x 120mm Fans, Dust Filiter, RGB - Black (V100MIX)
- Compact Micro-ATX Design: Designed for mATX builds, the V100 Mini offers a space-saving form factor while supporting up to nine 120mm fans and a 360mm AIO cooler. Note: It does not support 280mm AIO coolers due to motherboard clearance issues.
- Cooling Options: It supports multiple cooling configurations, accommodating up to 9X 120mm fans or a combination of fans and liquid cooling radiators.
- Stunning Glass Showcase: Features tempered glass panels on the front and side for a 270° panoramic view.
- Flexible GPU Mounting: Includes an anti-sag bracket with a height-adjustable mechanism for horizontal GPUs.
- This case supports mATX motherboards (ATX not supported). Dual-GPU setups are not recommended due to the 5-slot limit. For dual GPUs, we recommend the V100. The supported maximum GPU length is 415 mm.
Combo Up Savings Up To $2580
The more you add, the more you'll save!+
+
Overview
Specs
Reviews (14)
Vector V100 Mini
The VECTOR V100 MINI delivers performance and personalization in a smaller mATX form, offering a clean and flexible platform for compact gaming setups.
Supports up to m-ATX motherboards
Supports back- connect motherboards
Supports up to 9 fans
270 Degree seamless visibility
ARGB lighting strip
Simple cable management
Supports 360mm radiator installation
Pre-installed GPU support bracket
270 Degree View, Immersive Lighting
The front and side panels use 4mm tempered glass, delivering a clean modern look and clear visibility of the components. RGB lighting is fully visible from all angles and can be adjusted instantly with a single button.
Pre-installed Fans for Immediate Build Performance

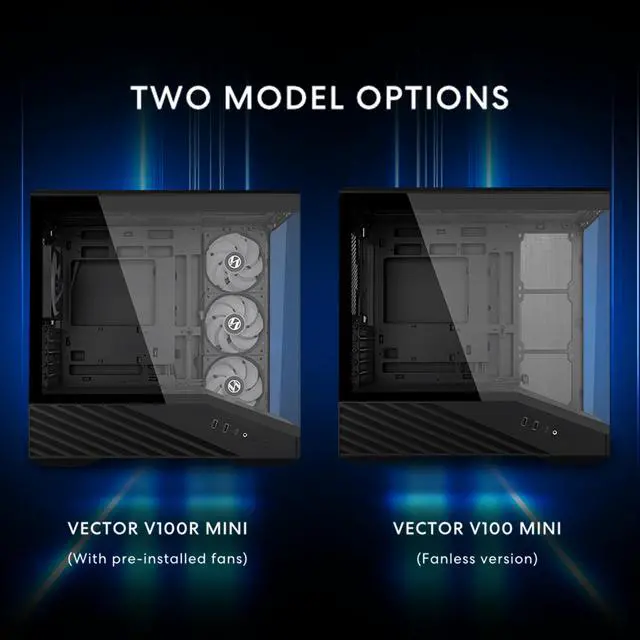

The VECTOR V100R MINI comes equipped with four pre-installed ARGB PWM fans: 3 intakes and 1 exhaust, delivering effective cooling performance right out of the box.
Ample Storage Options
The bottom section supports up to 2 x 2.5" SSDs, or 1 x 3.5" HDD + 1 x 2.5" SSD
If the PSU length exceeds 150 mm, it supports 1 x 2.5" SSD or 1 x 3.5" HDD
An additional 2.5" SSD can also be installed behind the motherboard tray

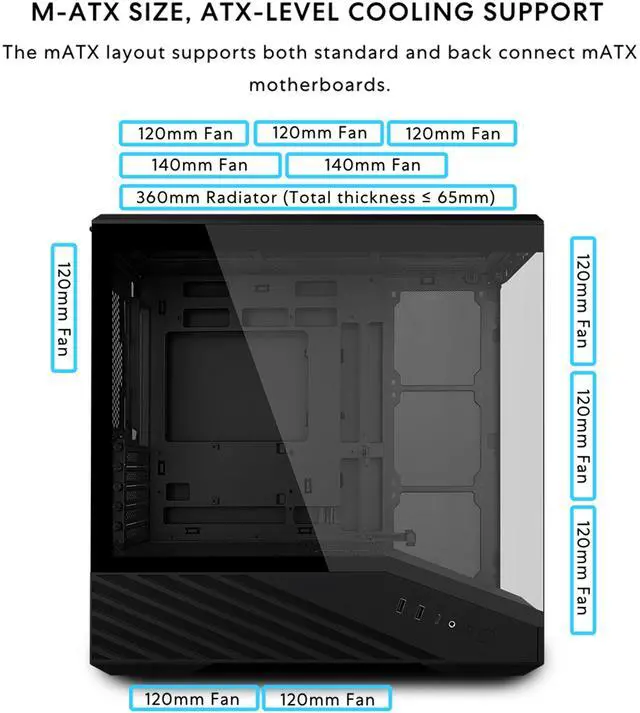

M-ATX Size, ATX-Level Cooling Support
The mATX layout supports both standard and back connect mATX motherboards. It fits up to three 120mm side fans, one 120mm rear fan, and up to three 120mm or two 140mm fans on top. The top panel also supports 360mm or 240mm AIO coolers for strong airflow and dependable cooling.

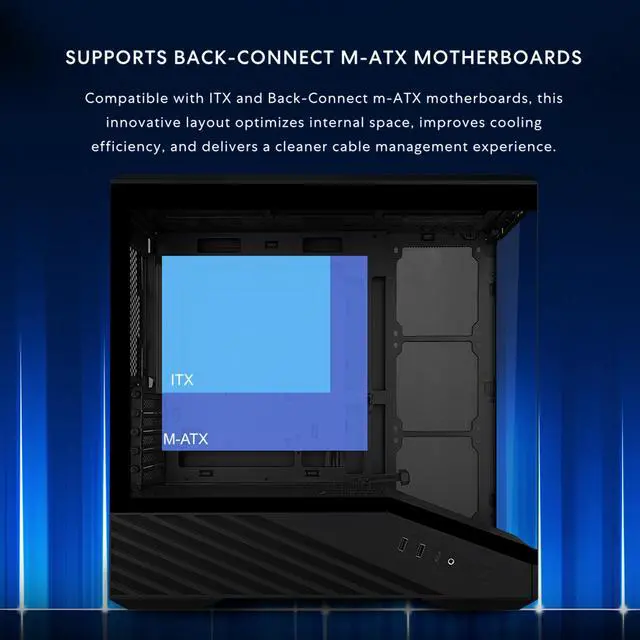

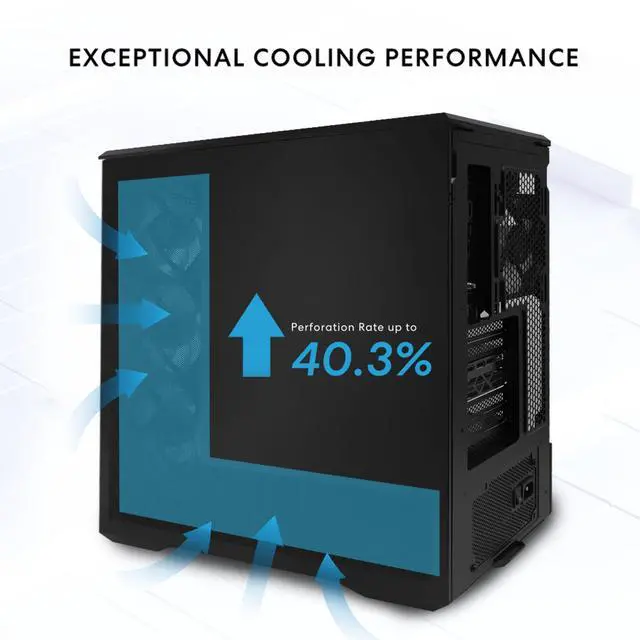

Note: GPU shroud designs and motherboard PCIe slot positions vary. Installing GPUs thicker than 3 PCIe slots may interfere with the PSU-side top fanExceptional Cooling PerformanceIn addition to accommodating large water cooling and air cooling setups, the Vector V100 MINI features an optimized mesh panel on the side, with a perforation rate of up to 40.3%, greatly enhancing cooling efficiency.Supports Back-Connect m-ATX MotherboardsCompatible with ITX and Back-Connect m-ATX motherboards, this innovative layout optimizes internal space, improves cooling efficiency, and delivers a cleaner cable management experience. Removing the HDD cage behind the motherboard tray allows compatibility with back-connect M-ATX motherboards.Customizable RGB Effects
The Vector V100 MINI includes built-in ARGB light strips with 26 LEDs. It supports a wide range of lighting modes and custom color configurations, and can be synchronized with motherboard software for a fully immersive gaming ambiance.
Efficient Cable Management
A well-designed cable management system simplifies installation and keeps the interior clean. With dedicated routing channels, multiple tie-down points, and ample space behind the motherboard tray, cables can be neatly organized with ease.

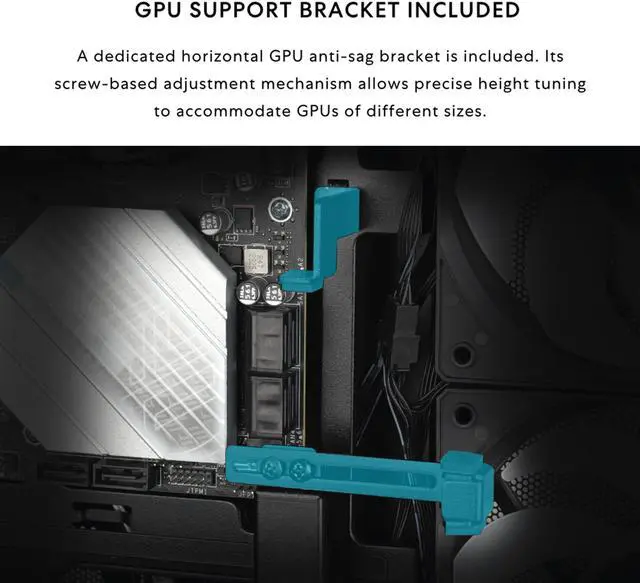

GPU Support Bracket Included
A dedicated horizontal GPU anti-sag bracket is included. Its screw-based adjustment mechanism allows precise height tuning to accommodate GPUs of different sizes.
Accessible and Efficient User Experience
The Vector V100 features a conveniently positioned side I/O panel, ensuring ports and controls are easy to reach for smooth, effortless operation.
The VECTOR V100 MINI delivers performance and personalization in a smaller mATX form, offering a clean and flexible platform for compact gaming setups.
Supports up to m-ATX motherboards
Supports back- connect motherboards
Supports up to 9 fans
270 Degree seamless visibility
ARGB lighting strip
Simple cable management
Supports 360mm radiator installation
Pre-installed GPU support bracket
270 Degree View, Immersive Lighting
The front and side panels use 4mm tempered glass, delivering a clean modern look and clear visibility of the components. RGB lighting is fully visible from all angles and can be adjusted instantly with a single button.
Pre-installed Fans for Immediate Build Performance
The VECTOR V100R MINI comes equipped with four pre-installed ARGB PWM fans: 3 intakes and 1 exhaust, delivering effective cooling performance right out of the box.
Ample Storage Options
The bottom section supports up to 2 x 2.5" SSDs, or 1 x 3.5" HDD + 1 x 2.5" SSD
If the PSU length exceeds 150 mm, it supports 1 x 2.5" SSD or 1 x 3.5" HDD
An additional 2.5" SSD can also be installed behind the motherboard tray
M-ATX Size, ATX-Level Cooling Support
The mATX layout supports both standard and back connect mATX motherboards. It fits up to three 120mm side fans, one 120mm rear fan, and up to three 120mm or two 140mm fans on top. The top panel also supports 360mm or 240mm AIO coolers for strong airflow and dependable cooling.
Note: GPU shroud designs and motherboard PCIe slot positions vary. Installing GPUs thicker than 3 PCIe slots may interfere with the PSU-side top fanExceptional Cooling PerformanceIn addition to accommodating large water cooling and air cooling setups, the Vector V100 MINI features an optimized mesh panel on the side, with a perforation rate of up to 40.3%, greatly enhancing cooling efficiency.Supports Back-Connect m-ATX MotherboardsCompatible with ITX and Back-Connect m-ATX motherboards, this innovative layout optimizes internal space, improves cooling efficiency, and delivers a cleaner cable management experience. Removing the HDD cage behind the motherboard tray allows compatibility with back-connect M-ATX motherboards.Customizable RGB Effects
The Vector V100 MINI includes built-in ARGB light strips with 26 LEDs. It supports a wide range of lighting modes and custom color configurations, and can be synchronized with motherboard software for a fully immersive gaming ambiance.
Efficient Cable Management
A well-designed cable management system simplifies installation and keeps the interior clean. With dedicated routing channels, multiple tie-down points, and ample space behind the motherboard tray, cables can be neatly organized with ease.
GPU Support Bracket Included
A dedicated horizontal GPU anti-sag bracket is included. Its screw-based adjustment mechanism allows precise height tuning to accommodate GPUs of different sizes.
Accessible and Efficient User Experience
The Vector V100 features a conveniently positioned side I/O panel, ensuring ports and controls are easy to reach for smooth, effortless operation.
