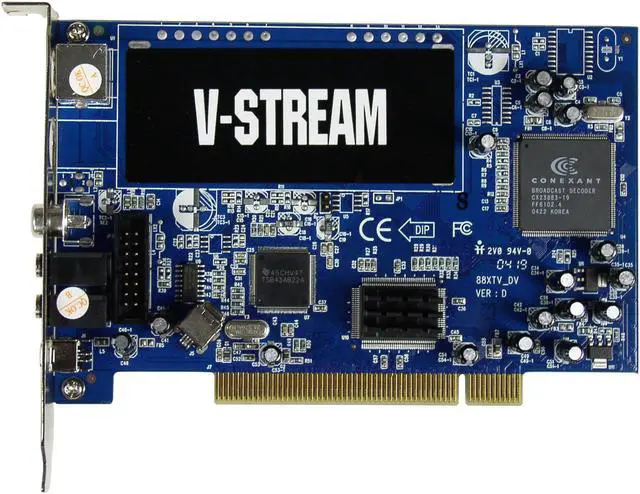

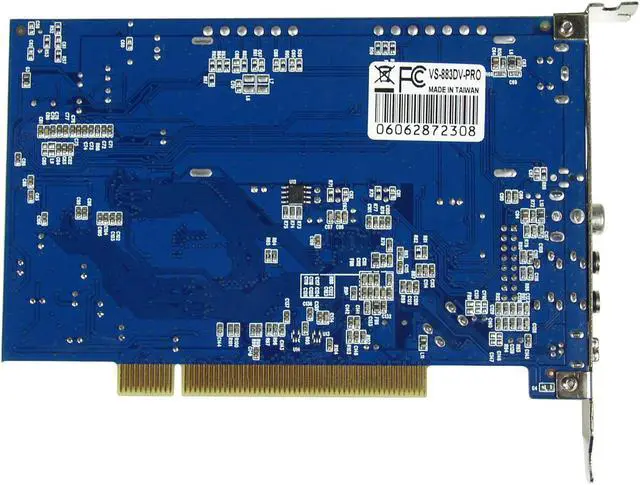

KWorld VS TV 883 DVR TV Tuner Video Capture Card

Name: KWorld VS TV 883 DVR TV Tuner Video Capture Card
Brand: Kworld Computer Co.,Ltd
SKU: N82E16815100116
Rating: 3 (16 reviews)

Specs

Reviews (16)

Learn more about the Kworld Computer Co.,Ltd VS TV 883 DVR

Model
Brand	KWorld
Model	VS TV 883 DVR

Details
Type	TV Tuner Cards
Others	Sound Card (SoundBlaster 16 Compatible Sound Card) CD-ROM Drive (For software installation)
Specifications	Video Input: TV Input - 75 Ohm (UHF/VHF) TV Antenna AV (Composite) S-Video IEEE 1394/i.Link Input/output(4pin) Audio Output: 3.5mm Audio Cable to Sound Card Line-In Audio Input: RCA to 3.5mm Audio In

Tuner
Interface	PCI
Video System	NTSC 30fps 720 x 480, PAL 25fps 720 x 576
FM Tuner	No
Video Format	MPEG-2(DVD)/MPEG-1(VCD)
Ports In	RF TV In+Composite In+S-Video In+1394 In
Ports Out	1394 Out+Audio Out

System
Processor	Pentium III 800 or above
Graphics Card	Graphic Card with Microsoft DirectX 8.1 support
Memory	128M RAM or above
Available Slot	PCI 2.2 Compliant Slot
Operating Systems Supported	Windows 98SE/ME/2000/XP

Features
Features	10 Bits High Quality Video Chip Supports IEEE 1394, AV(Composite) S-Video Ulead Video Studio 8 SE Included Integrated DV and Analog video interface High Quality 10-Bits NTSC/PAL/SECAM video decoder chip IEEE 1394-1995 Compliant and Compatible with Proposal 1394A Provide Bus Master function Interface (OHCI) Specification Supports Serial Bus Data Rates of 100, 200,and 400 Mbits/s Both Asynchronous and isochronous data transfers are supported DV Format NTSC: 720 x 480(CCIR601), YUV 4:1:1, 30fps, 5:1 DV CODEC, 3.6MB/sec PAL: 720 x 576(CCIR601), YUV 4:2:0, 25fps, 5:1 DV CODEC, 3.6MB/sec Capture video source from VHS, V8, Hi8, DV, D8.etc Composite/S-Video and Digital DV Input for Connecting Other video sources such as DV / DVD Player/ VCD/ VHS/ Camcorder

Package Contents

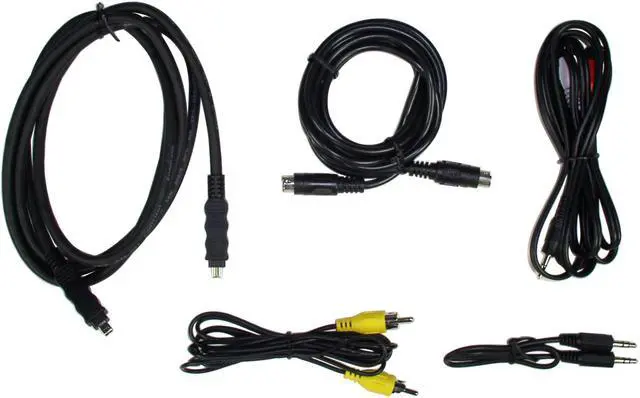

Package Contents	VS TV 883 DVR Driver Disk User Manual 2 x Audio Cable S-Video Cable Composite Cable Composite Cable IEEE 1394 Cable

Consumer Alert
Consumer Alert	This television receiver has only an analog broadcast tuner and will require a converter box after February 17, 2009, to receive over-the-air broadcasts with an antenna because of the Nation's transition to digital broadcasting. Analog-only TVs should continue to work as before with cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products. For more information, call the Federal Communications Commission at 1-888-225-5322 (TTY: 1-888-835-5322) or visit the Commission's digital television website at: www.dtv.gov

Additional Information
First Listed on Newegg	January 29, 2004

Return for refund within: 30 days

Return for replacement within: 30 days
