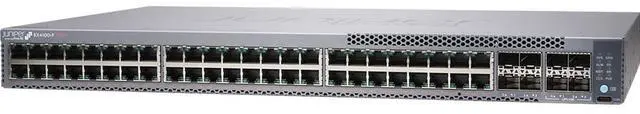

Main image of Juniper Networks EX4100 Switch, 48-port 10/100/1000BASE-T PoE+ switch, 4x1GbE/10GbE SFP/SFP + uplinks, 4x10GbE stacking/uplink ports | EX4100-F-48P

Alt view image 2 of 3 - Juniper Networks EX4100 Switch, 48-port 10/100/1000BASE-T PoE+ switch, 4x1GbE/10GbE SFP/SFP + uplinks, 4x10GbE stacking/uplink ports | EX4100-F-48P

Alt view image 3 of 3 - Juniper Networks EX4100 Switch, 48-port 10/100/1000BASE-T PoE+ switch, 4x1GbE/10GbE SFP/SFP + uplinks, 4x10GbE stacking/uplink ports | EX4100-F-48P

Shop All Juniper Networks, Inc. Products | Visit Minerdoctor Store

Juniper Networks EX4100 Switch, 48-port 10/100/1000BASE-T PoE+ switch, 4x1GbE/10GbE SFP/SFP + uplinks, 4x10GbE stacking/uplink ports | EX4100-F-48P

Offers 48 x 1GbE PoE+ access ports and delivers up to 30W per port with an overall total PoE Power budget of 740W.
Cloud-ready, driven by Mist AI with Juniper Wired Assurance and Marvis AI Assistant.
Ethernet VPN, Virtual Extensible LAN (EVPN-VXLAN) to the access layer.
Standards-based micro segmentation using group-based policies (GBPs).
Flow-based telemetry to monitor traffic flows for anomaly detection,
ability to measure packet delays and report drop reasons.

Overview

Specs

Reviews

Juniper 48 Port 1GBE PoE+ Ethernet Switch

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Minerdoctor Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Format	Desktop
Network Management Type	Managed

Security	Media Access Control (MAC) limiting (per port and per VLAN) Allowed MAC addresses: 64,000 Dynamic Address Resolution Protocol (ARP) dynamic ARP inspection (DAI) IP source guard Local proxy ARP Static ARP support Dynamic Host Configuration Protocol (DHCP) snooping Captive portal Persistent MAC address configurations Distributed denial of service (DDoS) protection (CPU control path flooding protection)
PoE	Yes
QoS	L2 QoS L3 QoS Ingress policing: 1 rate 2 color Hardware queues per port: 12 (8 unicast + 4 multicast) Scheduling methods (egress): Strict priority (SP), weighted deficit round-robin (WDRR) 802.1p, DiffServ code point (DSCP)/IP precedence trust and marking L2-L4 classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN, IP address, DSCP/IP precedence, TCP/UDP port numbers, and more Congestion avoidance capabilities: Tail drop, weighted random early detection (WRED)
Layer	3
Layer 2 Features	Layer 2 switching Maximum MAC addresses per system: 64,000 Jumbo frames: 9216 bytes Range of possible VLAN IDs: 1 to 4094 Virtual Spanning Tree (VST) instances: 253 Port-based VLAN Voice VLAN Physical port redundancy: Redundant trunk group (RTG) Compatible with Per-VLAN Spanning Tree Plus (PVST+) Routed VLAN interface (RVI) Uplink failure detection (UFD) ITU-T G.8032: Ethernet Ring Protection Switching IEEE 802.1AB: Link Layer Discovery Protocol (LLDP) LLDP-MED with VoIP integration Default VLAN and multiple VLAN range support MAC learning deactivate Persistent MAC learning (sticky MAC) MAC notification Private VLANs (PVLANs) Explicit congestion notification (ECN) Layer 2 protocol tunneling (L2PT) IEEE 802.1ak: Multiple VLAN Registration Protocol (MVRP) IEEE 802.1p: Class of Service (CoS) prioritization IEEE 802.1Q: VLAN tagging IEEE 802.1X: Port Access Control IEEE 802.1ak: Multiple Registration Protocol IEEE 802.3: 10BASE-T IEEE 802.3u: 100BASE-T IEEE 802.3ab: 1000BASE-T IEEE 802.3z: 1000BASE-X IEEE 802.3ae: 10-Gigabit Ethernet IEEE 802.3by: 25-Gigabit Ethernet IEEE 802.3af: Power over Ethernet IEEE 802.3at: Power over Ethernet Plus IEEE 802.3x: Pause Frames/Flow Control IEEE 802.3ah: Ethernet in the First Mile
Layer 3 Features	Layer 3 features: IPv4 Maximum number of ARP entries: 32,000 Maximum number of IPv4 unicast routes in hardware: 32,650 prefixes; 32,150 host routes Maximum number of IPv4 multicast routes in hardware: 16,100 multicast routes Routing protocols: RIPv1/v2, OSPF, BGP, IS-IS Static routing Routing policy Bidirectional Forwarding Detection (BFD) L3 redundancy: Virtual Router Redundancy Protocol (VRRP) VRF-Lite Layer 3 features: IPv6 Maximum number of neighbor discovery (ND) entries: 16,000 Maximum number of IPv6 unicast routes in hardware: 16,200 prefixes; 16,050 host routes Maximum number of IPv6 multicast routes in hardware: 8000 multicast routes Routing protocols: RIPng, OSPFv3, IPv6, IS-IS Static routing

PoE Ports	48 x PoE
PoE Power Budget	740W

Dimensions	with power supply installed: 17.36 x 1.72 x 12.26 in. (44.09 x 4.37 x 31.14 cm)
Weight	11.46 lb (5.2 kg)
