NEWEST MODEL 2021 Original Infomir Mag 520 MAG520 SET TOP BOX IPTV BOX With WIFI adapter Linux

NOTE: This listing is for the product only. We do not provide any TV Channels, Subscriptions or any other Audio/Video Content.

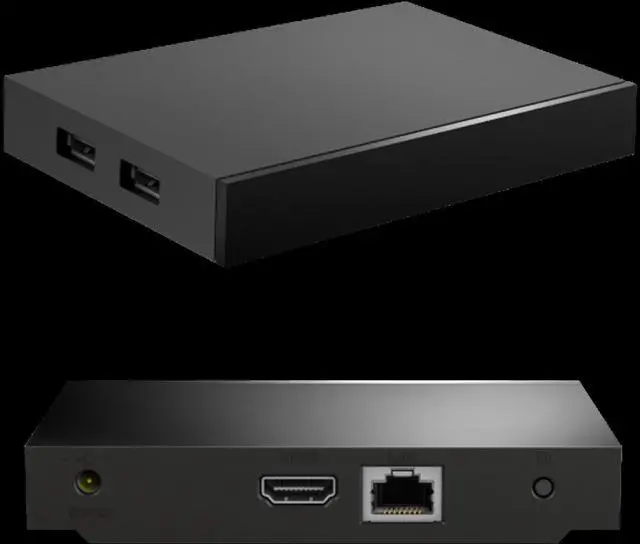

MAG520 is a high-performance Linux set-top boxes that feature an Amlogic S905X2 chipset, a 25% more powerful ARM Cortex-A53 CPU, and a better GPU. It enables smooth 4K 60fps content playback.


With MAG520, operators can guarantee uninterrupted service. Infomir's API ensures easy integration of the device into any project already using MAG set-top boxes.

Linux 4.9, Amlogic S905X2 chipset, IR remote control, 4K and HEVC support, 1 GB RAM, 4 GB eMMC, USB 3.0, USB 2.0, HDMI 2.1 output.

Dimensions






Width/depth/height, mm

120x78x21



Weight, g

110







Hardware





Chipset

Amlogic S905X2



Processor

Quad-core ARM Cortex-A53, 1, 900 MHz



Performance

18, 400 DMIPS



RAM

1 GB DDR3



Flash memory

4 GB eMMC







Software





Operating system

Linux 4.9



DRM option

Upon request



Middleware supported

Pre-integrated Ministra TV platform. Image enhancement with operator apps.







Interfaces







HDMI 2.1, Ethernet 100 Mbps, 1 × USB 3.0, 1 × USB 2.0







Sources of media content







PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices







Audio & video





Audio odecs

MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus



Au
