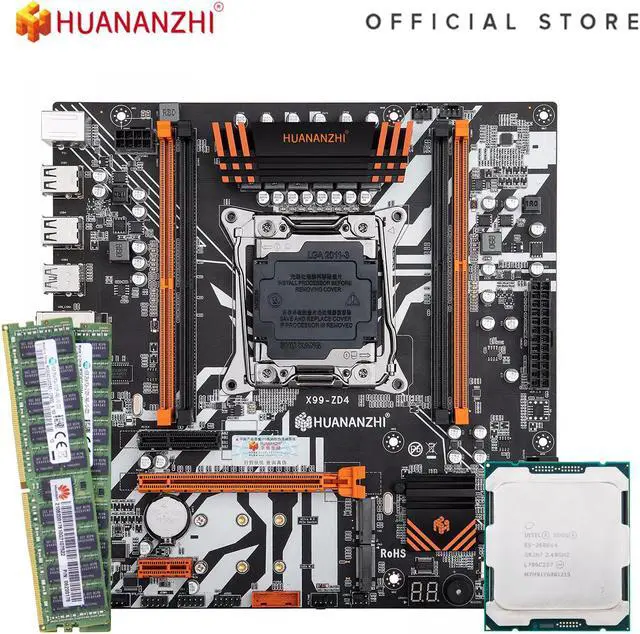

HUANANZHI X99 ZD4 X99 Motherboard with Intel XEON E5 2680 v4 with 2*16G DDR4 RECC memory combo kit set NVME SATA USB 3.0

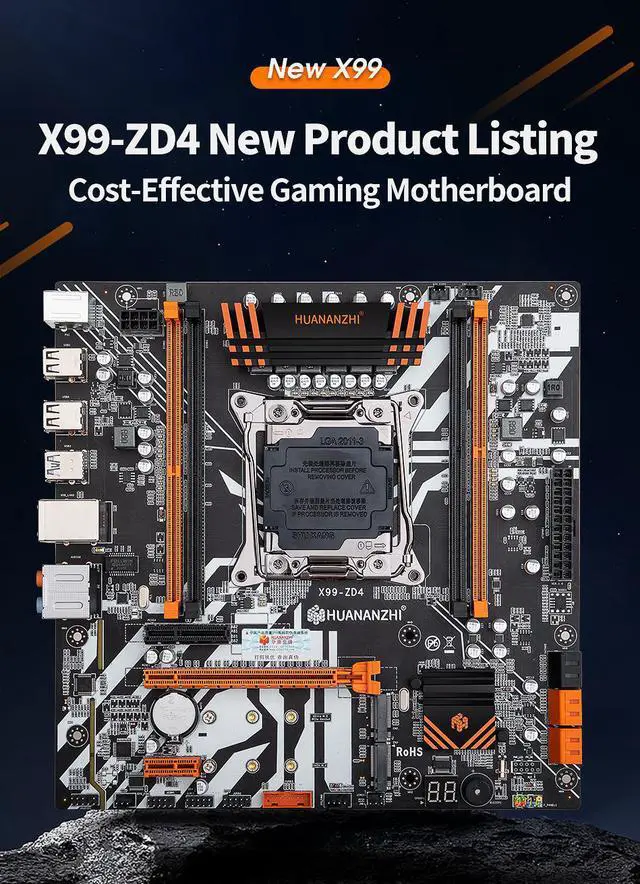

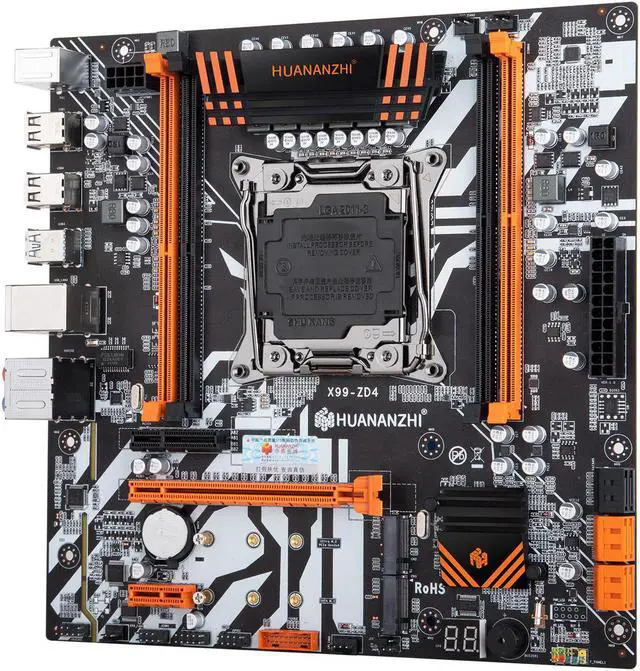

HUANANZHI X99-ZD4

Specifications:

Model:HUANANZHI X99-ZD4 V1.1 Motherboard

CPU Socket:Support Intel LGA2011-3 Xeon

Main chipset: B85

Memory Socket:4*DDR4 Memory Socket

Memory Standard:Support Four Channels DDR4 2400/2133/1866 MHz Maximum Memory Capacity 4"32G

SATA:4*SATA3.0 Interface; 2*SATA2.0 Interface

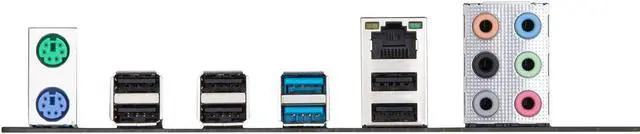

Extended interface:IO: 2*USB3.0, 6USB2.0, 1*Gigabit Ethernet Card, 33.5MMAudio interface;

Expansion pin: 1*9pin USB2.0; 1*19pin USB3.0; 1*Front audio output pin

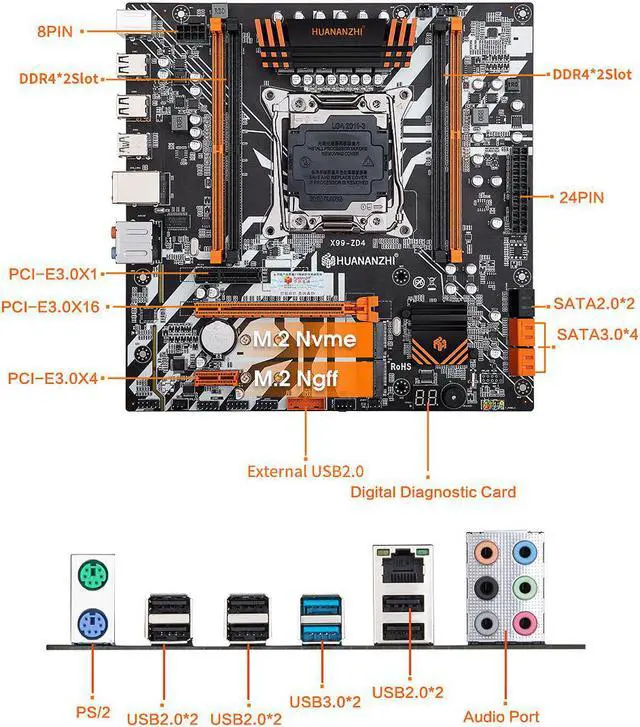

Expansion Slots:1*PCI Express3.0X16, 1*PCI Express2.0X1, 1*PCI Express3.0X4, 1 M.2 NVME (X43.0), 1 M.2 NGFF(SATA3.0)

Soud Track:ALC887 7.1 Sound Track

Network Interface:RTL8111G Gigabit Ethernet Card

Power interface:24pin+8pin

Fan interface:3

C layer:10 layer, 6Phases

Dimension :242*242MM M-AX

CPU:

Processor Series: Xeon E5 2680V4 (14 cores/28 threads)

Main frequency: 2.4GHz

Socket type: LGA 2011-3

3rd level cache: 35MB

Technology: 14nm

Power consumption: 120W

Note:

1: CPU is used, condition good, 1 year warranty

2: There may have some little physical scratches on the surface of the CPU, this is pretty normal.

3: All CPU are strictly tested before shipping

Memory:

Type: ECC RAM

Frequency: DDR4 2133MHZ

Capacity:32G (2*16G)

Note:

Memory is used,condition good,1 year guarantee

Note:

1:The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .

2:Please allow 1-3mm differs due to manual measurement.

3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

4:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

5:We show photos of motherboard, pictures are for reference only, subject to our available products.
