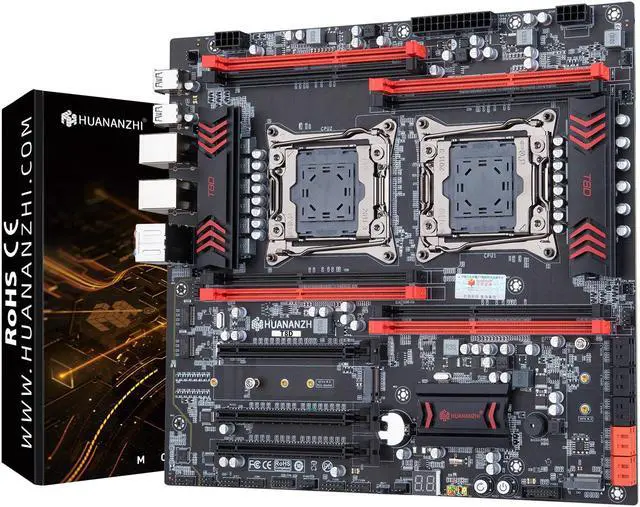

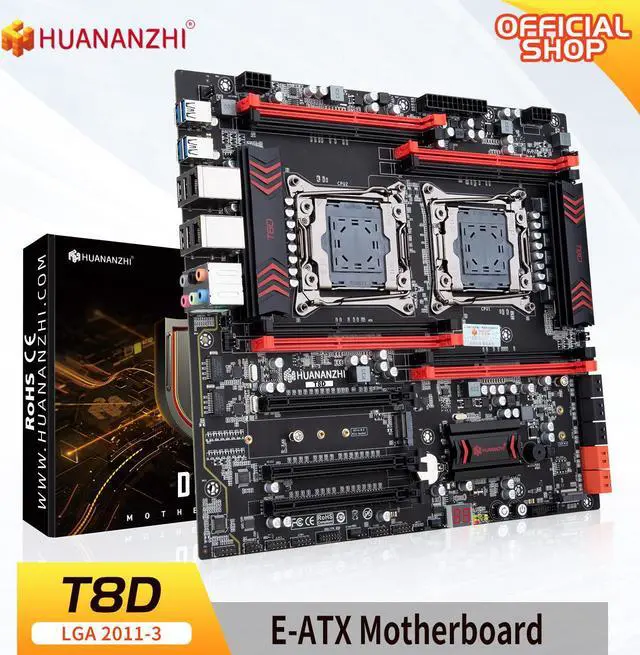

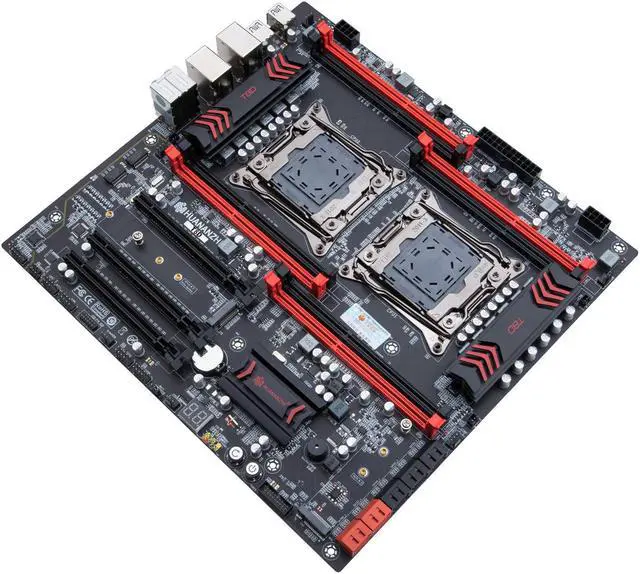

HUANANZHI X99 T8D LGA 2011-3 X99 Motherboard support Dual CPU E5 2696 2678 2676 2666 V3 DDR3 RECC M.2 NVME NGFF
- HUANANZHI X99 DUAL-T8D Motherboard
- · Support LGA2011-3 Processor(Xeon E5 2629 v3/ E5-2649 v3/E5-2669 v3/E5-2673 v3/ E5-2676 v3/E5-2678 v3/E5-2696 v3/E5-2666 v3/E5-2686v4/E5-2696v4)
- · Support four channel DDR3 1866/1600/1333MHz Memory,Max support 256GB
- · 6 x SATA2.0 3Gbps,4 xSSATA3.0 6Gbps
- · 3xPCI Express3.0 x16
- · 1xM.2 22110 NVME PCIEX4 3.0 32Gbps,1xM.2 2280 NVME PCIEX4 3.0@NGFF/SSATA3.0 6Gbps
- · 6+6-phase power supply
- · 4xUSB2.0,4xUSB3.0,2 x USB2.0 PIN,1 x USB3.0 PIN
- · 1xMotherboard buzzer,1xpost card,1xStart/restart button
+
+
Overview
Specs
Reviews

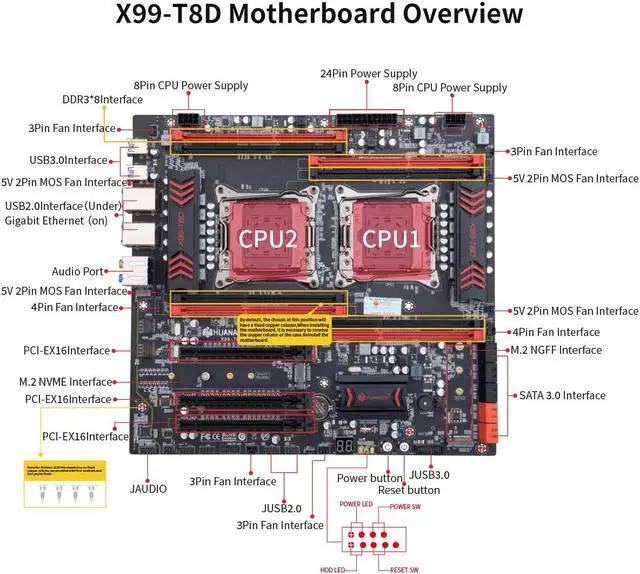

Model: HUANANZHI T8D Motherboard
CPU Socket: Support Intel 2011-3 Processors(SupportE5 2678V3/2676V3/2673V3/2629V3/2649V3/2669V3/2696V3)
Main chipset: C612... Etc chipset shipped randomly
Memory Socket: 8*DDR3 Memory, Maximum Memory Capacity 8*32G
Memory Standard: Support Four channel DDR3 1866/1600/1333 MHz
SATA Inderface: 6*SATA 3.0 interface, 4*SSATA 3.0 interface
Extended Inderface:

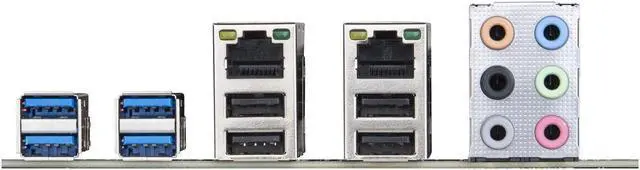

IO: 4*USB 2.0, 4*USB 3.0, 2*Gigabit Ethernet Card, 6* 3.5MM Audio interface;
Expansion pin: 2*9pin USB 2.0, 1*19pin USB 3.0, 1*Front audio output pin
Expansion Slots: 3*PCI Express 3.0X 16, 1*M. 2 22110 NVME PCIE x4 3.0 32Gb/s, 1*M. 2 2280 PCIE X4 3.0 @NGFF SSATA 3.0 6GB/S (one ssata signal will be used NGFF)
Soud Track: 7.1
Network interface: Gigabit Ethernet
Power interface: 24pin+8pin+8pin
Fan interface: 6
PCB layer: 12 layer PCB, 12Phases power supply
Dimension: 290*310MM E-ATX
CPU Type: LGA 2011-3, X99-T8D / T8 / AD3 / BD3 / 8MD3 / 8M-T, "T" stands for "THREE", which means the motherboard USES DDR3 memory and only supports E5 2629V3/2649V3/2669V3/2696V3/2673V3/2676V3/2678V3, other type does not support or untested
CPU Socket: Support Intel 2011-3 Processors(SupportE5 2678V3/2676V3/2673V3/2629V3/2649V3/2669V3/2696V3)
Main chipset: C612... Etc chipset shipped randomly
Memory Socket: 8*DDR3 Memory, Maximum Memory Capacity 8*32G
Memory Standard: Support Four channel DDR3 1866/1600/1333 MHz
SATA Inderface: 6*SATA 3.0 interface, 4*SSATA 3.0 interface
Extended Inderface:
IO: 4*USB 2.0, 4*USB 3.0, 2*Gigabit Ethernet Card, 6* 3.5MM Audio interface;
Expansion pin: 2*9pin USB 2.0, 1*19pin USB 3.0, 1*Front audio output pin
Expansion Slots: 3*PCI Express 3.0X 16, 1*M. 2 22110 NVME PCIE x4 3.0 32Gb/s, 1*M. 2 2280 PCIE X4 3.0 @NGFF SSATA 3.0 6GB/S (one ssata signal will be used NGFF)
Soud Track: 7.1
Network interface: Gigabit Ethernet
Power interface: 24pin+8pin+8pin
Fan interface: 6
PCB layer: 12 layer PCB, 12Phases power supply
Dimension: 290*310MM E-ATX
CPU Type: LGA 2011-3, X99-T8D / T8 / AD3 / BD3 / 8MD3 / 8M-T, "T" stands for "THREE", which means the motherboard USES DDR3 memory and only supports E5 2629V3/2649V3/2669V3/2696V3/2673V3/2676V3/2678V3, other type does not support or untested
