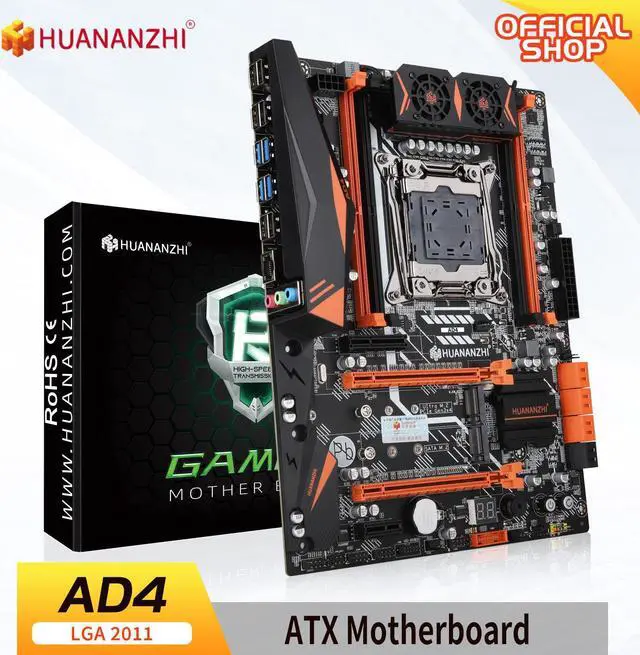

    HUANANZHI X99 AD4 LGA 2011-3 X99 Motherboard supports E5 2640 2666 2670 2678 2696 V3 V4 DDR4 RECC NON-ECC NVME SATA

    Be the first to review this product...
    • · Support Intel LGA2011-3
    • · 4 x DDR4memory slot,Max support 128GB
    • · Four channels DDR4 2400/2133/1866MHz
    • · 2xPCI Express3.0X16,1xPCIExpress3.0x4,1xPCI Express3.0x1
    • · 1xM.2 22110 NVME PCIEX43.0 32Gbps,1xM.2 2280NGFF SATA3.06Gbps
    • · 6xUSB2.0,4xUSB3.0,1 x USB2.0 PIN,1 x USB3.0 PIN
    • · 1xMotherboard buzzer,1xpost card
    +
    +
    Overview
    Specs
    Reviews

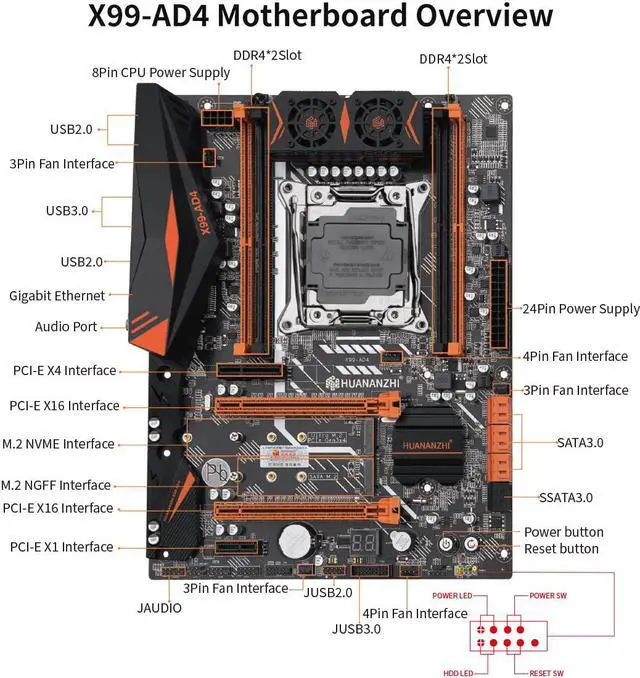

    Model HUANANZHI X99-AD4 Motherboard
    Main chipset intel C612
    CPU Socket Support Intel LGA2011-3
    CPU Socket 4 x DDR4memory slot
    Memory standard Support Four channels DDR4 2400/2133/1866MHz, Max support 128GB
    Storage interface 6 x SATA3.06Gbps, 2xSATA2.03Gbps
    Expansion Slots 2xPCI Express3.0X16, 1xPCIExpress3.0x4, 1xPCI Express3.0x1
    Expansion interface 1xM.2 22110 NVME PCIEX43.0 32Gbps, 1xM.2 2280NGFF SATA3.06Gbps
    Soud Track 5.1
    Network Card Gigabit Ethernet
    Power interface 24pin+8pin
    FAN PIN 1xCPU_FAN PIN, 3xSYS_FAN PIN
    power supply 6-phase power supply
    PCB layers 6-phase power supply
    Dimension 283*215MM M-ATX

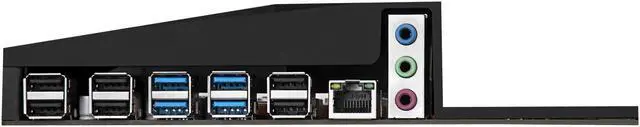

    Rear panel interface PS/2 Mouse and Keyboard port, 6xUSB2.0, 4xUSB3.0, 1x Network card interface, 1x3-hole audio interface
    Rear panel interface 1 x USB2.0 PIN, 1 x USB3.0 PIN, 1 x Front audio pin, 1xCOM pin, 1xMotherboard buzzer, 1xpost card, 1xStart/restart button
    Rear panel interface Windows7 Windows10 Windows11
    BIOS AMI UEFI BIOS
    X99
    X99
    X99

    Before Packaging

    Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment

    X99

    Specifications

    :

    Model: HUANANZHI AD4 Motherboard
    CPU Socket: Support Intel 2011-3 Processors
    Main chipset: C612... Etc chipset shipped randomly
    Memory Socket: 4 DDR4 Memory Socket
    Memory Standard: Support Four Channels DDR4 1866/2133/2400 MHz
    SATA: 8*SATA 3.0 Interface
    Extended interface:
    IO: 4* USB 3.0, 6*USB 2.0, 1*Gigabit Ethernet Card, 6* 3.5MMA udio interface;
    Expansion pin: 2*9pin USB 2.0; 1 19pin USB 3.0; 1*Front audio output pin
    Expansion Slots: 2*PCI Express 3.0X 16, 1*PCI ExpressX1, 1*PCI ExpressX4, 1*M. 2 NVME, 1*M. 2 NGFF
    Soud Track: Sound Track
    Network lnterface: Gigabit Ethernet Card
    Power interface: 24pin+8pin
    Fan interface: 5
    PCB ayer: 10 layer, 6Phases
    Dimension: 283*215MM ATX

    Note:

    1. The platform needs powerful power. Please make sure your power supply is sufficient to support it (at least 500w power supply).
    2. Please allow 1-3mm differs due to manual measurement.
    3. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
    4. The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
    5. We show photos of motherboard, pictures are for reference only, subject to our available products.
    6. For Customs duties problem, pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding!
    7. Due to computer accessories is toomuch, are likely to have some small brand, bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard. You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation. Mind please don't buy!
