HUANANZHI X99 8M F X99 Motherboard Intel XEON E5 X99 LGA2011-3 All Series DDR4 RECC NON-ECC memory NVME USB3.0 SATA
- Model:HUANANZHI X99-8M-F Motherboard
- CPU Socket:Support Intele 2011-3 Processors
- Main chipset: H81/B85 shipped randomly
- Memory Socket:2*DDR4 Memory Socke
- Memory Standard :Support Dual channels DDR4 2400/2133/1866 MHz
- SATA:4*SATA3.0 Interface

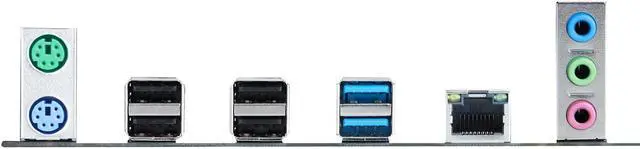

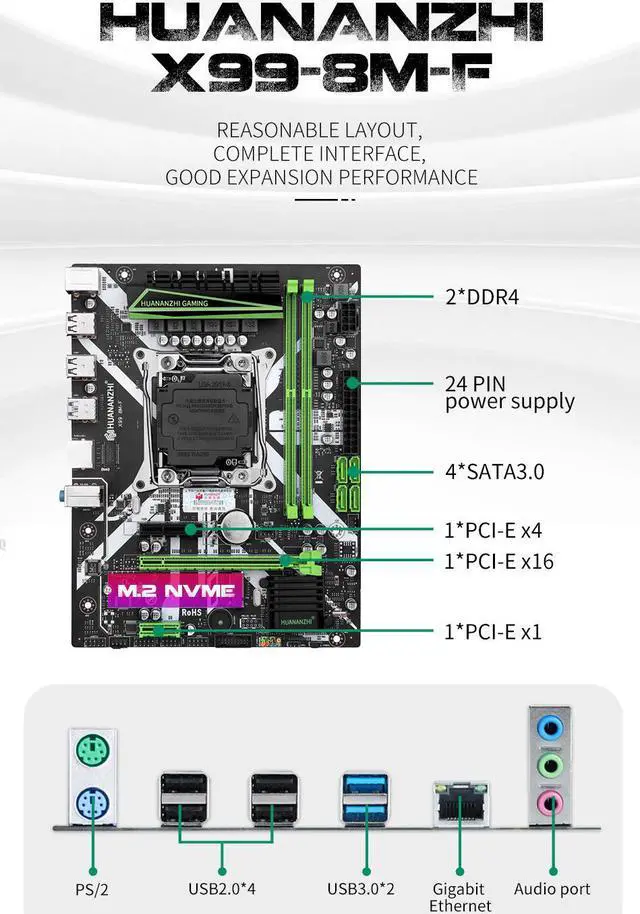

- Expansion Slots:IO: 1*PS/2 Mouse / keyboard interface, 2*USB3.0, 4 USB2.0, 1*Gigabit Ethernet Card, 3*3.5MMAudio interface;Expansion pin: 2*9pin USB2.0; 1*19pin USB3.0; 1 Front audio output pin
- Extended interface: 1*PCI Express3.0X16, 1*PCI ExpressX4, 1*PCI ExpressX1, 1*M.2 NVME Interface
- Soud Track:5.1 Sound Track.
- Network lnterface:Gigabit Ethernet Card
- Power interface:24pin+8pin
- Fan interface:3
- PCB ayer :8 layer PCB, 6 Phases power supply
- Dimension:237*180MM M-ATX
+
+
Overview
Specs
Reviews
HUANANZHI X99-8M-F Motherboard

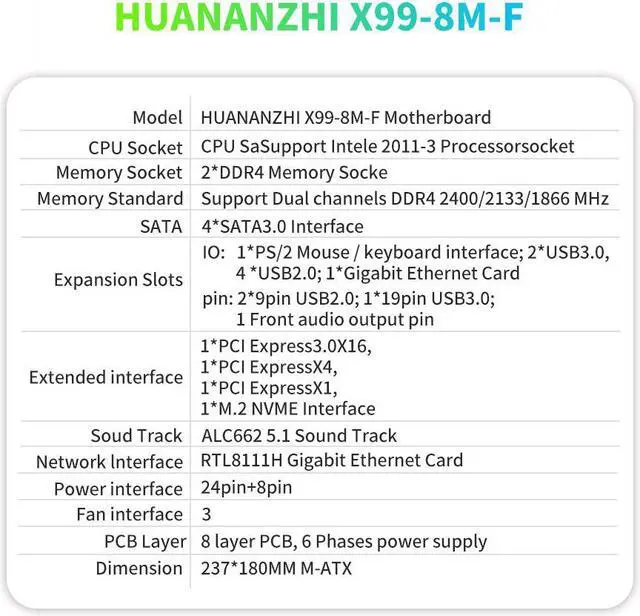

Specifications:
Model:HUANANZHI X99-8M-F Motherboard
CPU Socket:Support Intele 2011-3 Processors
Main chipset: H81/B85 shipped randomly
Memory Socket:2*DDR4 Memory Socke
Memory Standard :Support Dual channels DDR4 2400/2133/1866 MHz
SATA:4*SATA3.0 Interface
Expansion Slots:IO: 1*PS/2 Mouse / keyboard interface, 2*USB3.0, 4 USB2.0, 1*Gigabit Ethernet Card, 3*3.5MMAudio interface;Expansion pin: 2*9pin USB2.0; 1*19pin USB3.0; 1 Front audio output pin
Extended interface: 1*PCI Express3.0X16, 1*PCI ExpressX4, 1*PCI ExpressX1, 1*M.2 NVME Interface
Soud Track:5.1 Sound Track.
Network lnterface:Gigabit Ethernet Card
Power interface:24pin+8pin
Fan interface:3
PCB ayer :8 layer PCB, 6 Phases power supply
Dimension:237*180MM M-ATX
Note:
1:The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
5:We show photos of motherboard, pictures are for reference only, subject to our available products.
