HUANANZHI X79 Dual 8D X79 Motherboard Intel Dual CPU LGA 2011 Xeon E5 DDR3 1333/1600/1866MHz 256GB M.2 NVME SATA3 USB3.0 E-ATX

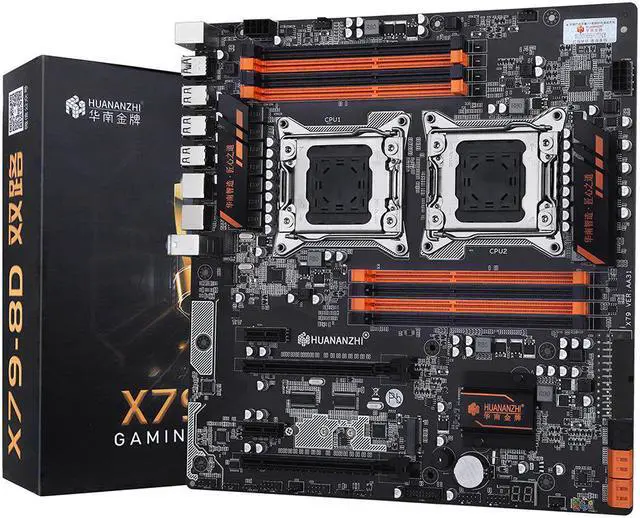

HUANANZHI X79 Dual-8D Motherboard

Specifications:

Model:HUANANZHI

Item Type: X79 Dual-8D Motherboard

Mainboard Type: E-ATX

Main Chip: X79 series

CPU Type: LGA2011*2 (XEON E5 2620/2630/2640/2650/2660/2665/2670/2680/2690 C2&V2)

Memory Slot: 8*DDR3(4 channel)

Memory Capacity Peak: 32Gx8 DDR3

Memory type supported: non-ecc/reg ecc/ecc

Memory Speed: 1866/1600/1333

SATA Interface: SATA3.0x2 SATA2.0x4

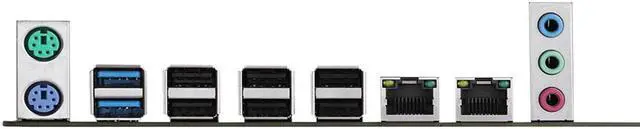

USB Interface: USB3.0x4 USB2.0x6(including expansion)

M.2 Interface: M.2 NVME

Graphics Card Slot: 2*PCI-E 3.0 16X 2*PCI-E 1X

Integrated Video Card:NO

Audio port:ALC662 5.1 channel

Ethernet: Gigabit

Power Supply: 7 7 power supply

PCB Layers:10

Size: 305x290mm

Quantity: 1 Pc

Note:

1.X79-4D/8D/16D tested by our engineers: When you use 2*2695V2/2696V2/2697V2 and other E5 269X2 CPUs, they are not compatible with NON-ECC and can only use server memory. It is recommended that you use Samsung server memory

2:Please confirm that you have the E-ATX computer case and power supplies(at least 500w power supply) which have two 8-pin CPU power interface before purchase.

3:Please allow 1-3mm differs due to manual measurement.

4:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

5:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
