HUANANZHI H610M PLUS Motherboard M-ATX with Intel Core i3 12100F LGA 1700 Supports DDR4 2400 2666 2933 3200MHz 64G M.2 NVME SAT

Specifications:

Model:HUANANZHI H610M-PLUS Motherboard
CPU Socket:Supports Intel LGA1700 platform
Memory socket:2*DDR4 Memory socket
Memory standard:It supports dual channel DDR4 3200/2666/2400/2133MHz memory (depending on the CPU), and supports up to 64GB
Storage
interface:3*SATA3.0 6Gbps Hard disk interface
Extension interface:1*M.2 2280 NVME PCIE X4 3.0;1*M.2 2280 NGFF SATA3.0;1M.2 WIFI(CNVI is supported)
Expansion Slots:1*PCI Express x16 5.0 ,2*PCI Express x1 3.0
sound card:Realtek High Definition
Audio
network card:Gigabit Ethernet
Power interface:24pin+8pin
Fan connector:1*CPU_FAN pin;2*SYS_FAN pin
PCB layer:6layer PCB,10Phases power supply
Specifications:240*180MM M-ATX

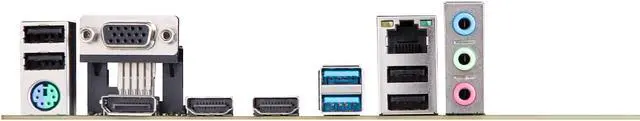

Rear panel connector:1*PS/2Keyboard mouse interface;2*USB3.2Gen1;4*USB2.0;1*RJ
network interface;1*3-hole audio interface;1*VGA +2*HDMI2.0+1*DP1.4(Support the processor core display to select three screens for simultaneous output)
Front panel connector:1*USB2.0 PIN;1*USB3.2 PIN;1*Front audio pin;1*COM PIN;1*Debug PIN;1*TPM2.0
pin;1*Main board buzzer;1*Power on/restart pin;1*Error detection indicator
support system:Windows10 Windows11
BIOS:AMI UEFI BIOS

Note: 1.The motherboard does not have integrated graphics, the cpu needs to support Core Graphics card, and
the video output interface can be used.

2.Without cooler Holder Base

CPU:

Processor Series: Core i3 12100F (4 cores/8 threads)
Main frequency: 3.3GHz
Socket type: LGA 1700
3rd level cache: 12MB
Technology: 10nm
Power consumption: 89W
Note:
1: All CPU are strictly tested before shipping,condition good,
1 year warranty

Note:

1.Please allow 1-3mm differs due to manual measurement.
2.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
3.The battery in motherboard photos will be removed
before shipping, as battery is forbidden at CN post and custom.
4.Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation
with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard
we default you have read and know the situation.Mind please don't buy!
