Aruba Instant On 1930 48-Port Gb Ethernet 48xGE PoE (370W), 4X 1G/10G SFP+, L2+ Smart Switch US Cord (JL686A#ABA)

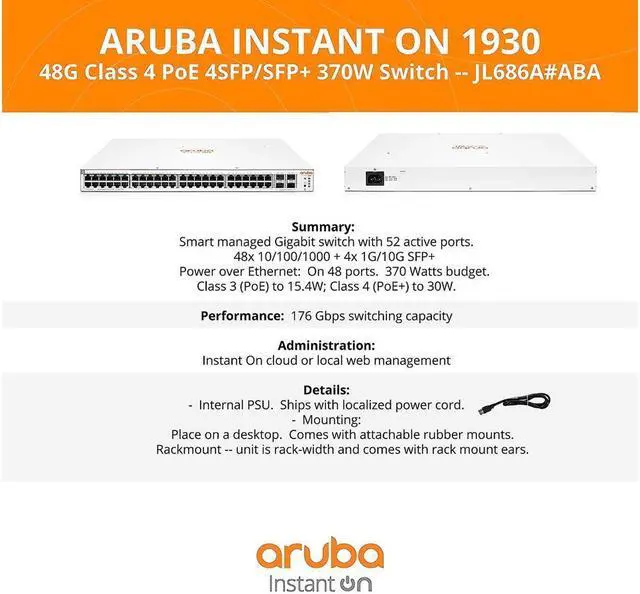

The Aruba Instant On 1930 48G Class 4 PoE 4SFP/SFP+ 370W Switch is a high performance, smart managed switch designed for small and medium businesses - fast set-up, easy management, security you can trust.
Two-Factor Authentication enabled

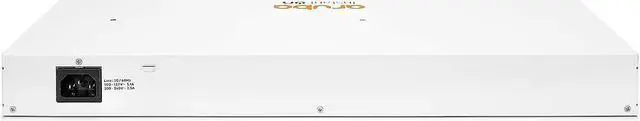

Configuration: Rack-width design with rack mounting ears. Or place desktop or flat surface. Ports and LEDs facing the front - #ABA w/ internal power supply and US-syle plug.
Management: Simplified cloud management from app or web browser with no recurring cost - The Aruba Instant On mobile app allows you to set up, manage, and monitor Instant On switches and Access Points directly from your phone, from anywhere. Guided step-by-step instructions to install devices to get your network up and running quickly – no technical expertise required. Alternative integrated traditional full local web interface for advanced configuration with static routing, ACLs, SNMP.

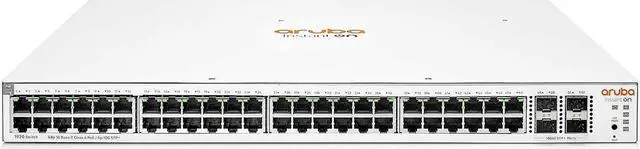

Ports: 52 active ports | 48x Gigabit 10/100/1000 + 4x Gigabit / 10G SFP+ slots

Overview

Specs

Reviews

Format & Standards
Format	Desktop
Network Management Type	Smart

Ports & Interface
Primary Ports	48 x RJ45 + 4 x SFP
Primary Port Speed	10/100/1000Mbps + 10 Gbps
Primary Port Type	48 x RJ-45 autosensing 10/100/1000 Class 4 PoE ports 4 x SFP+ 1/10GbE ports

Data Transmission
MAC Address Table	16K

Dimensions & Weight
Dimensions	1.73" x 17.42" x 12.70"
Weight	9.97 lbs.

Environmental
Temperature	Operating temperature: 32°F to 104°F (0°C to 40°C) Non-operating temperature: -40°F to 158°F (-40°C to 70°C)
Humidity	Operating relative humidity: 15% to 95% @ 104°F (40°C) Non-operating relative humidity: 15% to 95% @ 140°F (60°C)
