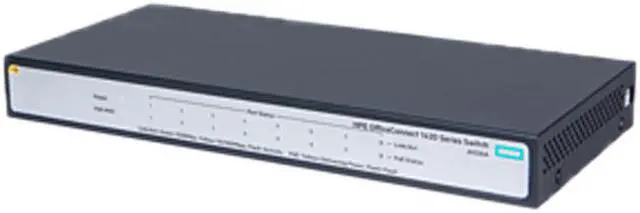

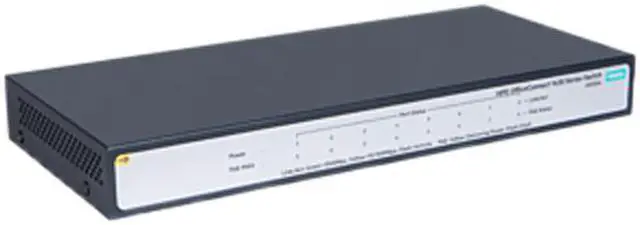

HPE OfficeConnect 1420 8-Port PoE Gigabit Ethernet Unmanaged Switch-8xGE. 8 Ports PoE (64W) (JH330A#ABA)

HPE OfficeConnect 1420 series switches are ultra cost-effective unmanaged Gigabit switches, offering small businesses 10 times the performance of Fast Ethernet.
Functionality: Wirespeed Gigabit Layer 2 switching performance | administration-friendly features such as auto-negotiation | designed for high reliability, long life, and low power consumption.

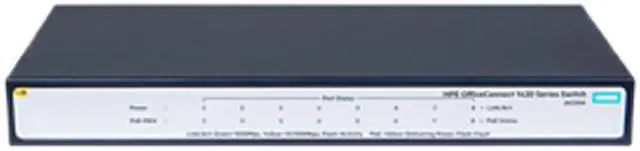

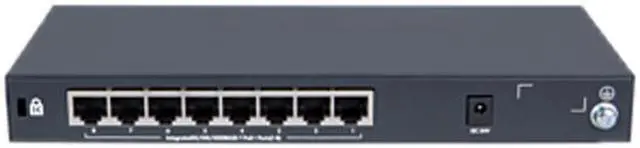

Hardware: all metal enclosure | LEDs and indicators to the front and ports to the rear | all models run fanless silently | #ABA w/ US cord | Limited Lifetime warranty.
Management: Unmanaged with plug and play simplicity - zero configuration and no required ongoing administration. Install and forget.
Ports: 8x Gigabit 10/100/1000 | PoE / PoE+ (Class 4) on 8 ports | PoE power budget 64 Watts

Overview

Specs

Reviews

The HPE OfficeConnect 1420 Switch Series delivers cost effective gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity. The series includes nine models, all with gigabit performance and a choice of key features including PoE+ for powering IP devices, Fiber and 10G uplinks for connectivity to servers and storage.

All models support silent fanless operation, automated features for hands off operation and low power consumption. They come with limited lifetime warranty and 24X7 phone support for 90 days

Format & Standards
Format	Desktop
Network Management Type	Unmanaged

Ports & Interface
Primary Ports	8 x RJ45
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	4K

Details
Buffer Memory	1.5MB
PoE	Yes
Power	Input voltage: 100-240V AC, rated Power consumption: 80W (maximum)

Features
Features	Latency: 100 Mb Latency: < 3 μs 1000 Mb Latency: < 2.6 μs Throughput: up to 11.8 Mpps Routing / switching capacity: 16 Gbps PoE capability: 64W PoE+

Dimensions & Weight
Dimensions	1.06" x 9.24" x 4.13"
Weight	1.54 lbs.
