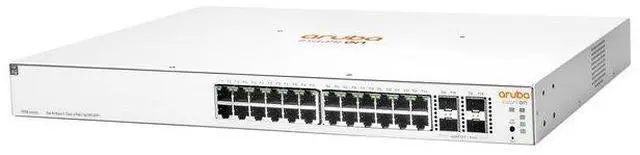

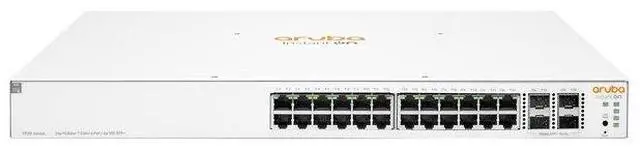

Open_Box - HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch (JL683B#ABA)

Simplify Network Deployment and Management for Small Organizations

The HPE Networking Instant On Switch 1930 series features easy-to-use, out-of-the-box, plug-and-play deployment.

The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8 G-, 24 G-, and 48 G-ports with and without class 4 PoE (i.e. PoE+).

The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.

The HPE Networking Instant On Switch 1930 series can be deployed using two management modes Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

Keep Your Business Protected with Integrated Security Features

The HPE Networking Instant On Switch 1930 series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.

Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.

Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.

Deliver High Perfomance

The HPE Networking Instant On Switch 1930 series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.

8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.

The 24- and 48-port models include 1 G/10 G SFP+ ports for reliable fiber connectivity and other connections across longer distances.

Network & Communication

Advanced Switching: Layer 3

Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Features: Access Control List (ACL) support, ARP support, Auto-uplink (auto MDI/MDI-X), BPDU Filter, Class of Service (CoS), DHCP support, Energy Efficient Ethernet, Flow control, Full duplex mode, Half duplex mode, IGMP snooping, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, Multiple Spanning Tree Protocol (MSTP) support, PoE Class 4, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Trusted Platform Module (TPM), VLAN support

Form Factor (Hubs & Switches): Rack-mountable

Jumbo Frame Support: 9216 bytes

MAC Address Table Size: 16000 entries

Manageable: Yes

PoE Budget: 195 watt

Ports: 28

Power Over Ethernet (PoE): PoE

Product Type: Switch

Remote Management: HTTP, HTTPS, RADIUS, RMON, SNMP 1, SNMP 2c, SNMP 3, TFTP

Routing Protocol: Static IP routing

Status Indicators: PoE, Port status, Power

Subcategory: Network hubs and switches

Switching Type: Gigabit Ethernet

Connectivity

Interface Provided: 24 x 10/100/1000 Base-T RJ-45 PoE - 195 W, 4 x 1/10Gbit LAN SFP+

Port Quantity: 24

Port Type: 10/100/1000 (PoE)

Ports Type (2nd): 1 Gigabit / 10 Gigabit SFP+

Power

Frequency: 50/60 hertz

Power Consumption Operational: 234 watt

Required Voltage: AC 100-127/200-240 volt

Technical Information

Encryption: SSL

Humidity Range Storage: 15 - 95% (60 °C)

Max Operating Temperature: 40 degree Celsius

Max Storage Temperature: 70 degree Celsius

Min Operating Temperature: 0 degree Celsius

Min Storage Temperature: -40 degree Celsius

MTBF: 76 Year

Operating Humidity: 15 - 95% (40 °C)

Product Information

Authentication Method: RADIUS

Capacity: Access Control Entries (ACEs) per ACL: 480, IPv4 routes (static): 32, Link aggregation ports: 8, Packet buffer size: 1.5 MB, VLANs supported: 256

Country: United States

Device Type: Internal power supply

Localization: English

Packaged Quantity: 1

Performance: Latency (1 Gbps): 2.4 µs, Latency (10 Gbps): 1.3 µs, Switching capacity: 128 Gbps, Throughput: 95.23 Mpps

Ports (2nd) Quantity: 4

Dimensions & Weight

Height: 4.39 centimetre

Height (Rack Units): 1

Weight: 3.49 kilogram

Width: 44.25 centimetre

Depth: 26.47 centimetre

Physical Characteristics

Color Category: White

Certifications & Listings

Compliant Standards: CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, CSA C22.2 No. 60950-1, EN 55024:2010, EN 55032:2015+AC:2016, EN 55035:2017, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 62368-1:2014, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62368-1: 2014 Second Edition, SSL, UL 60950-1, UL 62368-1 Second Edition, VCCI

ENERGY STAR Certified: No
