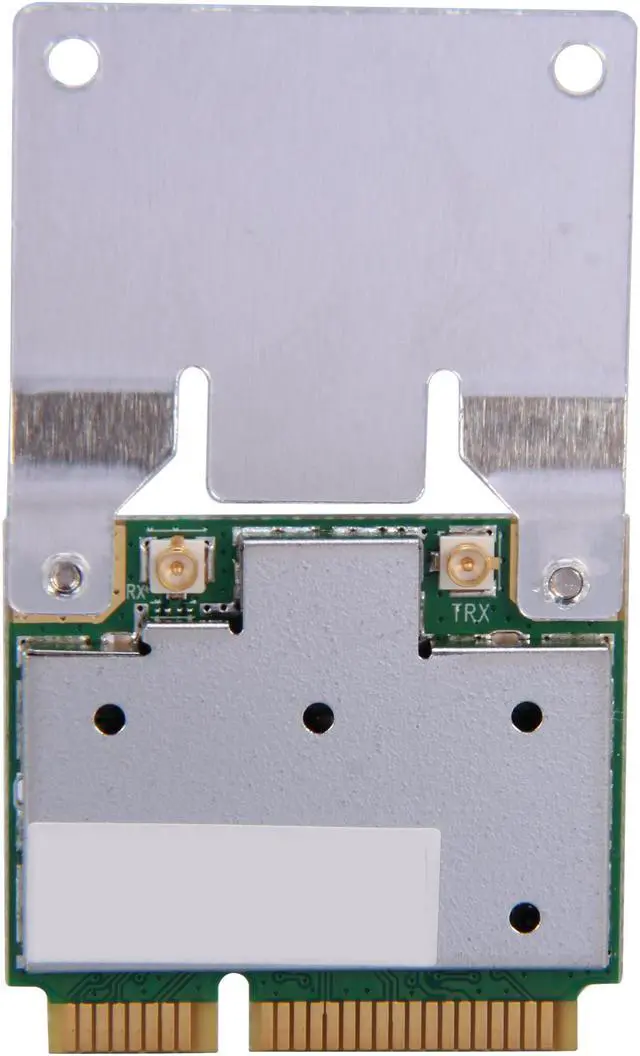

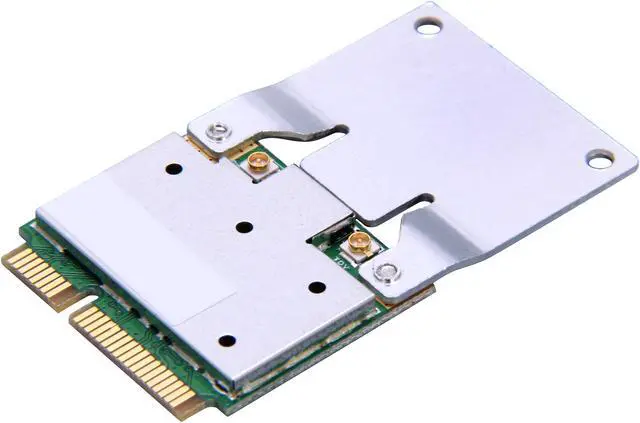

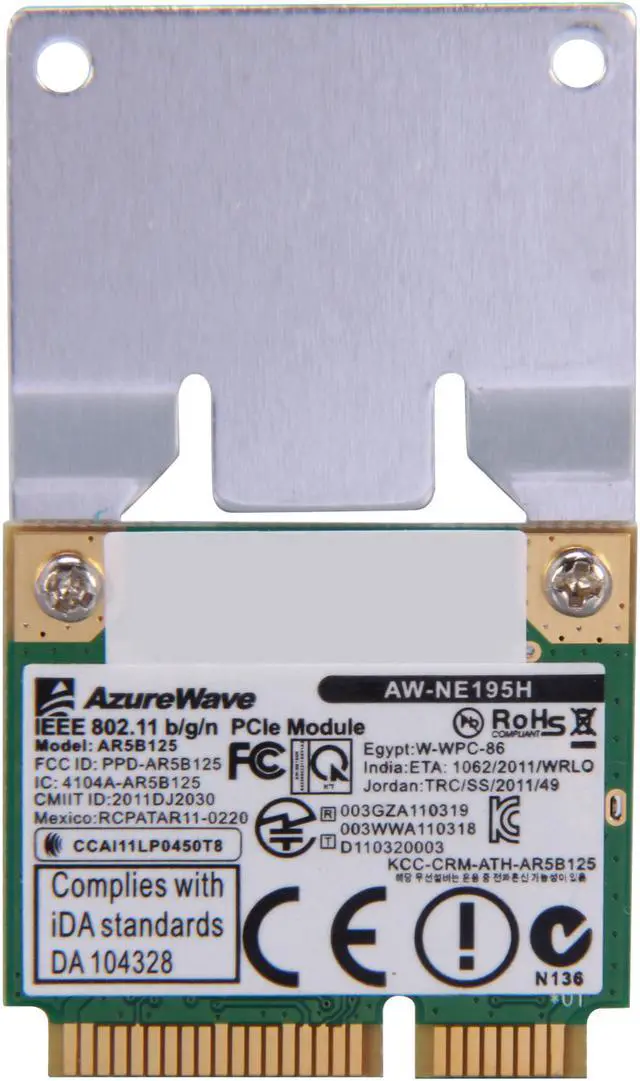

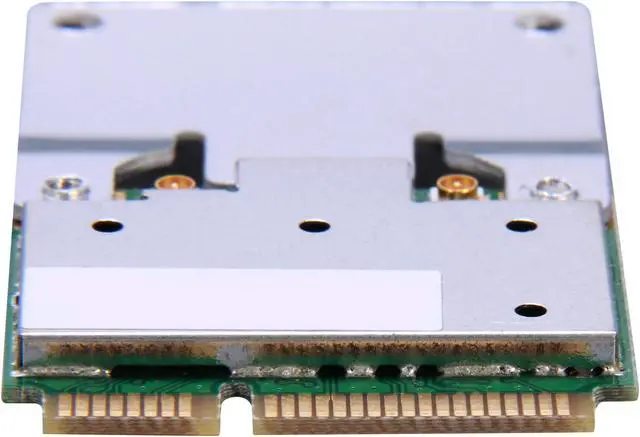

Habey HB-NE195H 150Mbps Wi-Fi Module with Antenna - OEM

Name: Habey HB-NE195H 150Mbps Wi-Fi Module with Antenna - OEM
Brand: Habey
SKU: N82E16816321036
Rating: 1 (1 reviews)

Specs

Reviews (1)

Learn more about the Habey HB-NE195H

Model
Brand	Habey
Model	HB-NE195H

Details
Type	Wi-Fi Module
Specifications	Interface: Mini-PCIe Chipset: Atheros AR1111(MAC/Baseband/RF) single chip Frequency Range: Wi-Fi: 2.4 GHz ISM Bands 2.412-2.472 GHz, 2.484 GHz Operation Range: Open Space: ~300m; Indoor: ~100m Output Power: 802.11b: 17 dBm +/- 2.5dBm (11Mbps) 802.11g: 13 dBm +/- 2.5dBm (54Mbps) 802.11n HT20 : 11 dBm +/-2.5dBm (HT20 MCS7) 802.11n HT40 : 11 dBm +/- 2.5dBm (HT40 MCS7) Receive Sensitivity: 802.11b: less than -76 dBm (11Mbps) 802.11g: less than -65 dBm (54Mbps) 802.11n: less than -64 dBm at HT20 MCS7 less than -651dBm at HT40 MCS7less than -65 dBm at HT20 MCS7 Dimensions: 1.2" x 1" x 0.2" Weight: 0.25 lbs.

Features

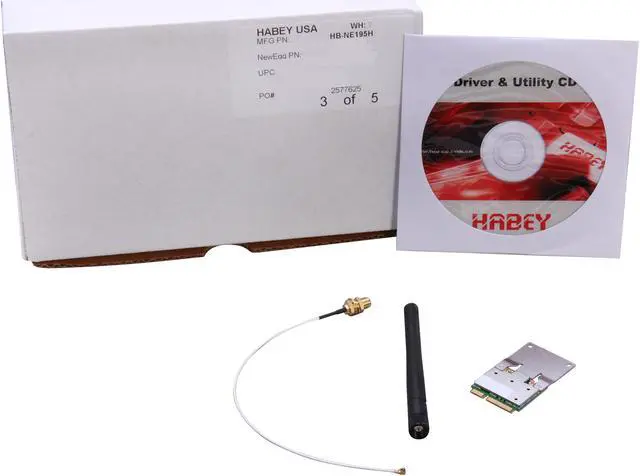

Features	PCIE half size Mini-Card Compliant with IEEE802.11 b/g/n standard Antenna: Wi-Fi TX/RX (included) High speed wireless connection up to 150 Mbps Low power consumption and high performance Enhanced wireless security Fully speed operation with Piconet and Scatternet support.

Additional Information
First Listed on Newegg	November 29, 2012
