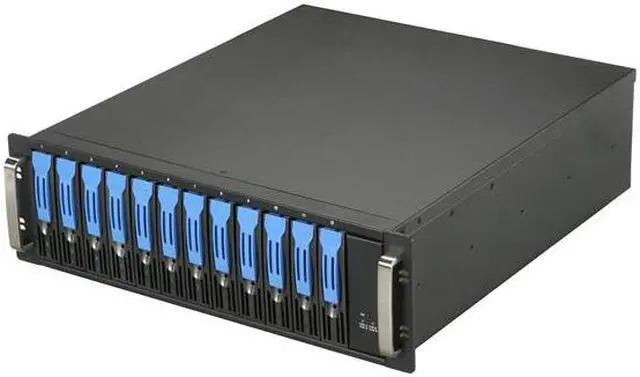

Habey DS-1220E RAID 0, 1, 5, and JBOD 12 3.5" Drive Bays eSATA 12-bay 3U Rackmount Storage System w/ PCIe Hardware RAID Controller

Be the first to review this product...
  • SATA 3Gb/s
  • 12 3.5" Drive Bays
  • RAID 0, 1, 5, and JBOD
Specs
Reviews

Learn more about the Habey DS-1220E

Model
Brand Habey
Model DS-1220E
Details
Drive SATA 3Gb/s
External I/O eSATA
RAID Levels RAID 0, 1, 5, and JBOD
Expansion
3.5" Drive Bays 12
Mechanical Spec
Power Supply ATX power, 360W, 110V or 240V AC, 50/60Hz
Environmental
Temperature 0°C (32°F)~50°C (122°F)
Humidity 5%~95%(non condensing)
Features
Features Standard : 3U 19" Rackmount EIA RS-310D

Materials : Heavy duty 1.2mm cold-rolled steel, texture power coated

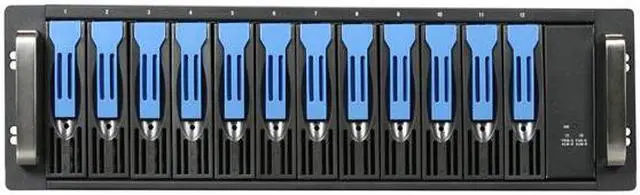

Drive Bay : 12 x 3.5" hot-swap SATA II external drive bays

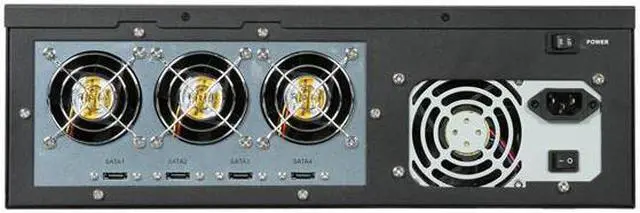

Cooling : Rear 3 x 90mm

Front Control : Alarm reset, fan alarm LED, temperature alarm LED

Indicators : HDD LEDs for power, activity

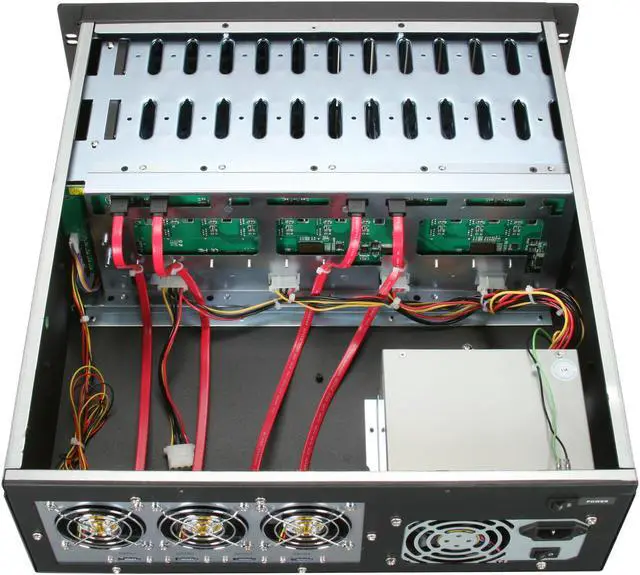

Backplane : Twelve SATA II channels with 2 x SiI3726 port multipliers (5-5-1-1), 4-channel SATA II input

Rear Control : Power on/off switch

Capacity : 24TB + (using 2TB drives)

RAID Controllers : HighPoint RocketRAID 2314 Host Adapter (PCIe)

Online Capacity Expansion (OCE) and Online RAID Level Migration (ORLM)

S.M.A.R.T array monitoring for hard drive status and reliability
Dimensions & Weight
Dimensions 19.0" x 18.5" x 6.89"
