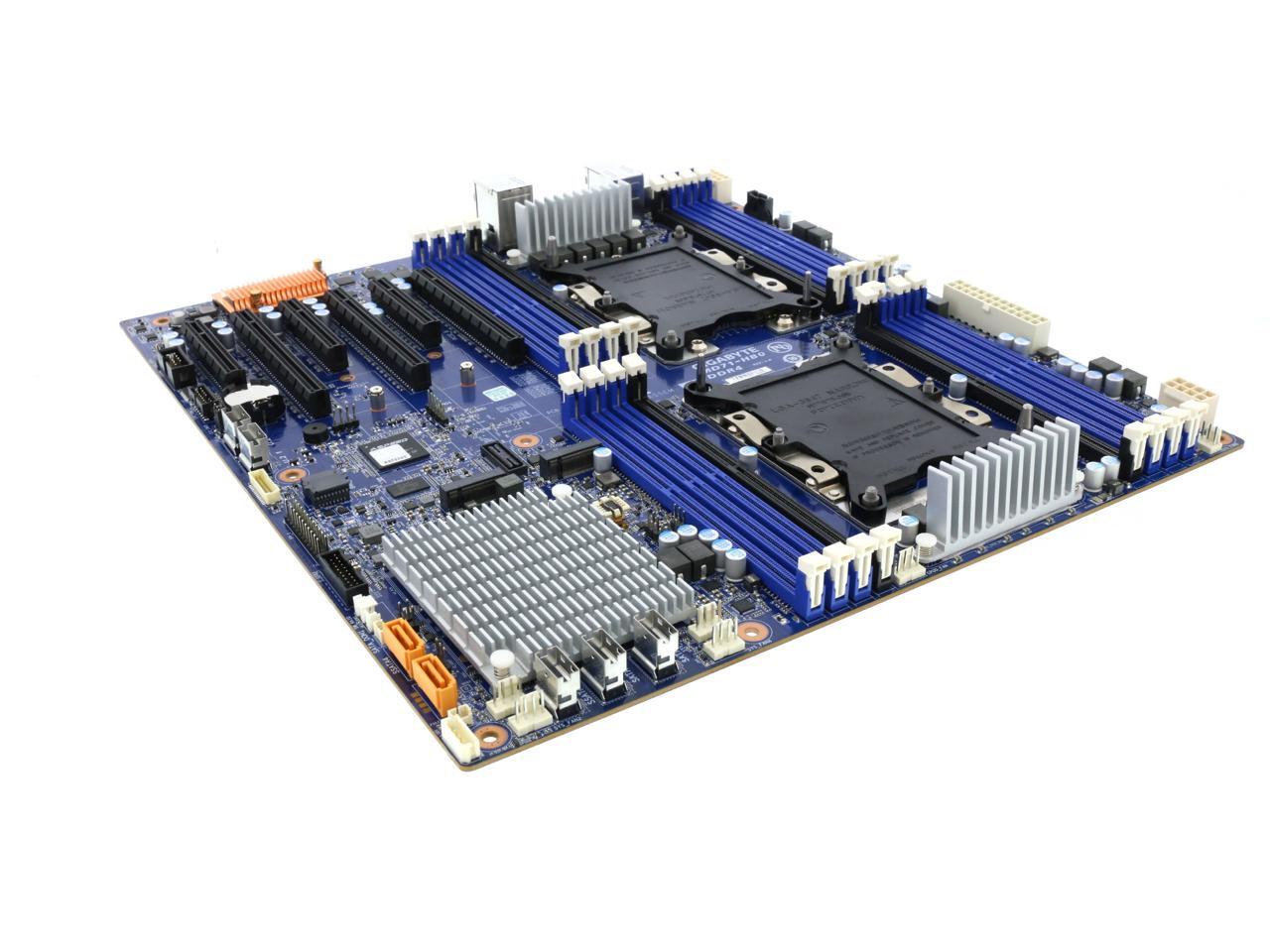

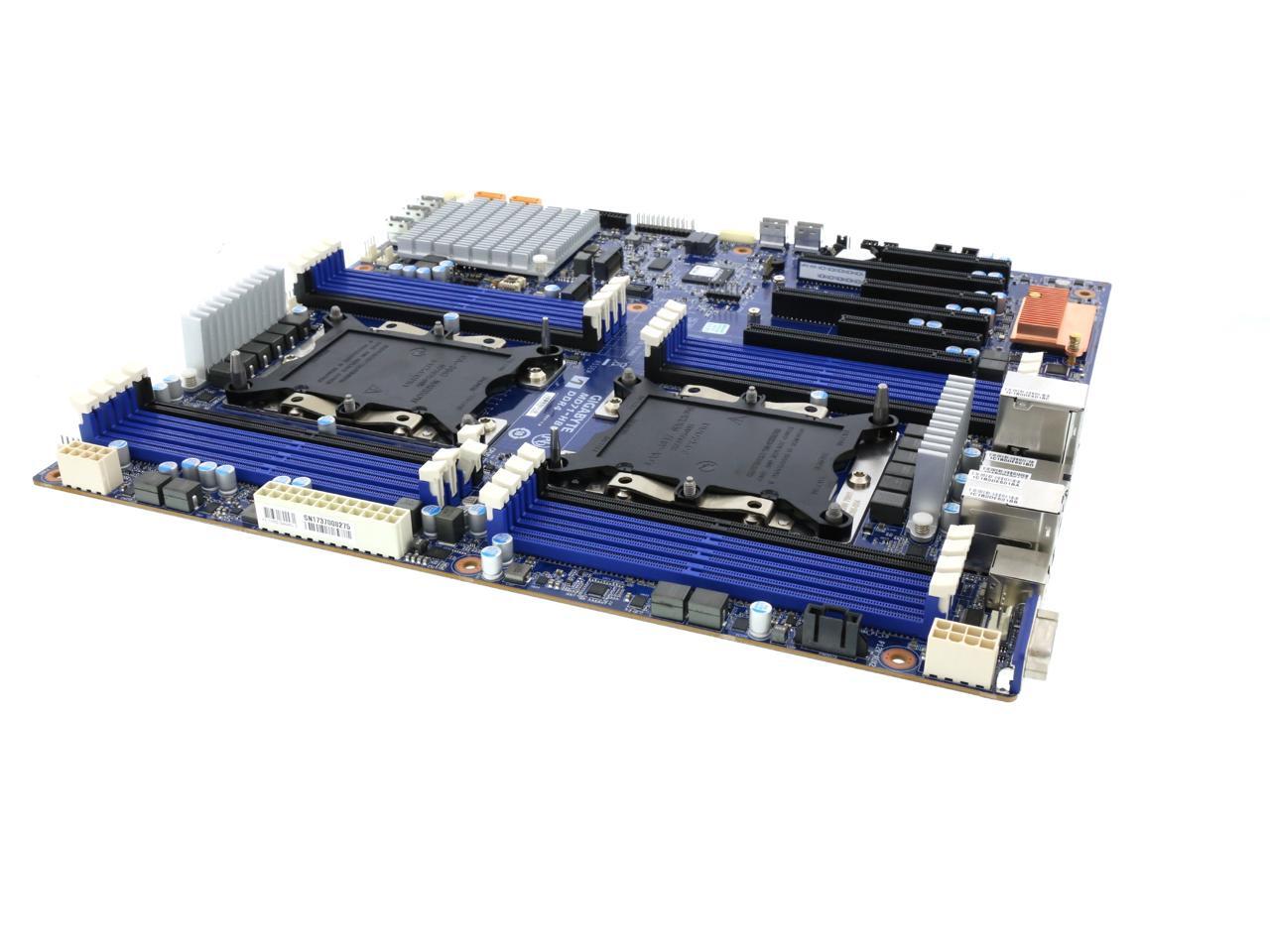

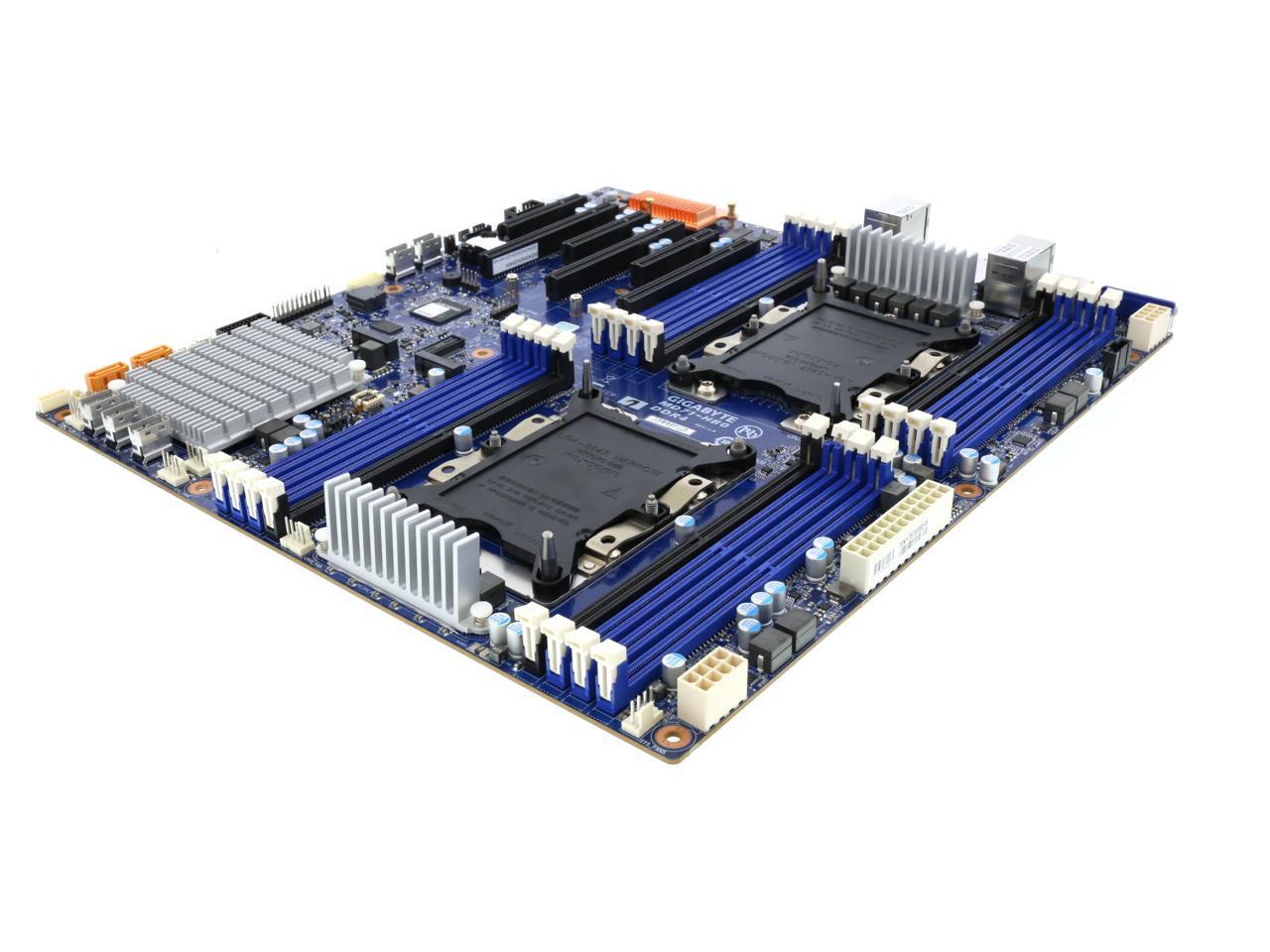

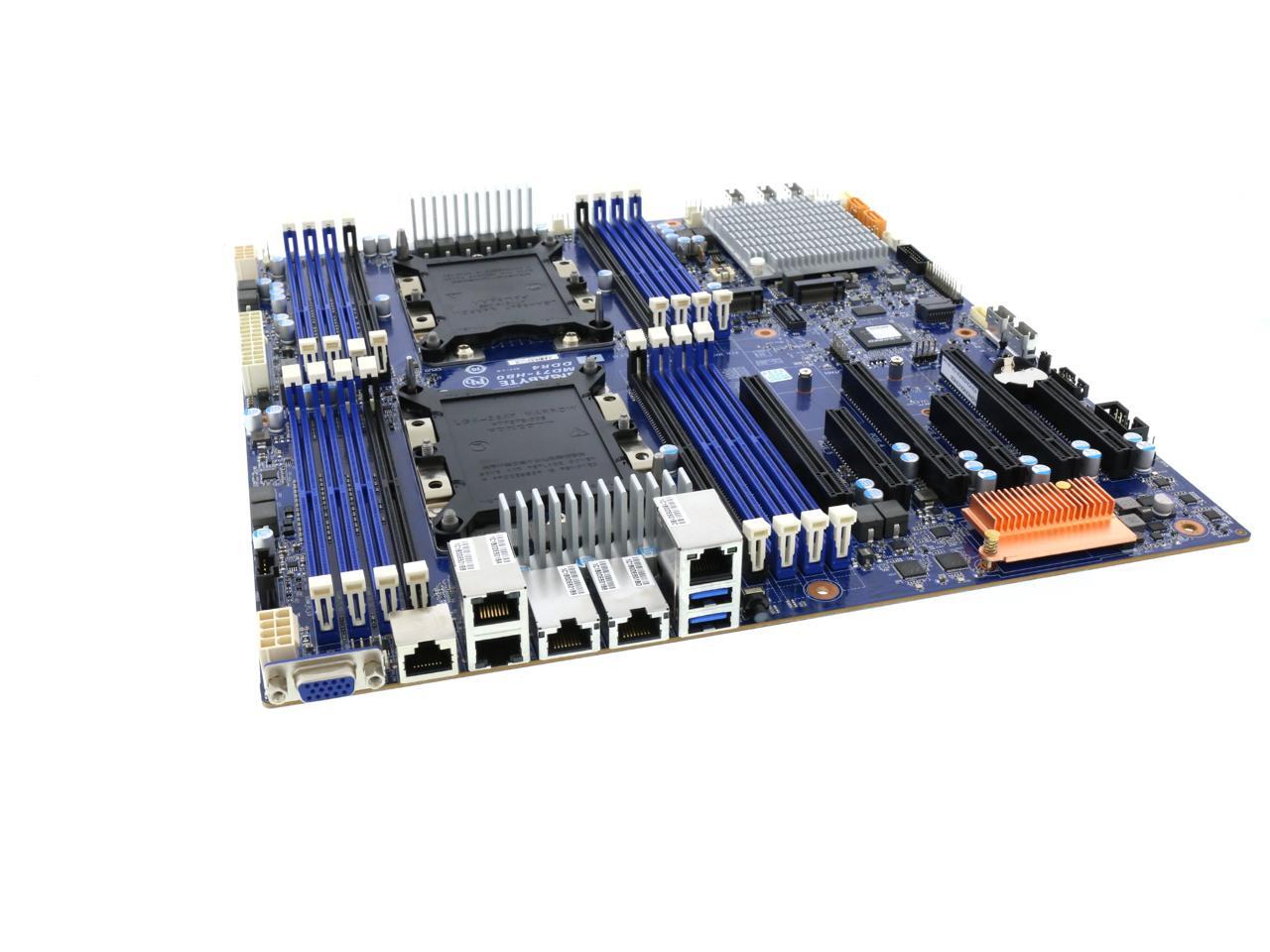

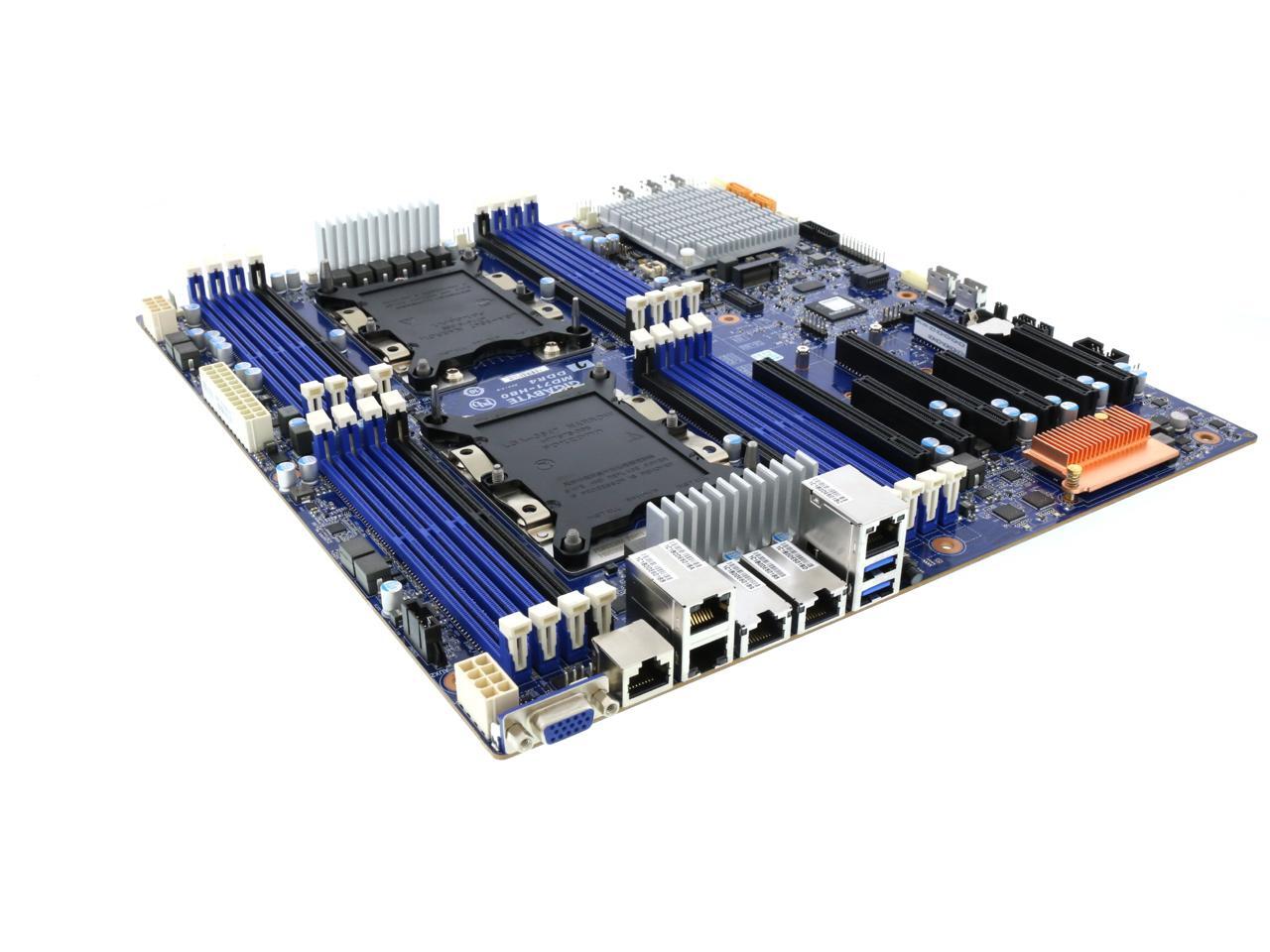

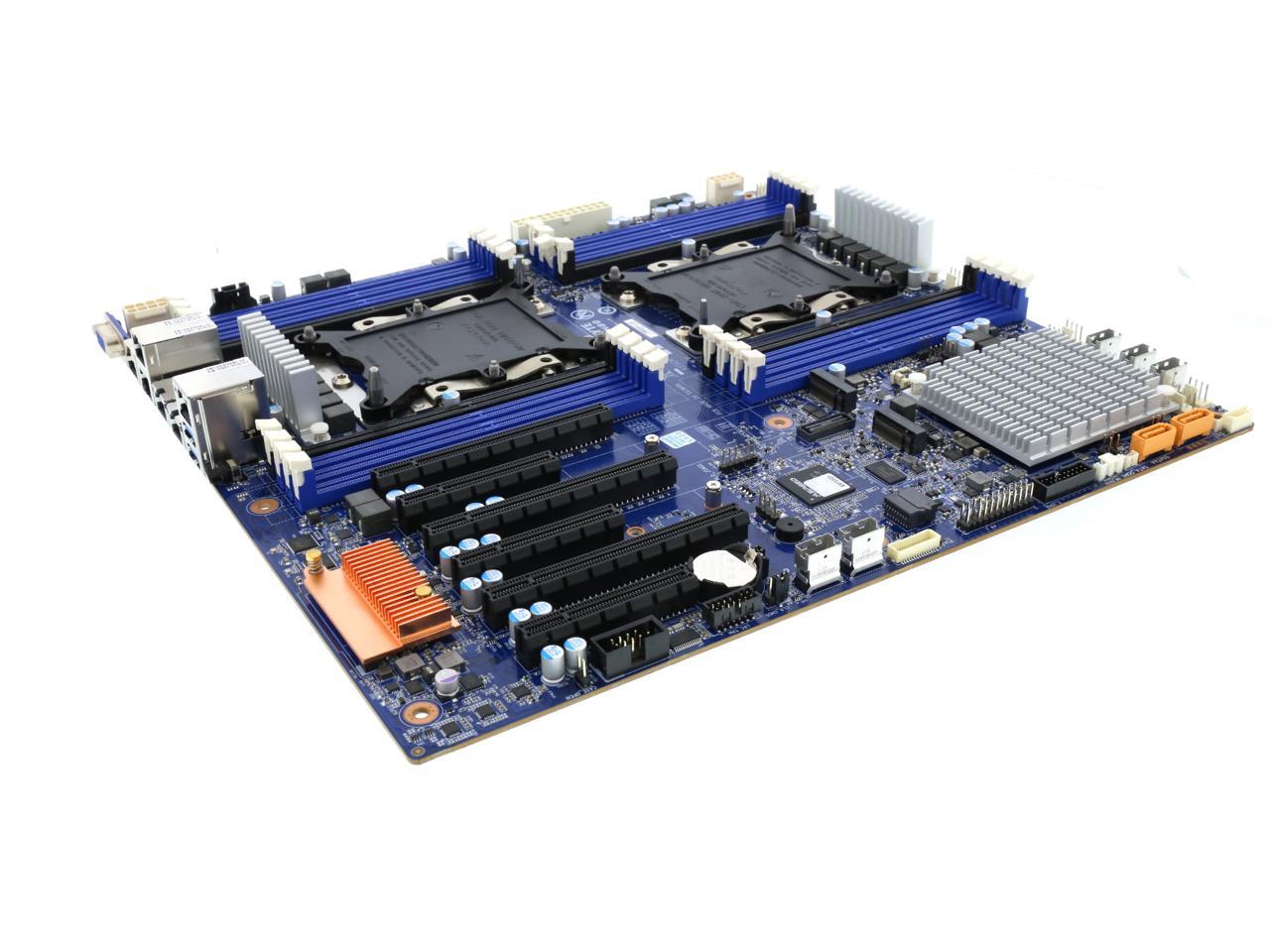

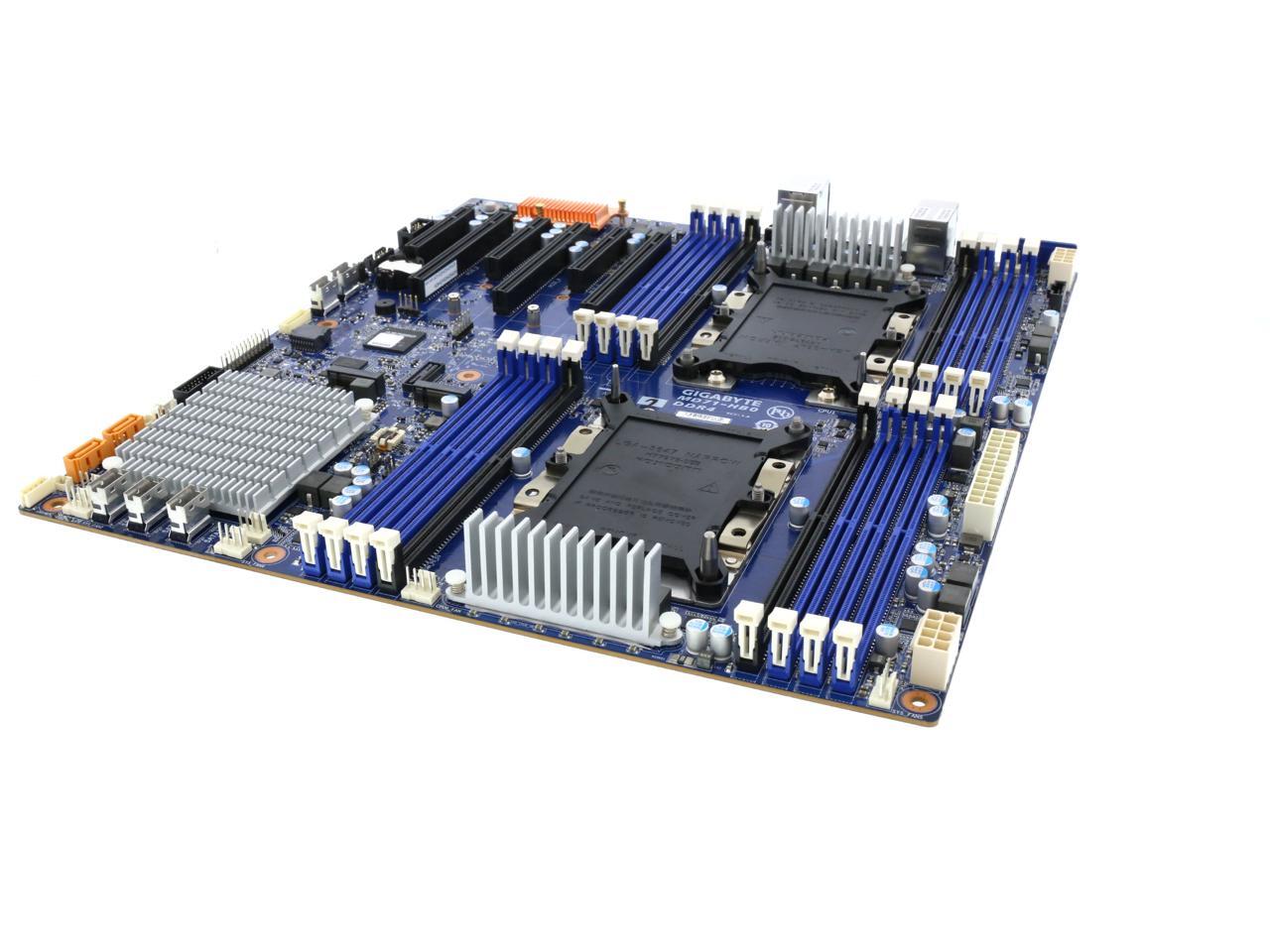

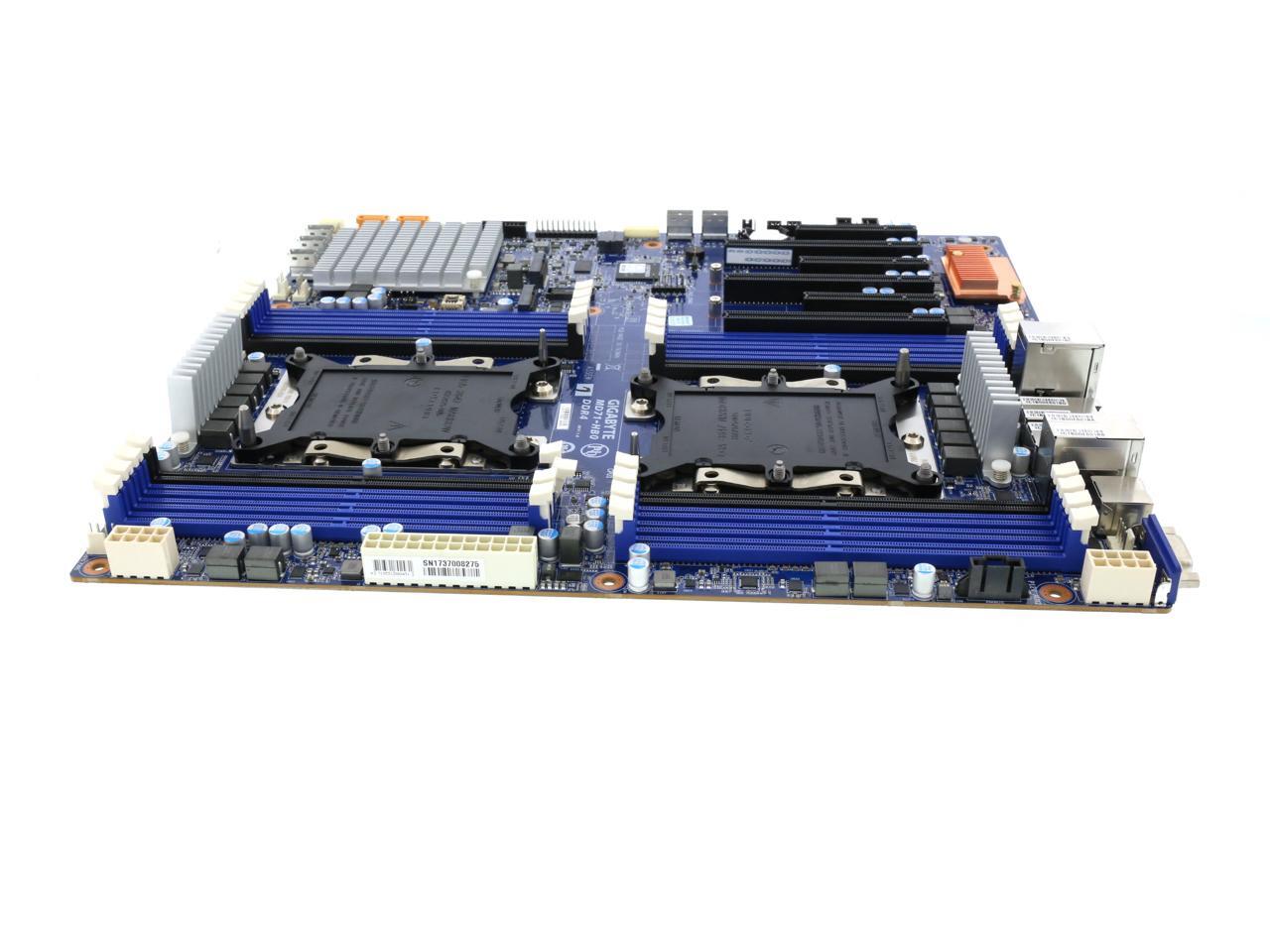

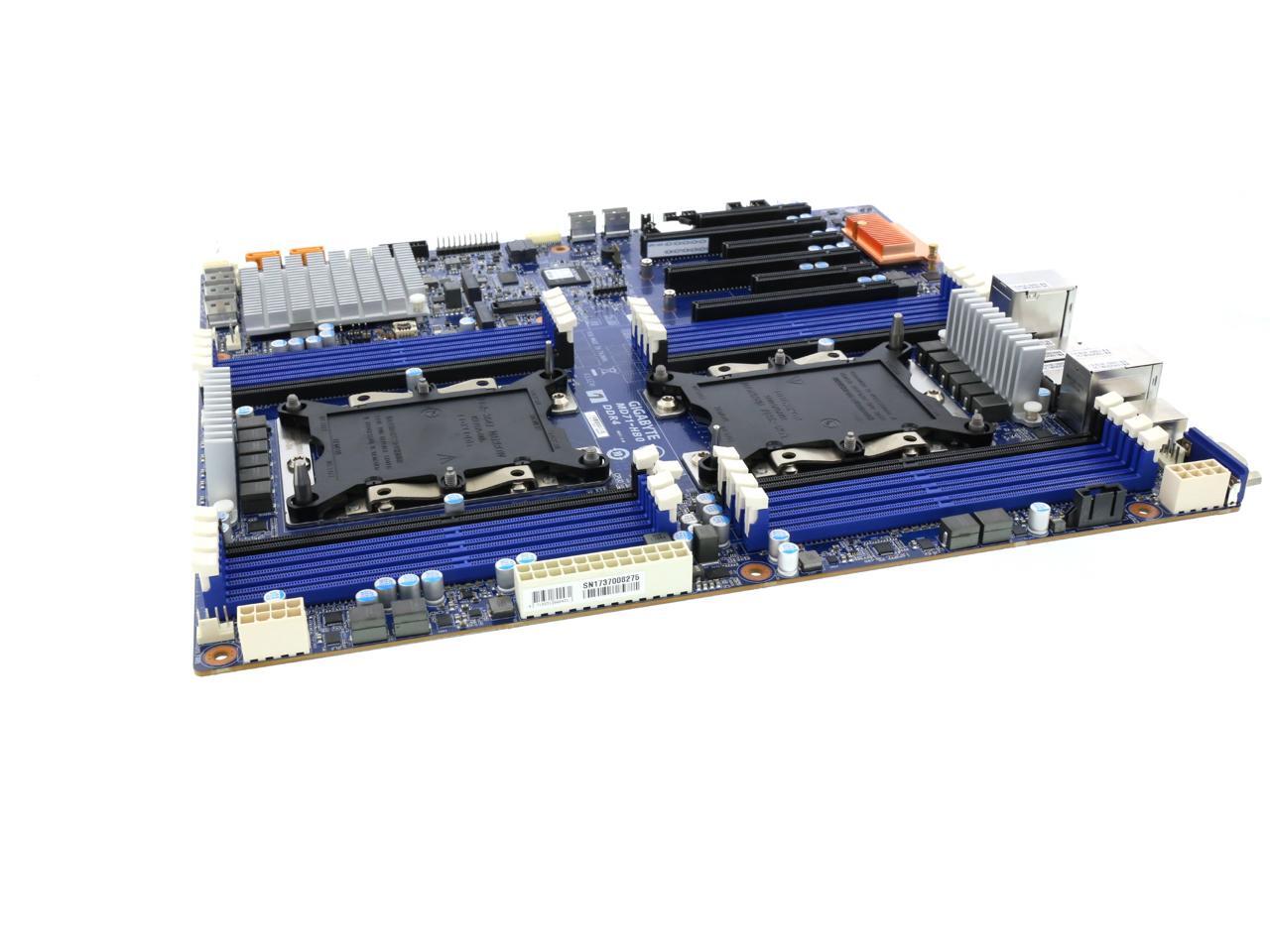

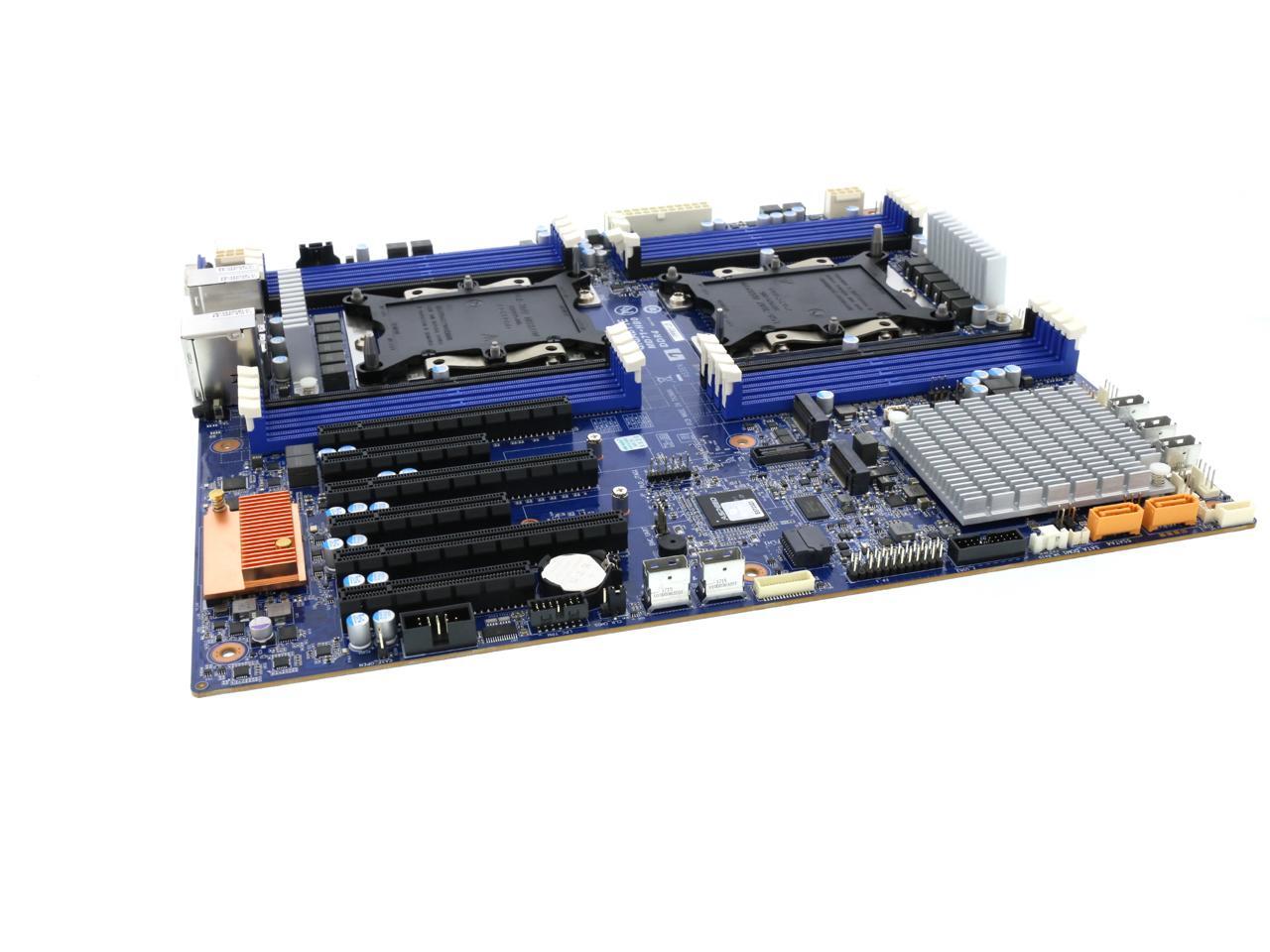

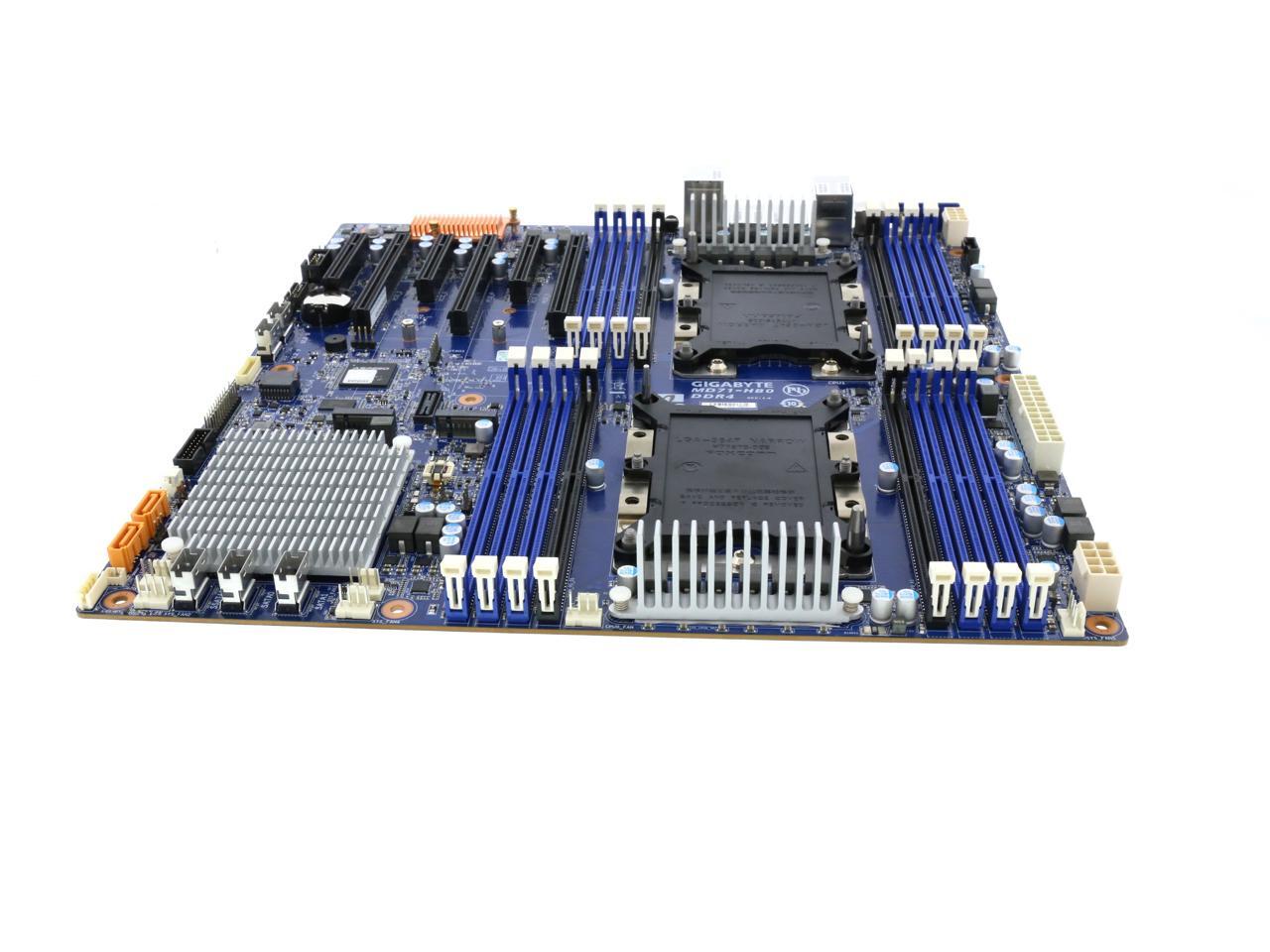

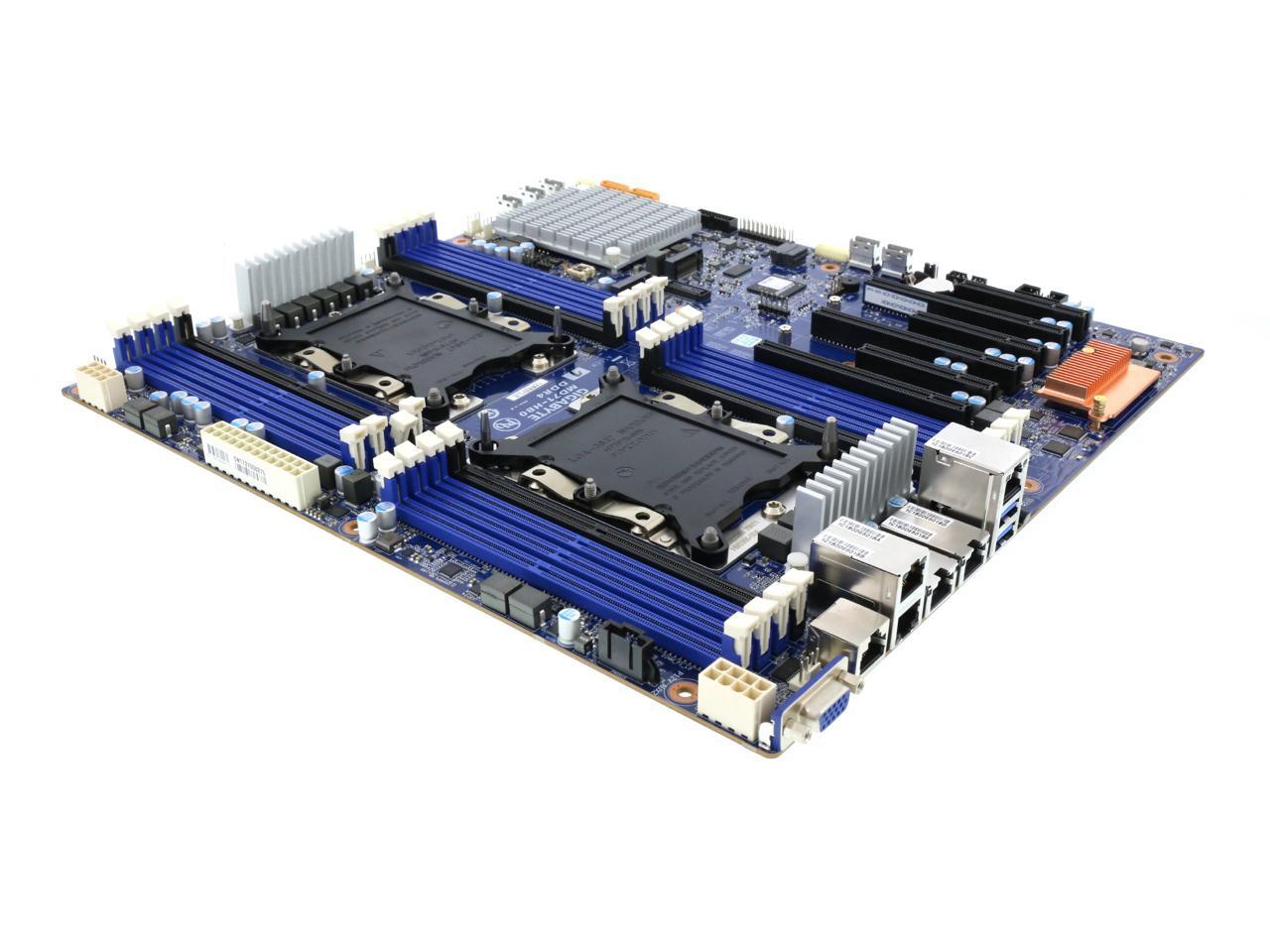

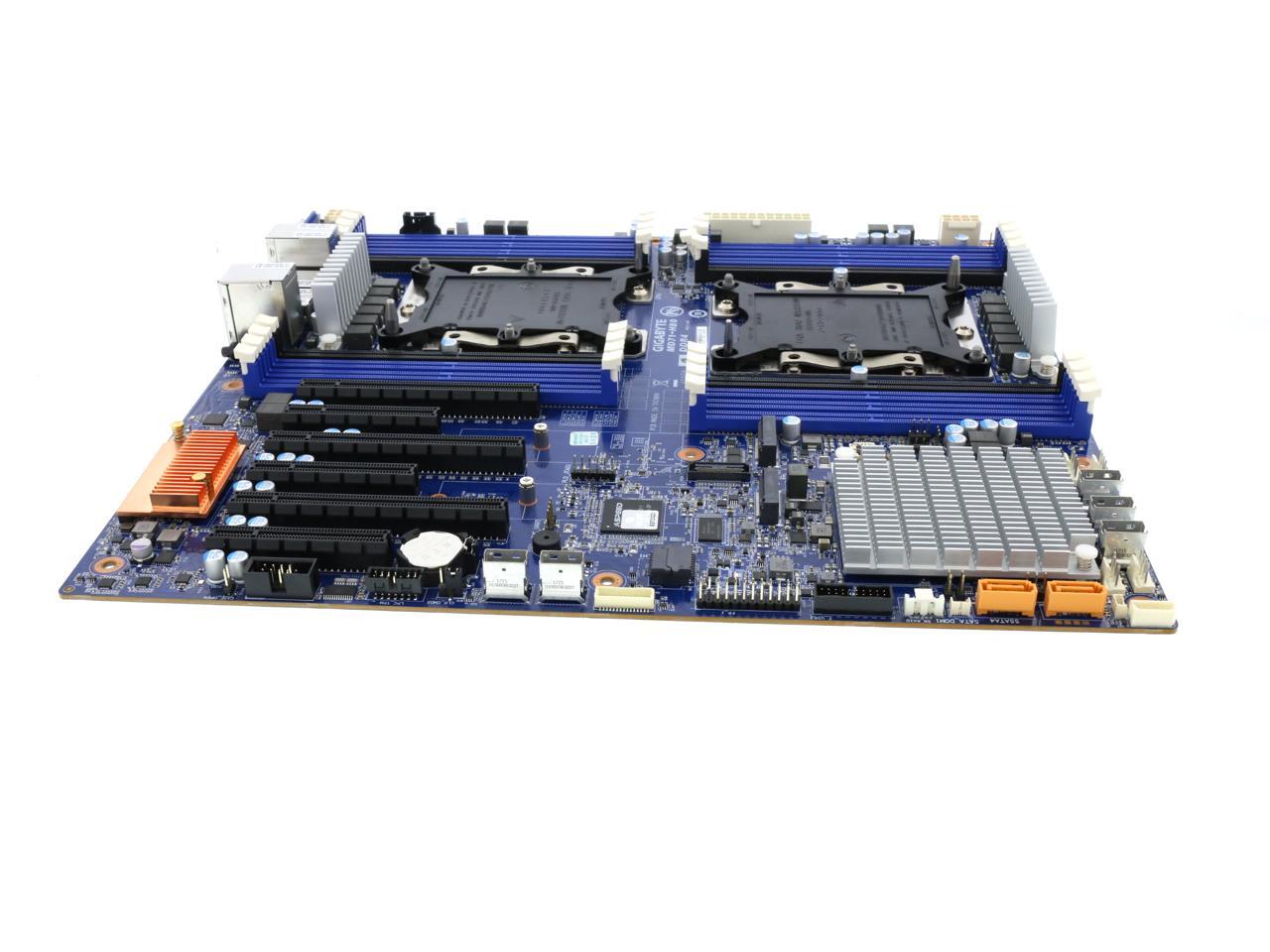

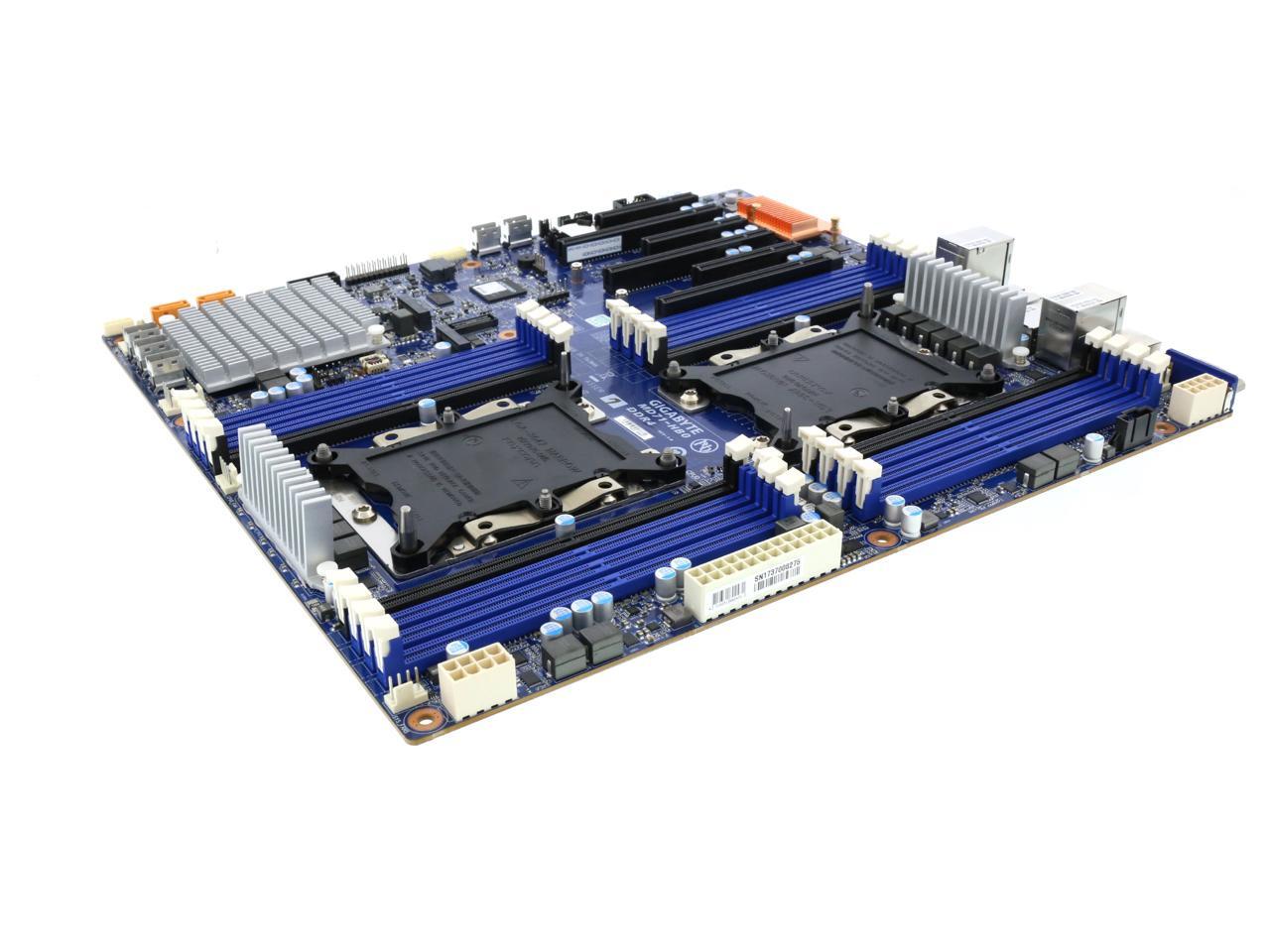

GIGABYTE MD71-HB0 Extended ATX Server Motherboard 2 x LGA 3647 Socket P0 Intel C622
- 2 x LGA 3647
- Socket P0
- Intel C622
Specs
Reviews
Learn more about the GIGABYTE MD71-HB0
| Brand | GIGABYTE |
|---|---|
| Model | MD71-HB0 |
| CPU Socket Type | 2 x LGA 3647 Socket P0 |
|---|---|
| CPU Type | Supports 2nd Gen Intel Xeon Scalable / Intel Xeon Scalable Processors Supports Intel Xeon Platinum / Xeon Gold / Xeon Silver / Xeon Bronze Processor |
| North Bridge | Intel C622 |
|---|
| Number of DDR4 Slots | 16 x DIMM slots |
|---|---|
| DDR4 Standard | DDR4 memory supported only 2666 / 2400 / 2133 MHz |
| Maximum Memory Supported | RDIMM modules up to 32GB supported LRDIMM modules up to 64GB supported |
| PCI Express 3.0 x16 | Slot_6: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1 Slot_4: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_1 Slot_2: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU_0 |
|---|---|
| PCI Express x8 | Slot_5: 1 x PCIe x8 (Gen3 x8 bus) slot from CPU_1 Slot_3: 1 x PCIe x8 (Gen3 x8 bus) slot from CPU_0 Slot_1: 1 x PCIe x8 (Gen3 x4 bus) slot from C622 |
| Other Slots | 2 x M.2 slots: M-key PCIe Gen3 x4 per slot Supports NGFF-22110/2280 cards From CPU_0 2 x U.2 ports: SlimSAS type PCIe Gen3 x4 per port From CPU_1 |
| SATA | 3 x SlimSAS for 12 x SATA III 6Gb/s ports 2 x 7-pin SATA III 6Gb/s with SATA DOM supported |
|---|---|
| SATA RAID | 0/1/10/5 |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | 2 x 10Gb/s BASE-T LAN ports (Intel X557-AT2) 2 x 1Gb/s LAN ports (Marvell 88E1514) 1 x 10/100/1000 management LAN |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| COM | 1 |
|---|---|
| Video Ports | 1 x VGA |
| RJ45 | 4 x RJ45 |
| USB 3.0 | 2 x USB 3.0 |
| Features | Intel Xeon Processor Scalable Family 6-Channel RDIMM / LRDIMM DDR4, 16 x DIMMs 2 x 10Gb/s BASE-T and 2 x 1Gb/s LAN ports 1 x Dedicated management port 3 x SlimSAS (for 12 x SATA 6Gb/s) ports 2 x SATA DOM supported Ultra-Fast M.2 and U.2 with PCIe Gen3 x4 interface Up to 6 PCIe Gen3 expansion slots Aspeed AST2500 remote management controller |
|---|
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 13.0" |
| First Listed on Newegg | November 28, 2017 |
|---|
