• $659.99
  • Add to PC build list
    Ships from United States.
    Price alert
    Sold by Newegg

    Shipped by Newegg

    Newegg PC Builder
    Shop it at NeweggBusiness.

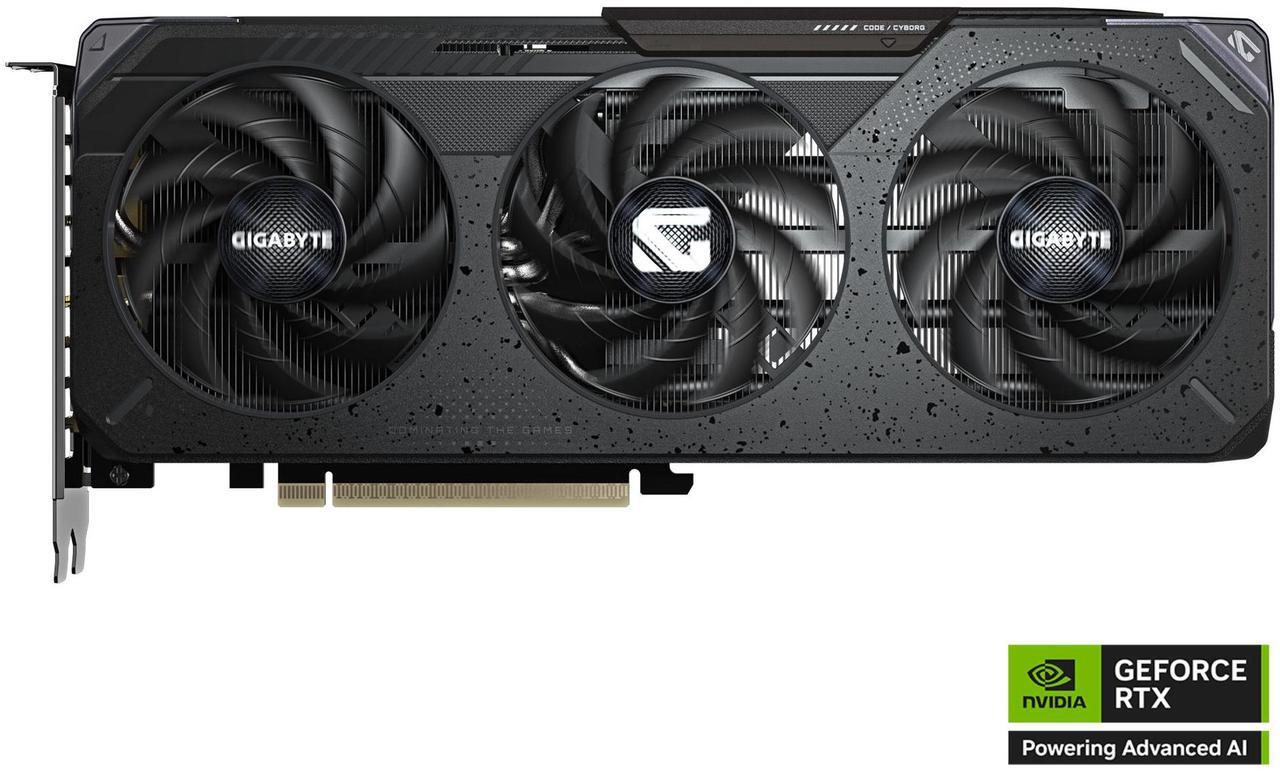

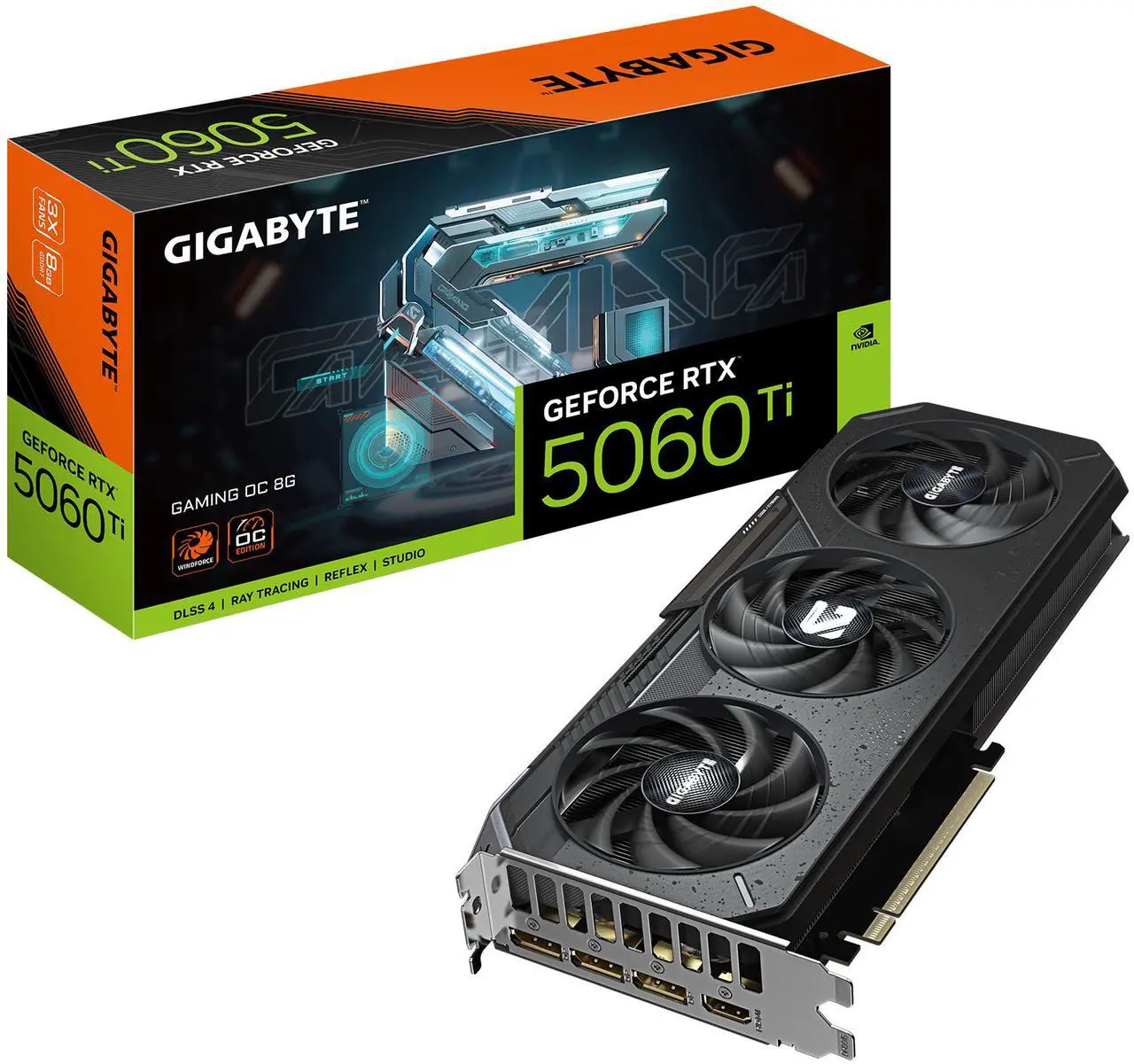

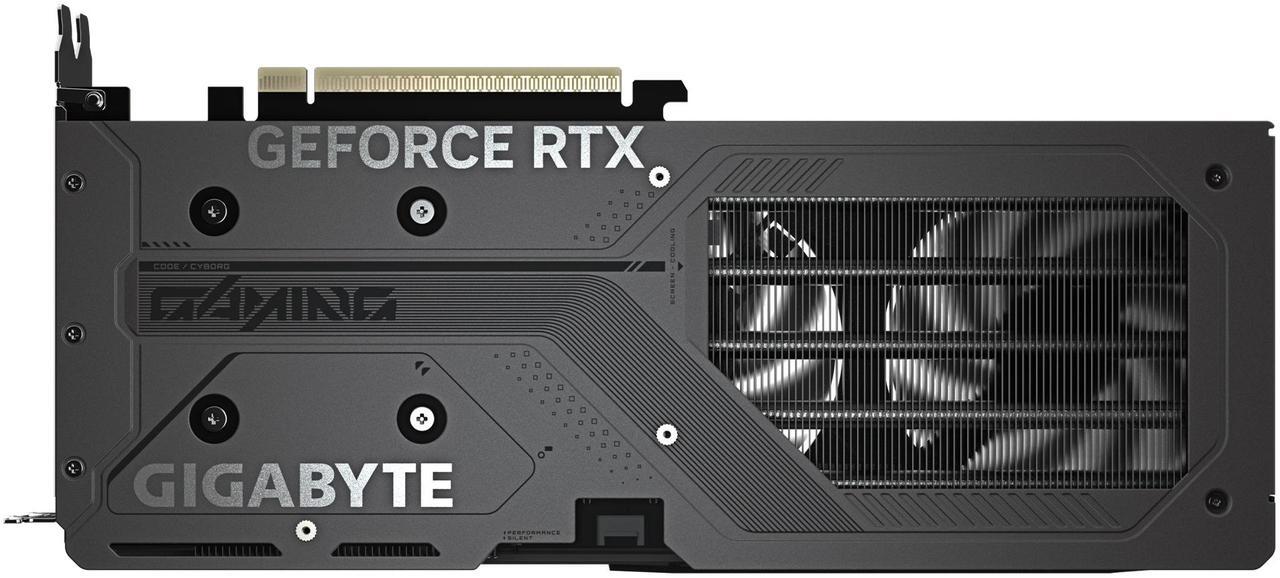

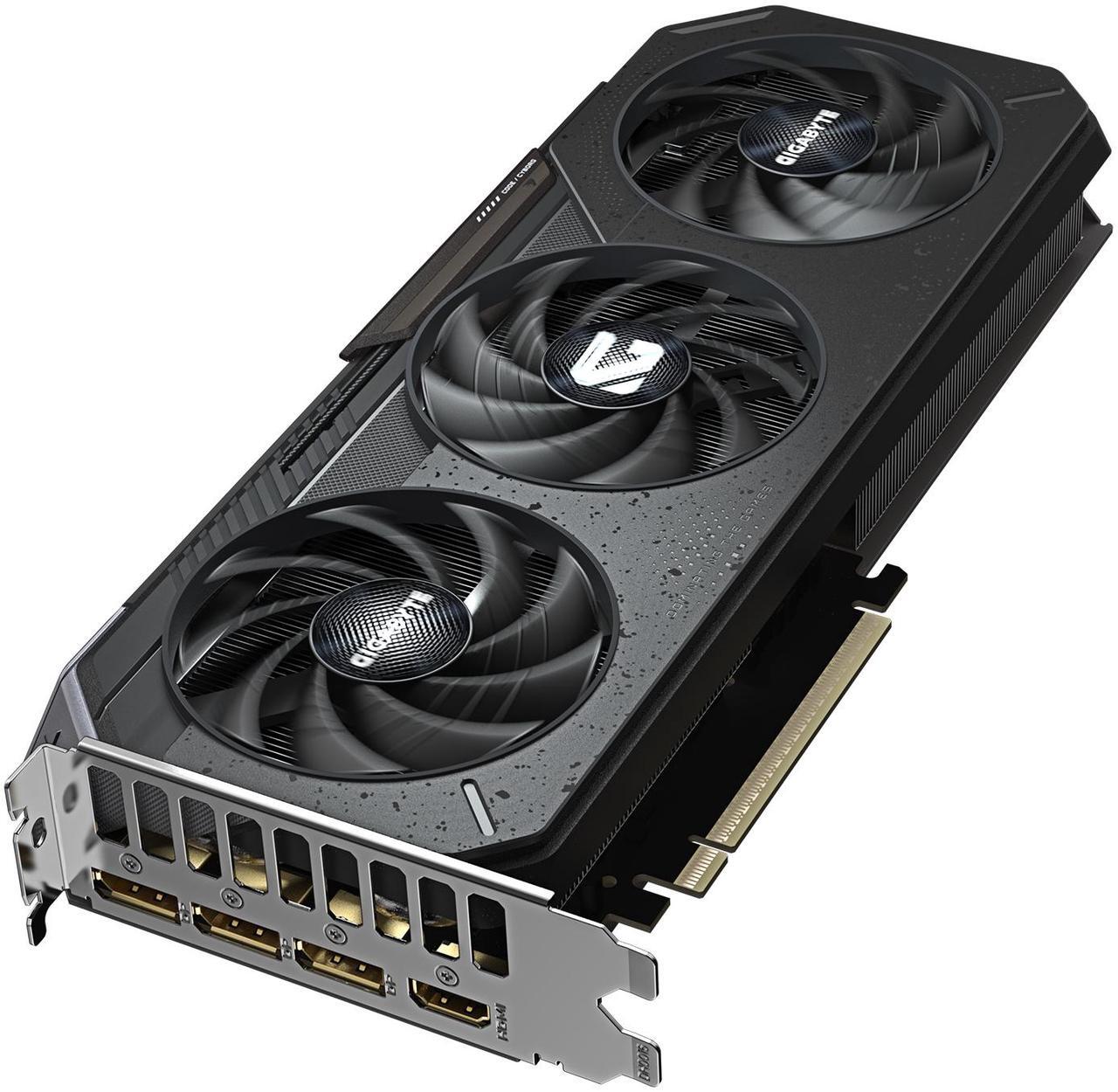

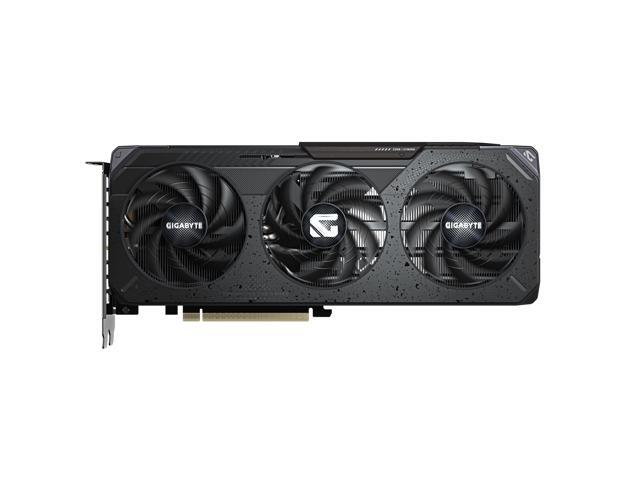

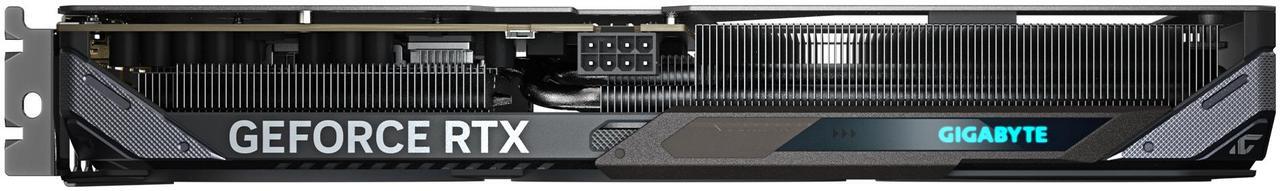

    GIGABYTE Gaming GeForce RTX 5060 Ti 8GB GDDR7 PCI Express 5.0 x8 ATX Graphics Card GV-N506TGAMING OC-8GD

    • AERO
    • Gaming
    • WindForce
    • EAGLE
    • RTX 5060 Ti 8GB
    • RTX 5060 Ti 8GB OC
    • RTX 5060 Ti 16GB OC
    • RTX 5060 Ti 16GB OC ICE
    • 8GB 128-Bit GDDR7
    • Core Clock 2647 MHz
    • 1 x HDMI 2.1b 3 x DisplayPort 2.1b
    • 4608 Cores CUDA Cores
    • PCI Express 5.0 x8
    +
    +
    Specs
    Reviews (35)

    Learn more about the GIGABYTE GV-N506TGAMING OC-8GD

    Model
    Brand GIGABYTE
    Series Gaming
    Model GV-N506TGAMING OC-8GD
    Part Number GV-N506TGAMING OC-8GD
    Interface
    Interface PCI Express 5.0 x8
    Chipset
    Chipset Manufacturer NVIDIA
    GPU Series NVIDIA GeForce RTX 50 Series
    GPU GeForce RTX 5060 Ti
    Core Clock 2647 MHz
    CUDA Cores 4608 Cores
    Memory
    Effective Memory Clock 28 GHz
    Memory Size 8GB
    Memory Interface 128-Bit
    Memory Type GDDR7
    3D API
    DirectX DirectX 12 Ultimate
    OpenGL OpenGL 4.6
    Ports
    Multi-Monitor Support 4
    HDMI 1 x HDMI 2.1b
    DisplayPort 3 x DisplayPort 2.1b
    Details
    Max Resolution 7680 x 4320
    SLI Support No
    Cooler Triple Fans
    Thermal Design Power 180W
    Power Connector 8-Pin
    HDCP Ready Yes
    Form Factor & Dimensions
    Form Factor ATX
    Max GPU Length 281 mm
    Card Dimensions (L x H) 281 x 119 x 40 mm
    Slot Width 2 Slots
    Additional Information
    Date First Available April 16, 2025

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 3 years
    • Limited Warranty period (labor): 3 years
    • Read full details
