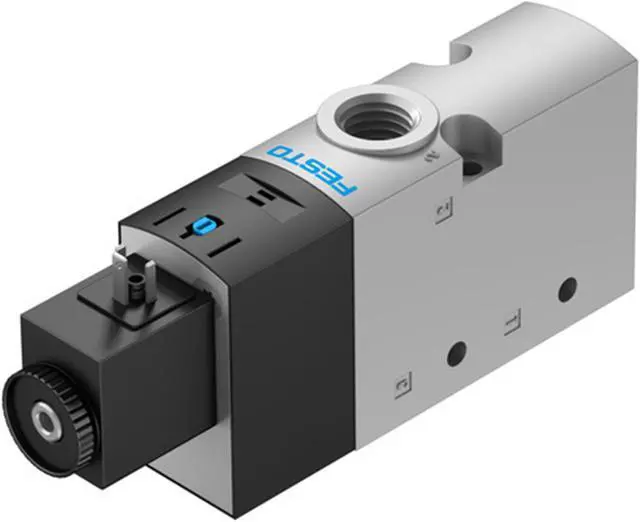

FESTO VUVS-L30-M32C-MZD-G38-F8-1C1 Air Solenoid Valve 575571 New
- FESTO VUVS-L30-M32C-MZD-G38-F8-1C1 Air Solenoid Valve 575571 New
+
+
Overview
Specs
Reviews
Exhaust air function With flow control option
Sealing principle Soft
Mounting position Any Manual override
Type of control Pilot-controlled
Pilot air supply port External
Flow direction Reversible
Symbol 00992879
Pilot pressure 2.5 bar ... 10 bar
b-value 0.3
C value 9.9 l/sbar
Switching time off 58 ms
On switching time 16 ms
Duty cycle 100%
Max. positive test pulse with 0 signal 2000 µs
Max. negative test pulse on 1 signal 3600 µs
Coil characteristics 24 V DC: 3.3 W
Permissible voltage fluctuations +/- 10 %
Width 15 mm
Standard nominal flow rate 18 l/min
Pneumatic working port Sub-base, size 15 mm as per ISO 15218
Operating voltage 24V AC
Sealing principle Soft
Mounting position Any Manual override
Type of control Pilot-controlled
Pilot air supply port External
Flow direction Reversible
Symbol 00992879
Pilot pressure 2.5 bar ... 10 bar
b-value 0.3
C value 9.9 l/sbar
Switching time off 58 ms
On switching time 16 ms
Duty cycle 100%
Max. positive test pulse with 0 signal 2000 µs
Max. negative test pulse on 1 signal 3600 µs
Coil characteristics 24 V DC: 3.3 W
Permissible voltage fluctuations +/- 10 %
Width 15 mm
Standard nominal flow rate 18 l/min
Pneumatic working port Sub-base, size 15 mm as per ISO 15218
Operating voltage 24V AC
