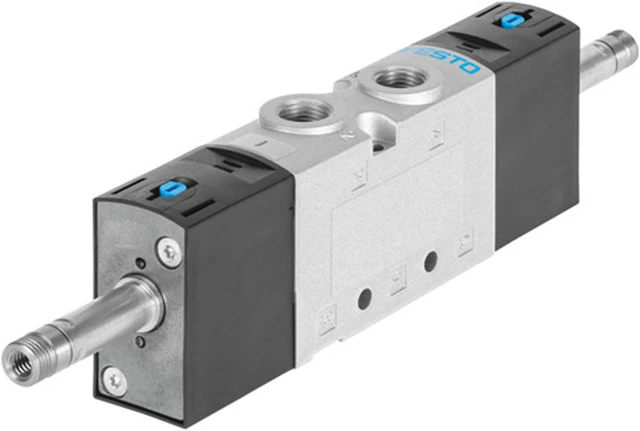

FESTO VUVS-L25-P53U-MD-G14-F8 575530 Air Solenoid Valve New

Valve function
5/3, pressurized
Material of screws
Steel, galvanized
Lap
Overlap
Actuation type
Electrical
Valve size
26.5 mm
Standard nominal flow rate
1000 l/min
Pneumatic working port
G1/4
Operating pressure
2.5 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
Certification
c UL us - Recognized (OL)
Nominal width
6.3 mm
Type code
VUVS
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Type of control
Pilot-controlled
Pilot air supply port
Internal
Flow direction
Non-reversible
Symbol
00991034
b-value
0.4
C value
4.3 l/sbar
Switching time off
48 ms
On switching time
14 ms
Changeover time
25 ms
Max. positive test pulse with 0 signal
2000 µs
Max. negative test pulse on 1 signal
3600 µs
Certificate issuing authority
DNVGL-TAA000011J
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-10 °C ... 60 °C
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 60 °C
Product weight
324 g
