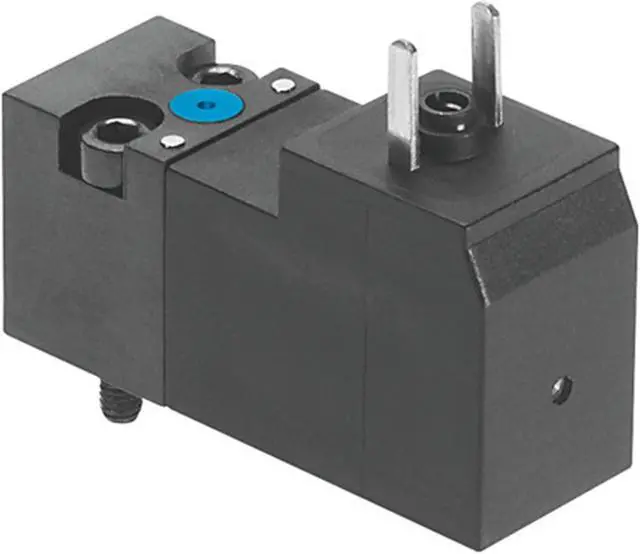

FESTO VUVS-L25-P53E-MZD-G14-F8-1B2 Air Solenoid Valve 575542 Valve size 26.5mm
- FESTO VUVS-L25-P53E-MZD-G14-F8-1B2 Air Solenoid Valve 575542 Valve size 26.5mm
+
+
Overview
Specs
Reviews
Valve function 5/3, exhausted
Material of screws Steel, galvanized
Lap Overlap
Actuation type Electrical
Valve size 26.5 mm
Standard nominal flow rate 1000 l/min
Pneumatic working port G1/4
Operating voltage 24V DC
Operating pressure -0.9 bar ... 10 bar
Design Piston gate valve
Reset method Mechanical spring
Degree of protection as per IEC 60529
With plug socket IP65
Certification c UL us - Recognized (OL)
Nominal width 6.3 mm
Material of screws Steel, galvanized
Lap Overlap
Actuation type Electrical
Valve size 26.5 mm
Standard nominal flow rate 1000 l/min
Pneumatic working port G1/4
Operating voltage 24V DC
Operating pressure -0.9 bar ... 10 bar
Design Piston gate valve
Reset method Mechanical spring
Degree of protection as per IEC 60529
With plug socket IP65
Certification c UL us - Recognized (OL)
Nominal width 6.3 mm
