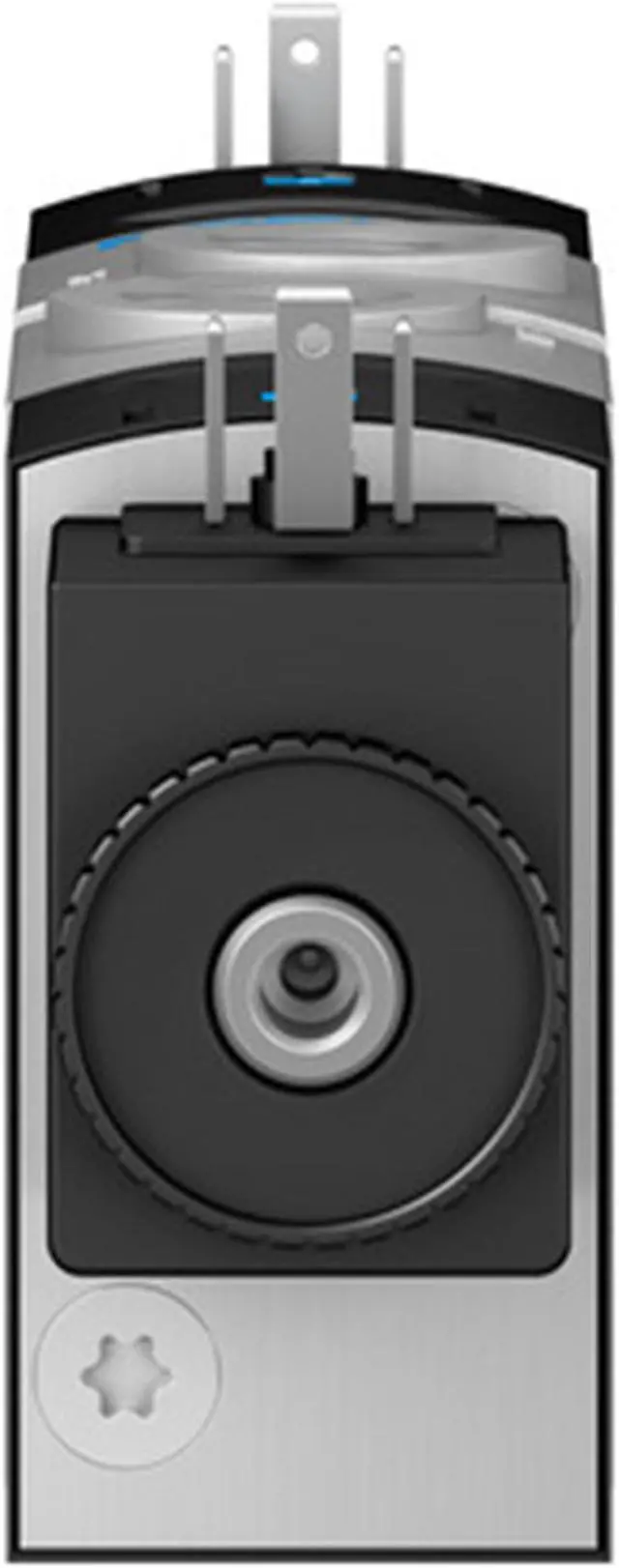

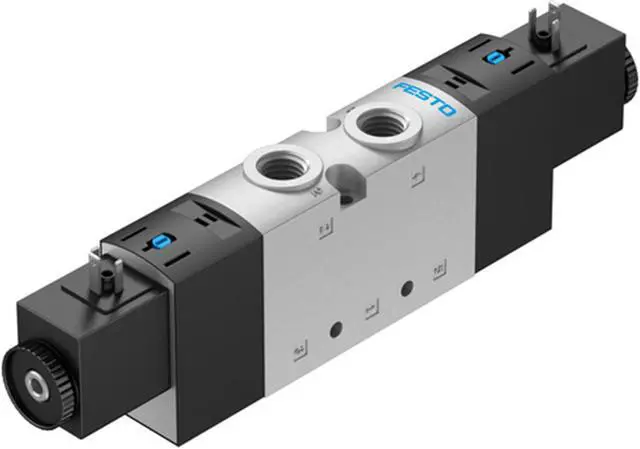

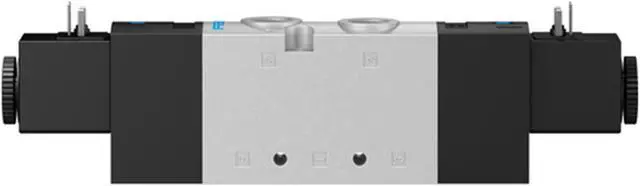

FESTO VUVS-L25-P53E-MZD-G14-F8-1B2 Air Solenoid Valve 575542 Valve size 26.5mm
- FESTO VUVS-L25-P53E-MZD-G14-F8-1B2 Air Solenoid Valve 575542 Valve size 26.5mm
+
+
Overview
Specs
Reviews
Valve function
5/3, exhausted
Material of screws
Steel, galvanized
Lap
Overlap
Actuation type
Electrical
Valve size
26.5 mm
Standard nominal flow rate
1000 l/min
Pneumatic working port
G1/4
Operating voltage
24V DC
Operating pressure
-0.9 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
Degree of protection
as per IEC 60529
With plug socket
IP65
Certification
c UL us - Recognized (OL)
Nominal width
6.3 mm
5/3, exhausted
Material of screws
Steel, galvanized
Lap
Overlap
Actuation type
Electrical
Valve size
26.5 mm
Standard nominal flow rate
1000 l/min
Pneumatic working port
G1/4
Operating voltage
24V DC
Operating pressure
-0.9 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
Degree of protection
as per IEC 60529
With plug socket
IP65
Certification
c UL us - Recognized (OL)
Nominal width
6.3 mm
