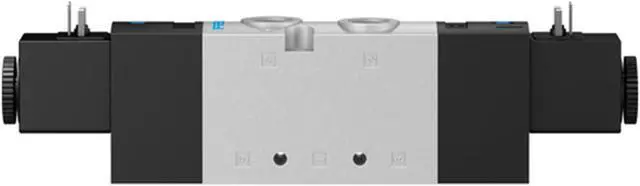

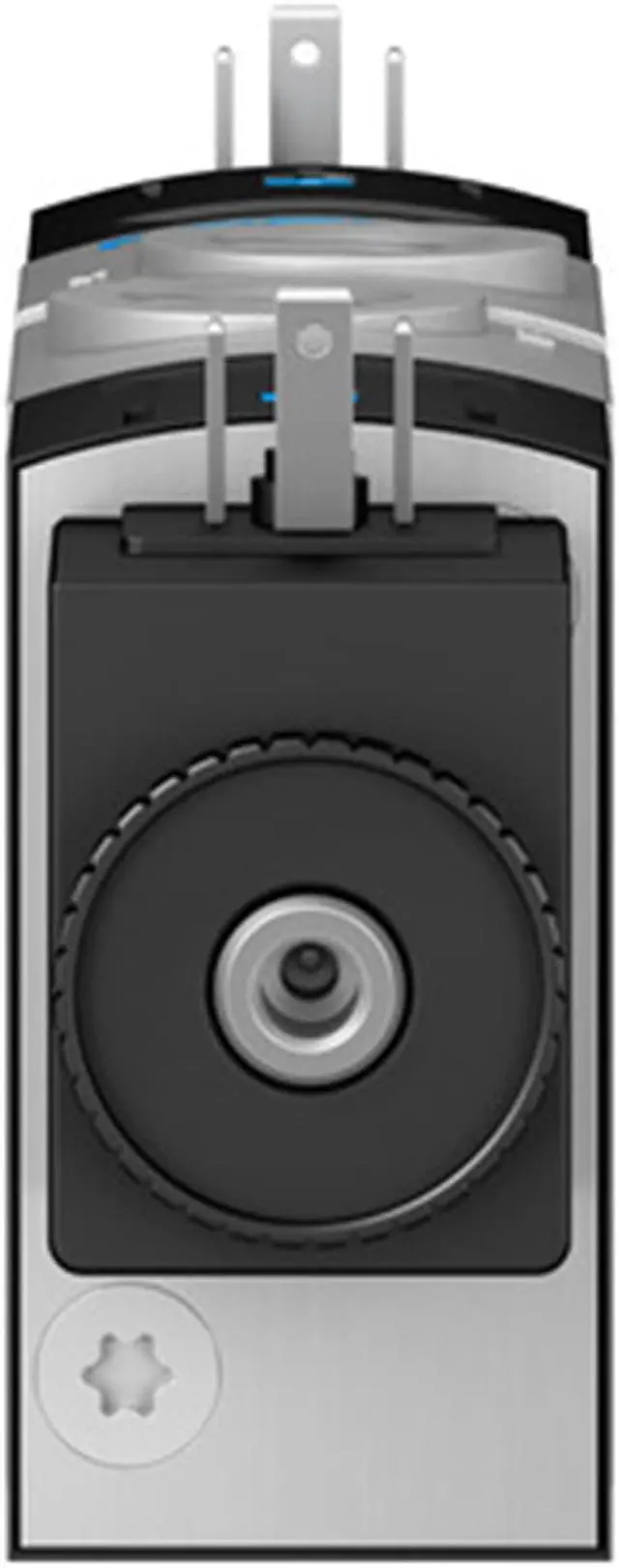

FESTO VUVS-L25-P53C-MZD-G14-F8-1C1 575526 Air Solenoid Valve New
- FESTO VUVS-L25-P53C-MZD-G14-F8-1C1 575526 Air Solenoid Valve New
+
+
Overview
Specs
Reviews
Valve function
5/3, closed
Material of screws
Steel, galvanized
Lap
Overlap
Actuation type
Electrical
Valve size
26.5 mm
Standard nominal flow rate
1200 l/min
Pneumatic working port
G1/4
Operating voltage
24V DC
Operating pressure
-0.9 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
Certification
c UL us - Recognized (OL)
Nominal width
6.5 mm
Type code
VUVS
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
ymbol
00991020
Pilot pressure
2.5 bar ... 10 bar
b-value
0.4
C value
5.2 l/sbar
Switching time off
42 ms
On switching time
13 ms
Changeover time
26 ms
Duty cycle
100%
Max. positive test pulse with 0 signal
2000 µs
Max. negative test pulse on 1 signal
3600 µs
Coil characteristics
24 V DC: 3.3 W
Permissible voltage fluctuations
+/- 10 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-10 °C ... 60 °C
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 60 °C
Product weight
430 g
5/3, closed
Material of screws
Steel, galvanized
Lap
Overlap
Actuation type
Electrical
Valve size
26.5 mm
Standard nominal flow rate
1200 l/min
Pneumatic working port
G1/4
Operating voltage
24V DC
Operating pressure
-0.9 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
Certification
c UL us - Recognized (OL)
Nominal width
6.5 mm
Type code
VUVS
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
ymbol
00991020
Pilot pressure
2.5 bar ... 10 bar
b-value
0.4
C value
5.2 l/sbar
Switching time off
42 ms
On switching time
13 ms
Changeover time
26 ms
Duty cycle
100%
Max. positive test pulse with 0 signal
2000 µs
Max. negative test pulse on 1 signal
3600 µs
Coil characteristics
24 V DC: 3.3 W
Permissible voltage fluctuations
+/- 10 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Temperature of medium
-10 °C ... 60 °C
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-10 °C ... 60 °C
Product weight
430 g
