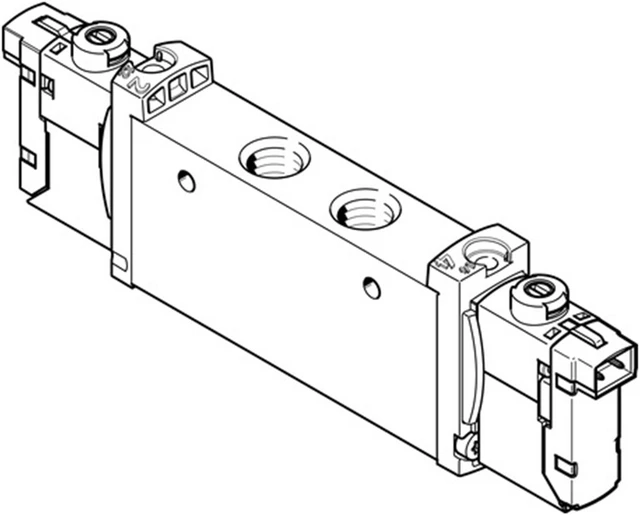

FESTO VUVG-L14-B52-T-G18-1H2L-W1 Air Solenoid Valve 577319 Valve Size 14mm
- FESTO VUVG-L14-B52-T-G18-1H2L-W1 Air Solenoid Valve 577319 Valve Size 14mm
+
+
Overview
Specs
Reviews
Valve function
5/2, bistable
Lap
Overlap
Actuation type
Electrical
Valve size
14 mm
Standard nominal flow rate
700 l/min ... 780 l/min
Pneumatic working port
G1/8
Operating voltage
24V DC
Operating pressure
1.5 bar ... 8 bar
Design
Piston gate valve
Degree of protection
With plug socket
IP40
Certification
RCM compliance mark
c CSA us (OL)
c UL us - Recognized (OL)
Nominal width
5.6 mm
Type code
VUVG
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Manual override
Covered
Non-detenting
Detenting
Type of control
Pilot-controlled
Pilot air supply port
Internal
Symbol
00992897
Pilot pressure
1.5 bar ... 8 bar
Suitability for vacuum
no
Changeover time
8 ms
Duty cycle
100%
Max. positive test pulse with 0 signal
700 µs
Max. negative test pulse on 1 signal
900 µs
Coil characteristics
24 V DC: 1.0 W
5/2, bistable
Lap
Overlap
Actuation type
Electrical
Valve size
14 mm
Standard nominal flow rate
700 l/min ... 780 l/min
Pneumatic working port
G1/8
Operating voltage
24V DC
Operating pressure
1.5 bar ... 8 bar
Design
Piston gate valve
Degree of protection
With plug socket
IP40
Certification
RCM compliance mark
c CSA us (OL)
c UL us - Recognized (OL)
Nominal width
5.6 mm
Type code
VUVG
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Manual override
Covered
Non-detenting
Detenting
Type of control
Pilot-controlled
Pilot air supply port
Internal
Symbol
00992897
Pilot pressure
1.5 bar ... 8 bar
Suitability for vacuum
no
Changeover time
8 ms
Duty cycle
100%
Max. positive test pulse with 0 signal
700 µs
Max. negative test pulse on 1 signal
900 µs
Coil characteristics
24 V DC: 1.0 W
